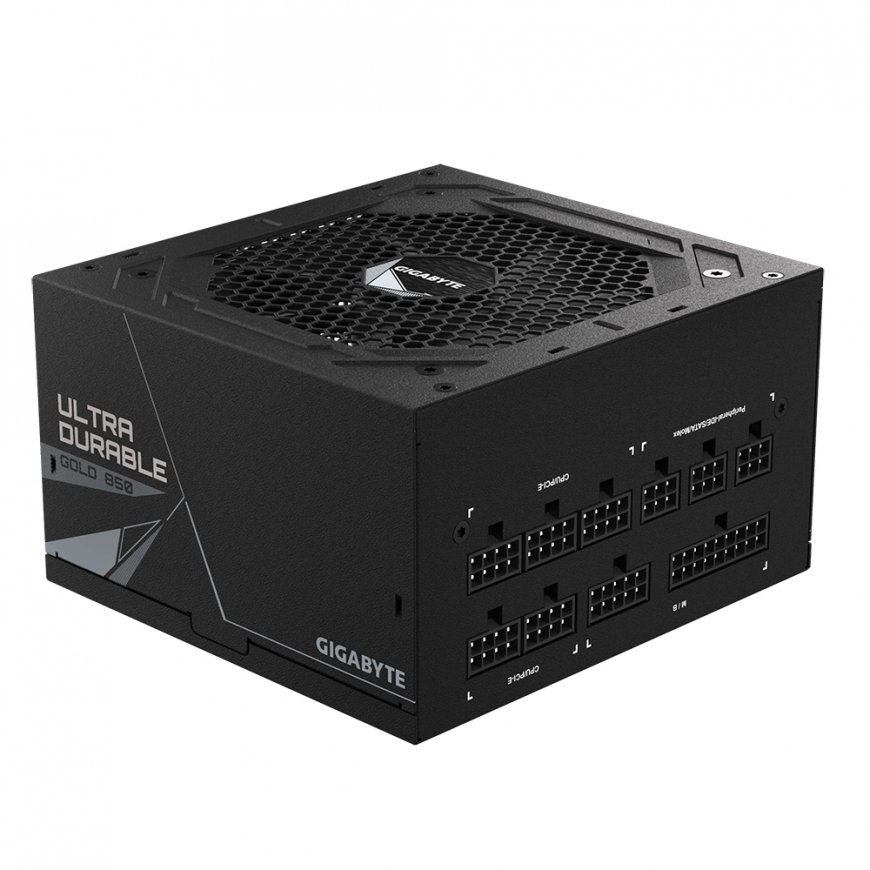

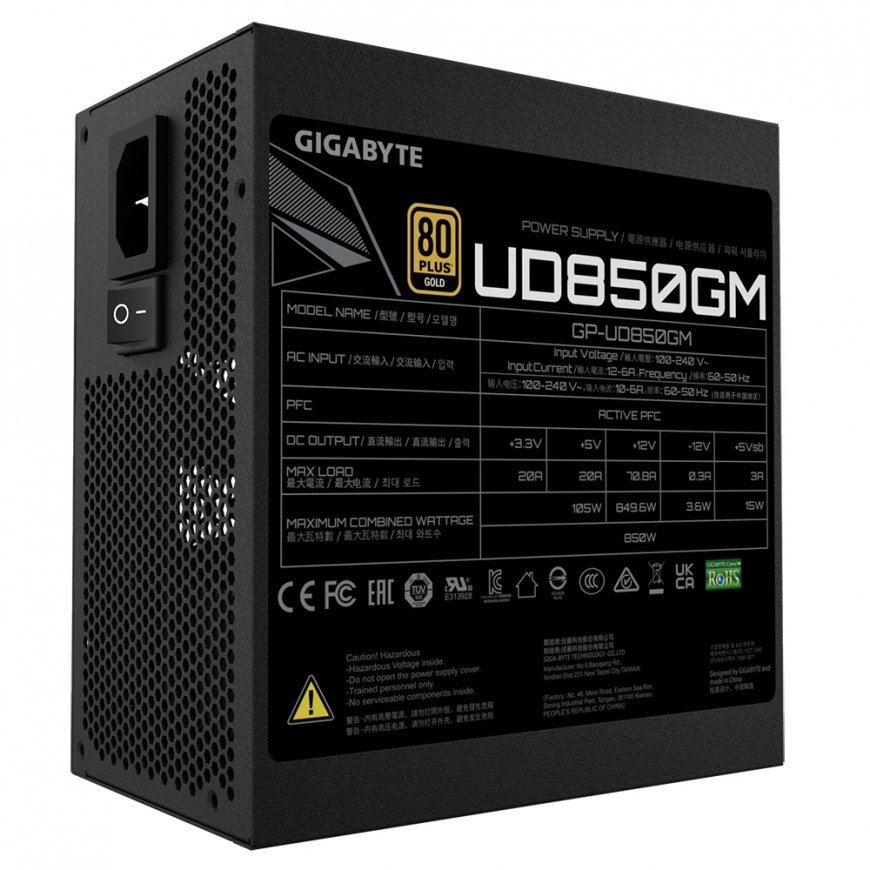

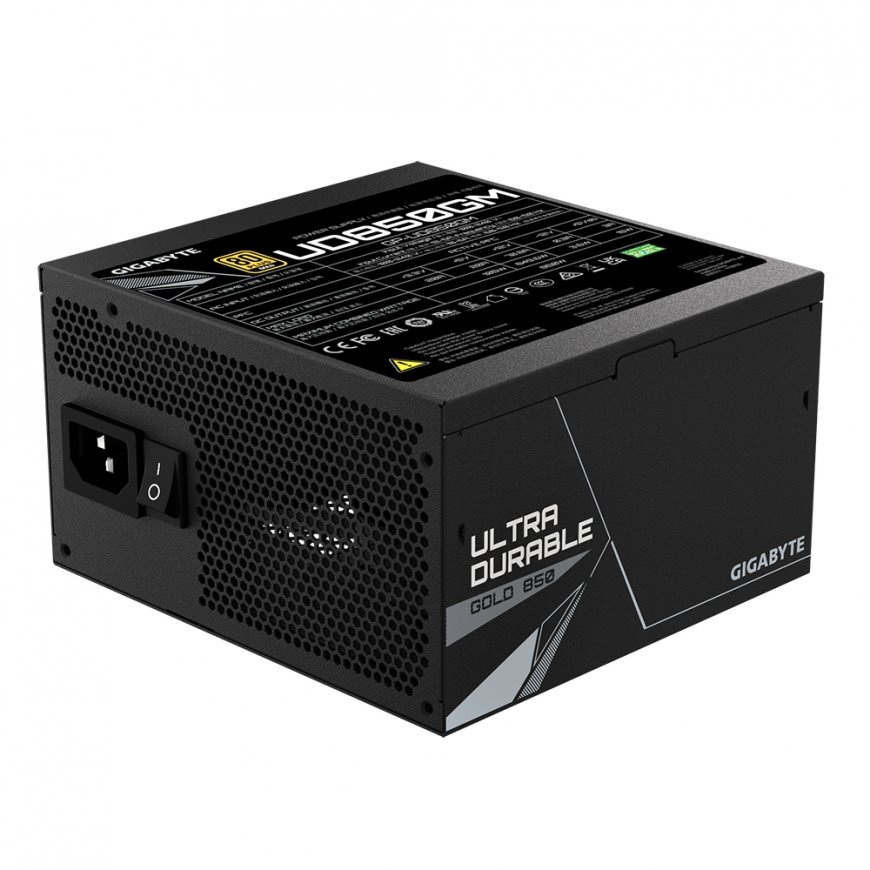

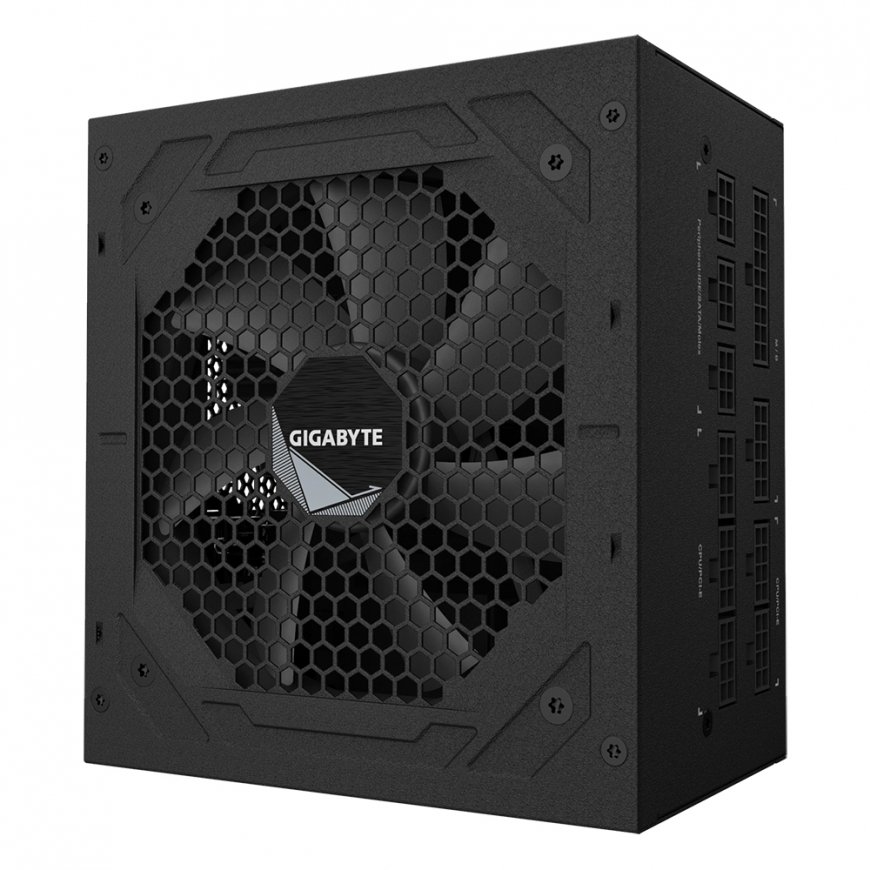

GIGABYTE UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
108,31 €
103.81 €
Monthly payment from 3,57 €
1117507 GP-UD850GM
4719331552541, 0810075651935
Shipping 15-16 b.d.
You are interested in this product?
All about the product
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

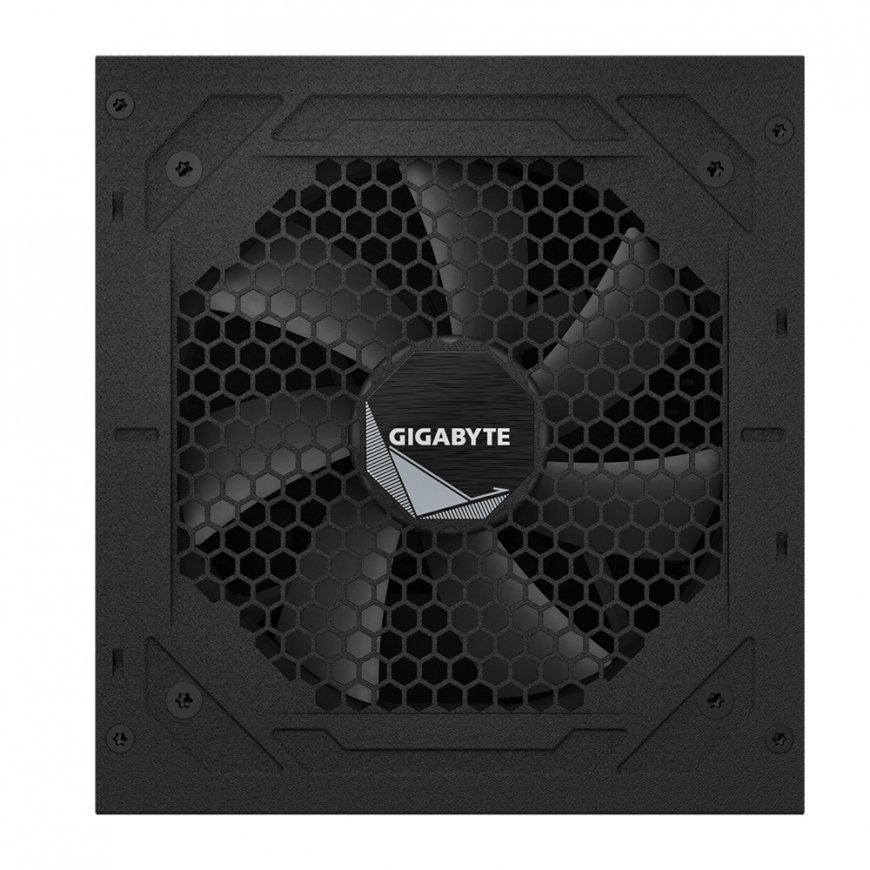

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 12 A |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@220V) | 6 A |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 2 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 61 cm |
| CPU power cable length | 60 cm |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
