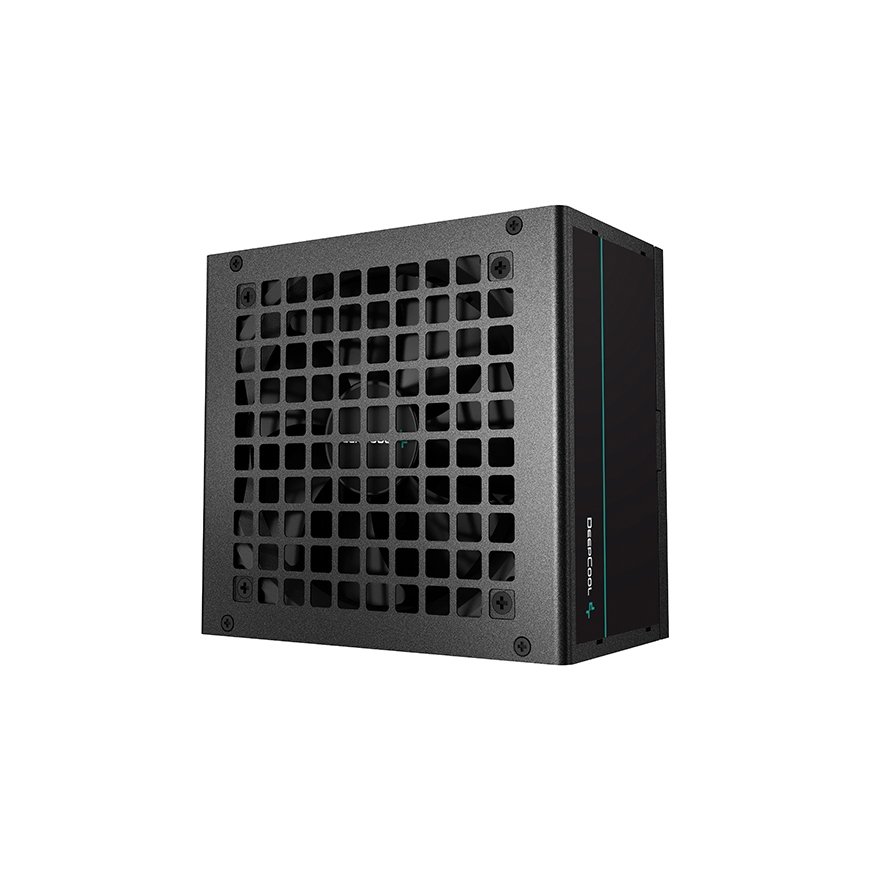

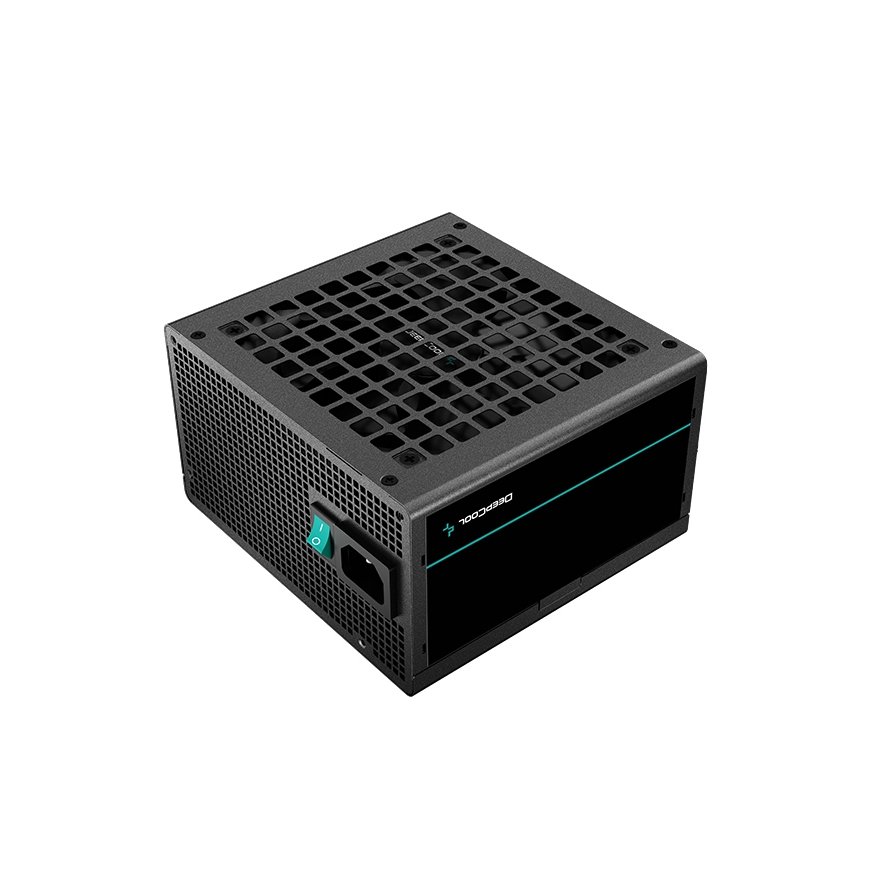

DeepCool PF450 power supply unit 450 W 20+4 pin ATX ATX Black
42.71 €
Monthly payment from 2,00 €
1103061 R-PF450D-HA0B-EU
6933412709343
Shipping 8-11 b.d.
You are interested in this product?
All about the product
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

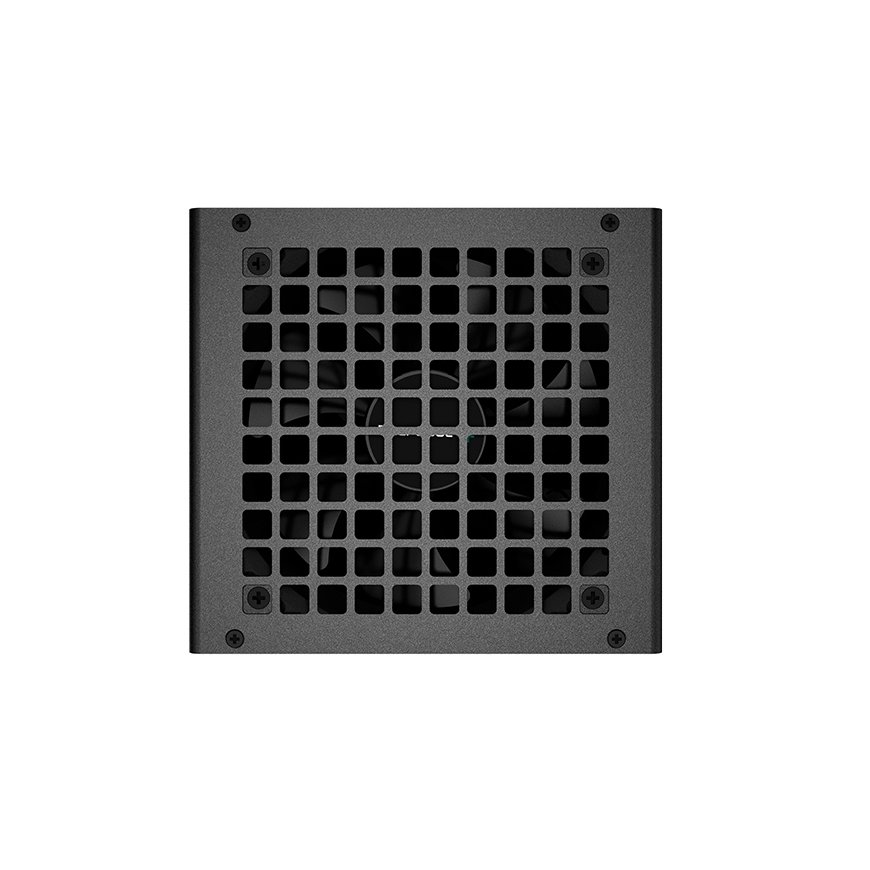

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

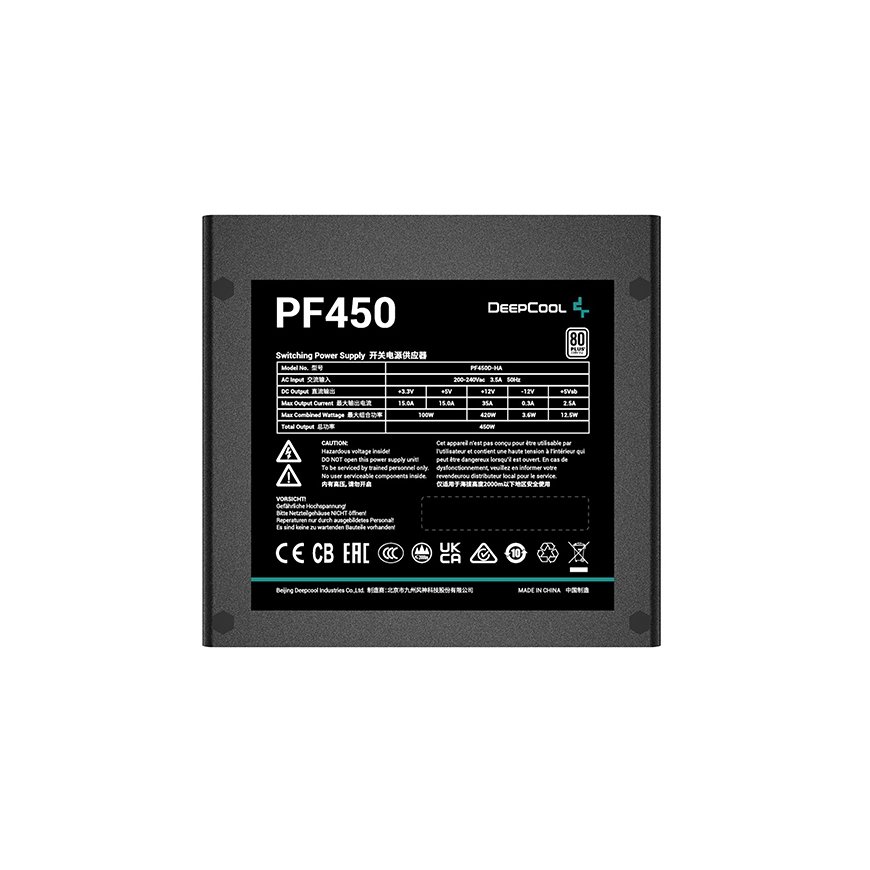

Power | |
| Hold time | 16 ms |
| Efficiency | 85% |
| Input current | 3.5 A |
| Power protection features | Overload, Over voltage, Short circuit |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 35 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Total power | 450 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.4 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS White |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
Ports & interfaces | |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power cable length | 150 mm |
| PCI Express power cable length | 51 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 40 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP |
