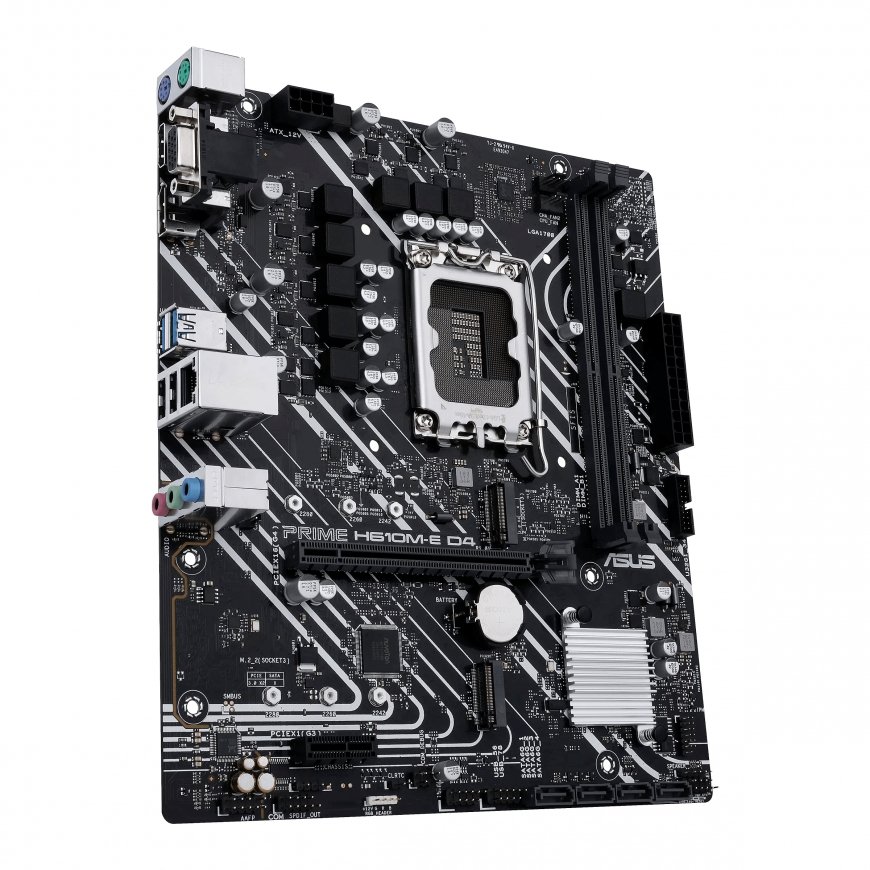

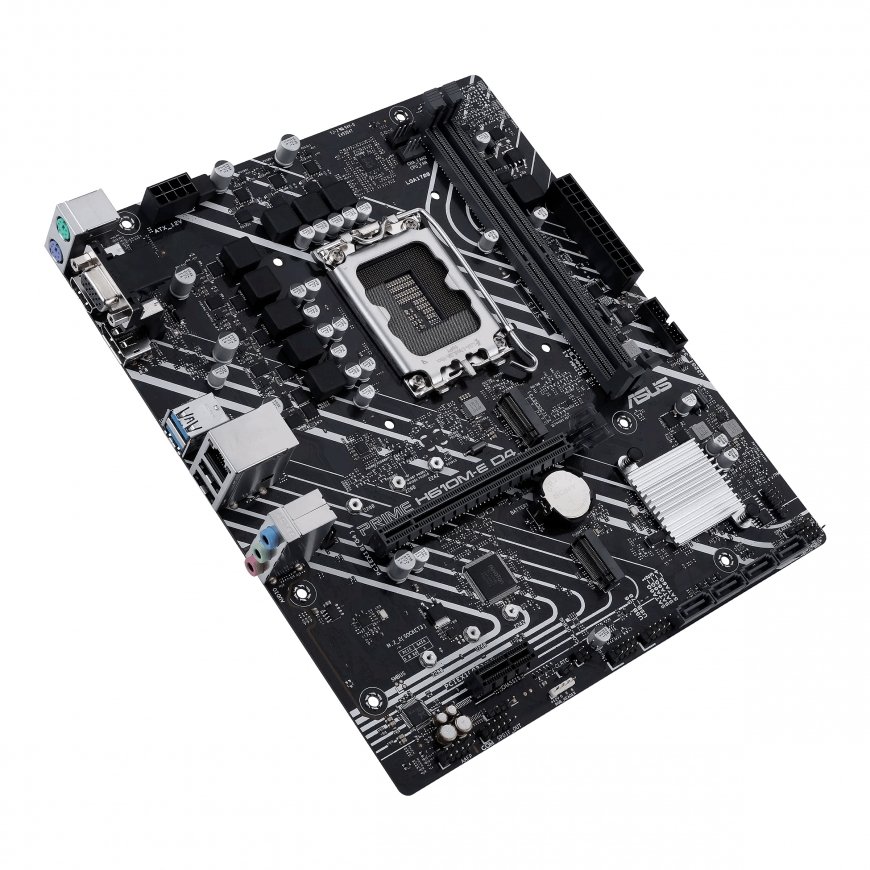

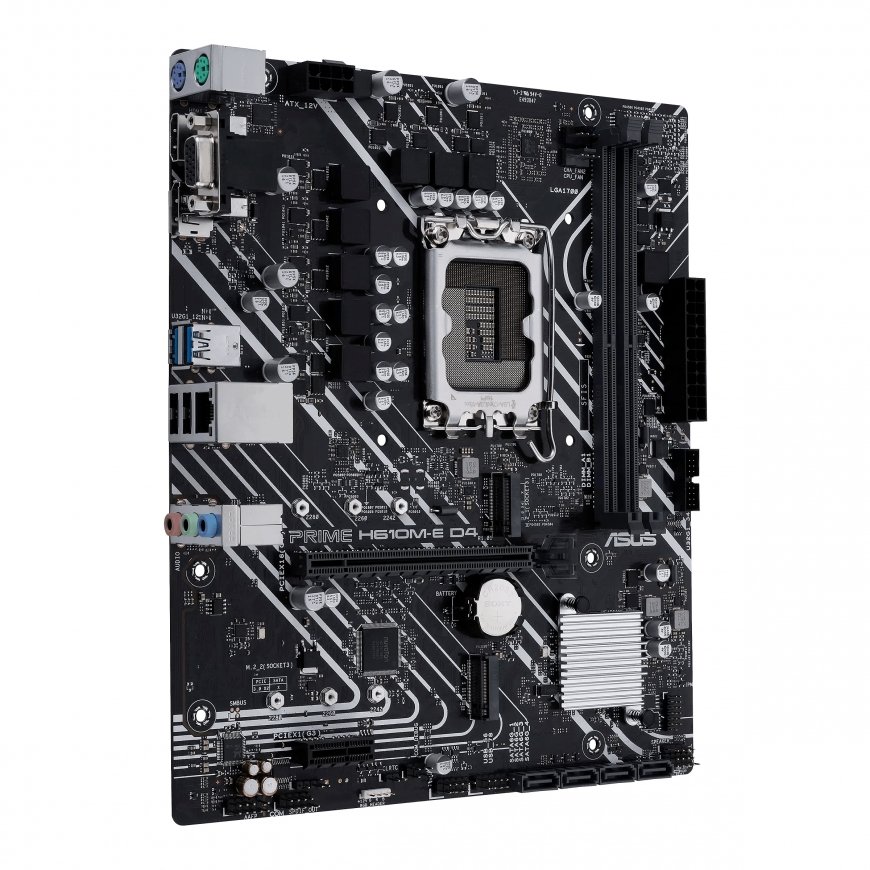

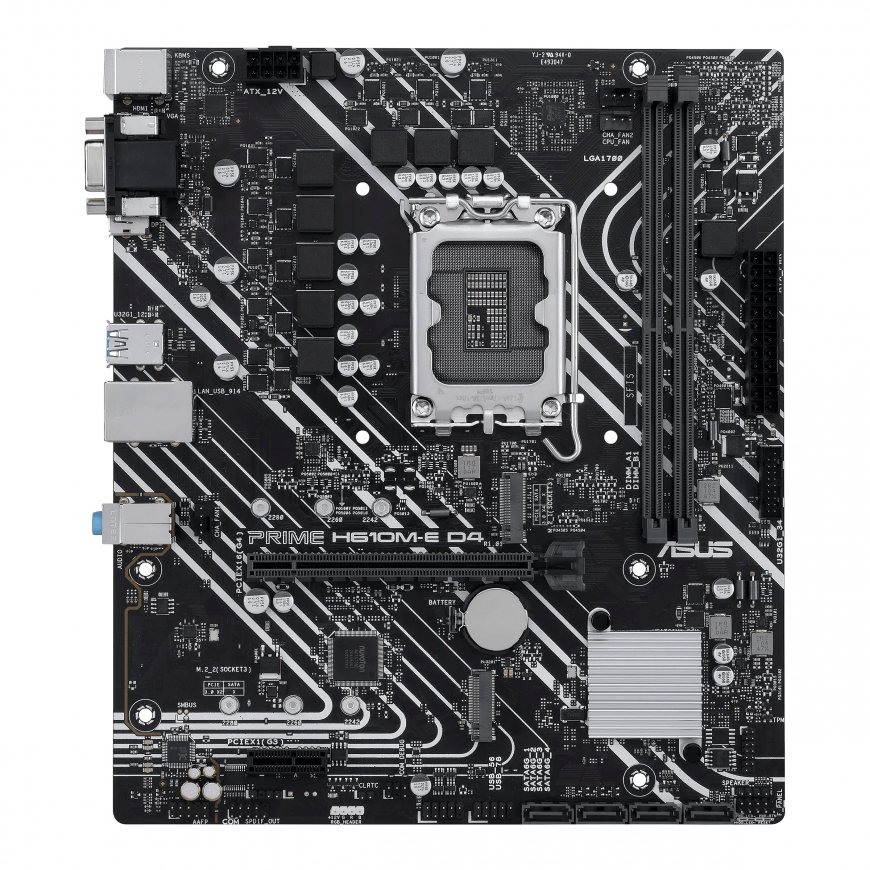

ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX
1102954 90MB19N0-M0EAYC
4711081514800, 0195553514804
Shipping 3-5 b.d.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O | |
| Number of SATA connectors | 0 |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Audio connector | Yes |
| 12V power connector | Yes |

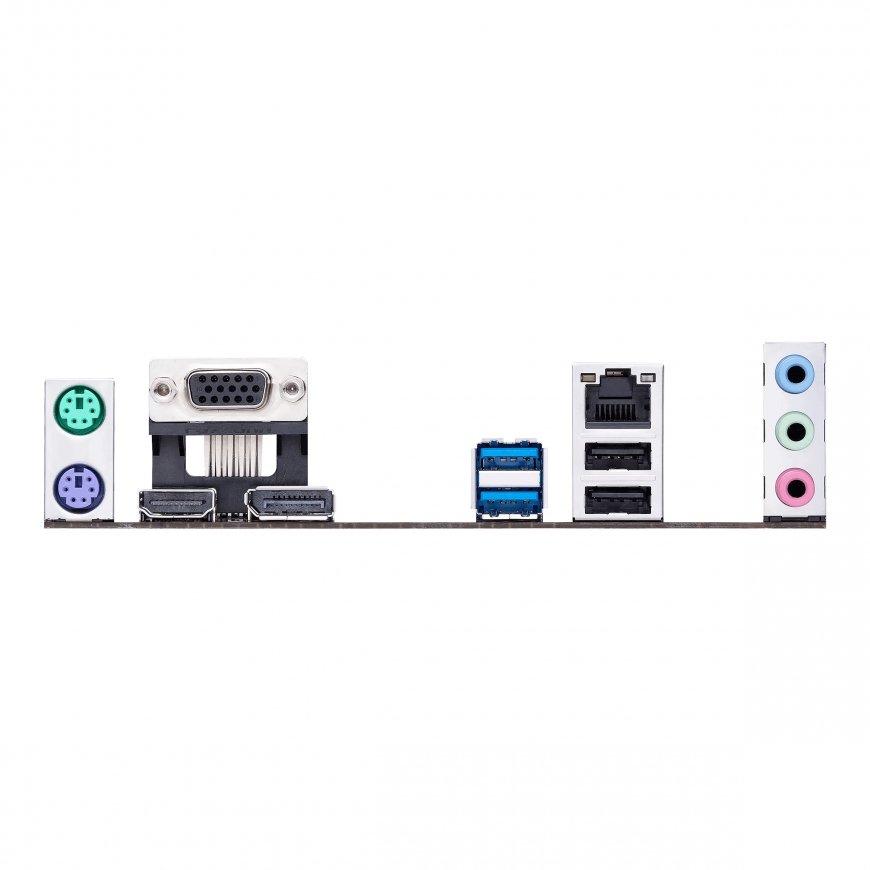

Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Product colour | Multicolour |
Expansion slots | |
| PCI slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 211 mm |
| Height | 221 mm |
Other features | |
| Weight | 382 g |
| mSATA ports quantity | 0 |
Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
