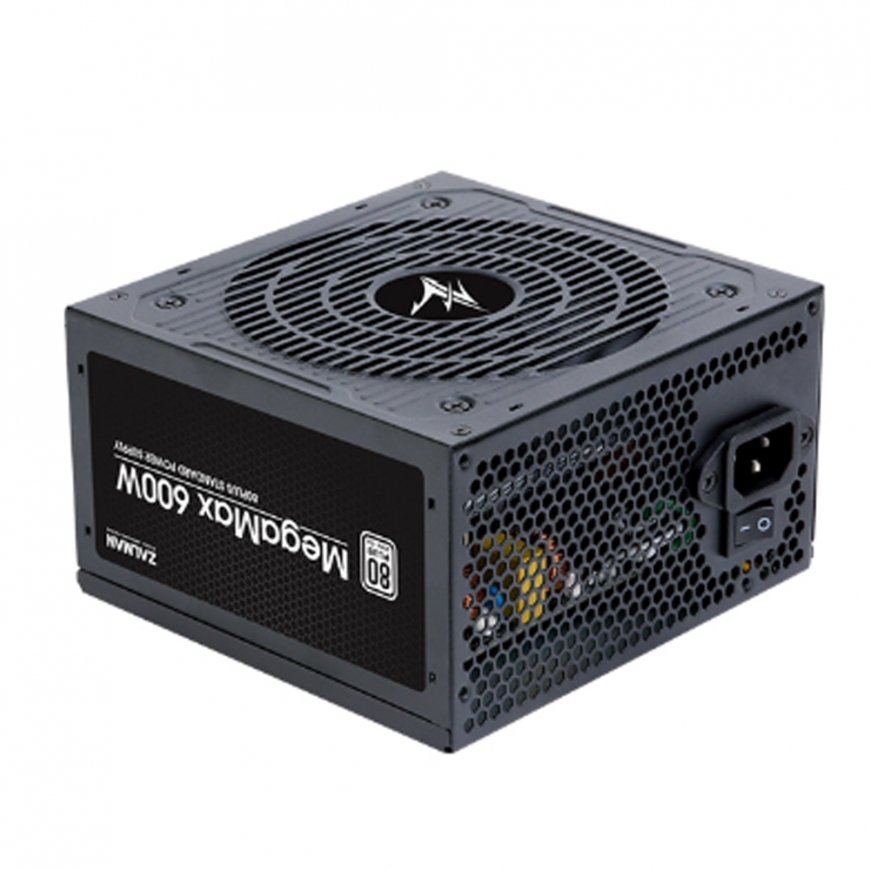

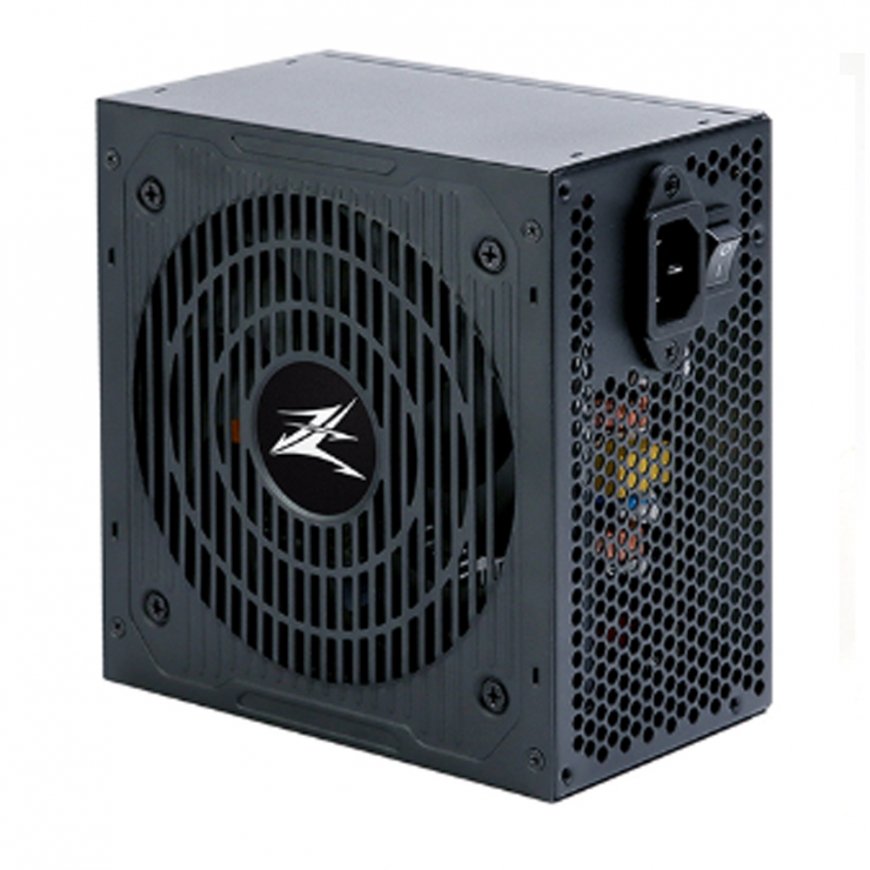

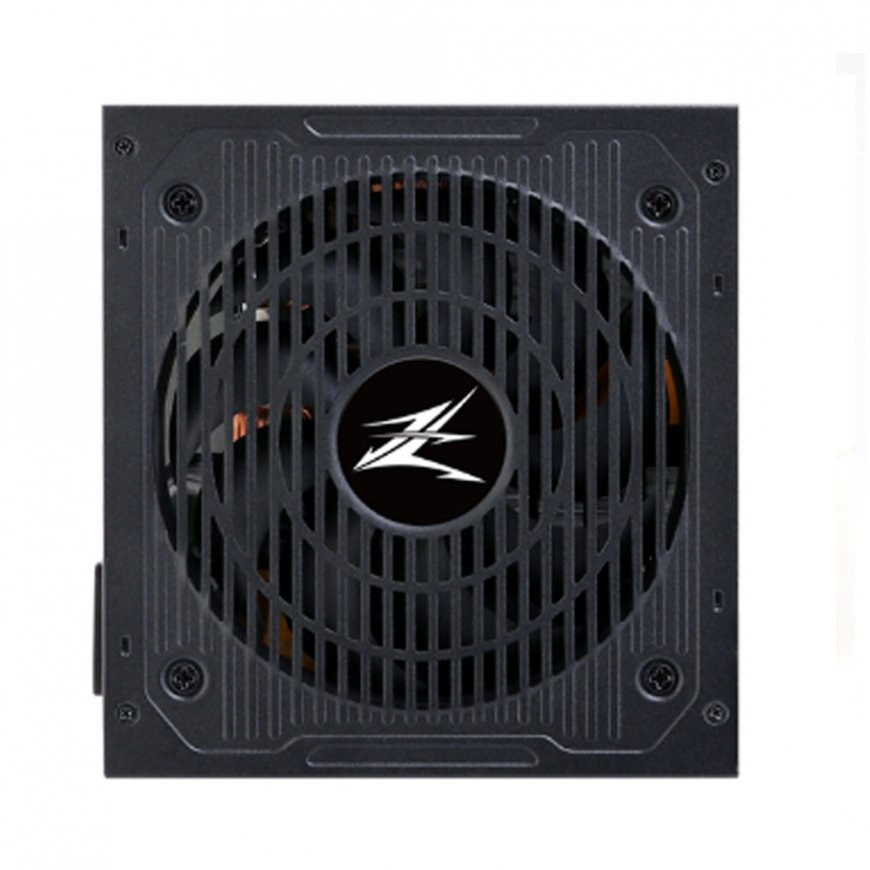

Zalman ZM600-TXII power supply unit 600 W 20+4 pin ATX ATX Black
47,78 €
Monthly payment from 2.13 €
1087732 ZM600-TXII
8809213765834, 8809213769801
Shipping 2-3 b.d.
You are interested in this product?
Power | |
| Efficiency | 86% |
| Input current | 5 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power factor | 98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 540 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 600 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Fan speed | 2300 - 2300 RPM |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | No |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 480 mm |
| Peripheral (Molex) power cable length | 470 mm |
| PCI Express power cable length | 73 cm |
| CPU power cable length | 55 cm |
Operational conditions | |
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions | |
| Weight | 1.68 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Certificates | |
| Certification | KC, CE, CB, RoHS, EAC |
| Compliance certificates | RoHS |
