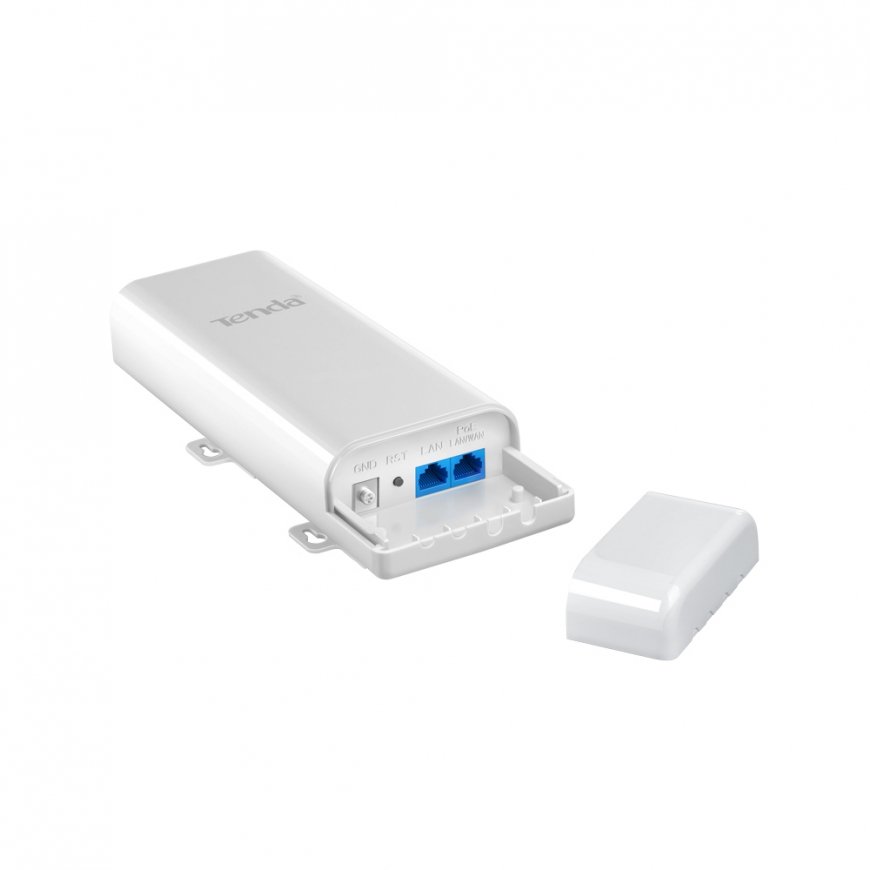

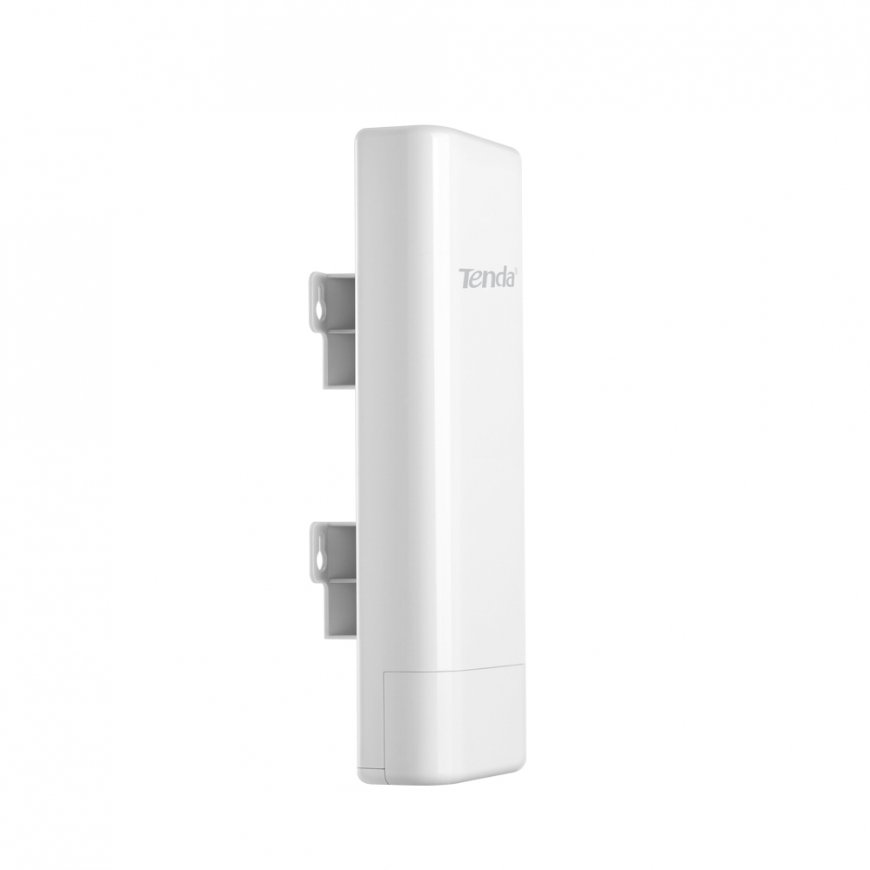

Tenda O3 wireless access point 150 Mbit/s White Power over Ethernet (PoE)
49.00 €
Monthly payment from 2,16 €
1084751 O3
6932849429015, 0885397270560
Shipping 11-15 b.d.
You are interested in this product?
All about the product
What It DoesO3 2.4G outdoor long range access point is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers.
- 2.4G 150Mbps
- IP64 waterproof enclosure
- 12dBi directional dual polarized antenna
- AP, Station, WISP etc operating mode supported
- Up to 60 meters of flexible deployment with included PoE Injector
5km+ Data Transmission
O3 is designed for outdoor long distance wireless data transmission. Adopting of 800mW external power amplifier and 12dBi directional antenna to achieve 5km+ transmission range.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and 6kV lightning protection capability, O3 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment.
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wireless connection for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
P2MP Link
Link multi AP in a network, all the associated client can communicate with each other.
Easy to Manage
O3 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.
Wireless LAN features | |
| Maximum outdoor range | 5000 m |
Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Receiver sensitivity | MCS0: -88dBm , MCS7: -72dBm |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Management features | |
| Reset button | Yes |
Security | |
| Security algorithms | WPA, WPA2, WPA2-PSK |
Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
Design | |
| LED indicators | Power, LAN, WAN |
| Product colour | White |
| International Protection (IP) code | IP64 |
Antenna | |
| Antenna gain level (max) | 12 dBi |
Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 270 mm |
| Depth | 94.9 mm |
| Height | 67.5 mm |
Other features | |
| Number of users | 15 user(s) |
| Maximum data transfer rate | 150 Mbit/s |
| Bandwidth | 2.4 GHz |
Certificates | |
| Certification | FCC / CE / RoHS |
Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
