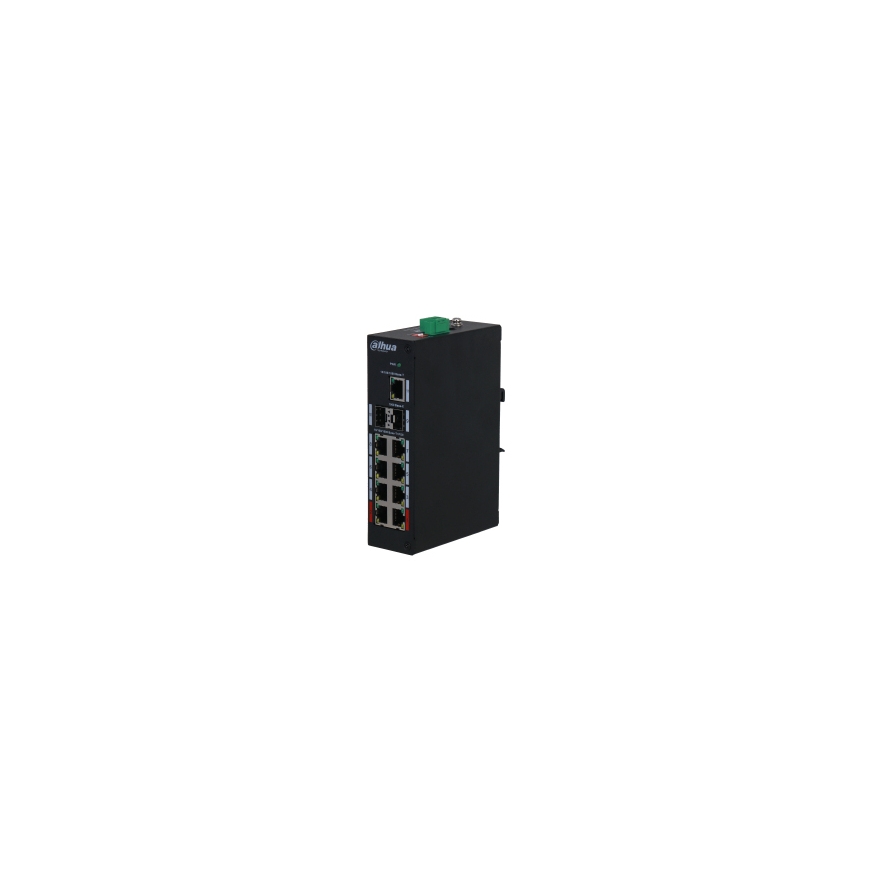

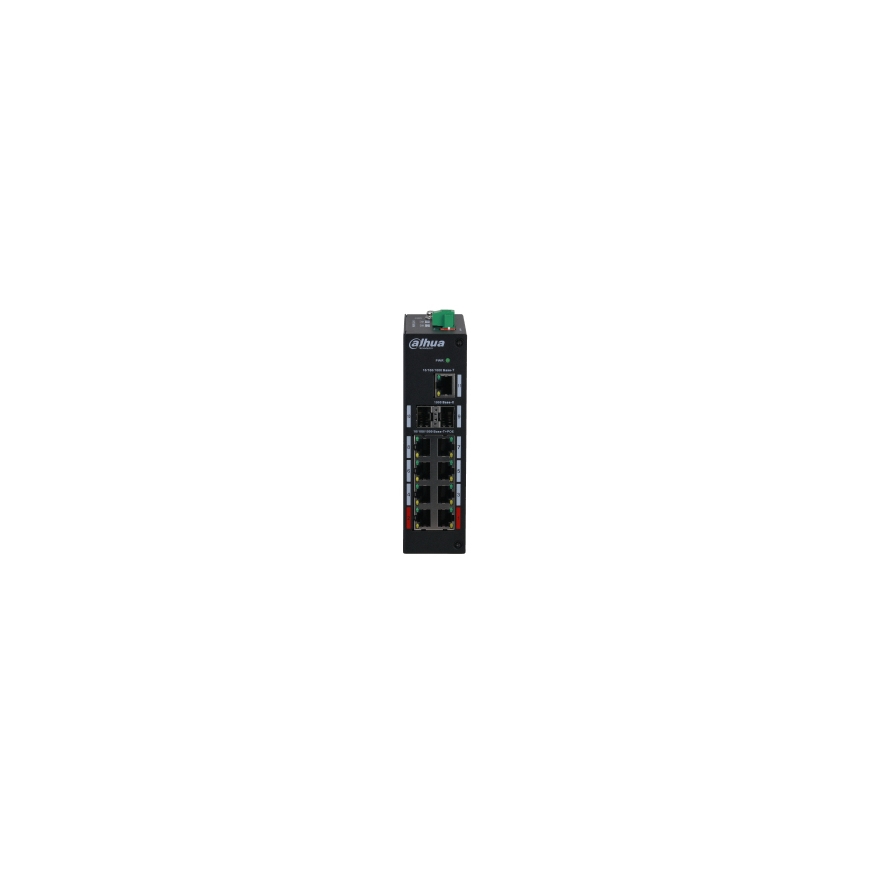

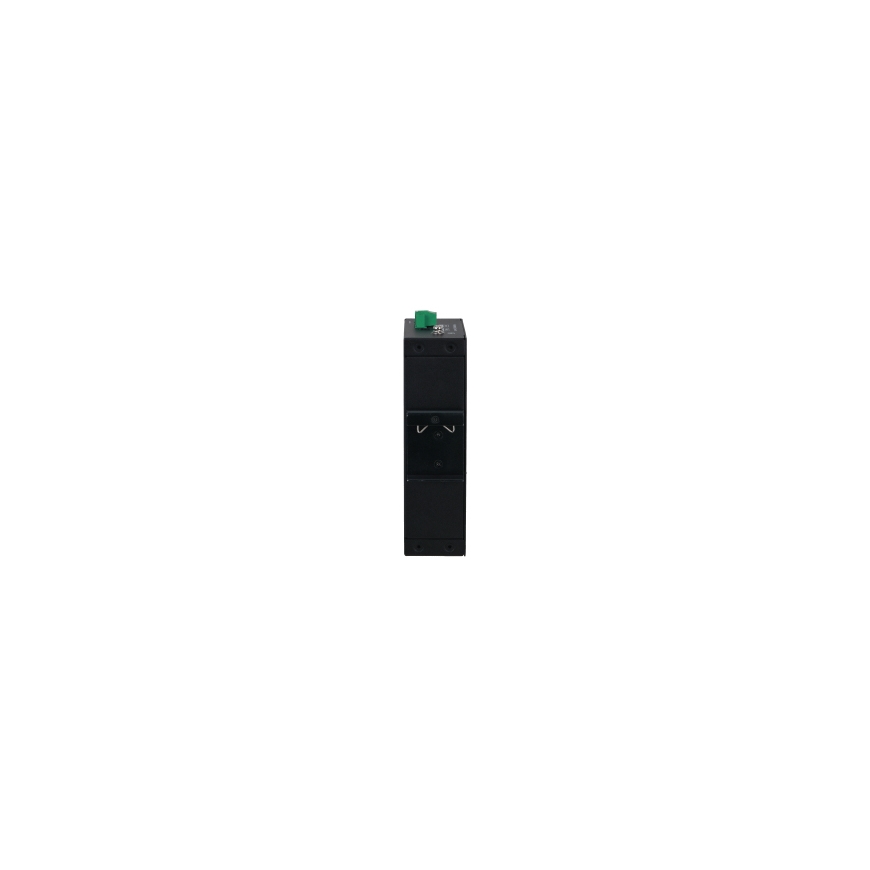

Dahua Technology PFS3211-8GT-120-V2 network switch
170,59 €
168.28 €
Monthly payment from 5,23 €
1072622 PFS3211-8GT-120-V2
6923172525482
2026-10-28
You are interested in this product?
All about the product
DH-PFS3211-8GT-120 is an unmanaged Hardened PoE Switch with 8 × 10/100/1000 Mbps PoE Ports. It provides 8 × 10/100/1000 Mbps Ethernet ports , 2 × 1000 Mbps uplink SFPs and 1 ×10/100/1000 Mbps Ethernet uplink ports . The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 120W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
BT 90W
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
8-pin Assignment PoE Power Supply
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
The device is applicable for use in different scenarios, including home,
office, server farm, and small mall.
Features
| Product colour | Black |
| Form factor | Desktop/Wall-Mounting |
| Weight | 670 g |
| Width | 150 mm |
| Depth | 100 mm |
| Height | 42 mm |
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Ethernet LAN data rates | 10; 100; 1000 |
| Networking standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.3x; IEEE 802.3bt |
| LED indicators | Yes |
| Power source | DC |
| Power protection features | Overcharge |
| Power consumption (max) | 120 W |
| Wall mountable | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| 10G support | No |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 9 |
| Flow control support | Yes |
| Switching capacity | 33 Gbit/s |
| Rack mounting | No |
| DC input voltage | 48 - 57 V |
| Power over Ethernet (PoE) power per port | 90 W |
| Forwarding rate | 16.37 Mpps |
| Stackable | No |
| Packet buffer memory | 1.75 MB |
| Cable types supported | Cat6; Cat5e |
| Installed SFP modules quantity | 2 |
| Power management | Yes |
| Switching optical modules type | Gigabit Ethernet |
| Power consumption note | Idling: 5 W |
