LC-Power LC6550M V2.31 power supply unit 550 W 24-pin ATX ATX Black
89.12 €
Monthly payment from 3,19 €
1070487 LC6550M V2.31
4260070128622
Shipping 19-20 b.d.
You are interested in this product?
All about the product
LC-Power LC6550M V2.31. Total power: 550 W, AC input voltage: 110 - 240 V, AC input frequency: 47 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 950 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: SATAPower | |
| Input current | 8 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 110 - 240 V |
| AC input frequency | 47 - 60 Hz |
| Total power | 550 W |
Performance | |
| ATX version | 2.31 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| Cooling type | Active |

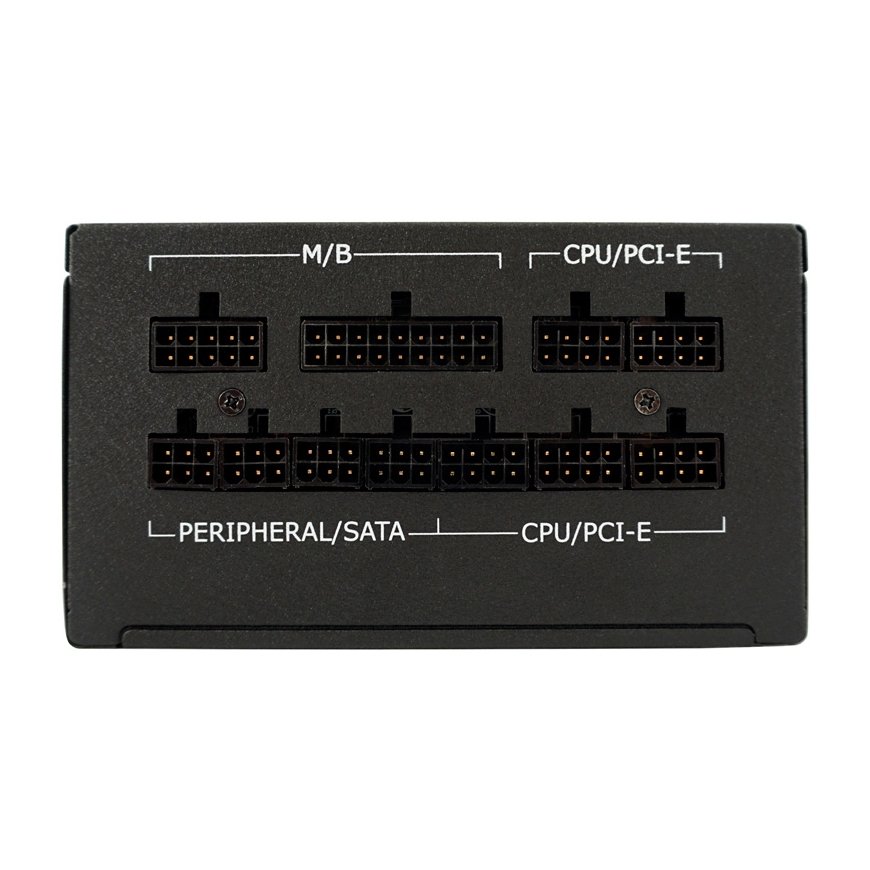

Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Number of PATA power connectors | 5 |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 950 mm |
| Peripheral (Molex) power cable length | 500, 800 |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 65 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 2.19 kg |
| Width | 150 mm |
| Depth | 142 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.47 kg |
| Package type | Box |
| Package height | 186 mm |
| Package width | 115 mm |
| Package depth | 270 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Packaging content | |

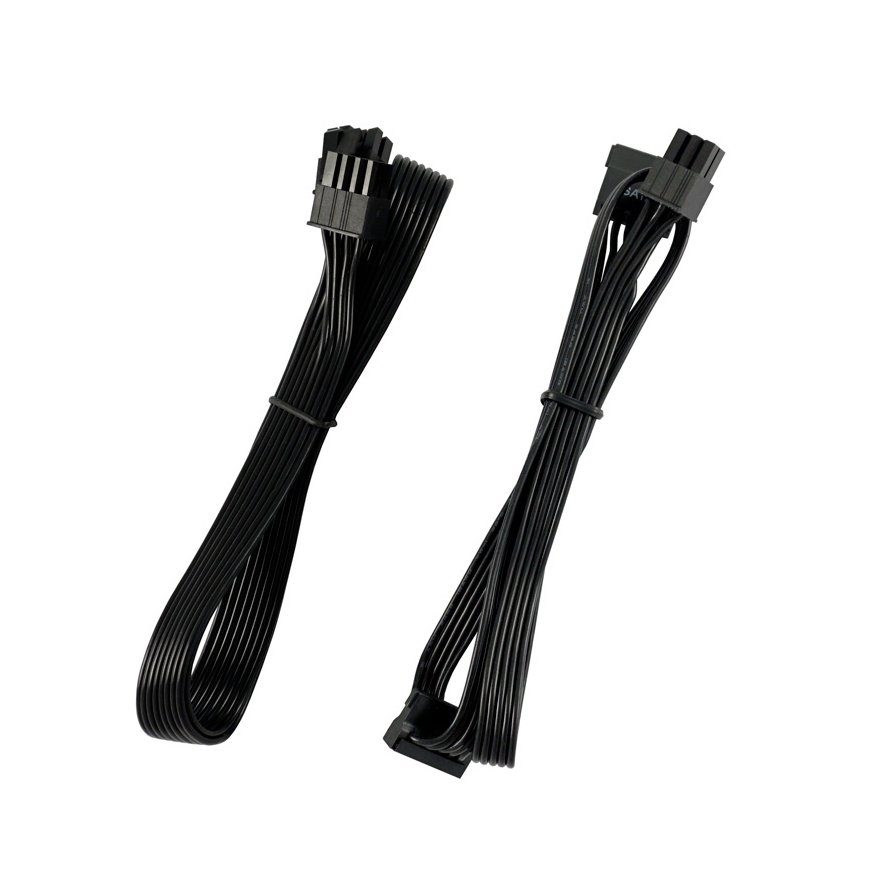

| Cables included | SATA |
Certificates | |
| Certification | CE / TÜV |
