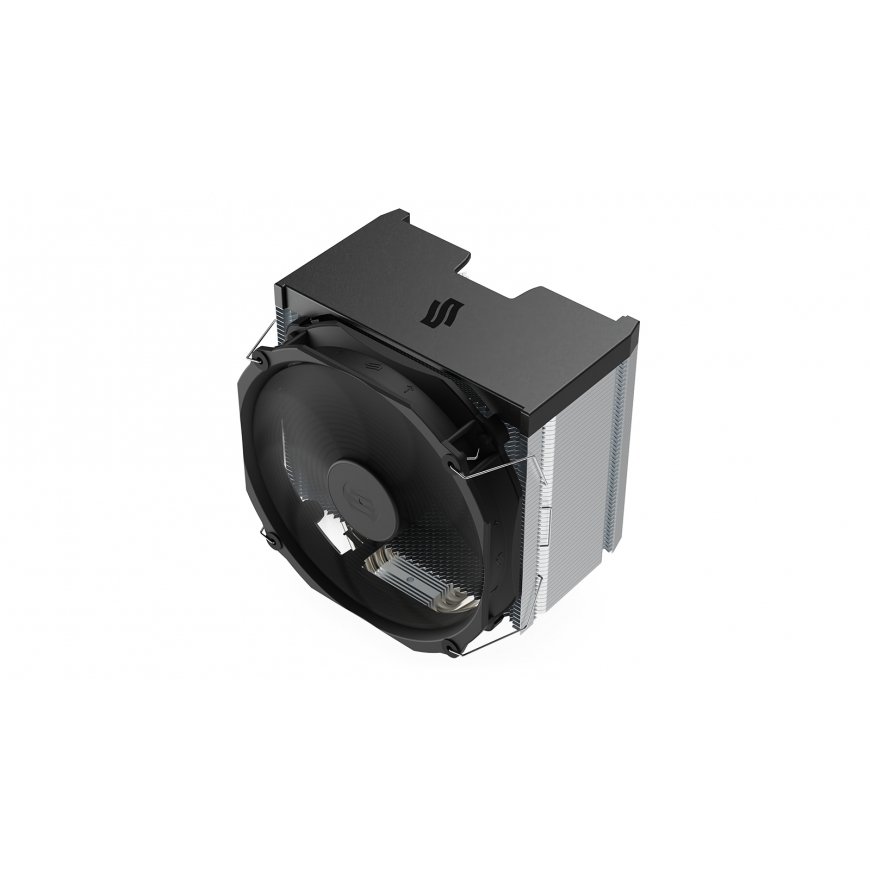

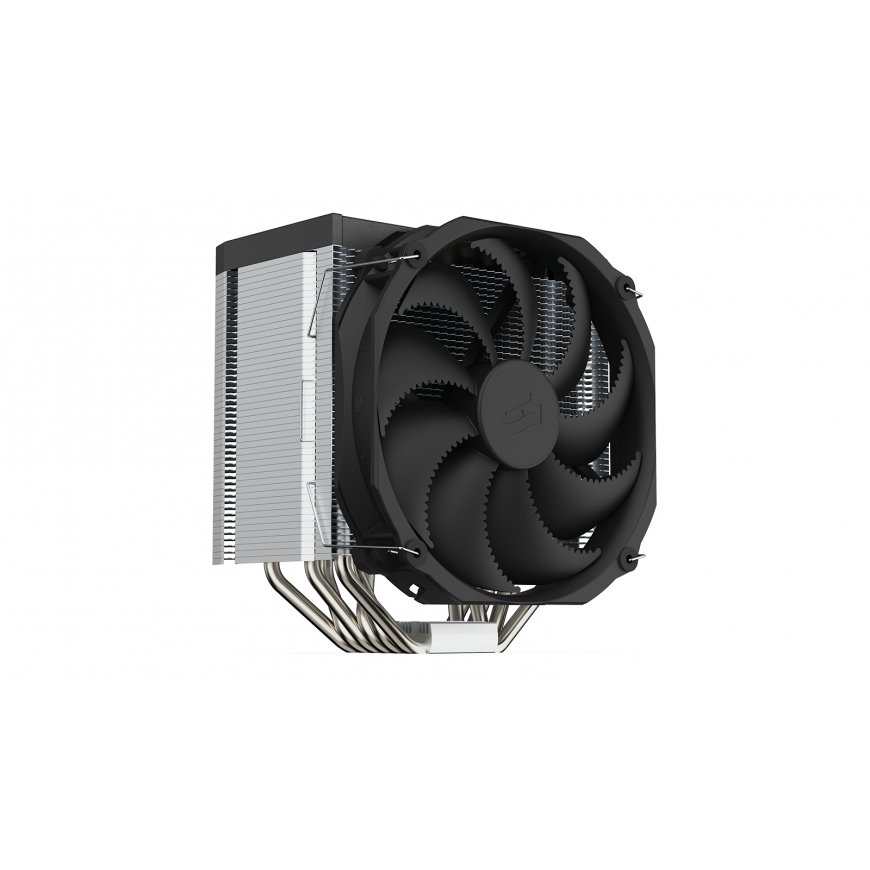

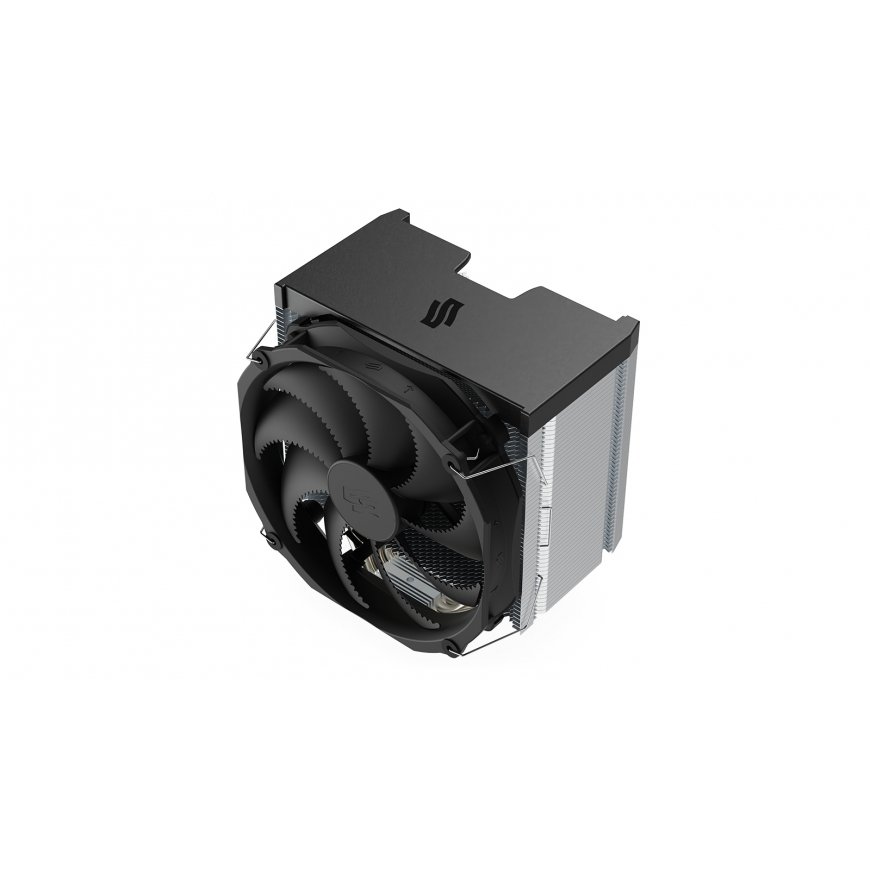

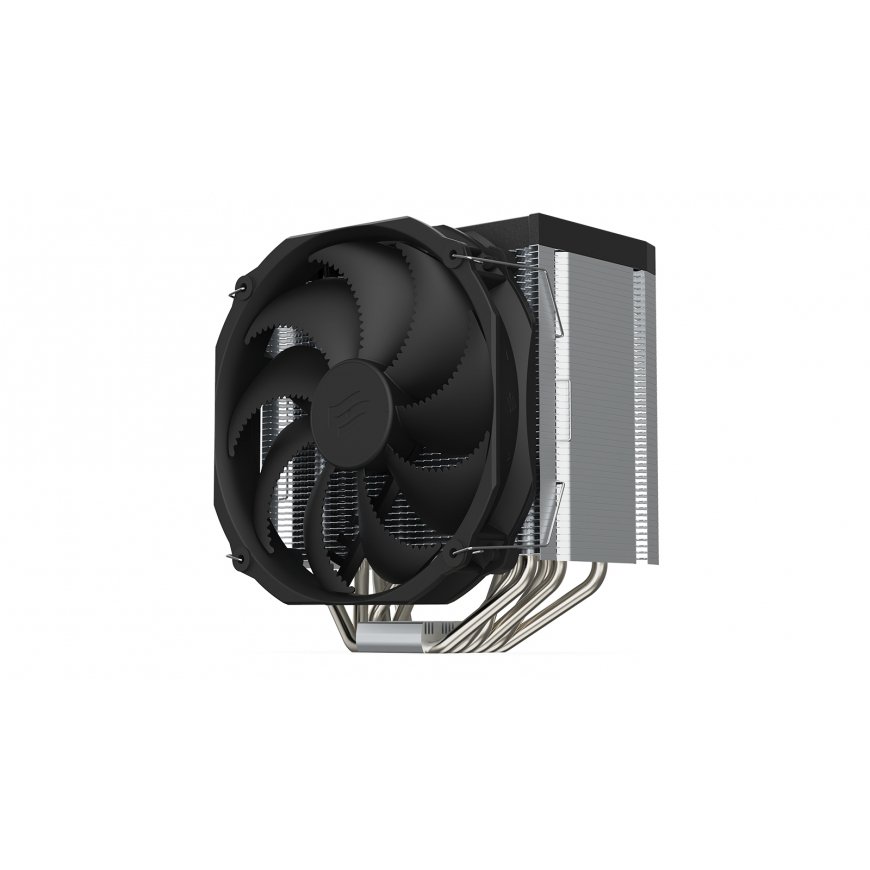

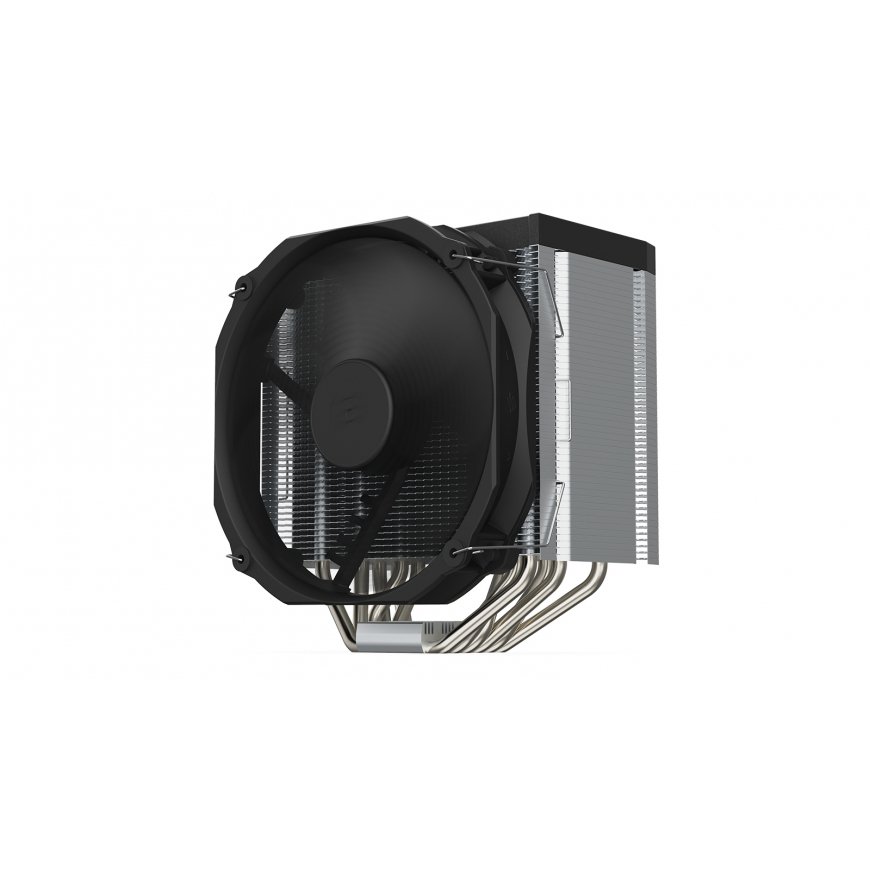

SilentiumPC Fortis 5 Processor Air cooler 14 cm Black, Grey, Steel
59.00 €
Monthly payment from 2,42 €
1066087 SPC306
5903018662893
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The Fortis 5 is a new SilentiumPC processor cooling system, developed in collaboration with Synergy Cooling. The distinguishing features include a completely new two-axis asymmetrical heatsink with densely packed fins, an optimized base with six heat pipes, and a completely new Fluctus fan optimized for static pressure, high airflow, and quiet operation. In terms of performance, the Fortis 5 can can easily compete with large twin-tower coolers, at the same time surpassing the best single-tower systems in cooling efficiency and psychoacoustic properties.The Fortis 5 series is the next step in a revolutionary design developed in collaboration with Synergy Cooling, and another representative of the new generation of SilentiumPC cooling systems. It is equipped with a larger heatsink and a new version of the Fluctus fan. In addition to the single-fan Fortis 5, the Fortis 5 Dual Fan with two Fluctus fans (140 mm on the front and 120 mm on the back of the heatsink), and the Fortis 5 ARGB, which has been further visually enriched with an addressable LED lighting system, are also being available. All Fortis 5 series coolers are covered by an extensive 6-year manufacturer’s warranty.
High performance, long life Fluctus 140 mm fan
Fluctus fans work best on dense heatsinks and water cooling radiators, where airflow is restricted. Uniquely profiled fan blades create high static pressure. New high endurance bearing ensures smooth, low noise operation with 100 000 h MTBF.
Excellent acoustics
Serrated leading edges of fan blades contribute to noise reduction. This reduces prominent tonal noises and is at heart of our patent-pending psychoacoustic optimization.
Fan stop - optional semi-passive mode
Fluctus fans stop at very low PWM duty cycle and start automatically with rising duty cycle. Enthusiasts can create an optional semi-passive operation mode by adjusting the fan speed control curve.
Asymmetrical heatsink
Heatsink fins are asymmetrical and specially profiled for maximum performance and minimum noise. Install with the indicated airflow direction for best results.
Direct touch heatpipes
Heatsink base provides the best contact with the surface of modern CPUs. Six heatpipes are in direct contact with the CPU to improve heat transfer.
Easy mounting system
New, universal mounting system improves contact pressure between heatsink base and the processor. It has fewer parts and is easier to install in any position. Included pictorial manual and video guides explain the installation step-by-step.
6 year warranty
High quality and durability of FDB bearing together with Fluctus 140 mm fan IC is confirmed by long, 6 year warranty covering entire Fortis 5 cooling solution.
Pactum PT-3 thermal compound
Bundled thermal paste has high thermal conductivity and low viscosity. Pactum PT-3 combines high performance with ease of application. Bundled amount is sufficient for more than 3 applications.
Set includes
FORTIS 5 HEATSINK
1 × 140 MM FLUCTUS FAN
CLIPS FOR A TOTAL OF TWO FANS
1,5 G OF PACTUM PT-3 THERMAL PASTE
MOUNTING KIT
USER INSTRUCTIONS
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM3+, Socket AM4, Socket FM2+, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2+, Socket FM1, LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 1700 |
| Type | Air cooler |
| Mean time between failures (MTBF) | 100000 h |
| Fan diameter | 14 cm |
| Fan speed (min) | 300 RPM |
| Fan speed (max) | 1400 RPM |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Suitable location | Processor |
Design | |
| Product colour | Black, Grey, Steel |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 6 |
| Fan connector | 4-pin |
Weight & dimensions | |
| Weight | 768 g |
| Package weight | 1.08 kg |
| Height | 159 mm |
| Width | 144 mm |
| Depth | 107 mm |
| Fan thickness | 2.5 cm |
| Package height | 200 mm |
| Package width | 165 mm |
| Package depth | 140 mm |
Packaging content | |
| Package type | Box |
| Mounting kit | Yes |
| Installation instruction | Yes |
| Number of clips | 4 |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
