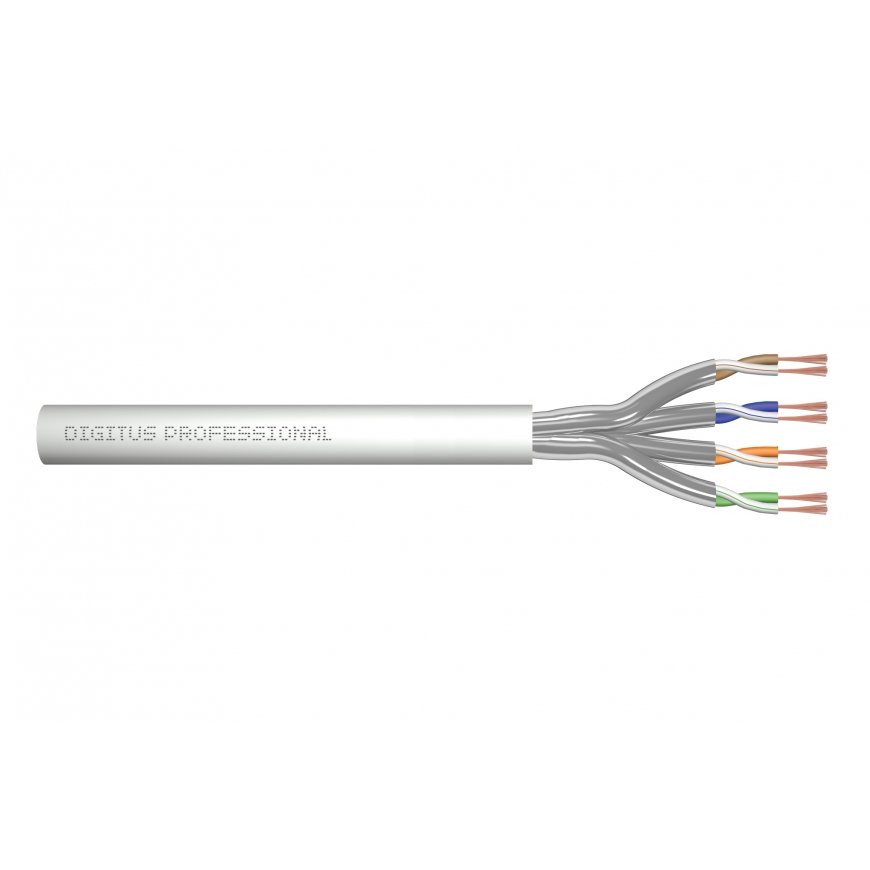

Digitus CAT 6A U/FTP twisted pair patch cord, raw
75,53 €
73.71 €
Monthly payment from 2,80 €
1061741 DK-1623-A-P-1
4016032425991
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Future-oriented standards and high-end quality for your network.- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class EA cable lines, 500 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-10-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
Features | |
| Cable length | 100 m |
| Cabling technology | 10GBase-T |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| AWG wire size | 27/7 |
| Frequency | 500 MHz |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444920 |
| Harmonized System (HS) code | 84733080 |
Packaging data | |
| Package height | 100 mm |
| Package width | 290 mm |
| Package weight | 2.88 kg |
| Package depth | 290 mm |
| Package type | Box |
| Package volume | 8410 cm³ |
Weight & dimensions | |
| Outer diameter | 5.8 mm |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 75 °C |
Other features | |
| Input impedance | 100 Ω |
| Category | 6 |
