The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

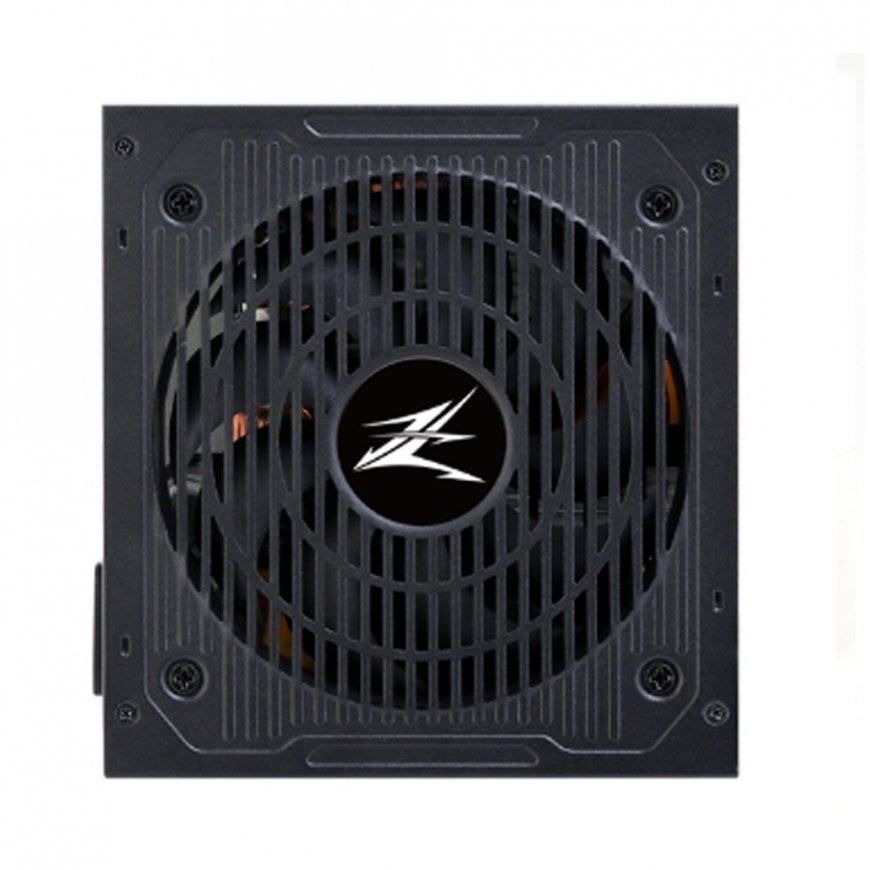

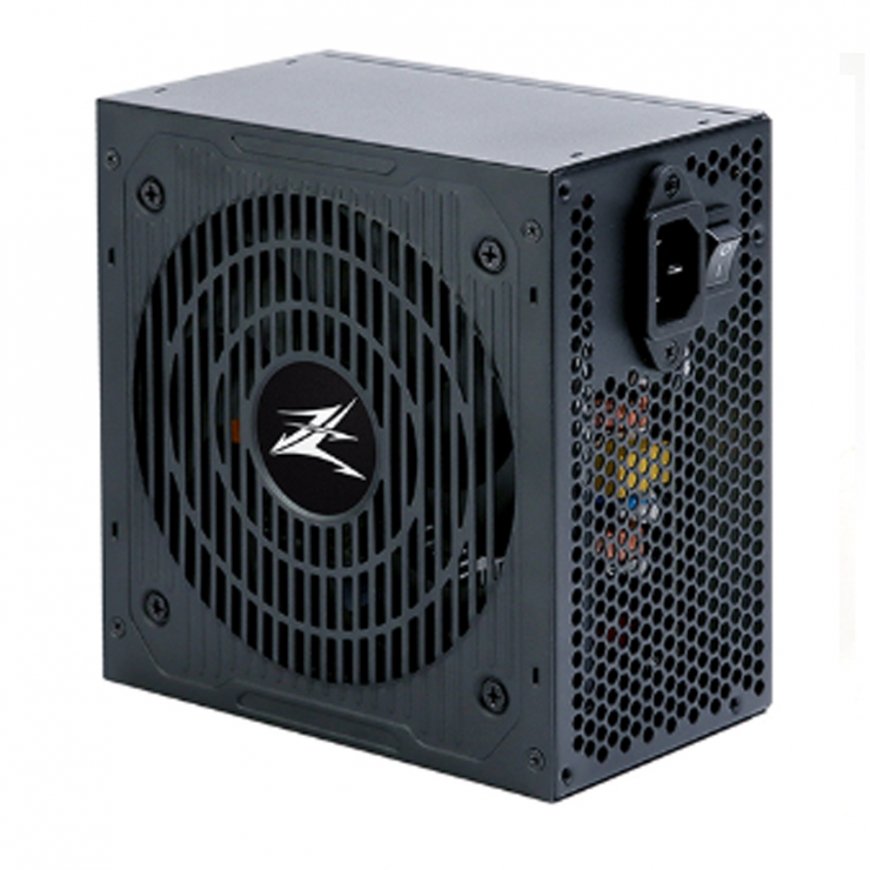

Zalman ZM500-TXII power supply unit 500 W 20+4 pin ATX ATX Black
41,95 €
Monthly payment from 1.98 €
1061272 ZM500-TXII
8809213765827, 8809213769795
Shipping 2-3 b.d.
You are interested in this product?
Power | |
| Efficiency | 86% |
| Input current | 4 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power factor | 98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 450 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 500 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Fan speed | 2000 - 2000 RPM |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| Peripheral (Molex) power cable length | 410 mm |
Operational conditions | |
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions | |
| Weight | 1.63 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Certificates | |
| Certification | KC, CE, CB, RoHS, EAC |
| Compliance certificates | RoHS |
