TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 300 Mbit/s White Power over Ethernet (PoE)
42.04 €
Monthly payment from 1,98 €
1055554 CPE210
0804904109445, 0638347504464, 0731215288029, 0758399148697, 0801940481535, 0804067306019, 0808112944966, 0840460604833, 1210002611435, 5054242235626, 5054629509906, 6935364082253
Shipping 2-3 b.d.
You are interested in this product?
All about the product

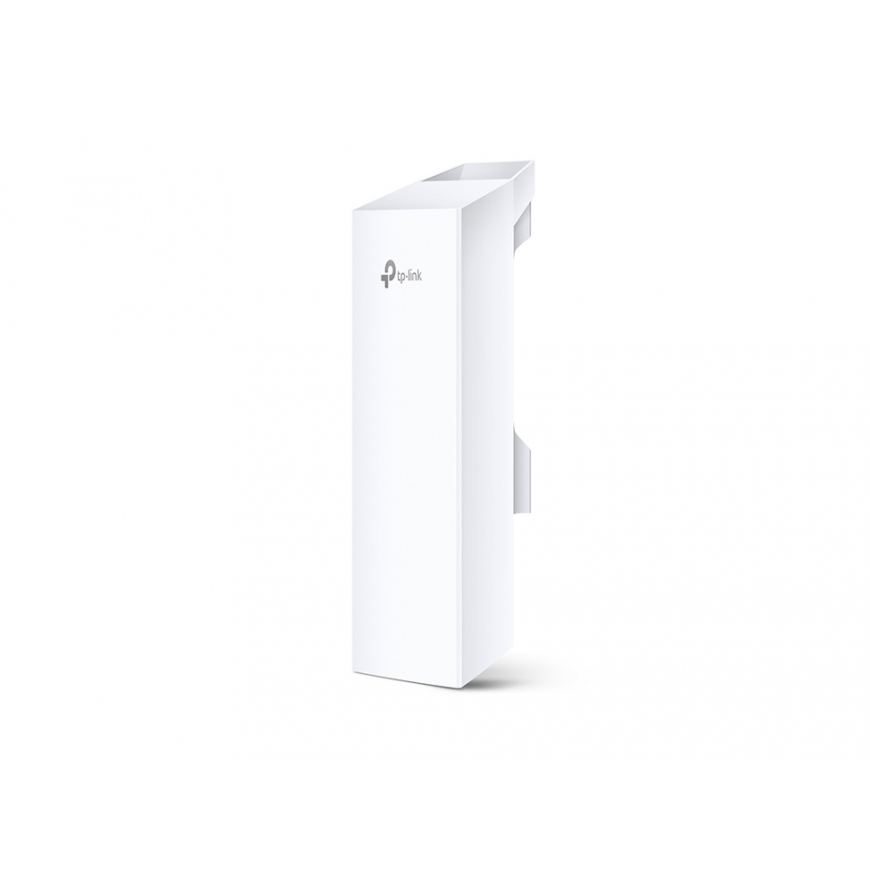

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Wireless LAN features | |
| Maximum outdoor range | 5000 m |
Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Receiver sensitivity | 802.11b:, 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm, -802.11g:, 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm, 802.11n:, MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, 64-bit WEP, 128-bit WEP, TKIP, SSID, 152-bit WEP |
| MAC address filtering | Yes |
Protocols | |
| Management protocols | TDMA |
Design | |
| LED indicators | Yes |
| Product colour | White |
| International Protection (IP) code | IPX5 |
Antenna | |
| Antenna gain level (max) | 9 dBi |
| Antennas quantity | 1 |
| Antenna type | Internal |
Features | |
| Built-in processor | Yes |
| Processor frequency | 560 MHz |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Processor model | Qualcomm Atheros |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
Other features | |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Management platform | Pharos Control |
| Input current | 0.8 A |
| Frequency band | 2.4 - 2.483 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Bandwidth | 2.4 GHz |
Certificates | |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark, - RoHS, IPX5 |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Cables included | AC |
| Mounting kit | Yes |
