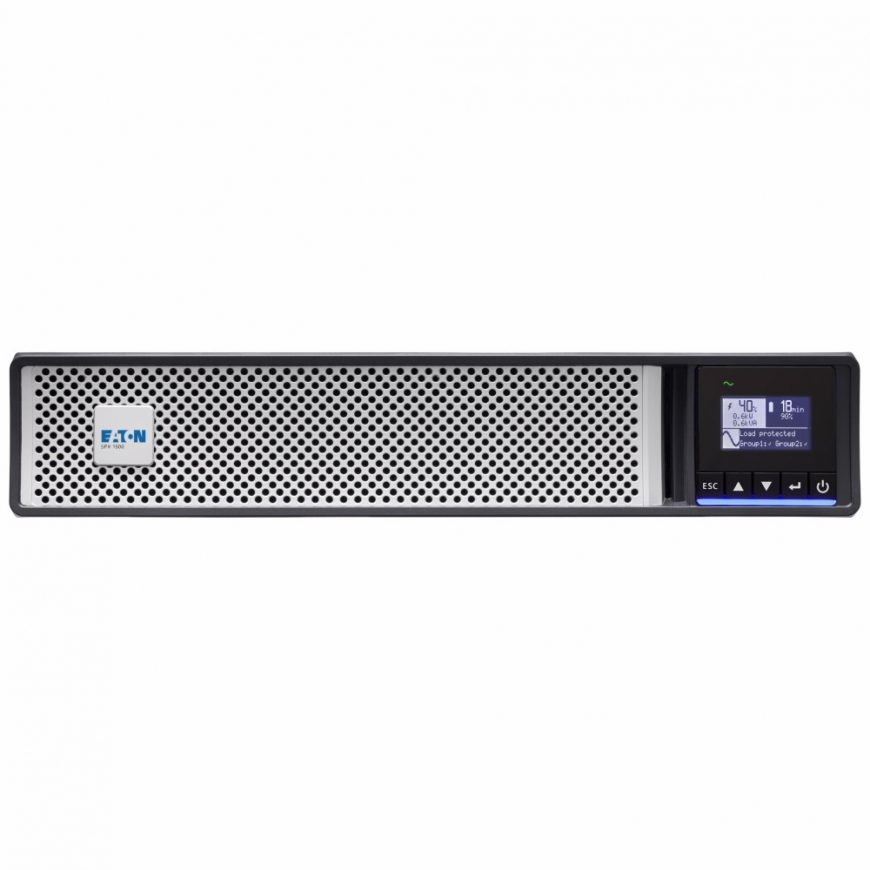

Eaton 5PX Gen2 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 8 AC outlet(s)
1 550.29 €
Monthly payment from 40,82 €
1050508 5PX1500IRTNG2
0743172104755
Shipping 2-3 b.d.
You are interested in this product?
All about the product
Exceptional efficiency, manageability and energy metering capabilities for IT managersPerformance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility
- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
Features
| Product colour | Black |
| Display type | LCD |
| USB port | Yes |
| Form factor | Rackmount/Tower |
| Weight | 22.4 kg |
| Width | 438 mm |
| Depth | 448 mm |
| Height | 85.5 mm |
| Sustainability certificates | ENERGY STAR |
| Certification | IEC/EN 62040-2, FCC B, CISPR22 B; CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Operating temperature (T-T) | 0 - 40 °C |
| LED indicators | Yes |
| Power protection features | Overcharge |
| Noise level | 40 dB |
| AC outlets quantity | 8 AC outlet(s) |
| Output power | 1500 W |
| Harmonized System (HS) code | 85078000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Rack capacity | 2U |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
| Serial interface | Yes |
| Sustainability compliance | Yes |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Nominal output voltage | 230 V |
| Management card included | Yes |
| Compliance certificates | CE |
