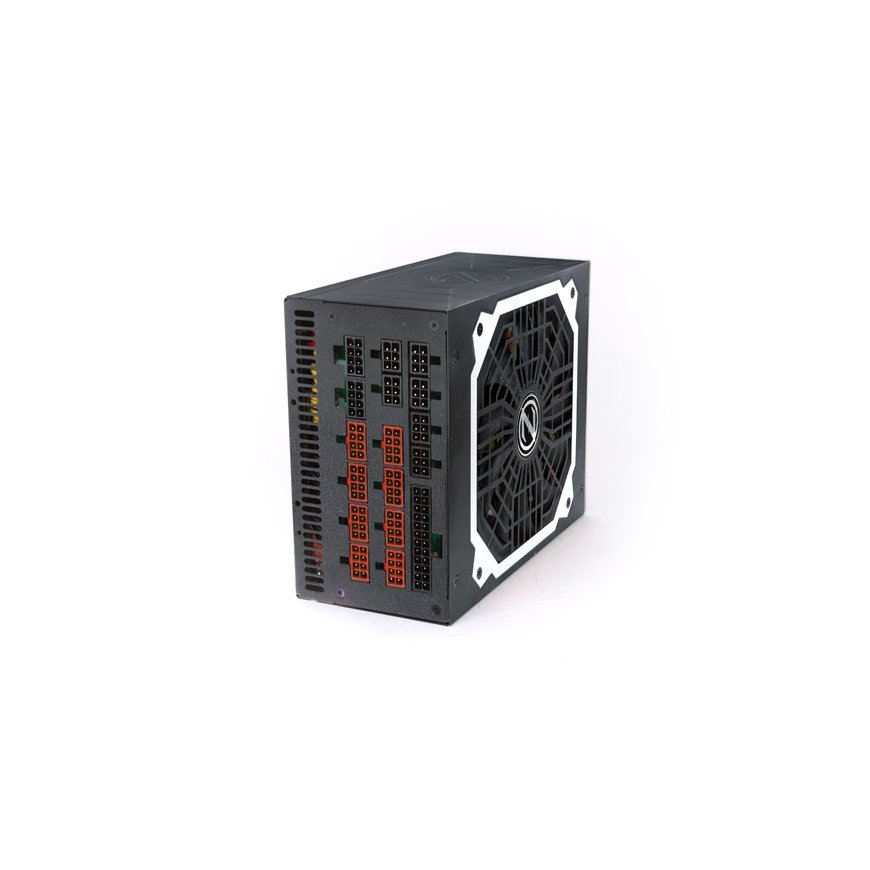

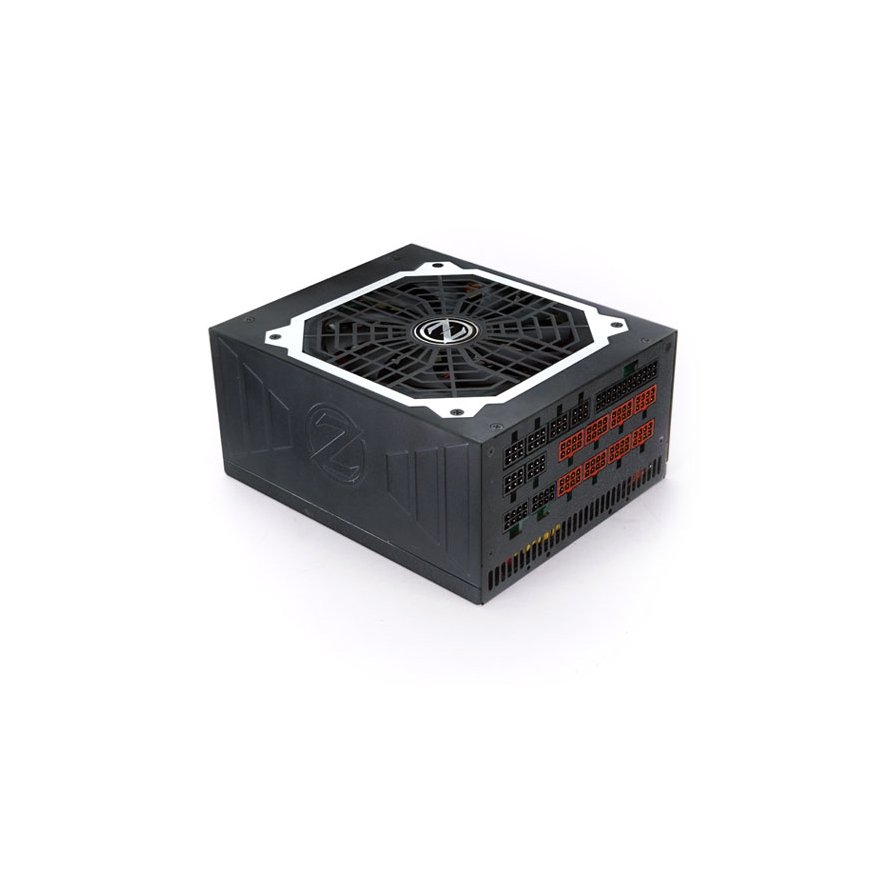

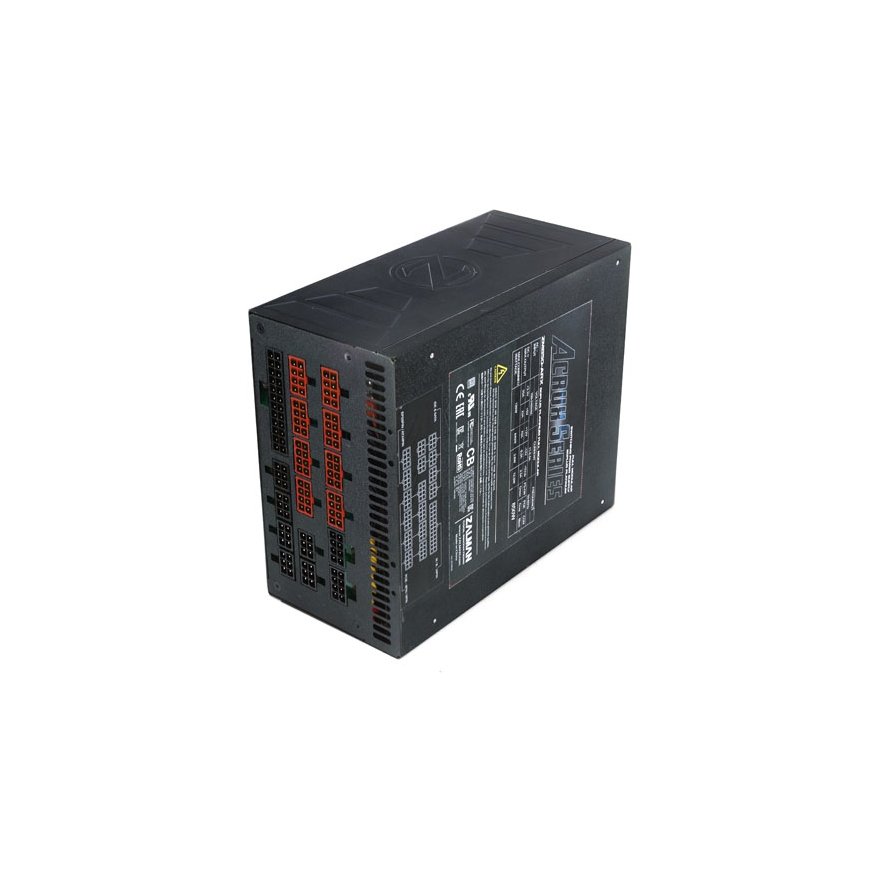

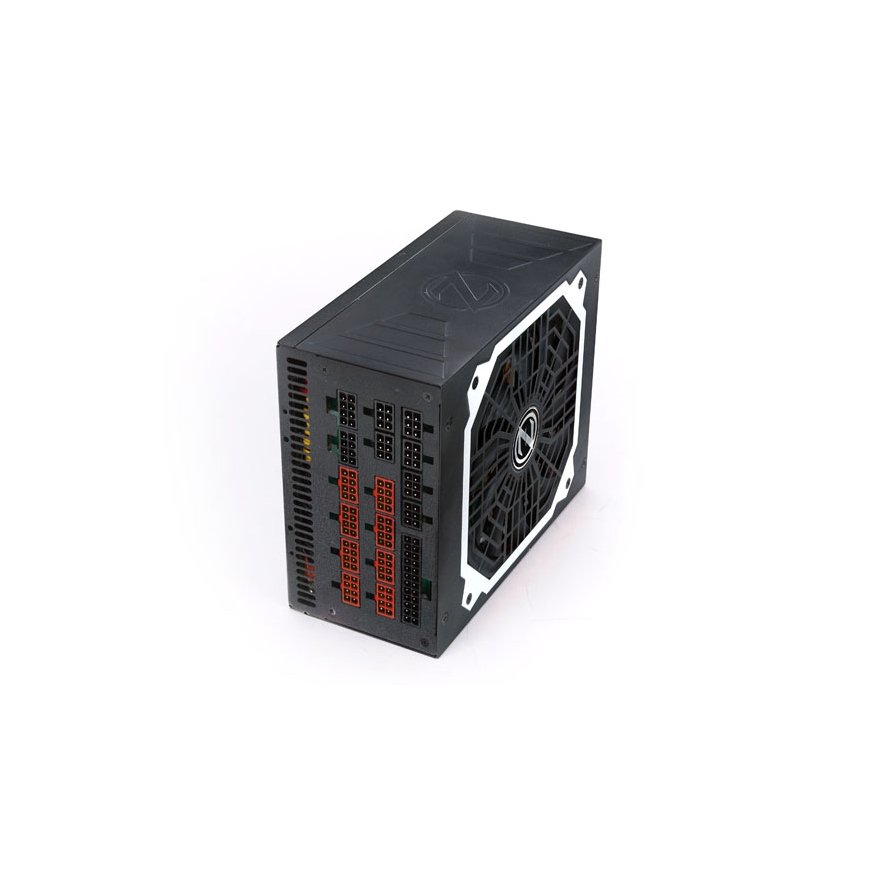

Zalman ZM1000-ARX power supply unit 1000 W 20+4 pin ATX Black
187.45 €
Monthly payment from 5,73 €
1028129 ZM1000-ARX
8809213768774, 0823884208436
Shipping 2-3 b.d.
You are interested in this product?
All about the product
High quality componentsHigh quality made in Japan 105°C capacitor guarantees Stability at high temperatures, frequencies and currents.
High quality components
Powerful and highly reliable DC-DC module
Active PFC
Built-in Active PFC circuit provides high power factor and efficiency
Single Rail +12V DC output
Single +12V DC output design for stabilized voltage supply
Secondary Protection IC
Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit Protection.
Modular cable type
Neatly organized DC output modular cable help to increase air flow inside the case.
Power | |
| Efficiency | 94% |
| Input current | 6 - 12 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 1000 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
Design | |
| Product colour | Black |
| Fan diameter | 13.5 cm |
Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 3.05 kg |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
