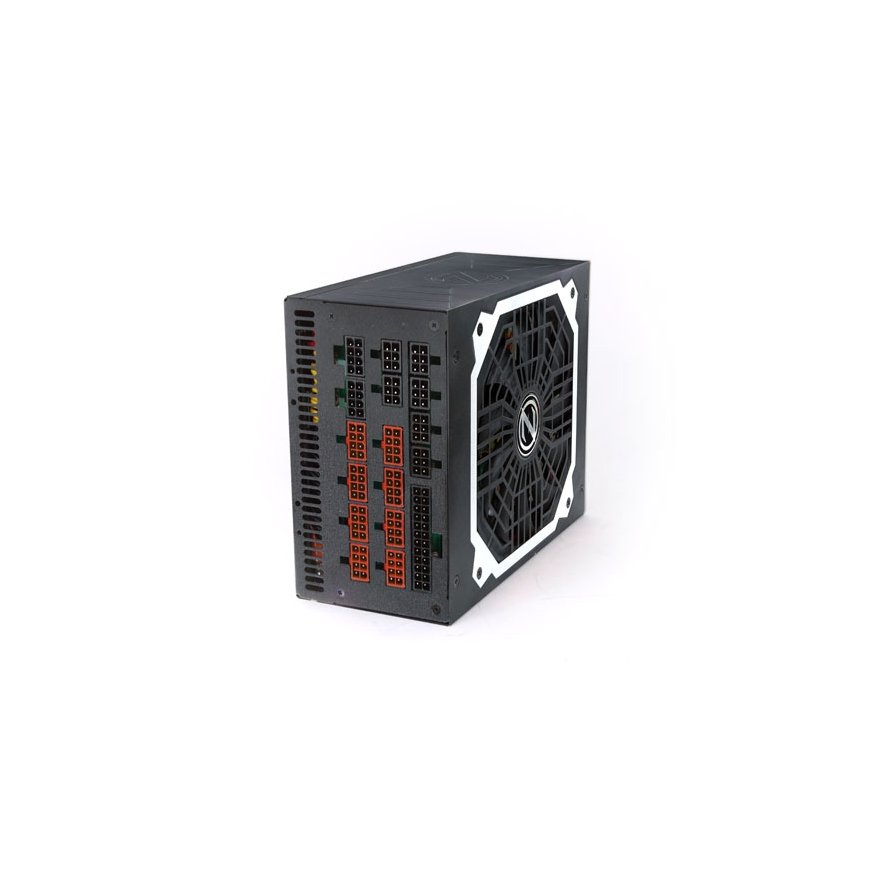

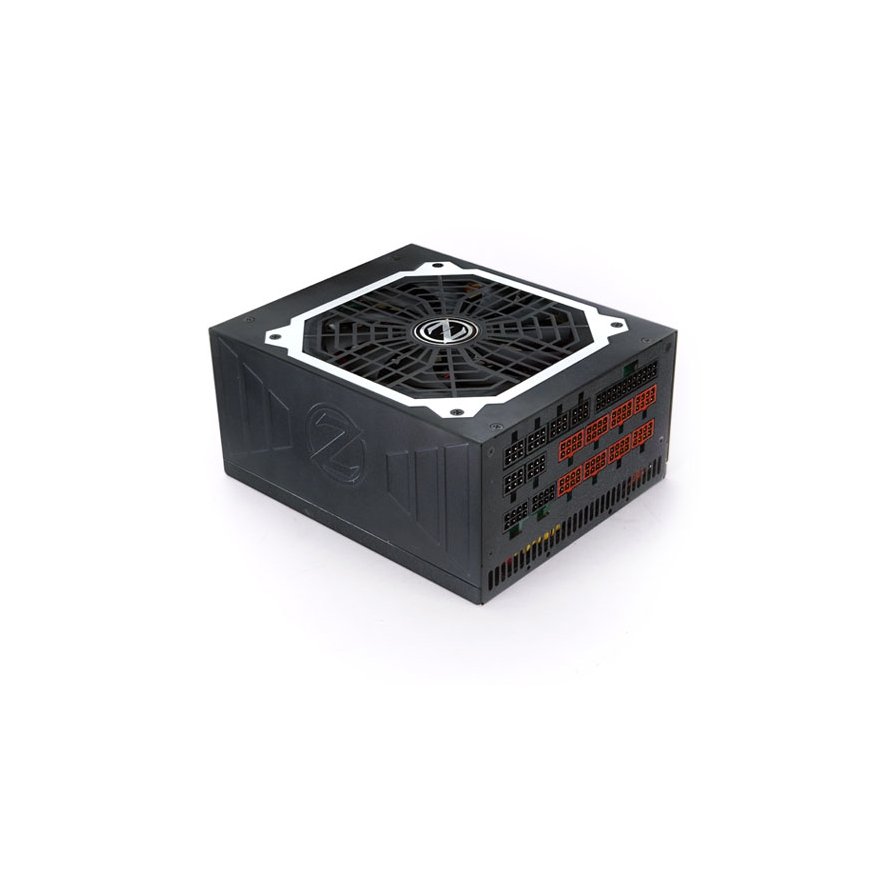

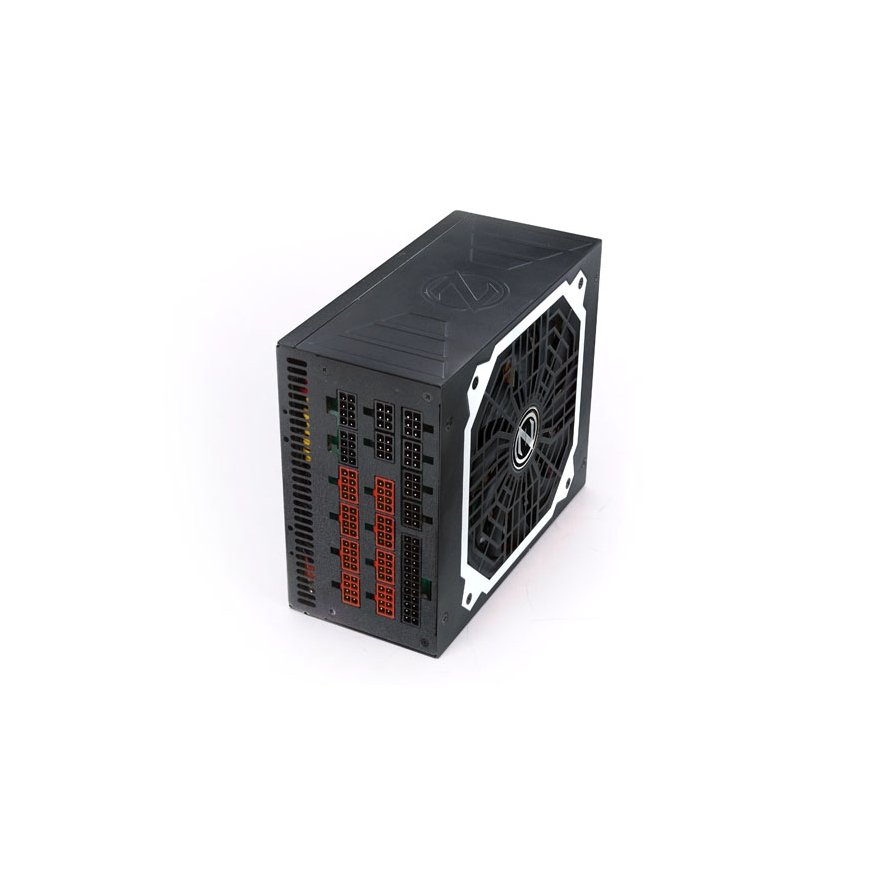

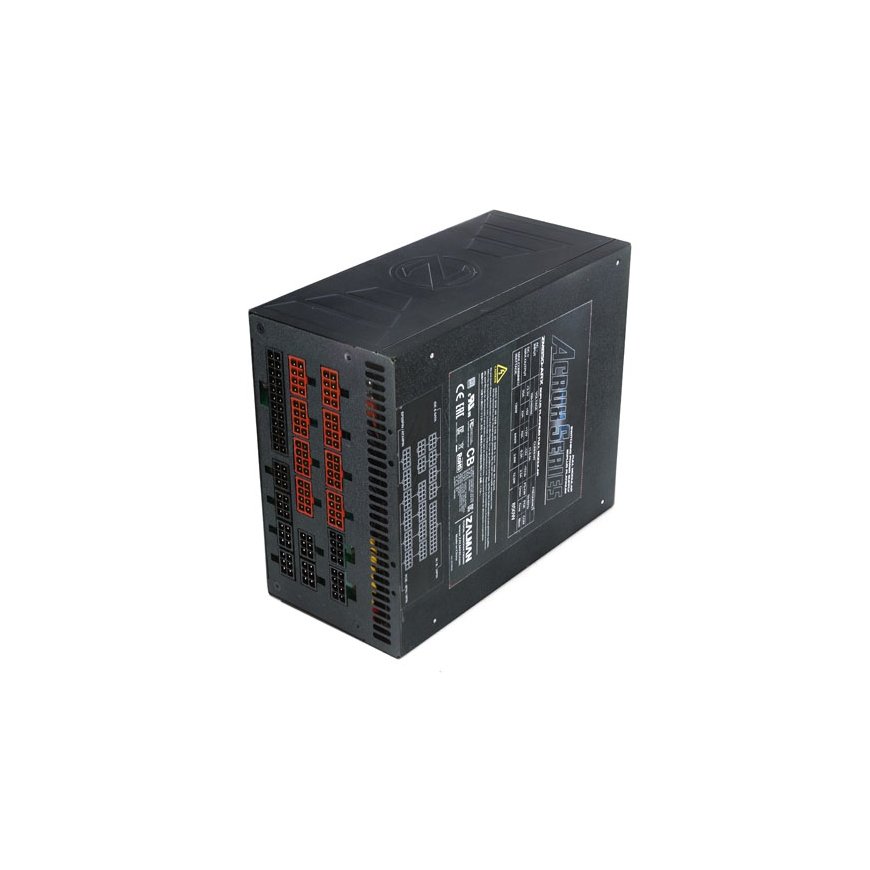

Zalman ZM1200-ARX power supply unit 1200 W 20+4 pin ATX ATX Black
229.72 €
Monthly payment from 6,82 €
1028005 ZM1200-ARX
8809213768781
Shipping 2-3 b.d.
You are interested in this product?
All about the product
High quality componentsHigh quality made in Japan 105°C capacitor guarantees Stability at high temperatures, frequencies and currents.
High quality components
Powerful and highly reliable DC-DC module
Active PFC
Built-in Active PFC circuit provides high power factor and efficiency
Single Rail +12V DC output
Single +12V DC output design for stabilized voltage supply
Secondary Protection IC
Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit Protection.
Modular cable type
Neatly organized DC output modular cable help to increase air flow inside the case.
Ultra quiet 135mm for smart cooling
Smart Fan control system optimizes thermal control while minimizing noise levels.
Power | |
| Efficiency | 94% |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input frequency | 50 - 60 Hz |
| Total power | 1200 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 16 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 60 cm |
| PCI Express power cable length | 55 cm |
| CPU power cable length | 70 cm |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 3.1 kg |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
Packaging data | |
| Manual | Yes |
| Package type | Box |
| Number of straps | 5 |
| Cable storage bag included | Yes |
Other features | |
| Screws included | Yes |
| Number of screws | 4 |
| Cable ties included | Yes |
Packaging content | |
| Cables included | AC |
Certificates | |
| Certification | UL, FCC, CB, CE, EAC, KC, WEEE |
| Compliance certificates | RoHS |
