StarTech.com GLCSXMMDST network transceiver module
StarTech.com GLCSXMMDST network transceiver module
StarTech.com GLCSXMMDST network transceiver module

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

StarTech.com GLCSXMMDST network transceiver module

33,62 €
1024199

GLCSXMMDST

0065030868587

This product is no longer in stock

You are interested in this product?
(Read terms of service)
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

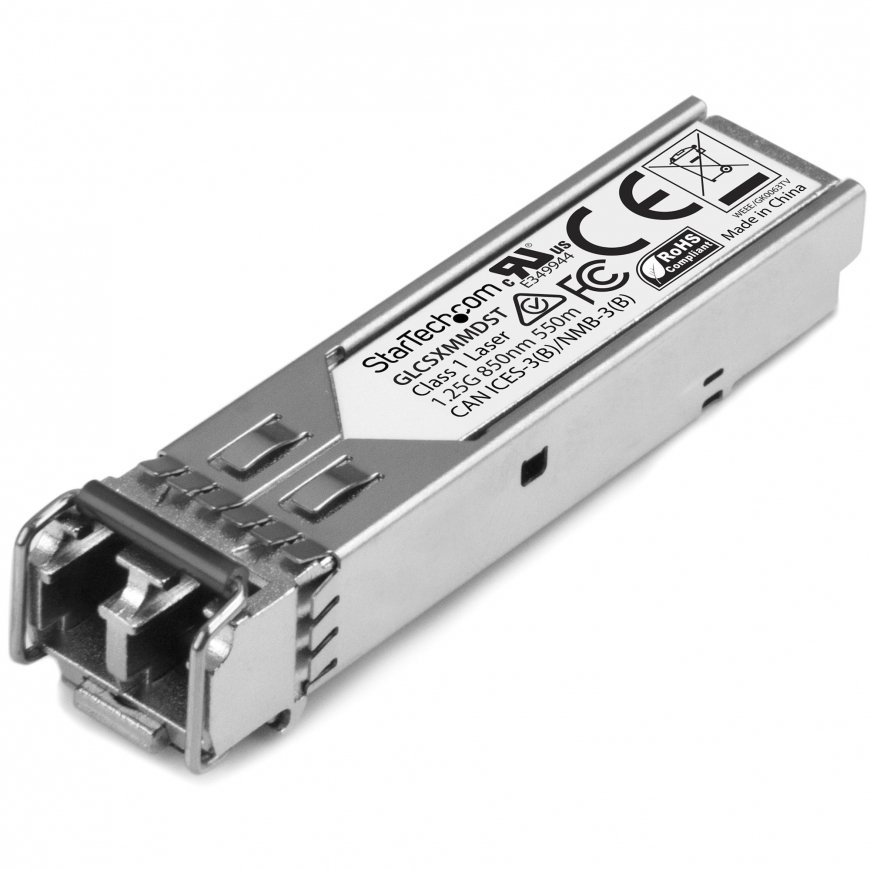

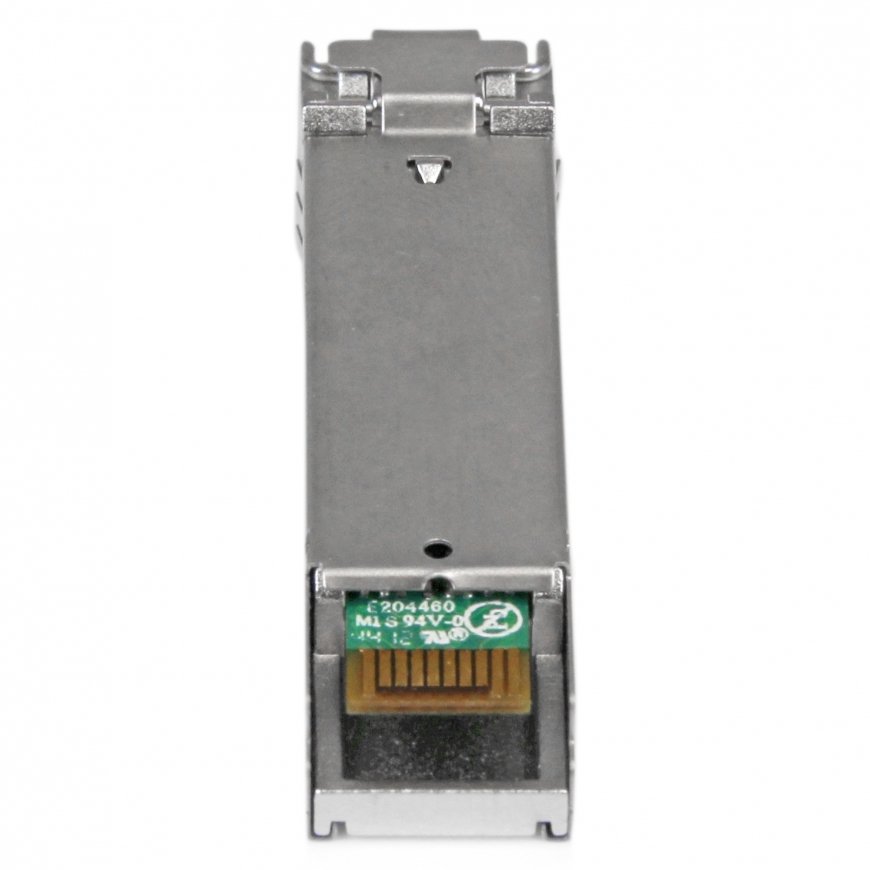

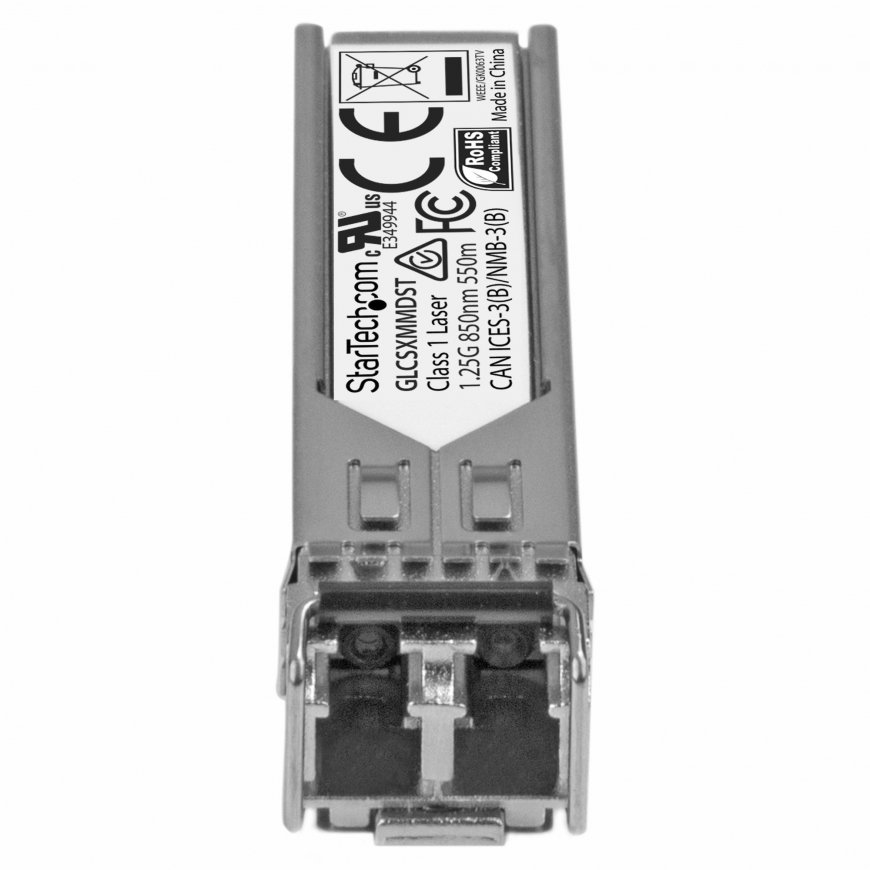

The GLCSXMMDST is a Cisco GLC-SX-MMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage
Network
Networking standards IEEE 802.3z
Ports & interfaces
Fiber optic connector LC
Design
Product colour Silver
Housing material Aluminium
Features
Mean time between failures (MTBF) 3381761 h
Power
Power consumption (typical) 1 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 13.7 mm
Depth 56.6 mm
Height 12.5 mm
Weight 18 g
Packaging data
Package width 119 mm
Package depth 92 mm
Package height 32 mm
Package weight 46 g
Other features
Maximum data transfer rate 1250 Mbit/s
Technical details
Compliance certificates CE, RoHS
Logistics data
Country of origin China
Master (outer) case width 350 mm
Master (outer) case length 408 mm
Master (outer) case height 340 mm
Products per master (outer) case 100 pc(s)
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
