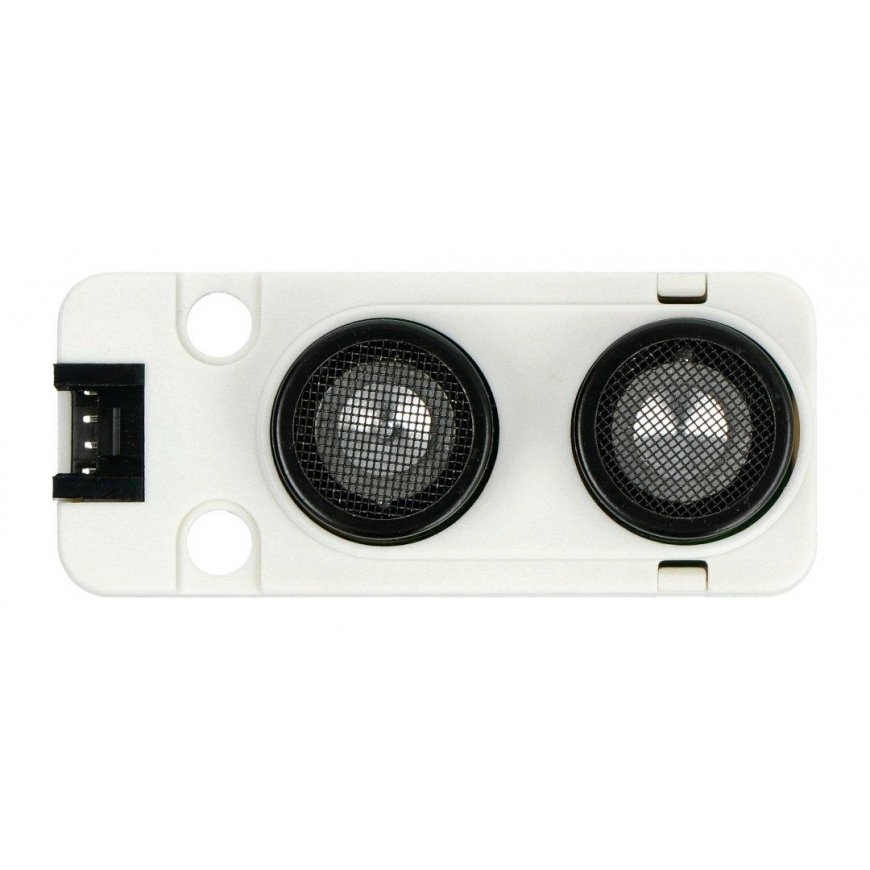

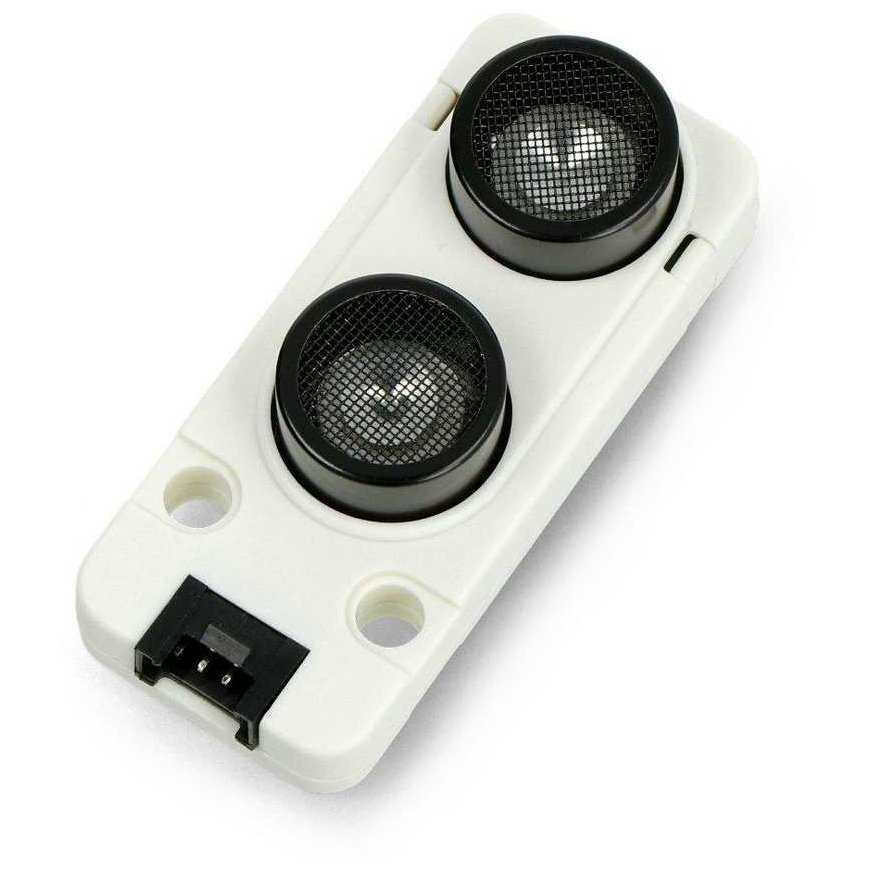

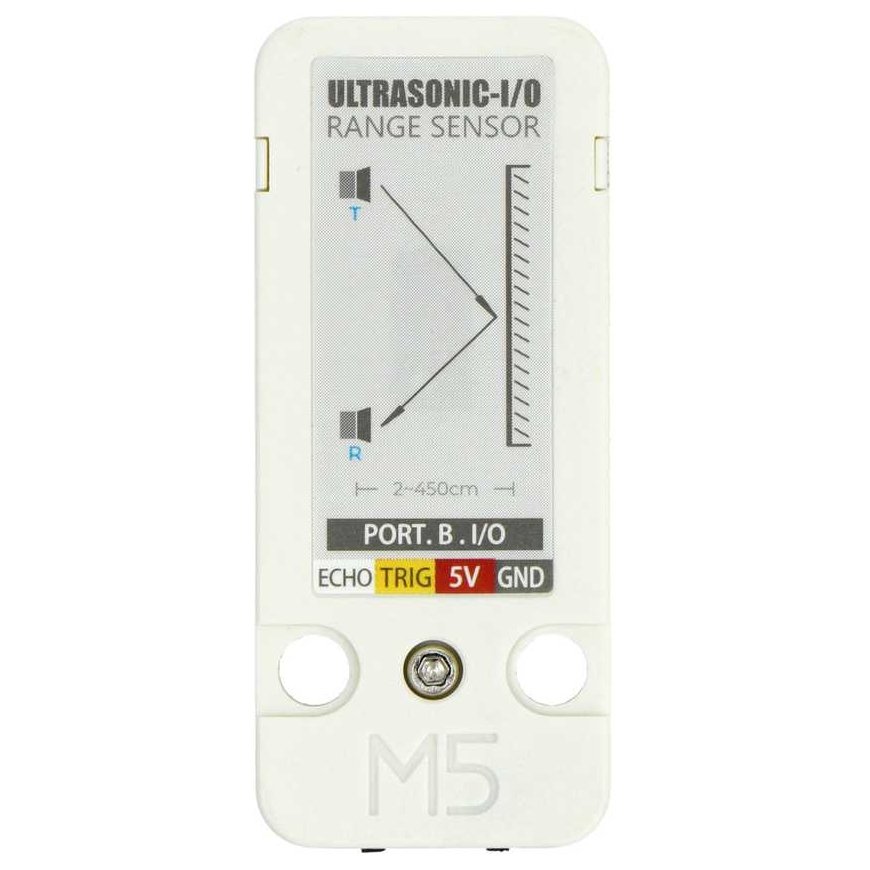

RCWL-9620 Ultrasonic Distance Sensor I/O Expansion Block for M5Stack Development Modules
21.49 €
3648703 AN-20772
5904422378714
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
Device series expansion module - ultrasonic distance sensor, manufactured by M5Stack. The module is compatible with the M5Stack Core, M5Atom and M5Stick development modules. It contains the RCWL-9620 chip, which allows you to accurately measure the distance and detect an obstacle from 20 mm to 4500 mm. The measurement itself is determined with an accuracy of approximately 2%. Grove wires are used to connect the expansion to the main modules. A special connecting cable 20 cm long is included.Main features:
- The RCWL-9620 I/O provides accurate distance measurement from 2 cm to 450 cm with an accuracy of approximately 2%. When measuring more than 350 cm, data transmission is slightly delayed.
- Thanks to the wide 60-degree viewing angle, the sensor can also detect objects that are not directly in front of it.
- To determine the distance to an obstacle, the sensor measures the time from sending the pulse signal to receiving it.
- It is used for obstacle avoidance robots, distance measurement projects, and object detection
- It contains the RCWL-9620 chip
- Compatible with development modules: M5Stack Core, M5Atom, M5Stick
- Integrated chip: RCWL-9620
- Interface: I/O
- Blind spot: 0 mm to 20 mm
- Distance measurement range: 20 mm to 4500 mm
- Measurement accuracy: ± 2%
- Operating frequency: 40 kHz
- Sensor sensitivity: -65 dB
- Viewing angle: ± 60°
- Operating current: 3 mA
- Supported development platforms: Arduino, UlFlow (Blockly, Python)
- LEGO compatible module
- Module dimensions: 56 x 24 x 15 mm
- Weight: 11.5 g
- RCWL-9620 Ultrasonic Distance Sensor I/O Expansion Module for M5Stack Development Boards

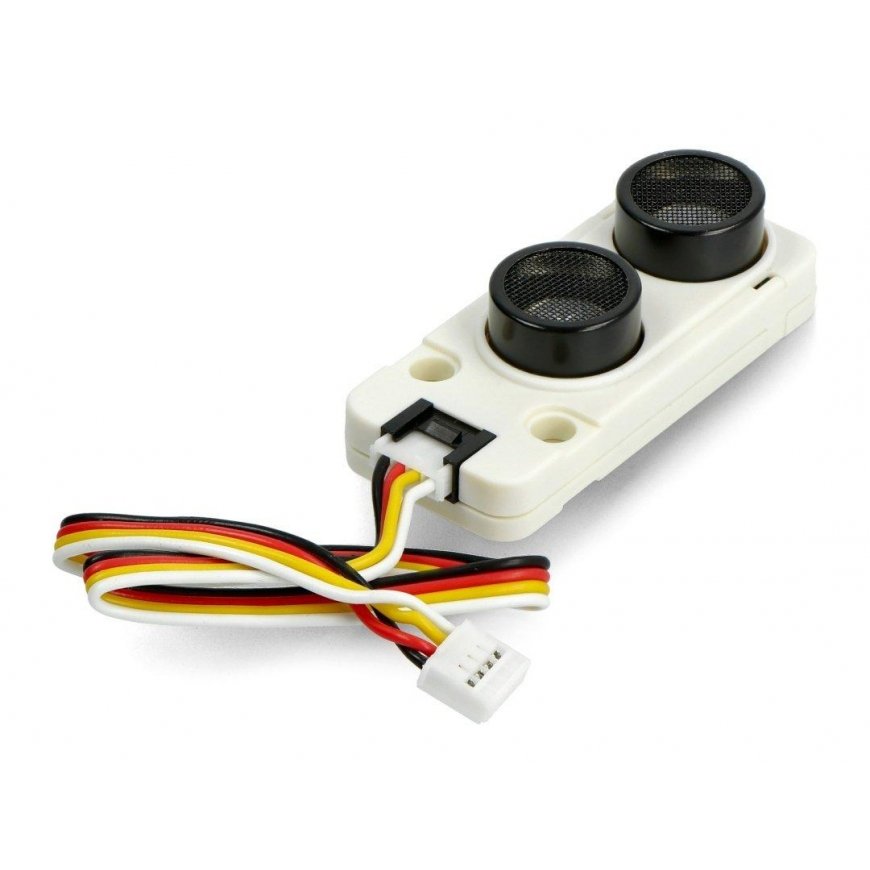

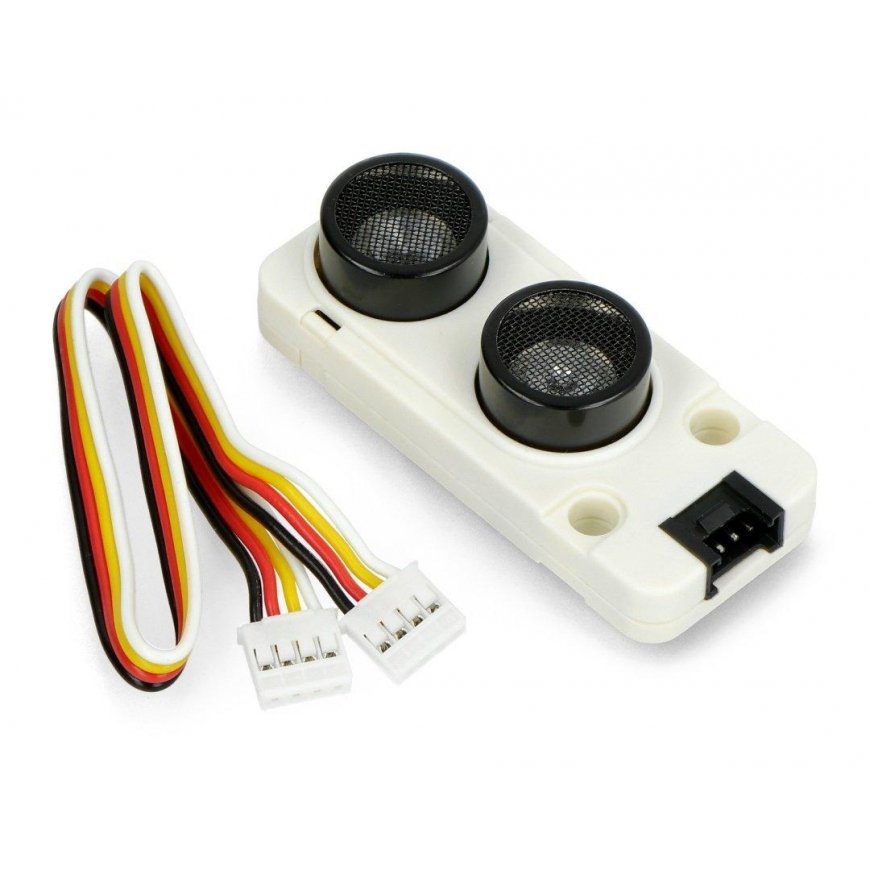

- Connecting cable ends with Grove connector - length 20 cm
