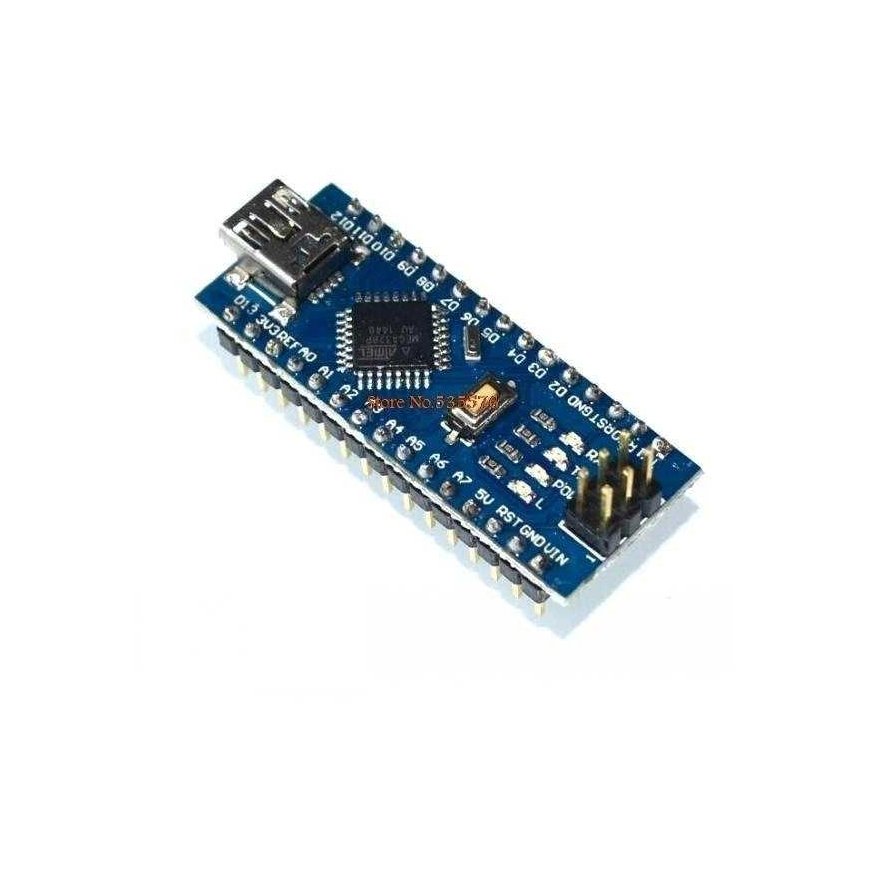

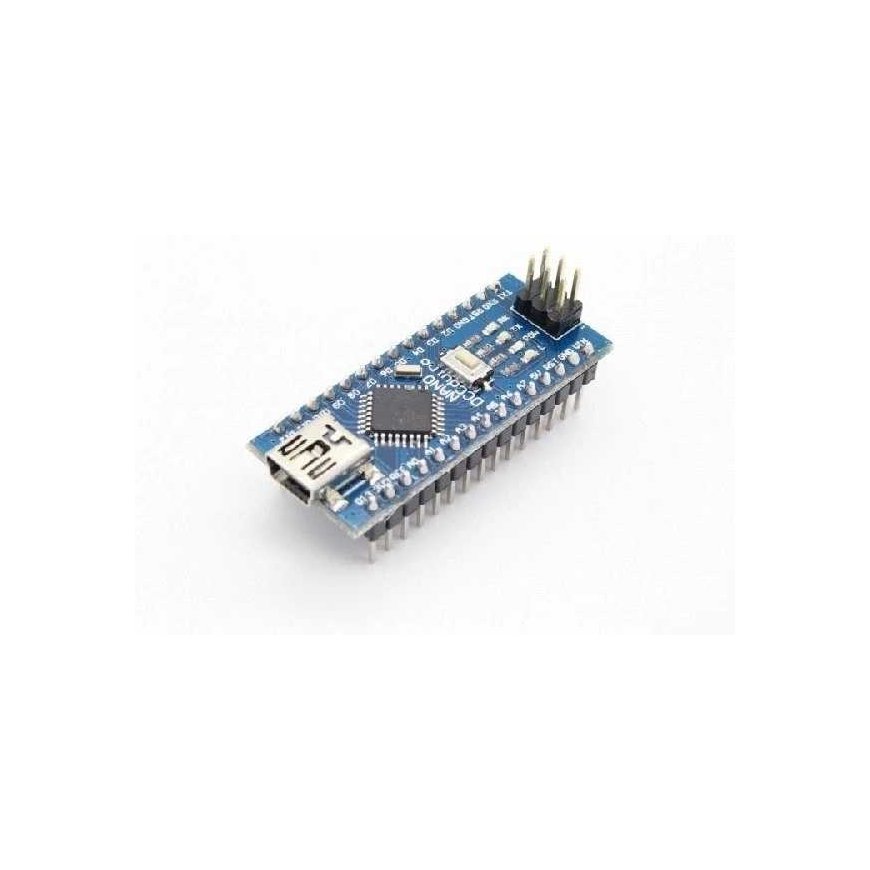

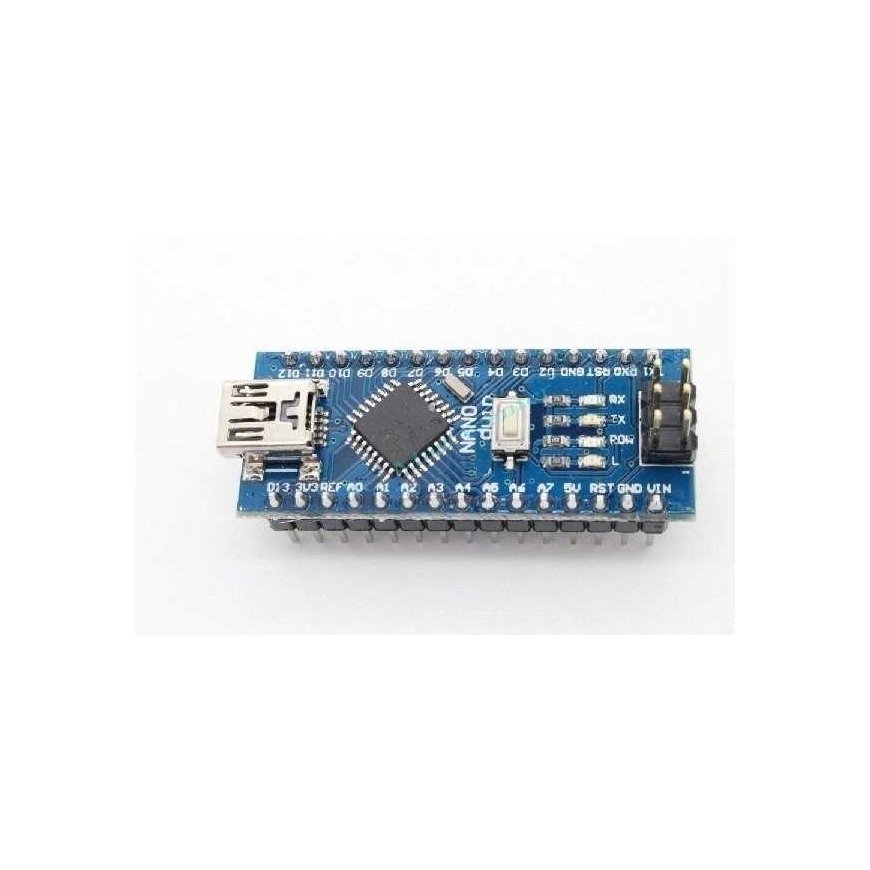

NANO V3.0 16MHz USB – ATmega328PB – CH340 – Clone – Solder Pins – Arduino Compatible

Все о продукте

• Precision-restored maple ensures performance and reliability.
• The NANO has a CH340 programmer which requires an additional driver which you will find below.
• The convenient mini USB connector makes this module easy to connect to a computer and program, and its small size makes it suitable for smaller projects.
• The Atmega328 microcontroller is used in Arduino.
• The Nano has a voltage regulator, so we can power the module with a voltage higher than 5V.

ATTENTION!!!

The Nano has an old bootloader that works with ArduinoIDE up to version 1.6. and this version of the software needs to be downloaded.

• The Nano version, like the Pro, is based on the popular Uno module
• It has an Atmega328PB microcontroller.

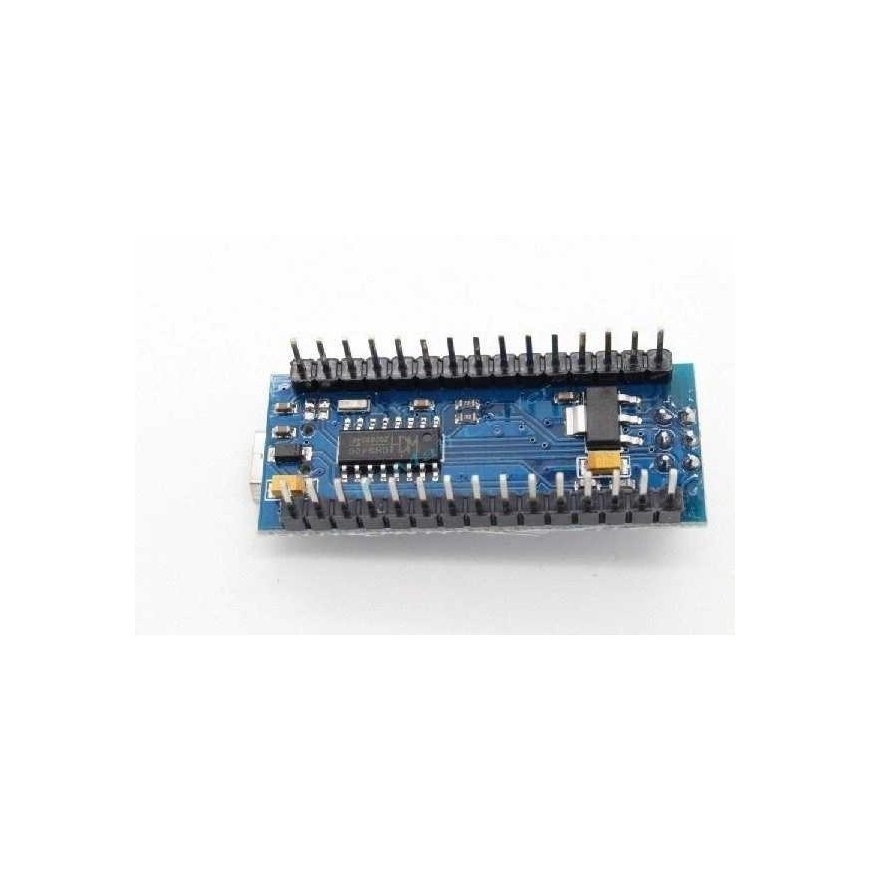

• The board has a USB connector with a CH340 chip
• The board contains an ATmega328 processor with 32kB Flash memory, 1kB SRAM memory, 1kB EEPROM memory. It is monitored by a clock signal with a frequency of 16 MHz.
• The board has output/input pins, including 14 digital pins and 8 analog inputs.
• The Arduino Nano can be powered via a mini USB cable with an unregulated 7-12 V voltage supplied to pin 30, or from a regulated 5 V voltage source. The system automatically selects the highest voltage power source.
• The system has a communication system with a computer via UART, USB, I²C (TWI) and SPI interfaces.
• Operates on 5 V voltage.
• Manual reset switch, LEDs for controlling system operation.
• The connectors located on the board allow the board to be connected directly to a breadboard.

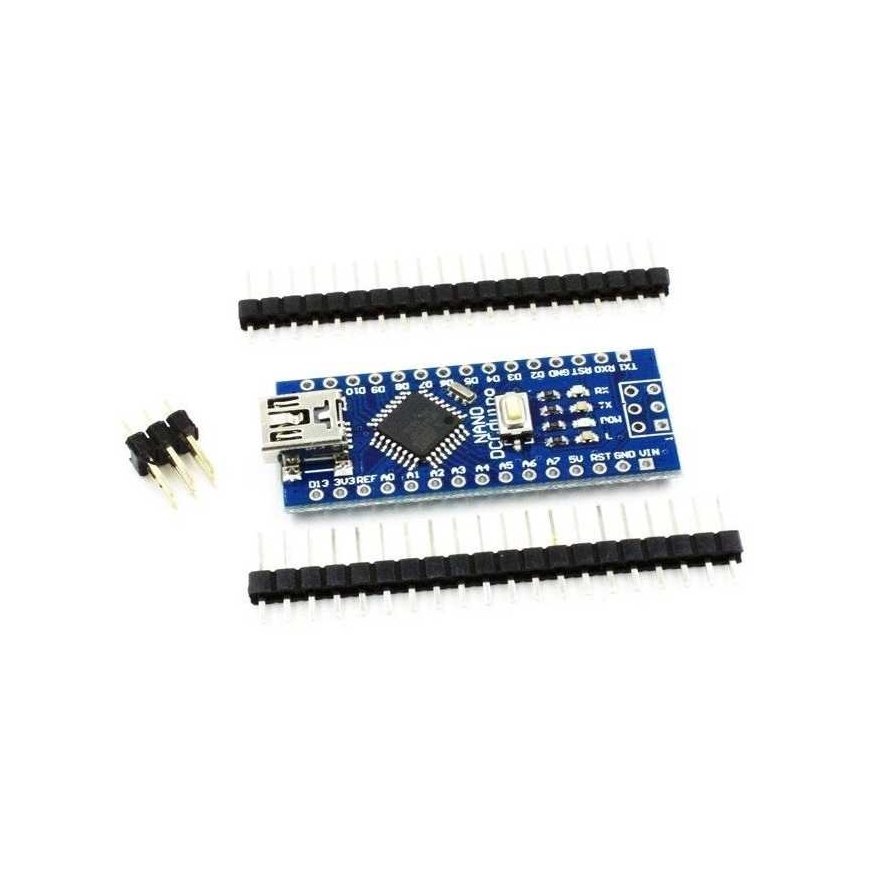

• This version has soldered connector pins.
• Programming is done using the Arduino IDE, a free software that is especially user-friendly for beginners.
• The microcontroller on the board has a pre-installed bootloader that allows you to load software without using additional hardware.
• In addition, the processor can be programmed via ICSP.

• Supply voltage: 5V
• Microcontroller: ATmega328PB - 16 MHz
• Ports - I/O pins: 14
• Number of analog inputs: 8
• Number of PWM outputs: 6
• Serial interfaces: UART, SPI, I2C
• External interrupts
• Overcurrent protection
• The module is made of 0.8 mm thick laminate
• Weight less than 5 g.
• Pin spacing 2.54 mm (can be mounted on breadboards)
• Dimensions: 45x19 mm
• 32kB flash memory, 1kB EEPROM, 1kB SRAM
• 2 8-bit timers/counters, 1 16-bit timer/counter

• Power supply:
  • If the supply voltage is higher than 5V, it must be connected to the RAW pin, which is connected to the stabilizer.
  • VCC is directly connected to the microcontroller pins, connecting a voltage higher than 5V may permanently damage the system.
• Inputs/outputs:
  • The Arduino Pro has 14 digital input/output (I/O) pins.
  • Each pin allows a maximum current of 40 mA, which allows direct connection of LEDs with resistors and control of other integrated circuits.
  • In addition to standard I/O, some contacts have special functions.
• Programming:
  • Software development and upload is possible in a free environment provided by the manufacturer.
  • To program via UART, you can use the PL2303 programmer.

• Arduino Pro Mini homepage - http://www.arduino.cc/en/Main/arduinoBoardNano
• IDE software - http://www.arduino.cc/en/Main/Software
• Nano V3.0 board pin errors – http://microcontrollers.cba.pl/?p=6
• USB Chip Driver – http://www.driverscape.com/download/usb-serial-ch341

• NANO V3.0 16MHz USB - ATmega328PB - CH340 - Clone - 1 pc
