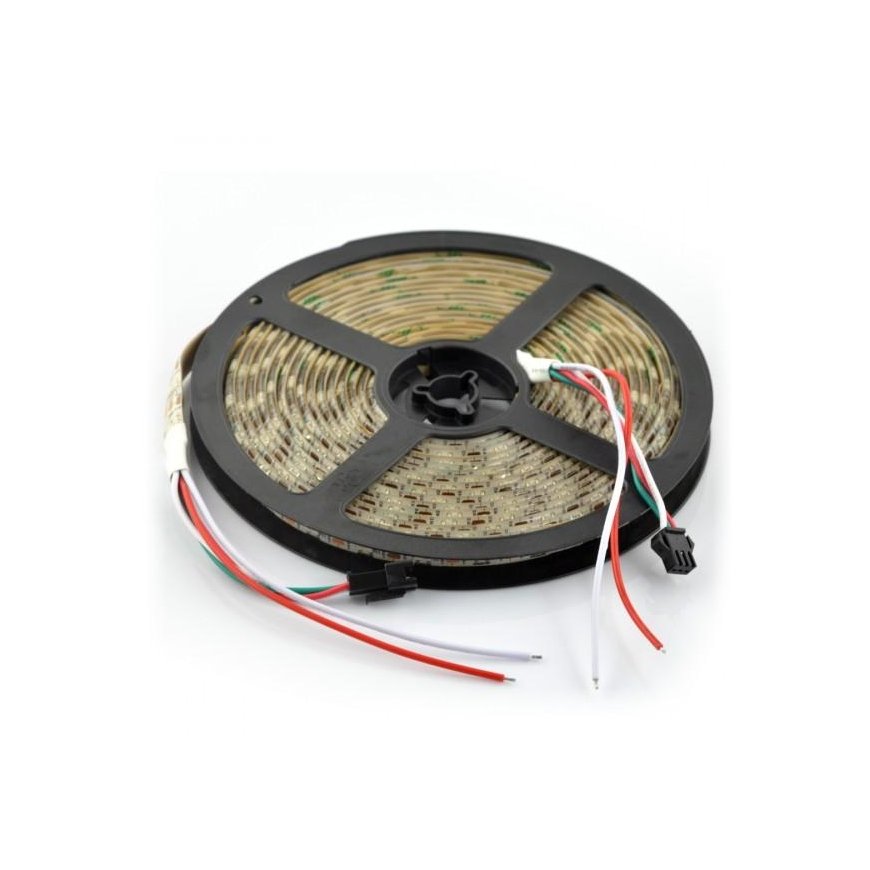

Oem RGB LED strip WS2812B -60 LED/m 5V - 5m

Все о продукте

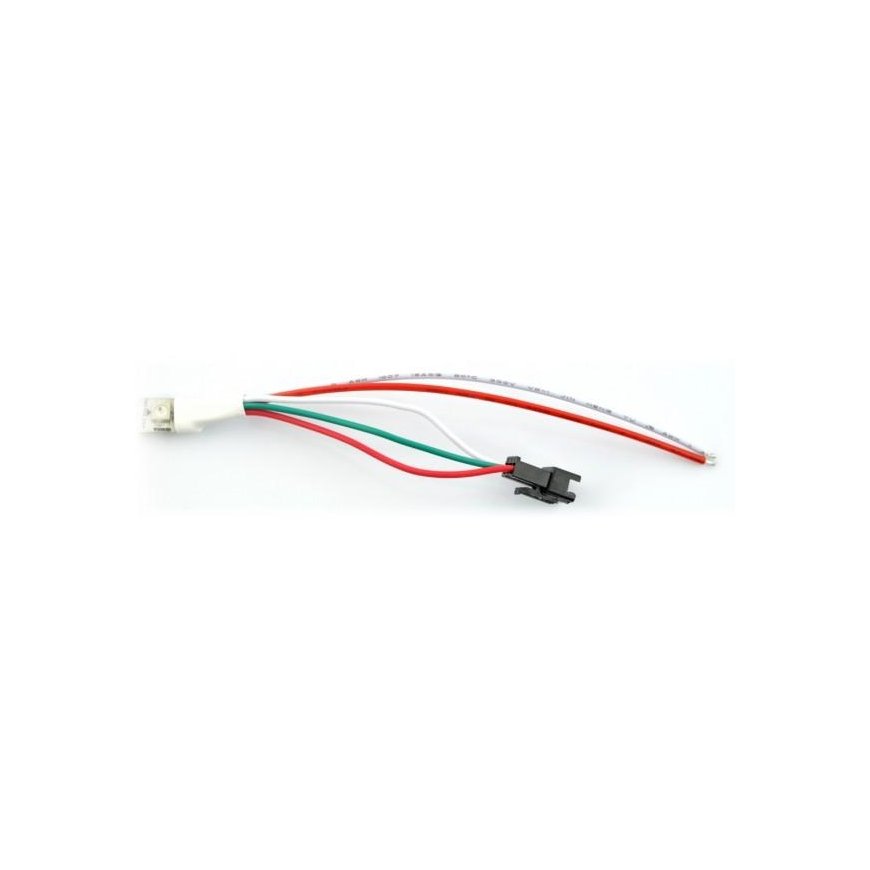

Individually addressable RGB LEDs with a density of 60 diodes per meter. Each pixel can emit colors from a 24-bit palette. A single microcontroller pin (for example, Arduino) is sufficient to control the module. The LEDs are densely arranged, approximately 10km apart. 17mm, so the brightness is very high. High power requires a powerful power supply. The system is powered by 5 volts, consuming approx. 3.5A per meter (18W). The circuit has the ability to cross each diode. The communication protocol used allows you to connect the LEDs in series. Another circuit should be connected to the output connector, connecting 5V, GND and DOUT to DIN, respectively. The manufacturer notes that when working with more than 500 LEDs, the RAM in the Arduino Uno system may not be enough. You should also pay attention to the fact that for each subsequent matrix you will need to increase the power supply capacity.

Installing the Adafruit library:

1. Download the library from GtitHub Download ZIP
2. Rename the root folder to: Adafruit_NeoPixel
3. Move the entire folder to the directory containing the Arduino libraries
4. Restart the Arduino environment, the library will appear in the menu: File -> Examples

Specification:

• Supply voltage: 5V
• Power: 18 W/m
• Power consumption: approximately 3.5A per 1 meter of circuit

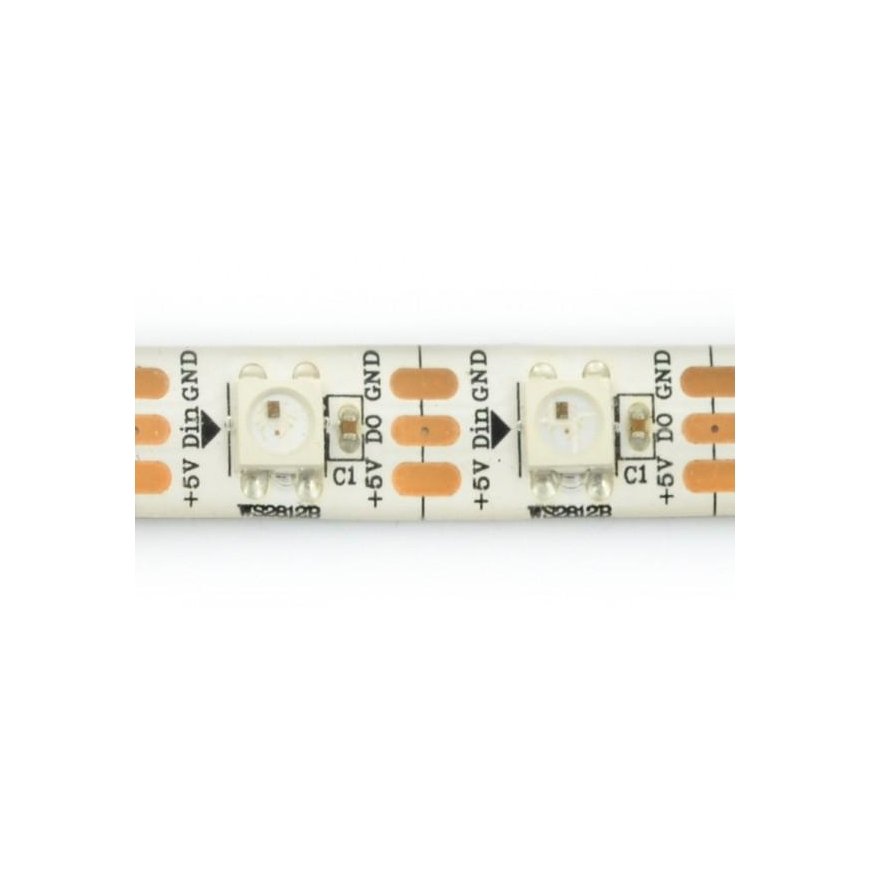

• Diodes used: LED RGB SMD5050 WS2812b
• Addressable point: 1 RGB LED
• IP class: IP65 (silicone cover)

• Chain length: 5m

• width: 10mm
