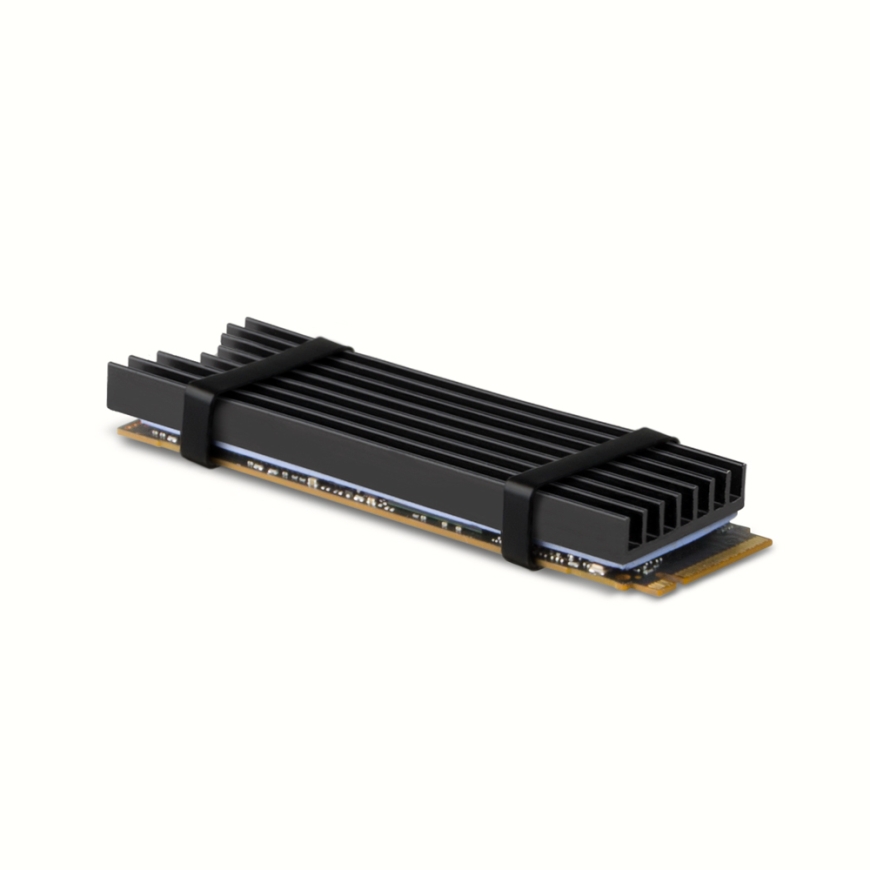

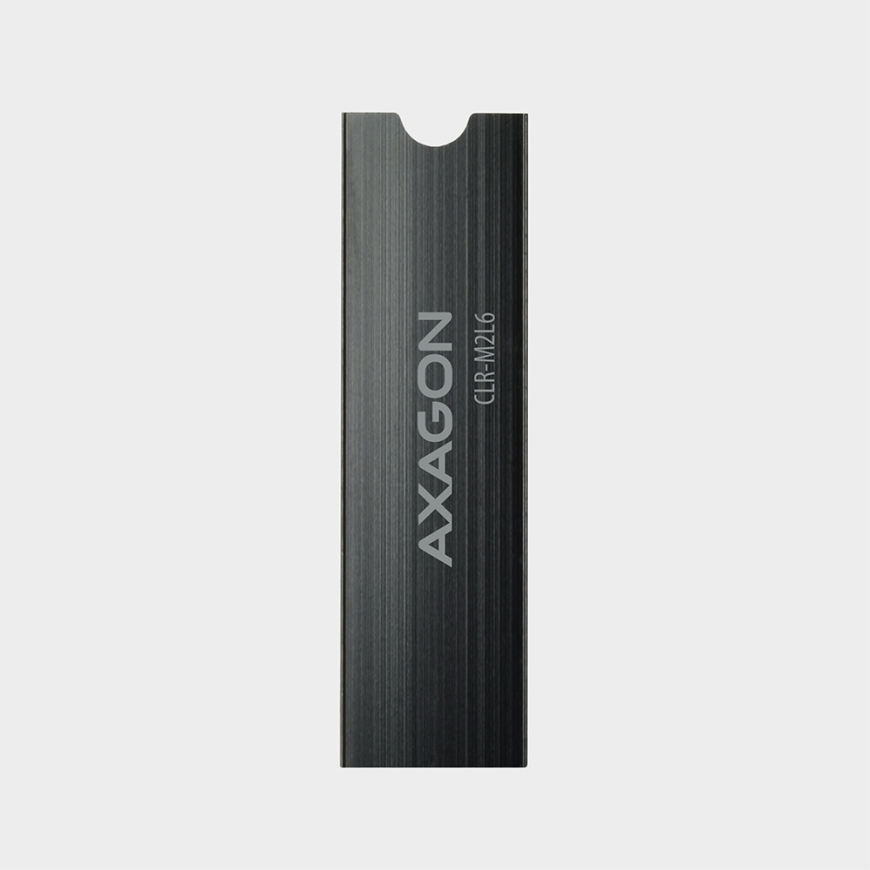

Axagon CLR-M2L6 Passive aluminum heatsink for all M.2 SSDs, size 2280, high 6 mm
9,78 €
916787 CLR-M2L6
8595247905543
Shipping 1-3 b.d.
You are interested in this product?

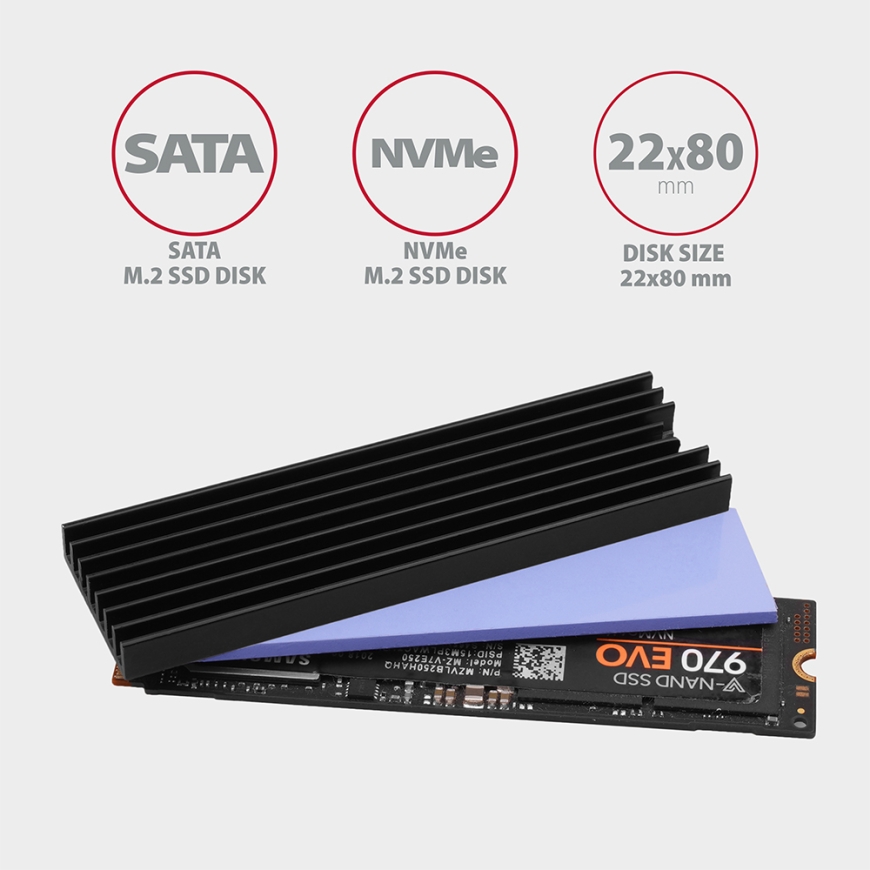

The universal passive heatsink can be used for M.2 cards, size 22 x 80 mm. Two supplied thermally conductive pads allow cooler installation for all one-sided as well as double-sided M.2 SSD disks.

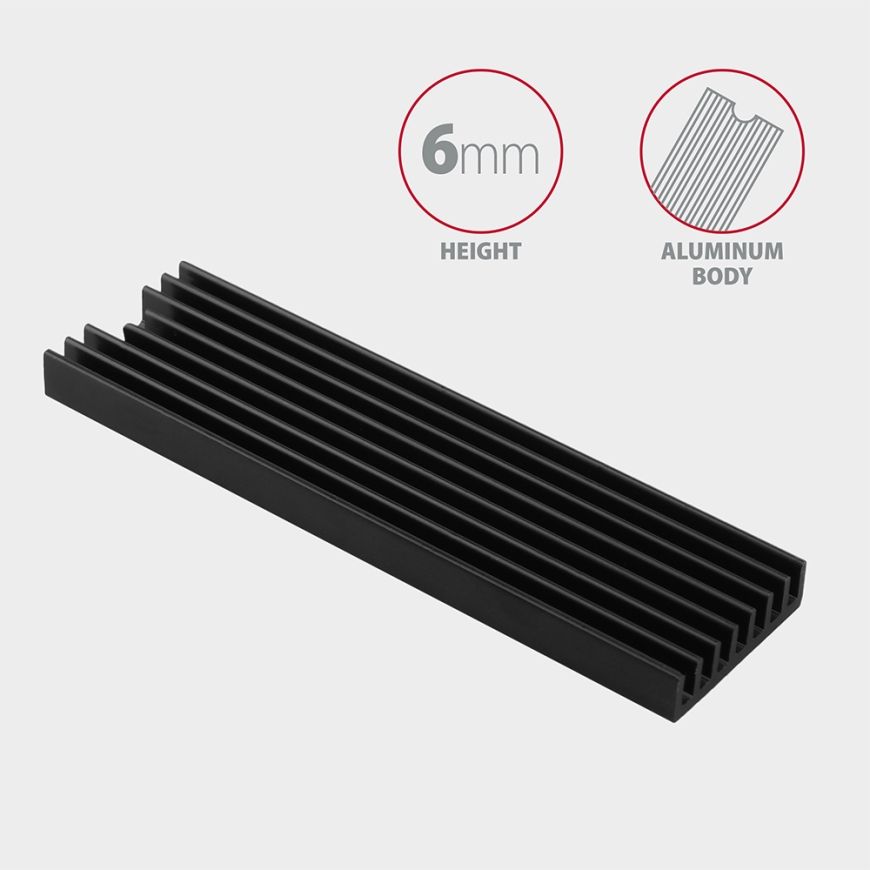

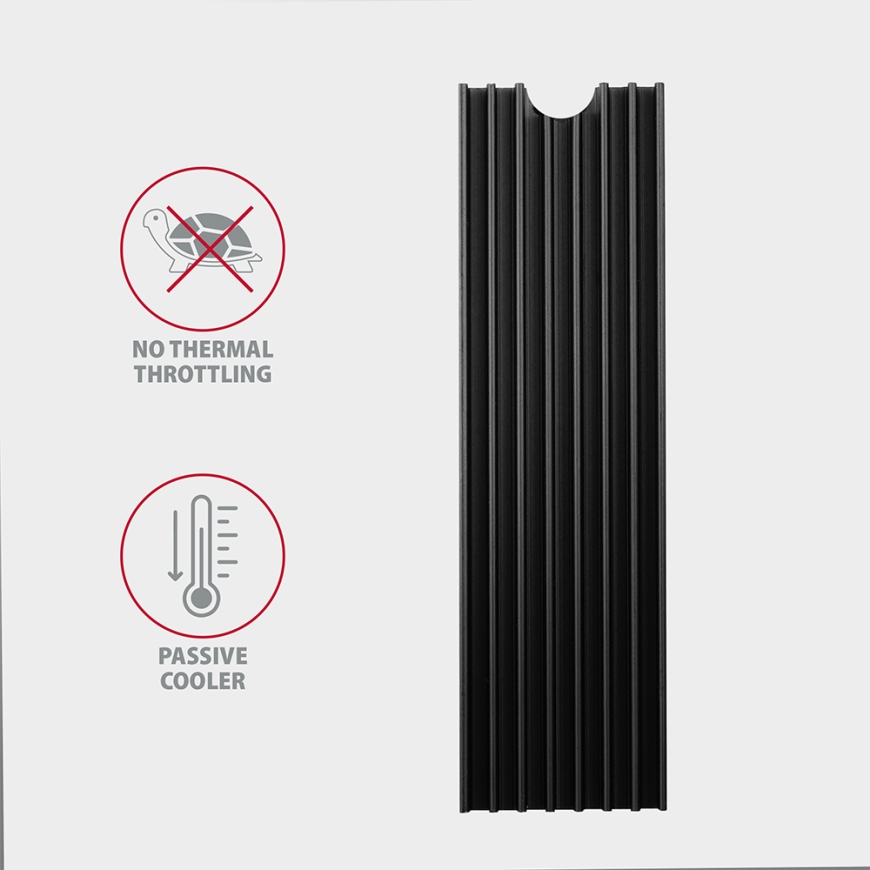

6mm high ribbed aluminum heatsink assists in a better dissipation of heat generated during the M.2 SSD operation. It also reduces the drive temperature by up to 20°C. This prolongs the M.2 SSD life and prevents disk slow down, so-called "Thermal Throttling".
Thanks to its easy installation and compact dimensions, the heatsink can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. The heatsink has the ideal profile height / cooling efficiency ratio.
Performance | |
| Type | Heatsink/Radiator |
| Compatible products | M.2 SSD 2280 |
| Quantity per pack | 1 pc(s) |
| Suitable location | Solid-state drive, M.2 NVMe SSD |
Design | |
| Certification | CE, RoHS |
| Product colour | Black |
| Material | Aluminium |
| Radiator material | Aluminum |
Weight & dimensions | |
| Weight | 13 g |
| Package weight | 32 g |
| Height | 77 mm |
| Width | 22 mm |
| Depth | 6 mm |
| Package height | 100 mm |
| Package width | 40 mm |
| Package depth | 20 mm |
Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, RoHS |
Packaging content | |
| Thermal pad included | Yes |
| Package type | Box |
