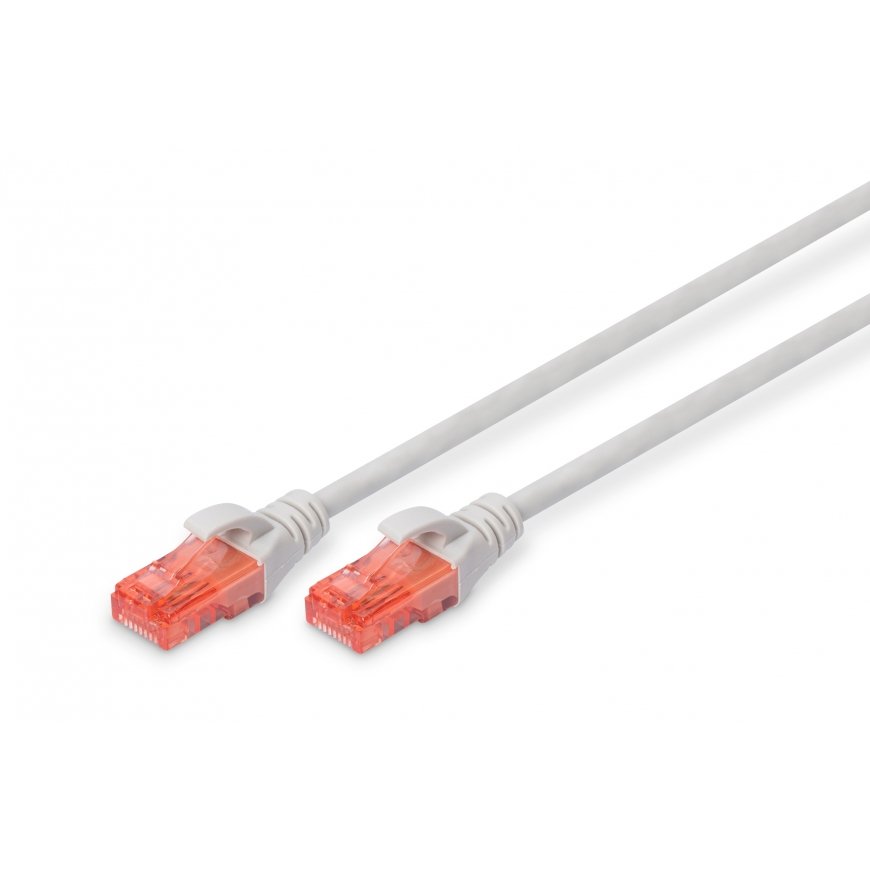

Digitus CAT 6 U/UTP patch cord - LSZH
7,64 €
884800 DK-1617-030
4016032387824
Shipping 3-7 b.d.
You are interested in this product?
- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
- Transparent red colored plug for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready
The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.
Features | |
| Cable length | 3 m |
| Cabling technology | 10/100/1000Base-T(X) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Copper |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat6 |
| Cable class | E |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26/7 |
| Frequency | 250 MHz |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444210 |
| Harmonized System (HS) code | 84733080 |
Packaging data | |
| Package width | 170 mm |
| Package weight | 91.667 g |
| Package depth | 16 mm |
| Package type | Polybag |
| Package volume | 680 cm³ |
Weight & dimensions | |
| Outer diameter | 5 mm |
Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
Other features | |
| Input impedance | 230 Ω |
