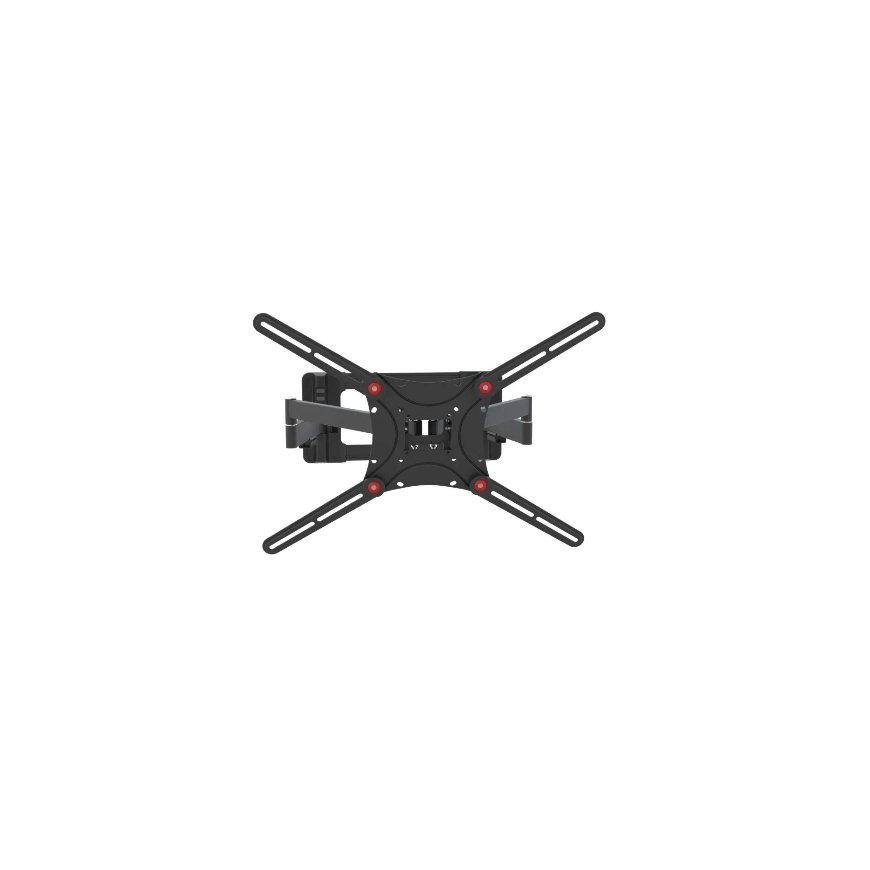

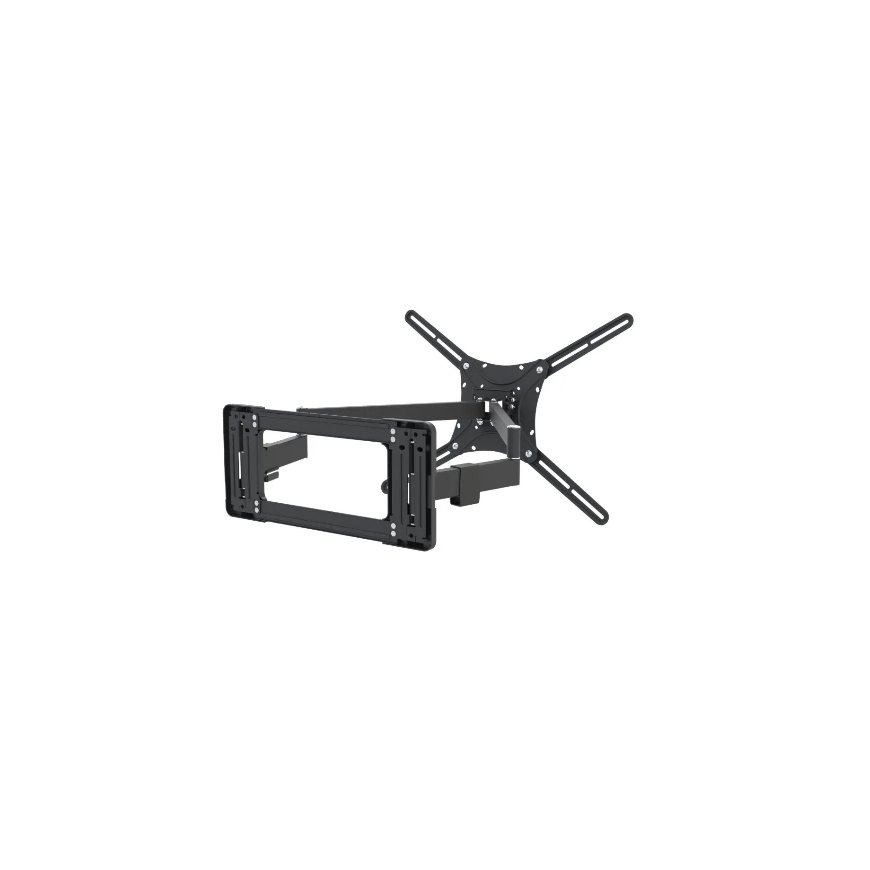

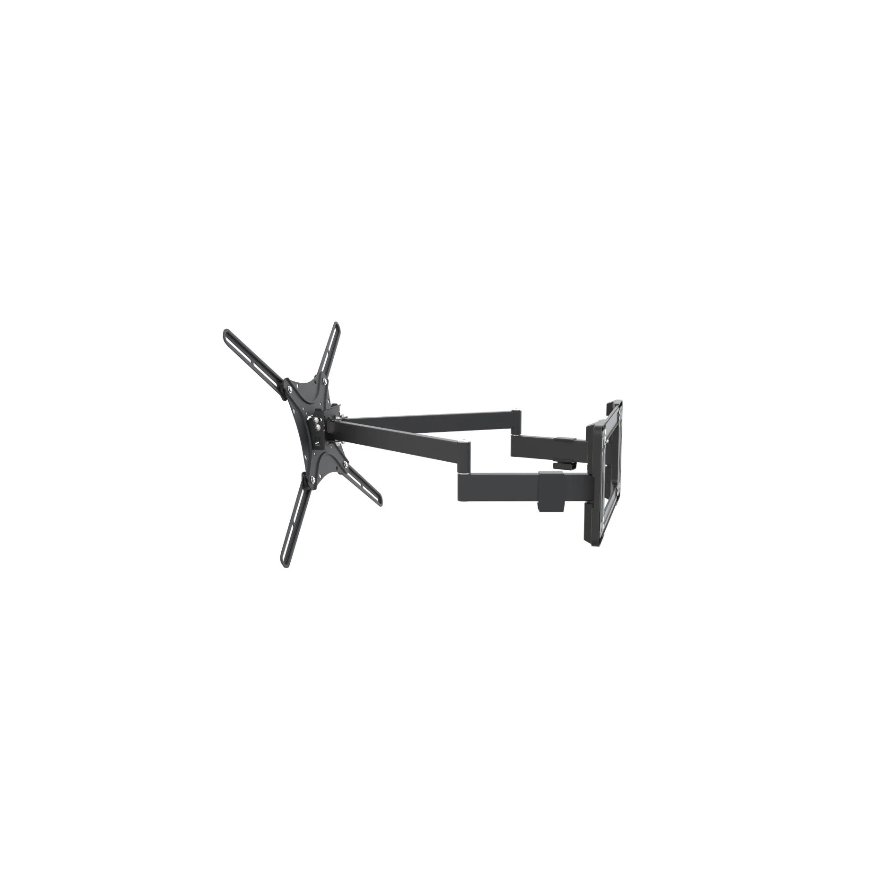

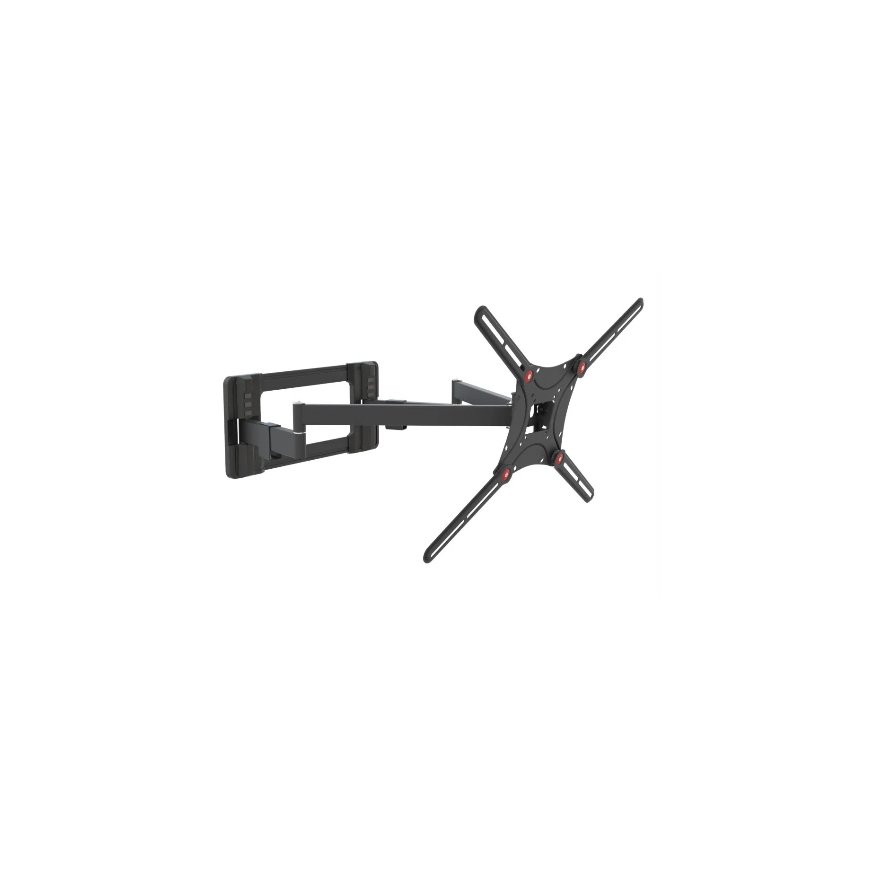

Barkan Mounting Systems BM464L TV mount/stand 2.29 m (90") Black
107,01 €
98.09 €
Monthly payment from 3,43 €
845287 BM464L
7290016783773
Shipping 5-8 b.d.
You are interested in this product?
All about the product
Exceptionally long and stable wall mount with double arm, allows 60° swivel for TVs up to 65"/ 165cm and 90° swivel for TVs up to 43"/ 109cm (width up to 39"/ 99cm).Includes a patented mechanism to fit various screen types and screens with special back structure.
Corner installation for screens up to 80"/ 203 cm (depending on installation limitations).
For screens weighing up to 132lbs/ 60kg.
Minimum distance from the wall: 3.2" / 8 cm.
Maximum distance from the wall: 27.6" / 70 cm.
The mount has 3 pivots which: rotate near the wall 180°, fold 360°, swivel near the screen connection plate 180° in addition to a tool-free tilt from -5° till 15° and a +/-5° leveling after the installation.
Fits TVs with VESA standard (Bracket Mounting Holes Patterns) 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 600x400 mm and non VESA up to 600x400 mm.
Safety tested with a load of 465lbs/ 211kg.
The mount is suitable for wood-stud walls, where the studs are 16" apart.
The rails connecting between the two wall plates can be disassembled, allowing you to set the distance between the wall plates at your discretion. Note, that making this alteration will result in different minimum and maximum distances of the mount from the wall than stated in the specifications.
The mount is suitable to be installed in the corner of a room.
Also compatible for larger screen sizes, where their specifications comply to the mount.
Features | |
| Maximum weight capacity | 60 kg |
| Panel mounting interface | 75 x 75, 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400, 200 x 100, 200 x 300, 100 x 200, 300 x 400 |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 2.29 m (90") |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 600 x 400 mm |
| Mounting type | Wall |
| Tilt angle range | -5 - 15° |
| Swivel angle range | 60 - 90° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Product colour | Black |
Ergonomics | |
| Distance to the wall (max) | 70 cm |
| Distance to the wall (min) | 8 cm |
| Number of pivot points | 3 |
| Pivot angle | 0 - 180° |
| Suitable for curved screen | Yes |
Packaging data | |
| Quantity per pack | 1 pc(s) |
