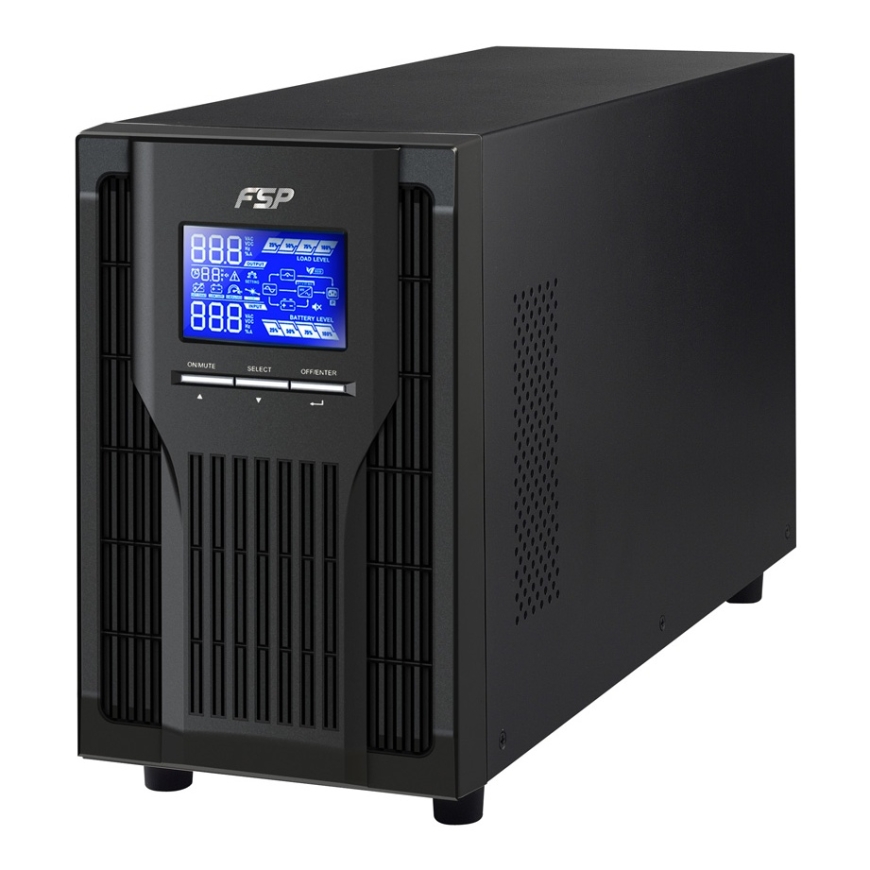

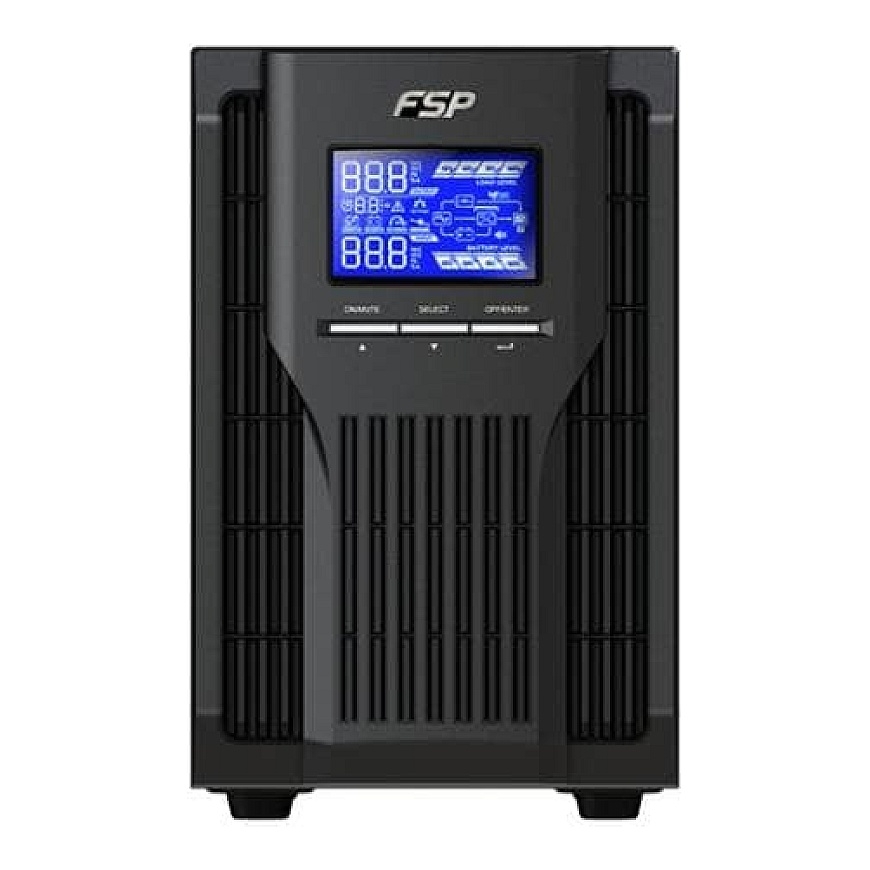

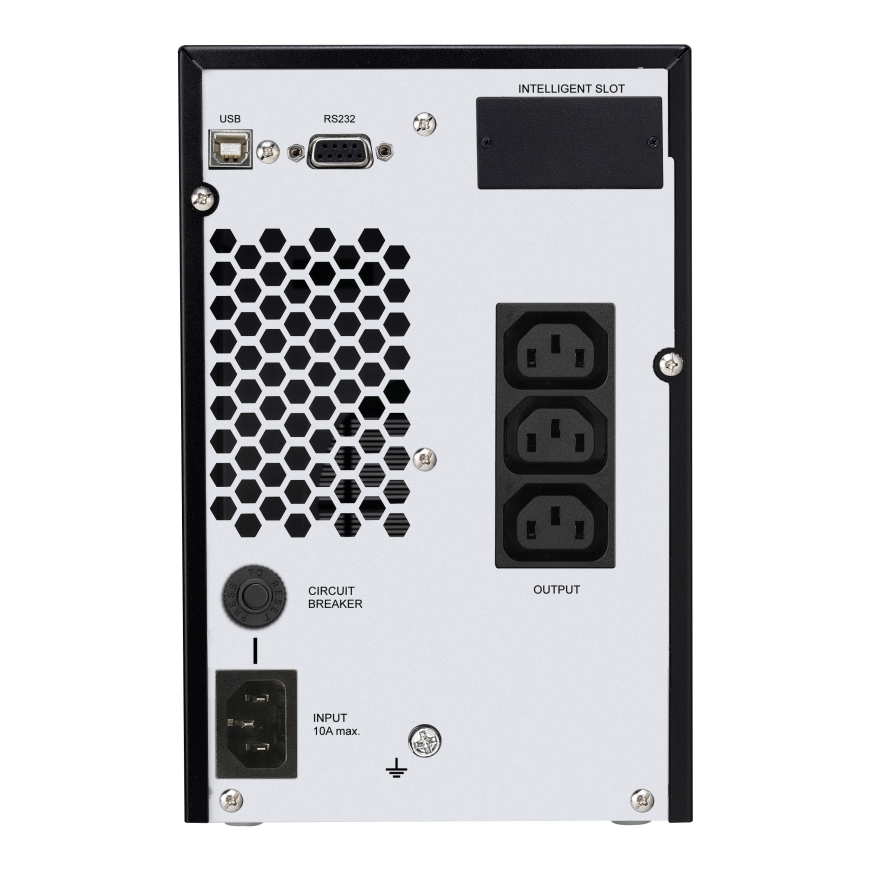

FSP Champ Tower 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W
264.38 €
Monthly payment from 7,71 €
704486 PPF8001305
4711140487595, 2000001022443
Shipping 3-7 b.d.
You are interested in this product?
All about the product
FSP Champ Tower Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in a small cabinet with a microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters, and related contact cards.Features
| Product colour | Black |
| USB 2.0 ports quantity | 1 |
| Display type | LCD |
| USB port | Yes |
| Form factor | Tower |
| Weight | 9.8 kg |
| Width | 145 mm |
| Depth | 282 mm |
| Height | 220 mm |
| Cables included | USB cable; Input power cable |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| LED indicators | Yes |
| Control type | Buttons |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Power factor | 0.99 |
| Noise level | 50 dB |
| Batteries included | Yes |
| Audible alarm(s) | Yes |
| USB port type | USB Type-B |
| Packaging content | UPS, Power cable, USB cable, Software on CD, User manual |
| Output power | 900 W |
| Number of battery cells | 2 |
| Harmonized System (HS) code | 85078000 |
| Response time | 0 ms |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| Software CD | Yes |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| AC outlet types | C13 coupler |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 8.9 min |
| Number of phases | 1 |
| Output frequency | 47/63 Hz |
| Audible alarm modes | Alarm when on battery; Low battery alarm; Overload alarm; Fault |
| Output voltage regulation | 1% |
| Number of output IEC jumpers | 3 |
| Battery recharge time(90%) | 4 h |
| Total Harmonic Distortion (THD) (linear load) | 3% |
| Total Harmonic Distortion (THD) (non-linear load) | 6% |
