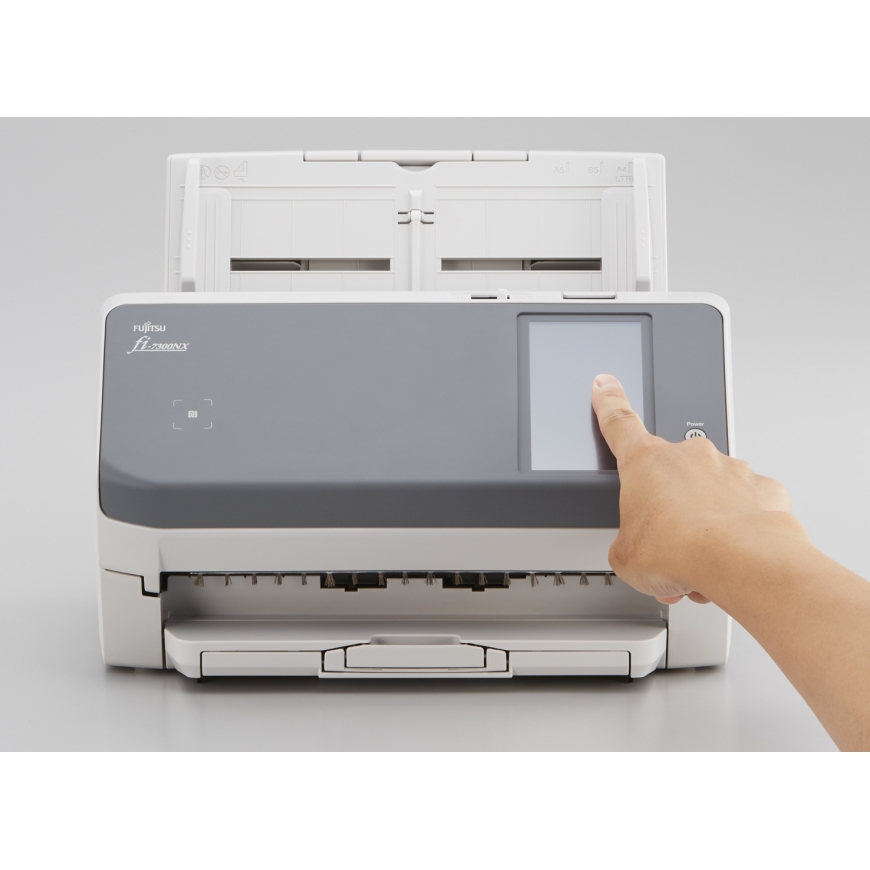

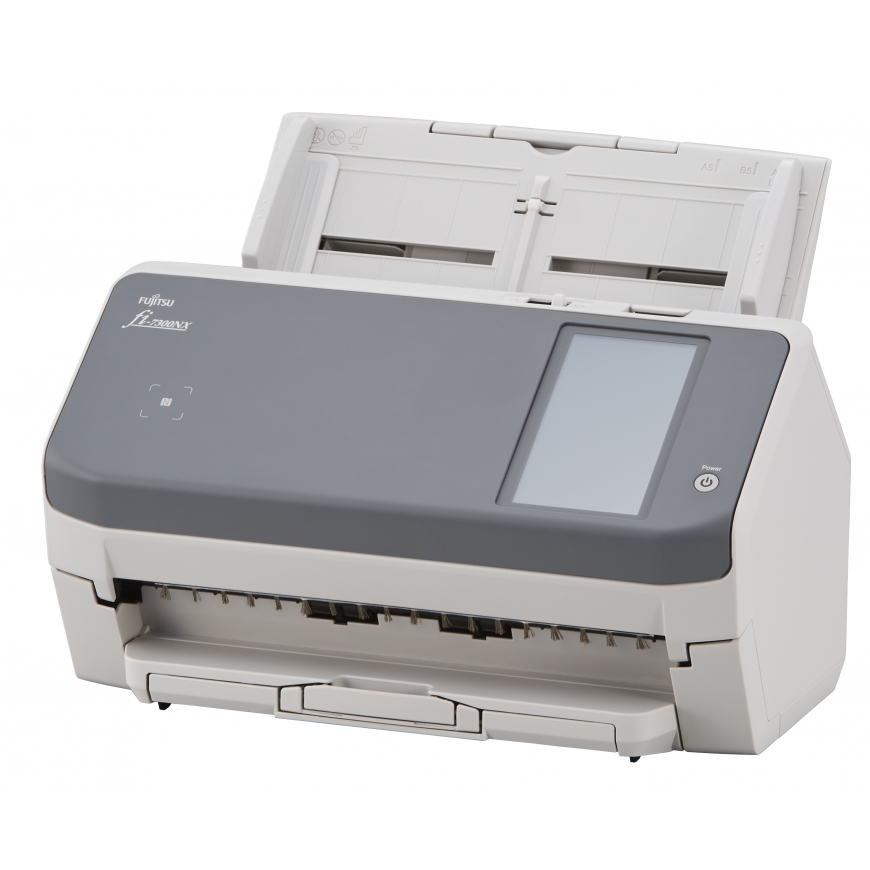

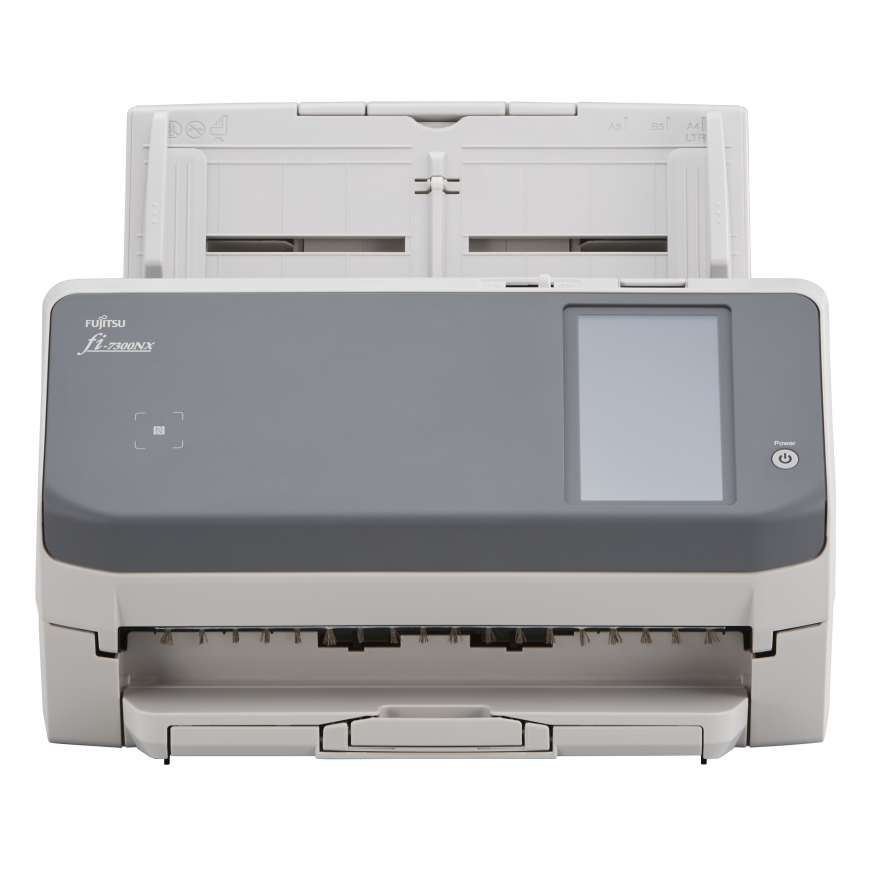

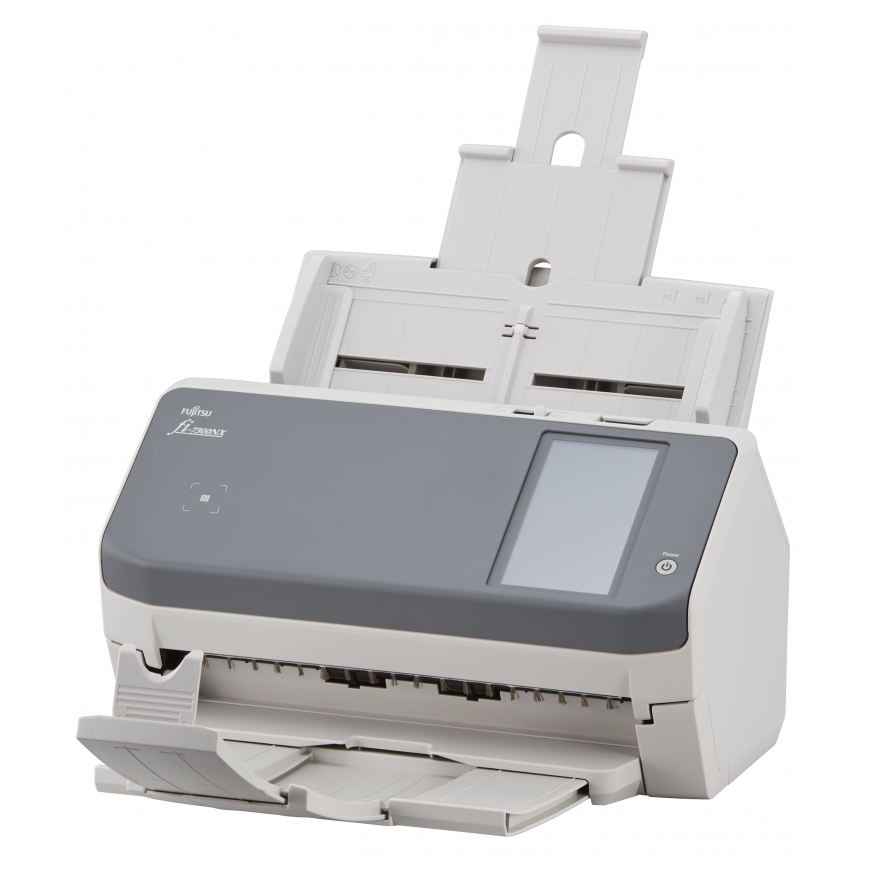

Ricoh fi-7300NX ADF scanner 600 x 600 DPI A4 Grey, White
1 058.32 €
Monthly payment from 28,15 €
701245 PA03768-B001
4939761309632
Shipping 4-6 b.d.
You are interested in this product?
All about the product
The fi-7300NX is an Image Scanner that supports web systems and connects directly to client systems. Users can begin scanning from the scanner’s touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption. The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone* scanner in the world to support 5 GHz Wi-Fi. The 4.3” touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans and the screen also displays messages or instructions with illustrations so that users can handle errors themselves.Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

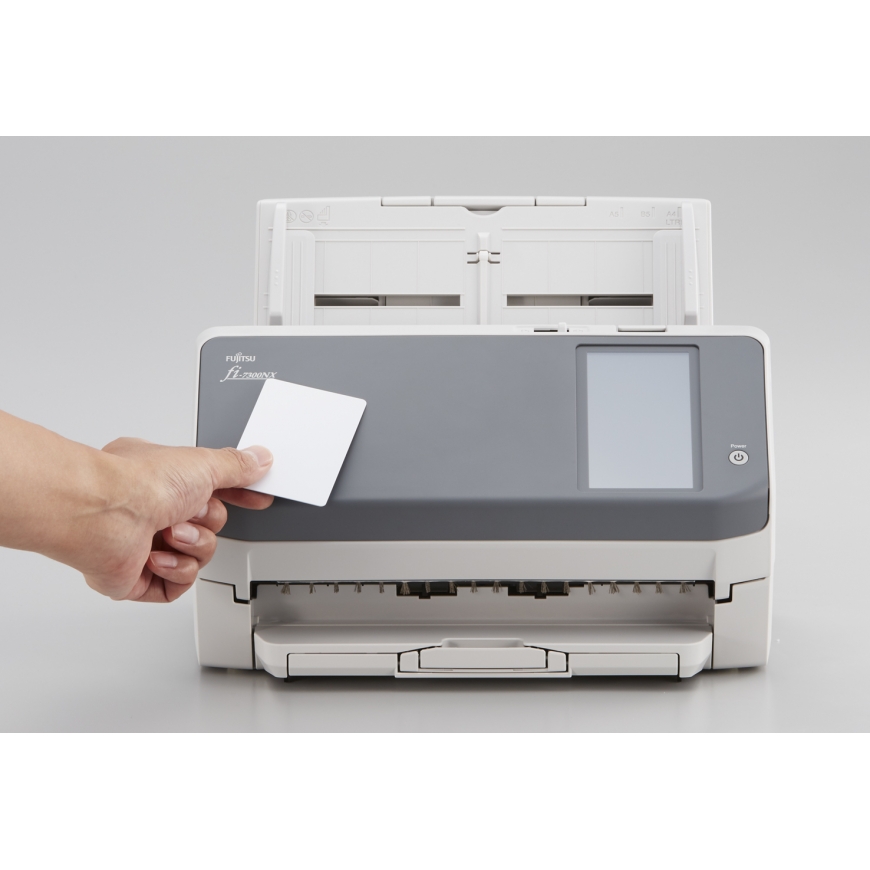

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin.
When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.
*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).
Features | |
| Scanner type | ADF scanner |
| Product colour | White, Grey |
| Colour scanning | Yes |
Performance | |
| Sensor type | Dual CCD |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | TWAIN, WIA, ScanSnap |
| Ultrasonic double sheet detection | Yes |
Paper handling | |
| Maximum scan width | 21.6 cm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Minimum scan area (ADF) | 50.8 x 54 mm |
| Scanning media types supported | Plastic Card, Plain paper |
| Maximum ISO A-series paper size | A4 |
| Maximum scan length | 5.59 m |
| Long-paper mode | Yes |
Ports & interfaces | |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | USB 2.0, Ethernet, Wireless LAN, USB 3.2 Gen 1 (3.1 Gen 1), USB 1.1 |
| USB port | Yes |
| Socket connector type | C5 |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Supported network protocols | IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS |
Design | |
| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
Logistics data | |
| Country of origin | Indonesia |
| Quantity per pack | 1 pc(s) |
| Pallet gross length | 121.9 cm |
| Pallet gross width | 101.6 cm |
| Harmonized System (HS) code | 8471607000 |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Products per pallet (air) | 40 pc(s) |
| Products per pallet (sea) | 60 pc(s) |
| Pallet height (sea) | 198 cm |
| Pallet height (air) | 137 cm |
| Cardboard packaging weight | 1.2 kg |
| Foil packaging weight | 15 g |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Glass packaging weight | 0 g |
Power | |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 42 W |
| Power supply type | AC |
| Power consumption (off) | 0.35 W |
| Power consumption (PowerSave) | 2.4 W |
Weight & dimensions | |
| Weight | 49 kg |
| Width | 300 mm |
| Depth | 202 mm |
| Height | 170 mm |
Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 95 °F |
Scanning | |
| Maximum scan size | 216 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
Other features | |
| Display | TFT |
| Light source | White LED (2x) |
| Compliance certificates | RoHS |
| Background colours | Black, White |
System requirements | |
| Minimum storage drive space | 120000 MB |
| Minimum processor | 3.5 GHz |
| Windows operating systems supported | Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 x64, Windows Server 2016 x64, Windows Server 2012 R2 x64 |
Sustainability | |
| Sustainability certificates | ENERGY STAR |
Packaging content | |
| Cables included | AC, USB |
| Drivers included | Yes |
| AC adapter included | Yes |
| ADF paper chute | Yes |
Packaging data | |
| Package width | 270 mm |
| Package depth | 400 mm |
| Package height | 305 mm |
| Package weight | 7.2 kg |
Input capacity | |
| Auto document feeder (ADF) input capacity | 80 sheets |
