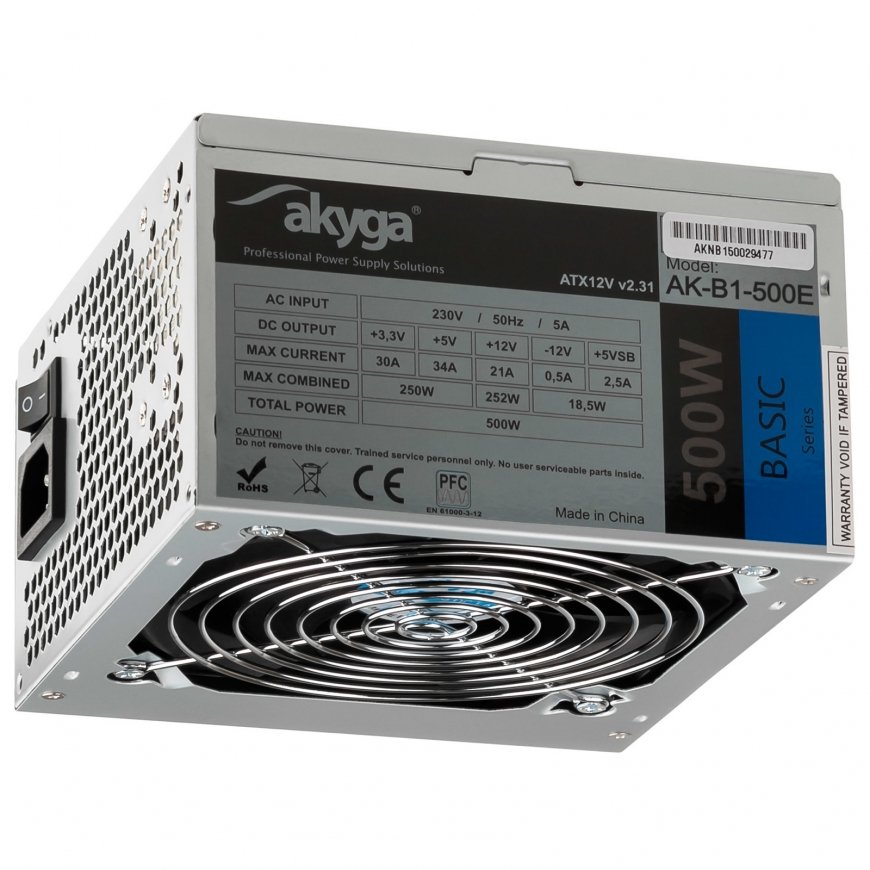

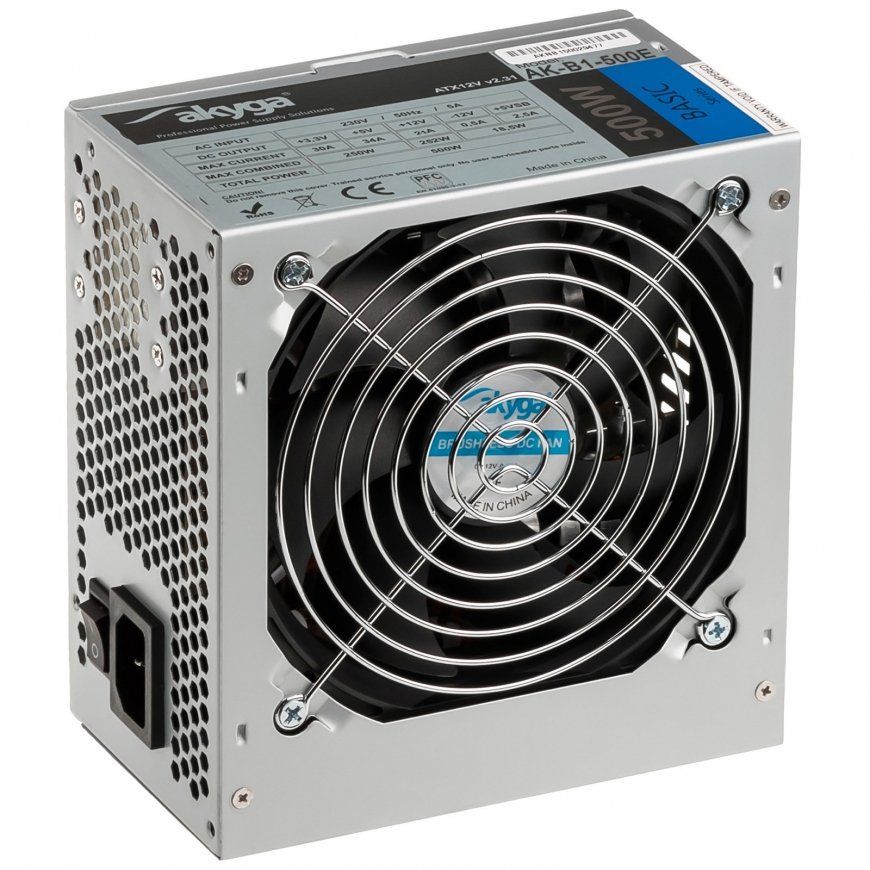

Akyga AK-B1-500E power supply unit 500 W 20+4 pin ATX ATX Grey
28.17 €
546031 AK-B1-500E
5901720133236
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Akyga® AK-B1-500E ATX power supply 500W is one of the basic power supplies in our offer dedicated to power desktop computers.Made of high quality components, the power supply has a 3x SATA connectors, 2x MOLEX connectors, P4 4-pin connector and an universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.
Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

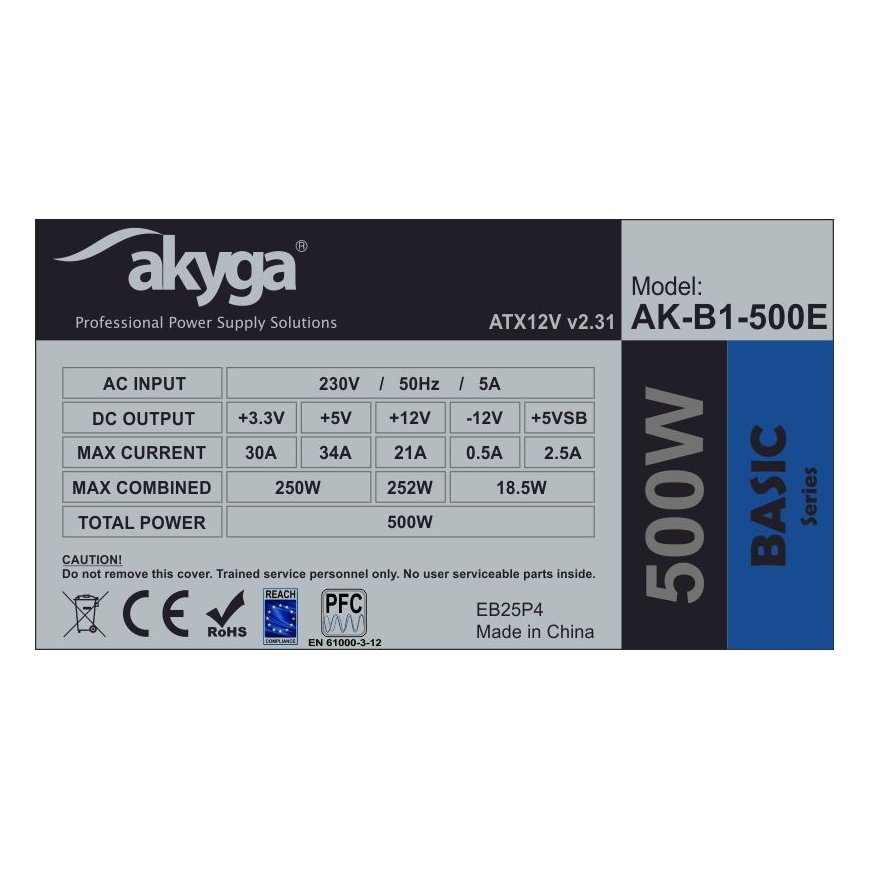

Power | |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 250 W |
| Combined power (+12V) | 252 W |
| Combined power (+5V) | 250 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 21 A |
| Max output current (+5V) | 34 A |
| AC input voltage | 220 V |
| Total power | 500 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
Design | |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| On/off switch | Yes |

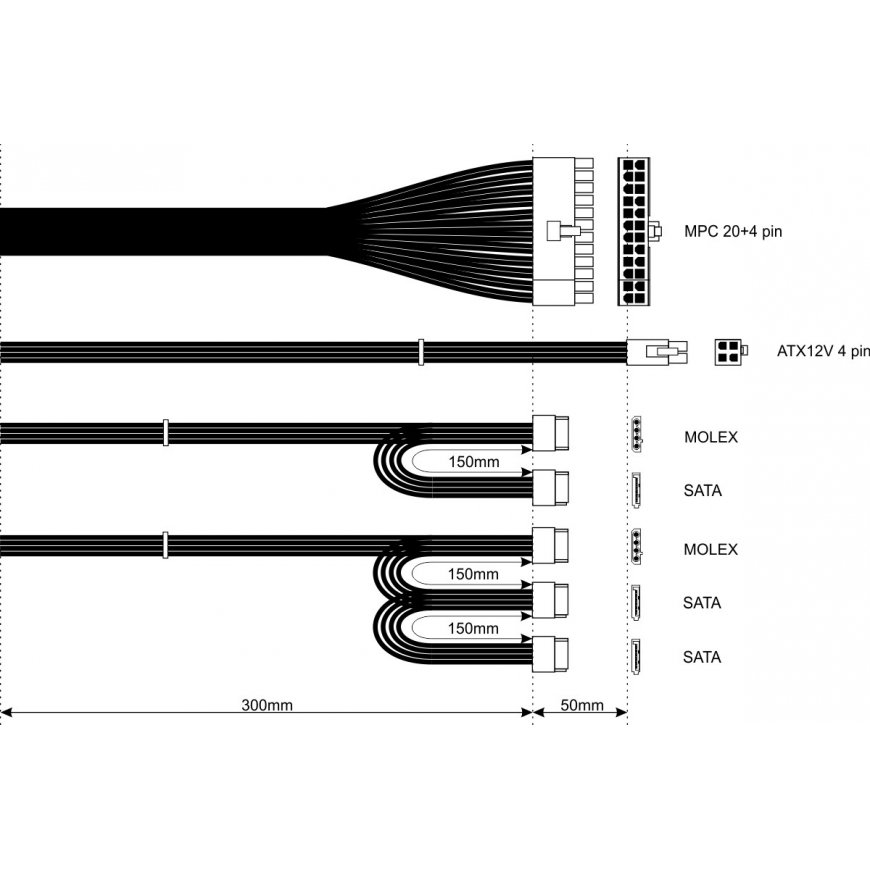

Ports & interfaces | |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6-pin) | 1 |
| EPS power connector (8-pin) | No |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| SATA power cable length | 300 mm |
| Peripheral (Molex) power cable length | 300 mm |
Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
Weight & dimensions | |
| Weight | 1.01 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Packaging data | |
| Package weight | 1.09 kg |
| Manual | Yes |
| Package type | Box |
| Package height | 95 mm |
| Package width | 160 mm |
| Package depth | 220 mm |
Other features | |
| Voltage tolerance | 70% |
| Warranty card | Yes |
| Fan controller | Yes |
| Number of cables | 4 |
Logistics data | |
| Country of origin | China |
Packaging content | |
| Cables included | SATA, Peripheral (Molex) to SATA 3.3 |
Certificates | |
| Certification | CE, RoHS, REACH |
| Compliance certificates | RoHS |
