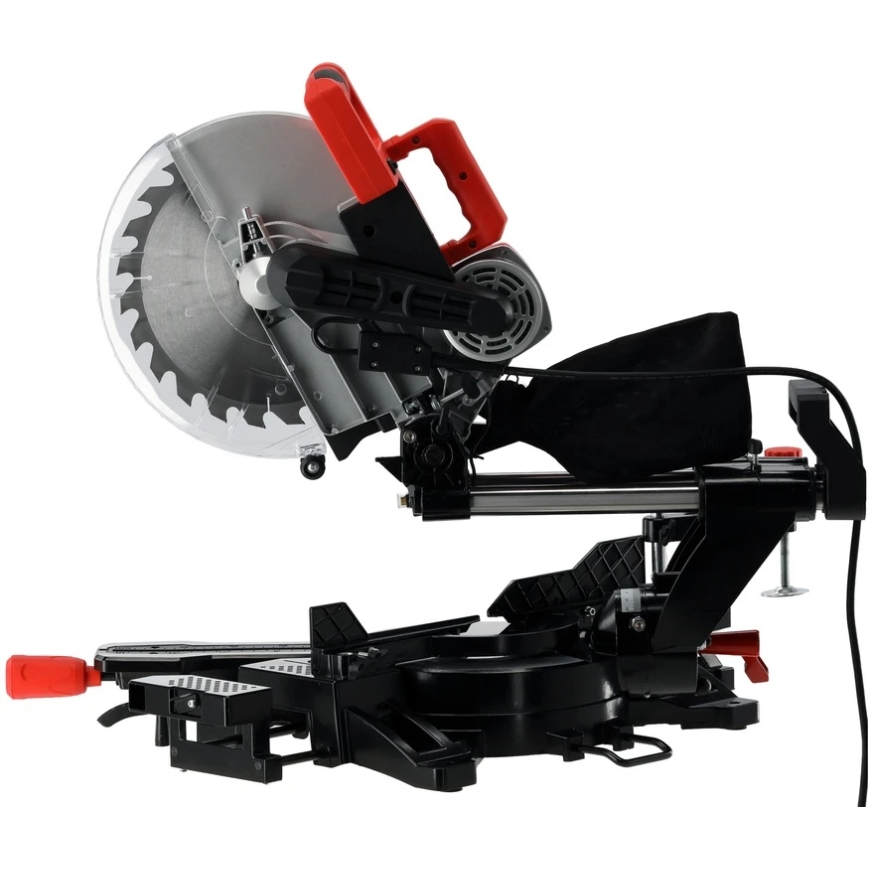

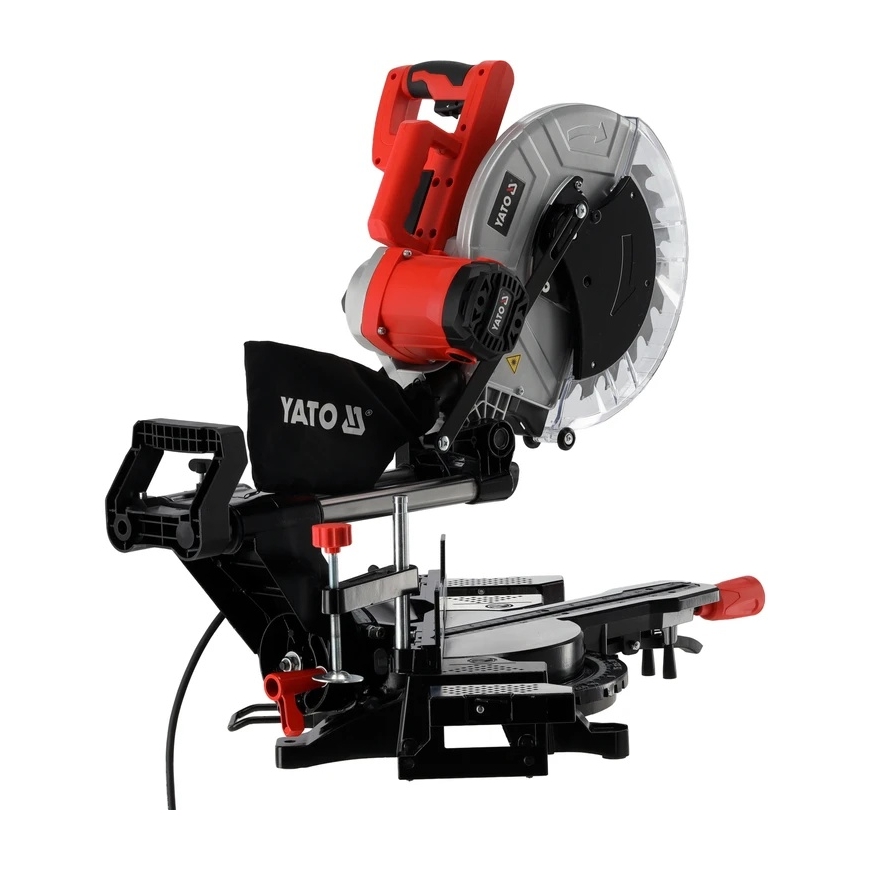

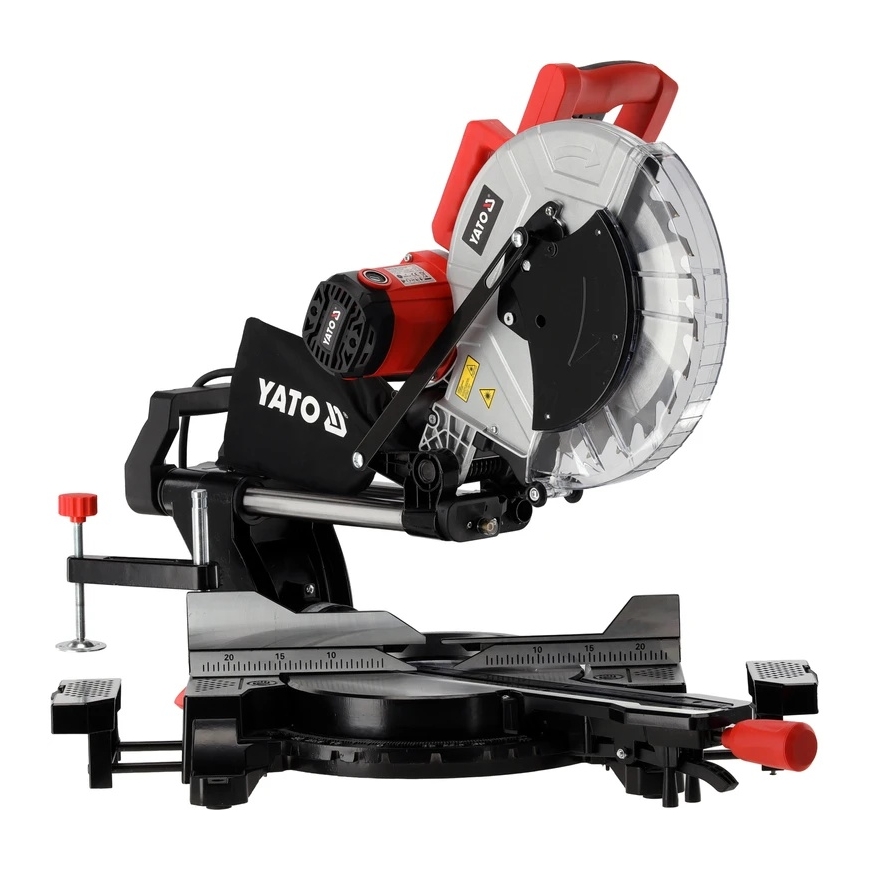

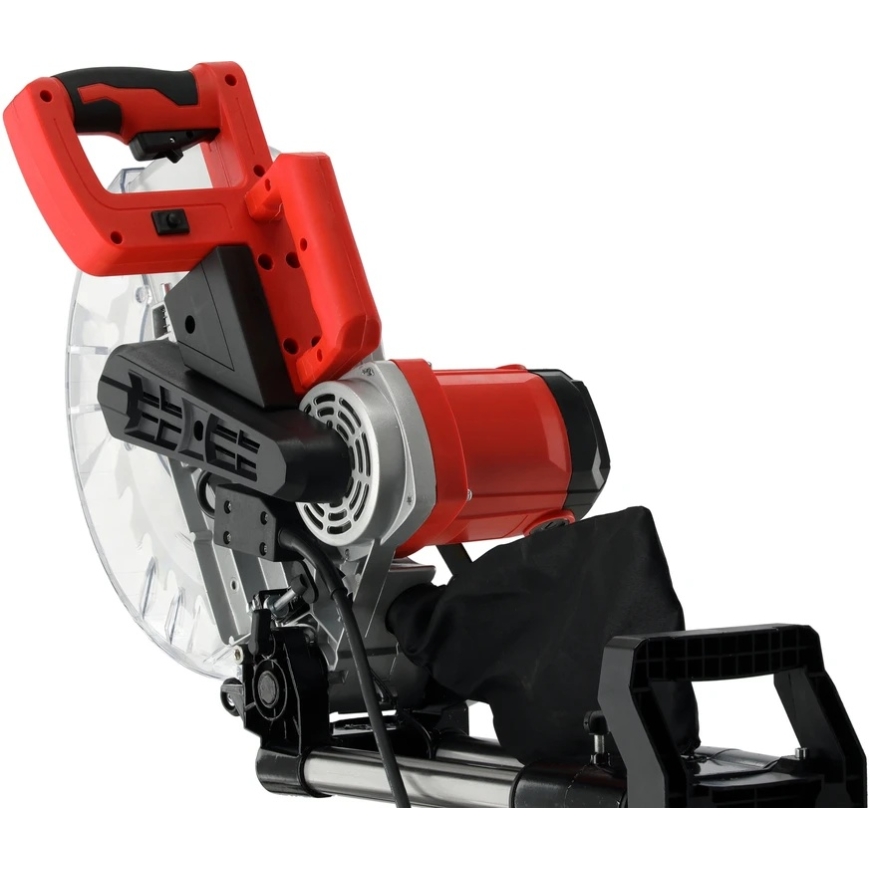

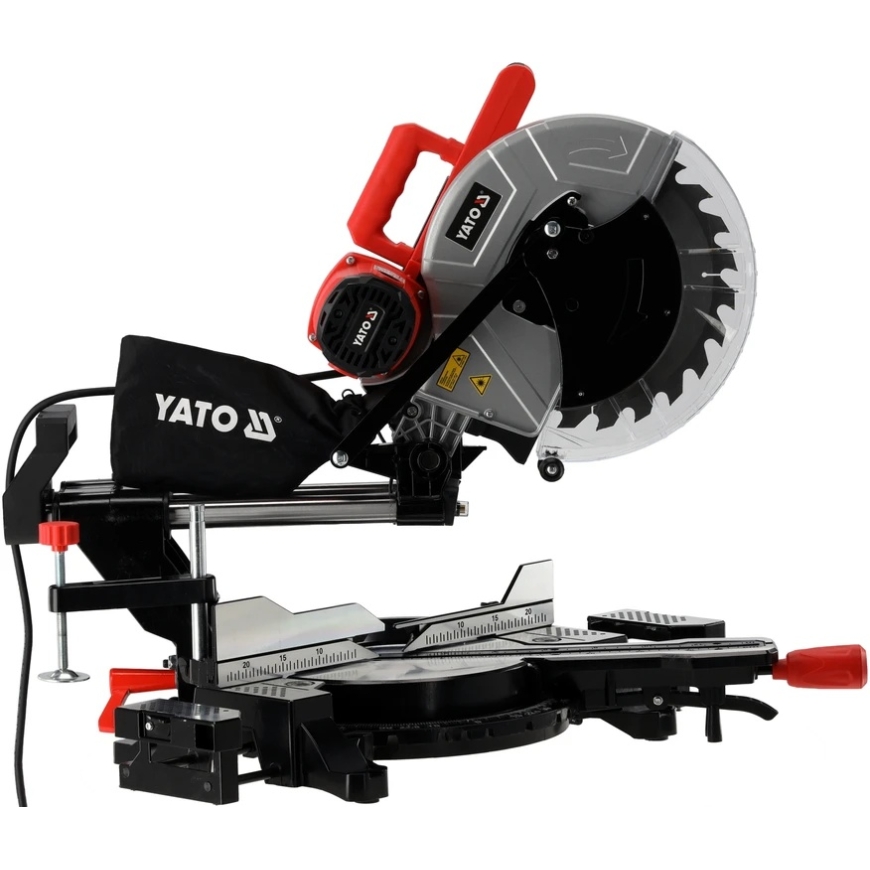

Yato Toya Sa Poland Circular Saw with Pull-Out and Laser | 2000 W | 305 mm (YT-82176)
5033328 Y*YT-82176
5906083133664
Shipping 9-15 b.d.
All about the product
Miter Saw with Sliding and Laser | 2000 W | 305 mm (YT-82176)
The miter saw with sliding and laser is designed for precise cutting of wood and wood-based materials in workshops, installation, finishing, and carpentry work. Find more similar products
Main Features
- Continuous rated power – 1800 W.
- Maximum power in S6 40% mode – 2000 W.
- Rated voltage – 220–240 V.
- Frequency – 50 Hz.
- Revolutions per minute – 3800 rpm.
- Cutting disc – 305 x 30 x 2.8 mm.
- Maximum head tilt angle – from -45° to +45°.
- Dual head tilt allows for bevel cuts to the left and right.
- Laser cutting line indicator – Class 2.
- Laser power – less than 1 mW.
- Laser wavelength – 650 nm.
- Insulation class – II.
- Device weight – 20.7 kg.
- Manufacturer – YATO.
- Series – GRF.
- EAN – 5906083133664.
- Product code – YT-82176.
Maximum Cutting Dimensions
- 105 x 330 mm – table rotation 0° / head tilt 0°.
- 105 x 230 mm – table rotation 45° / head tilt 0°.
- 60 x 330 mm – table rotation 0° / head tilt 45° to the left.
- 60 x 230 mm – table rotation 45° / head tilt 45° to the left.
- 35 x 330 mm – table rotation 0° / head tilt 45° to the right.
- 35 x 230 mm – table rotation 45° / head tilt 45° to the right.
Construction and Functions
- Sliding mechanism for cutting wider workpieces.
- Rotatable worktable for angled cuts.
- The cutting head tilts to both sides.
- Table extensions for supporting longer workpieces.
- Table clamp to hold the workpiece in place.
- Spindle lock for changing the cutting disc.
- Moving protective cover for the disc.
- Dust extraction connector for connecting a dust bag or an external dust extraction system.
- Transport handle for easier relocation.
Usage
This miter saw is suitable for cutting boards, beams, panels, skirting boards, moldings, plates, and other wood or wood-based workpieces. The sliding function allows for cutting wider workpieces, and the dual head tilt facilitates making compound miter cuts.
Included Accessories
- Miter saw YT-82176.
- Cutting disc.
- Dust collection bag.
- Worktable clamp.
- Cutting head movement screws.
Important Usage Information
The device has a Class 2 laser, so do not look directly into the laser beam. Protective goggles, hearing protection, and adherence to the manufacturer's safety requirements are essential when operating. The workpiece must be securely clamped, and the cutting disc should be used only for its intended purpose.
The manufacturer's instructions can be found here: YATO YT-82176 Manual .
