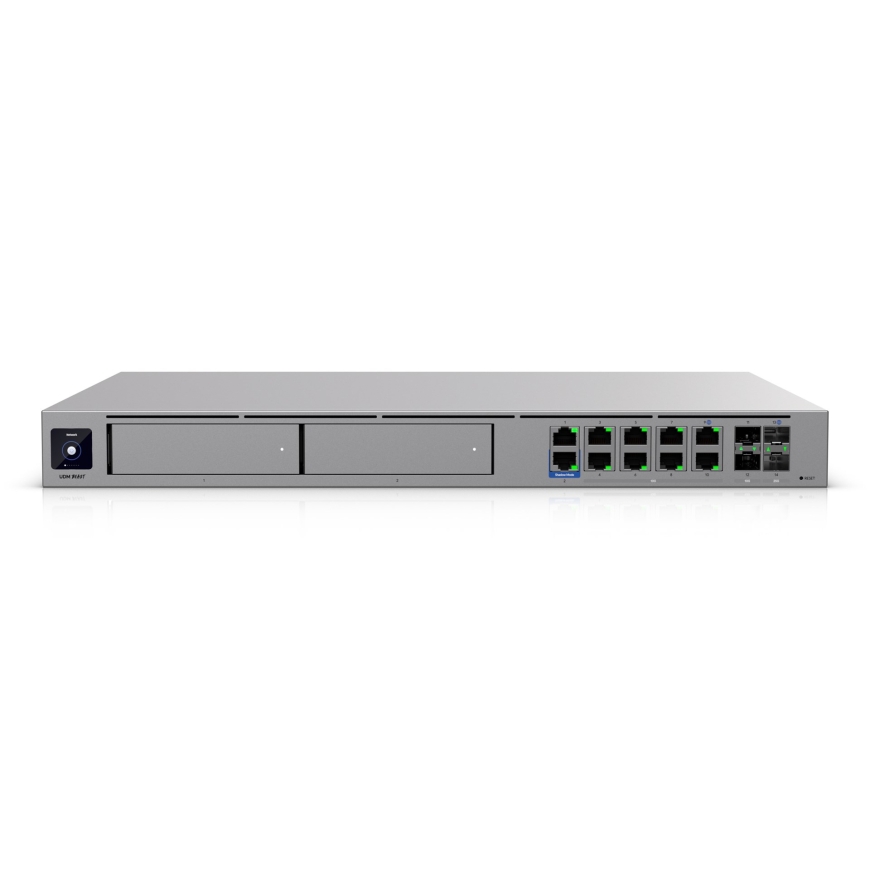

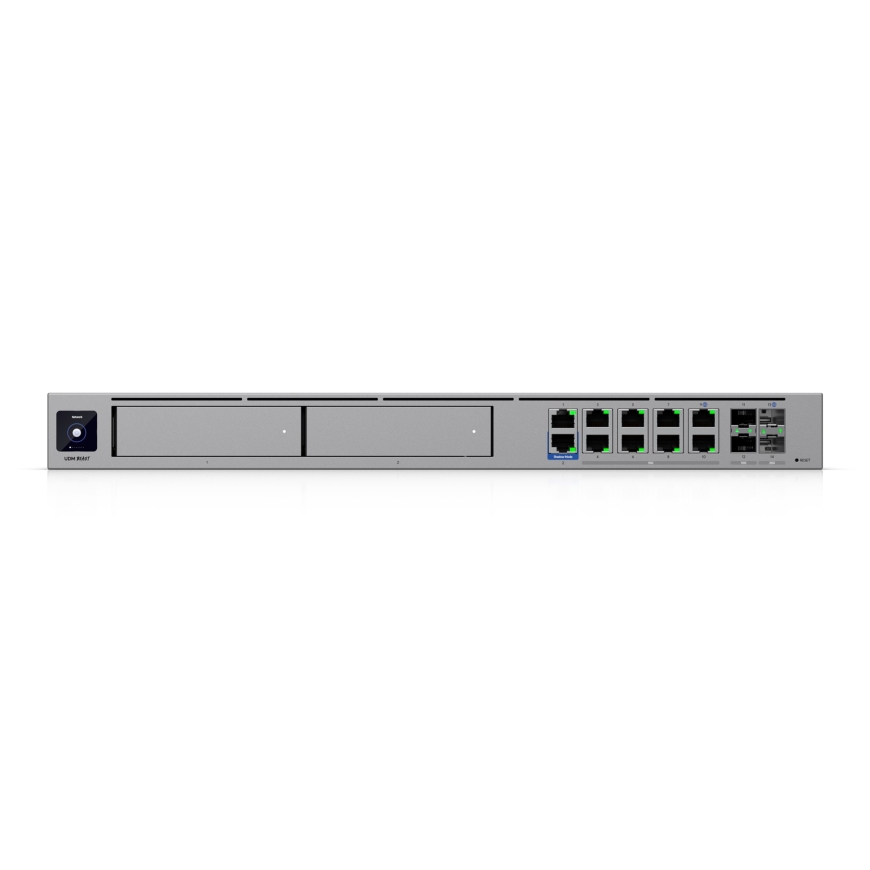

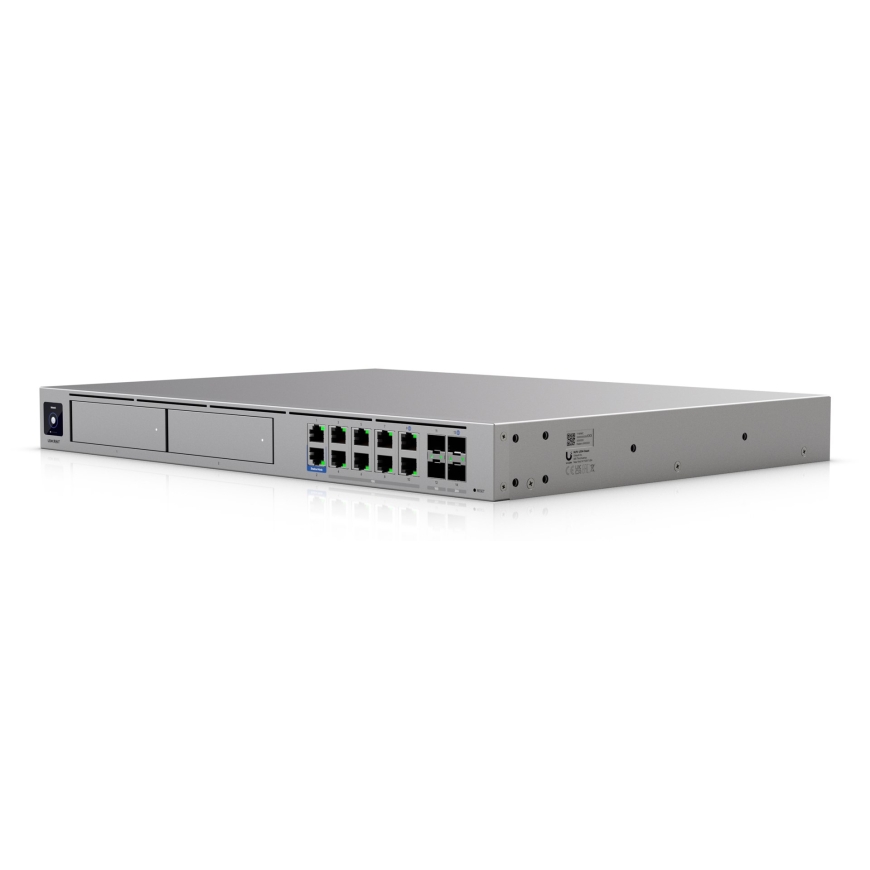

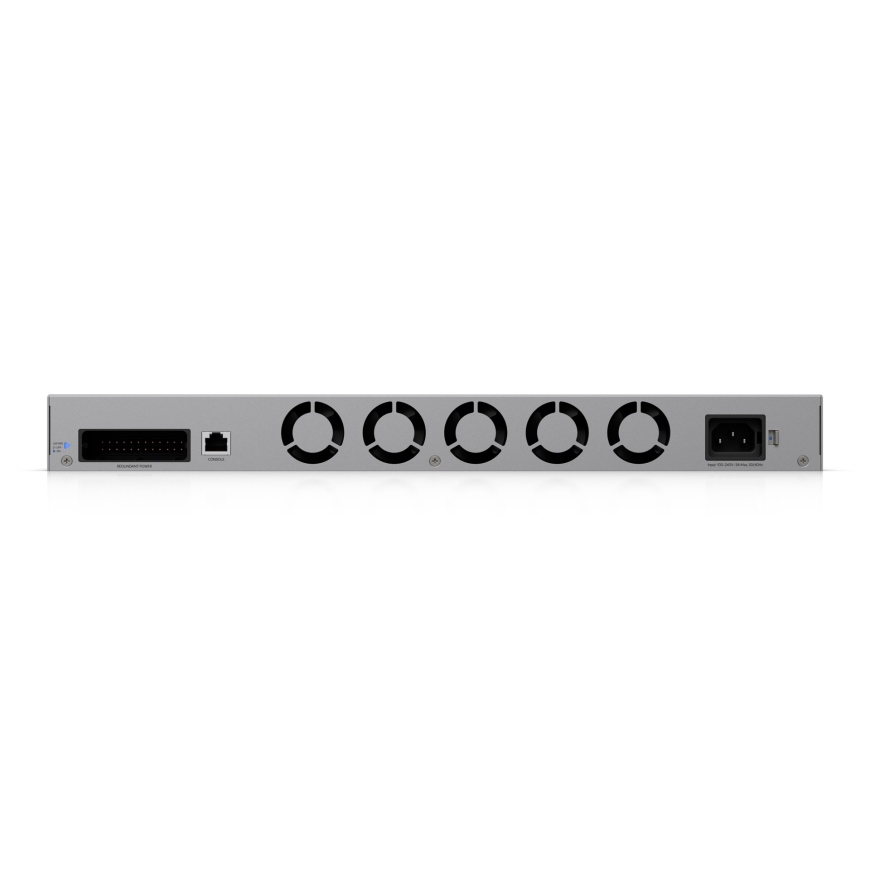

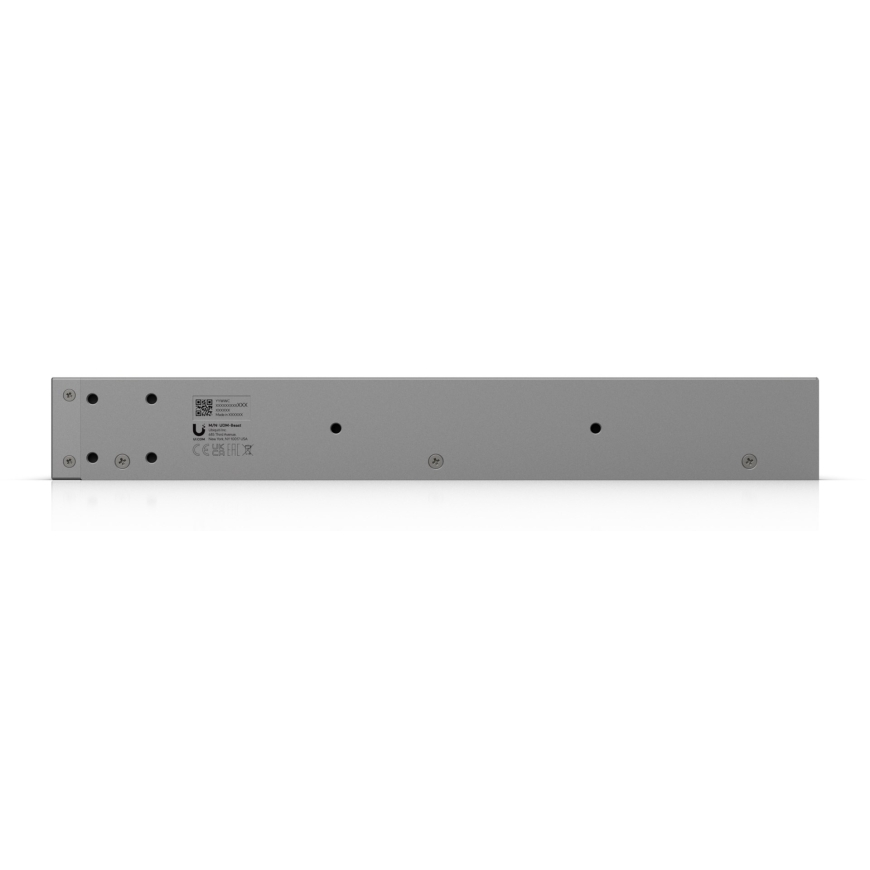

Ubiquiti Dream Machine Beast gateway/controller 10, 100, 1000, 2500, 10000, 5000 Mbit/s
1 799,00 €
1 769.00 €
Monthly payment from 46,45 €
5013570 UDM-BEAST
0810177166559, 0810177166528
4-6 b.d.
You are interested in this product?
All about the product
| LED indicators | Link |
| LED indicators | Ready |
| LED indicators | Error |
| LED indicators | Activity |
| Rack capacity | 1U |
| Enclosure material | Aluminium/SGCC |
| Product colour | Grey |
| Mounting type | Rack mounting |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Input current | 3 A |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Electromagnetic (EMP) protection | Yes |
| DC input voltage | 12 V |
| Power consumption (max) | 100 W |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Heat dissipation | 342 BTU/h |
| Power over Ethernet (PoE) | No |
| Network address translation (NAT) | Yes |
| Firewall security | Yes |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Reset button | Yes |
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Weight | 5.5 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 325 mm |
| Port aggregation | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN data rates | 5000 Mbit/s |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Processor frequency | 2100 MHz |
| SSD capacity | 128 GB |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Control display unit | Yes |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Display type | LCM |
| Internal memory | 16000 MB |
| Cables included | AC |
| Compliance certificates | National Defense Authorization Act (NDAA) |
| Compliance certificates | Industry Canada (IC) |
| Compliance certificates | Federal Communications Commission (FCC) |
| Compliance certificates | CE |
| Routing protocols | OSPF |
| Routing protocols | BGP |
| DHCP server | Yes |
| SFP+ ports quantity | 2 |
| WAN connection | Ethernet (RJ-45), SFP+ |
| Ethernet LAN (RJ-45) ports | 10 |
| Console port | RJ-45 |
| Number of console ports | 1 |
