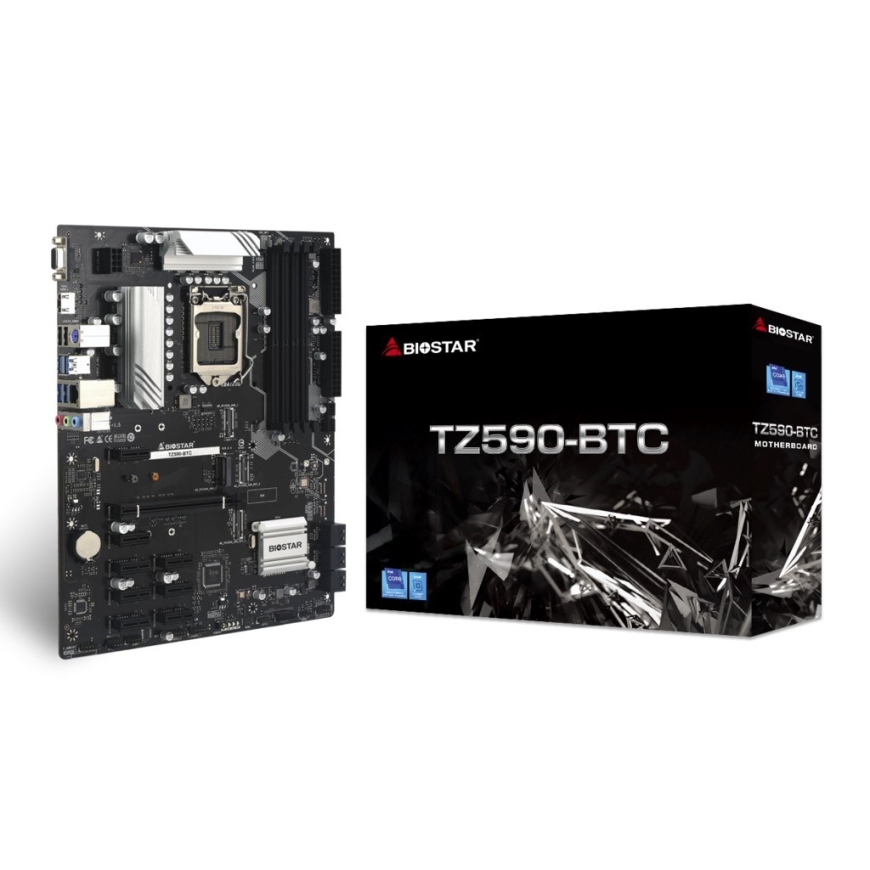

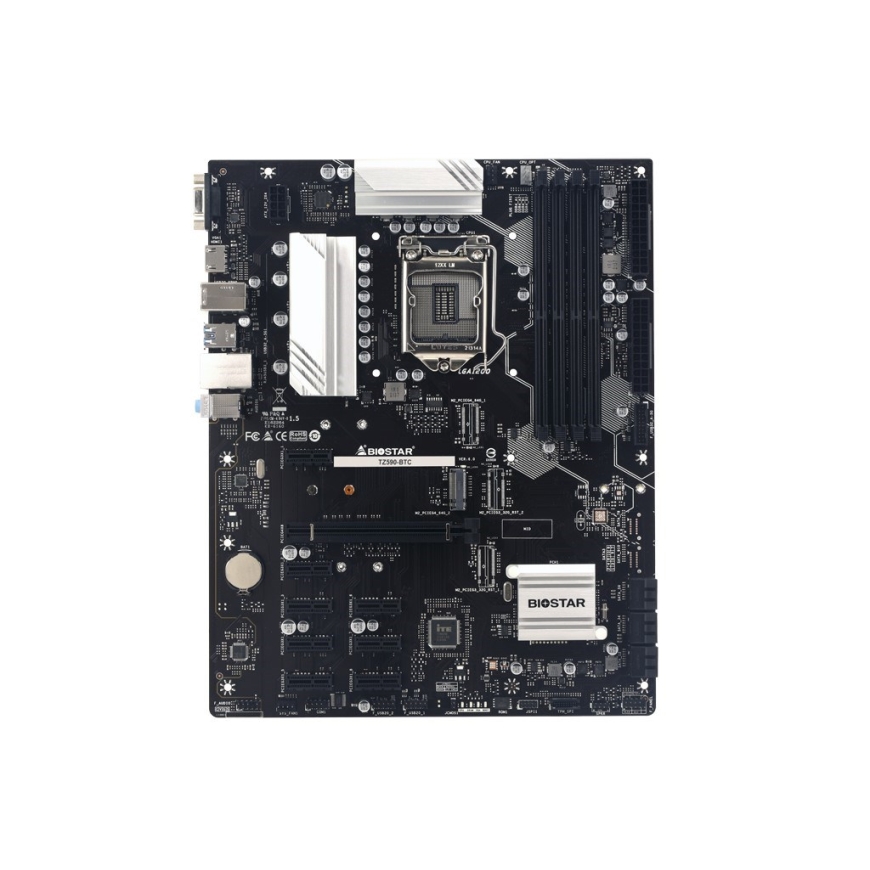

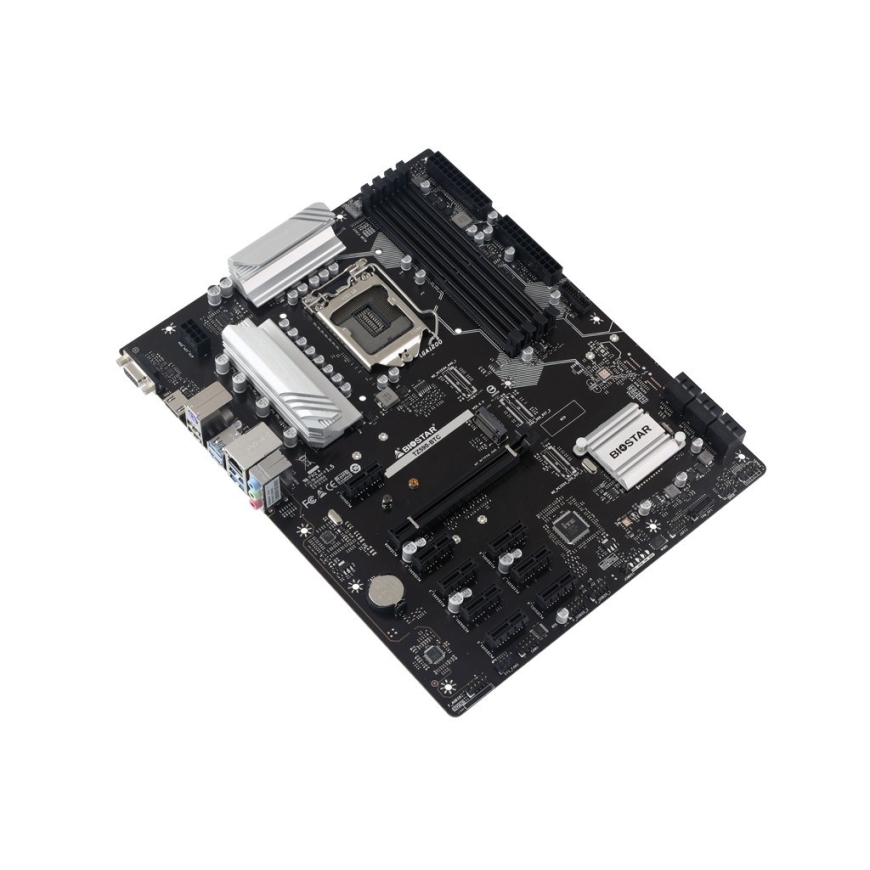

Biostar TZ590-BTC motherboard
90.77 €
Monthly payment from 3,24 €
5012462 TZ590-BTC
4712960685765
2026-10-22
You are interested in this product?
All about the product
| Compatible processor series | Intel® Core™ i3 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| HDCP | Yes |
| Audio chip | Realtek ALC887 |
| Windows operating systems supported | Windows 11 x64 |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset | Intel Z590 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Product colour | Black |
| Motherboard chipset family | Intel |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speed (max) | 3600 MHz |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Width | 305 mm |
| Depth | 244 mm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I219V |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 6 |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of COM connectors | 1 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Front panel audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |

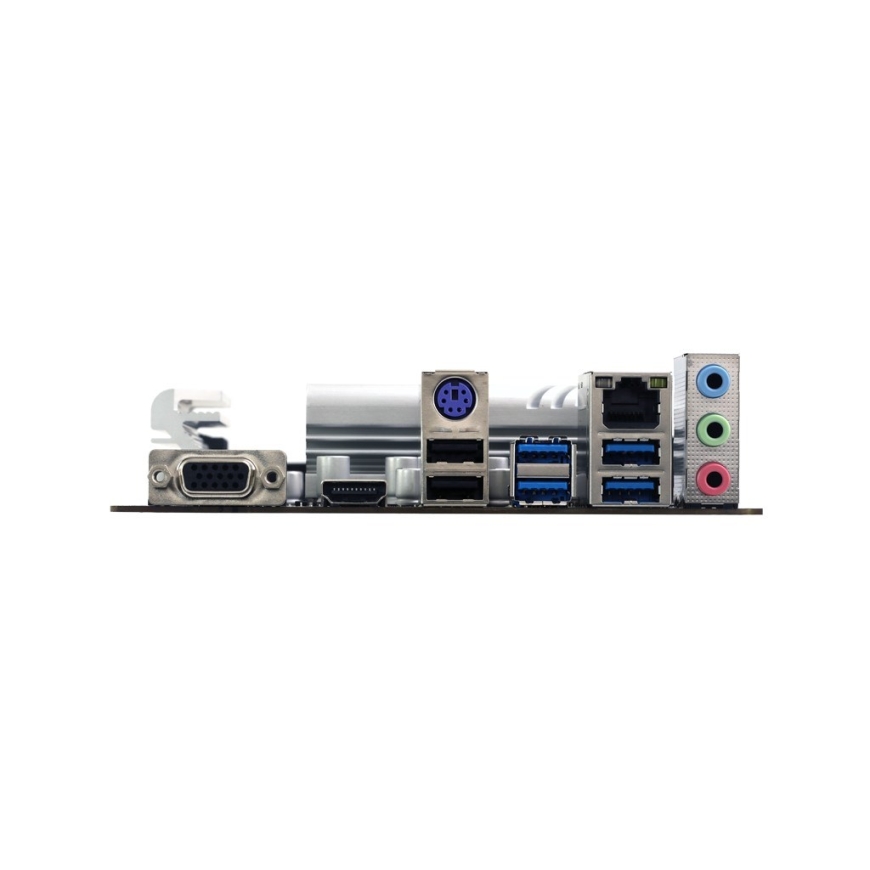

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Number of audio jack connectors | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| PCI Express x1 (Gen 3.x) slots | 8 |
| PCI Express x16 (Gen 4.x) slots | 1 |
