AOC Thermal Grizzly TG Intel 1851 Mycro Pro RGB

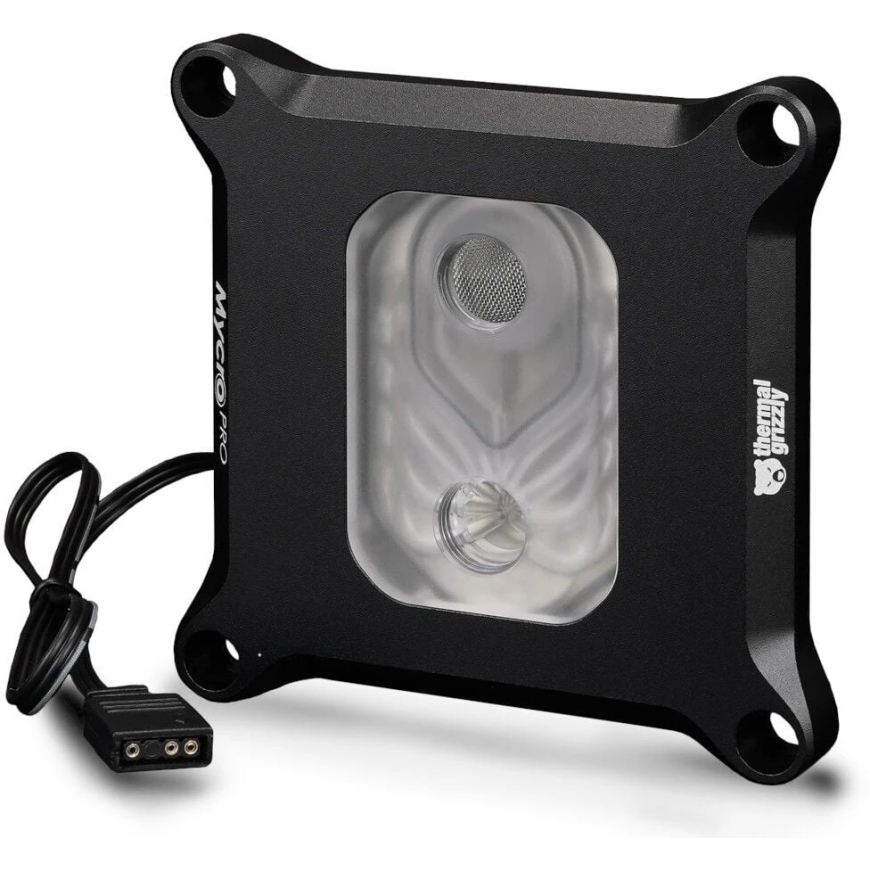

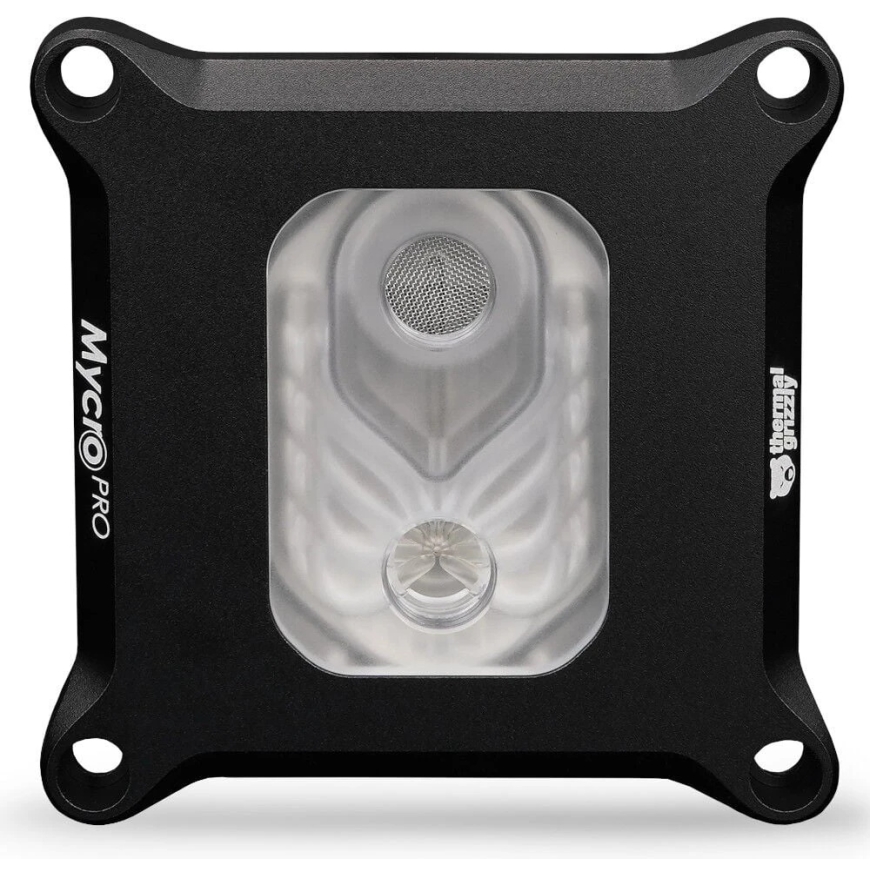

The "Thermal Grizzly Intel 1851 Mycro Pro RGB" is a water cooler for CPUs designed for the Intel LGA1851 socket and backward compatible with LGA1700. It is aimed at users looking for a powerful and well-designed solution for their custom water cooling system.

• Ultra-high performance cooling plate – efficient heat dissipation through fine micro fins
• Integrated filter – protects the cooling system from loop particles
• Flow-optimized design – ensures a smooth coolant flow

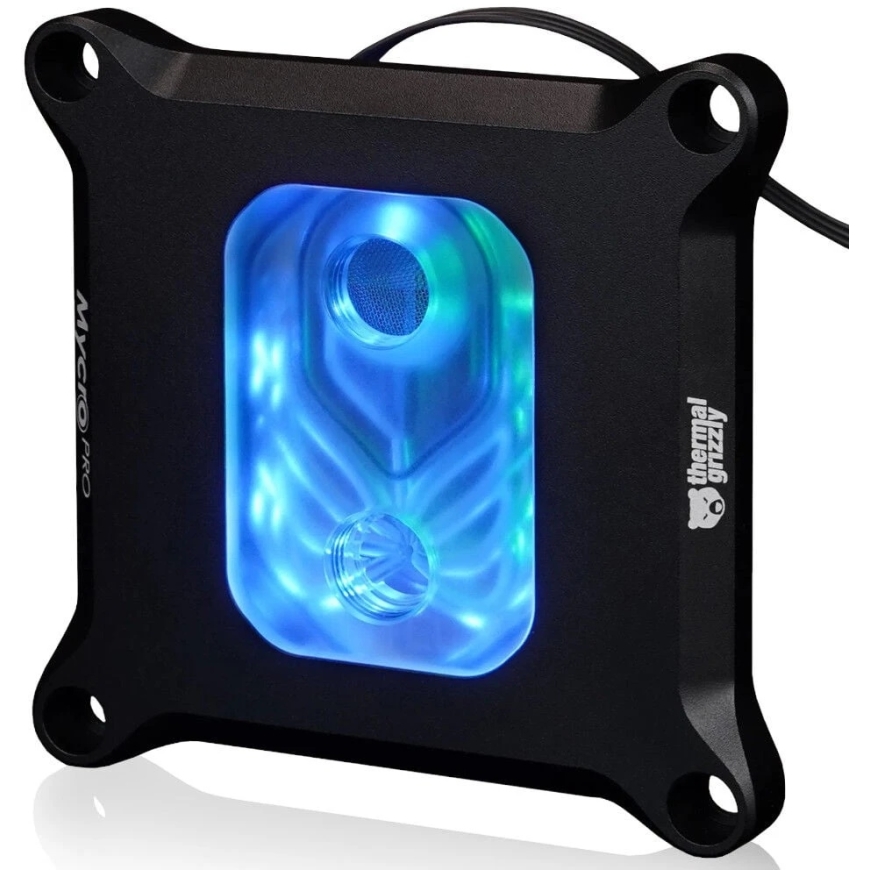

• RGB lighting – adds subtle visual accents to the system
• G1/4" connections – compatible with many water cooling components

Functionality

The "Intel 1851 Mycro Pro RGB" is a water cooler for CPUs designed for the Intel LGA1851 socket and is retrocompatible with LGA1700. The nickel-plated copper base plate features 70 micro fins, each 0.2 mm wide, creating a large heat absorption surface area. Together with the jet plate and flow-optimized design, the cooling liquid is directed precisely over the fins, ensuring efficient and uniform heat dissipation.

Design and materials

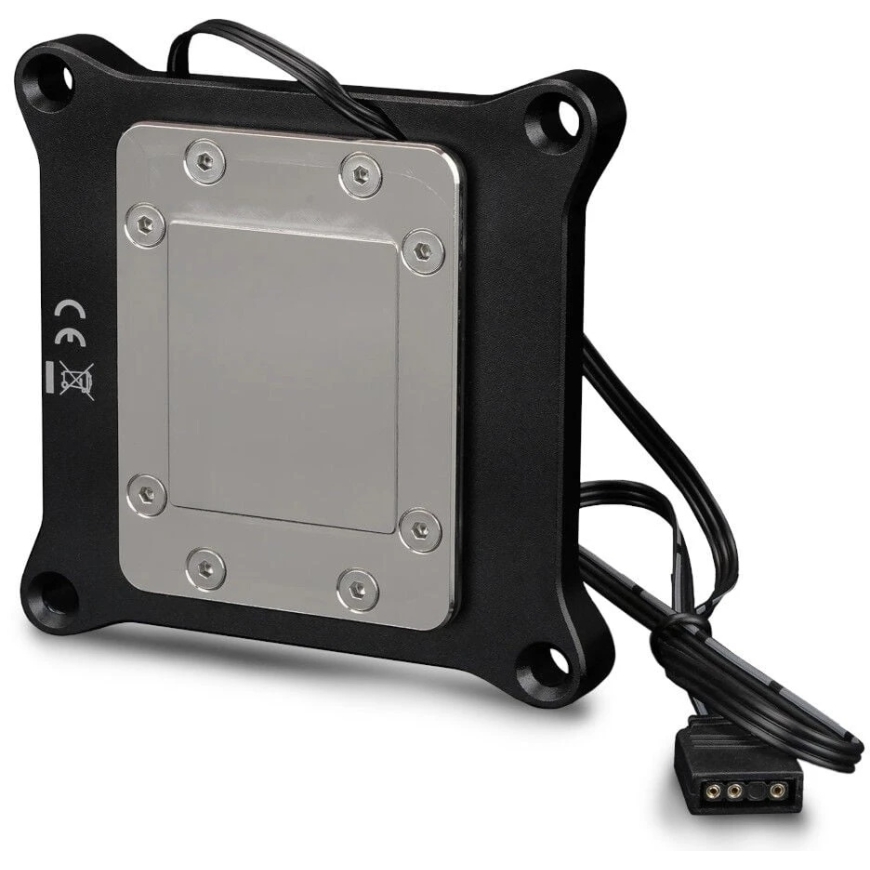

The cooler is made of a nickel-plated copper plate, tempered acrylic glass, and an anodized aluminum cover. The acrylic glass is tempered after processing to reduce stress and increase durability. Integrated RGB lighting beneath the cover visually complements the design. The simple appearance smoothly integrates with various systems.

Installation and compatibility

The inlet and outlet ports connect via G1/4 inch threads, making them compatible with standard water cooling components. The inlet features a fine mesh filter that removes particles from the loop and protects the micro fins. EPDM O-rings ensure reliable sealing and are resistant to UV rays and ozone. The connection thread depth is 6 mm.
