PoE Switch CAMSAT X-CAM II Switch PoE+ 4F TX13 (12V, TX1310, RX1550)
288.99 €
Monthly payment from 8,34 €
5004898 X-CAMIISwitch4FPoE+(12V)
5902610350320
Shipping 8-12 b.d.
You are interested in this product?
All about the product

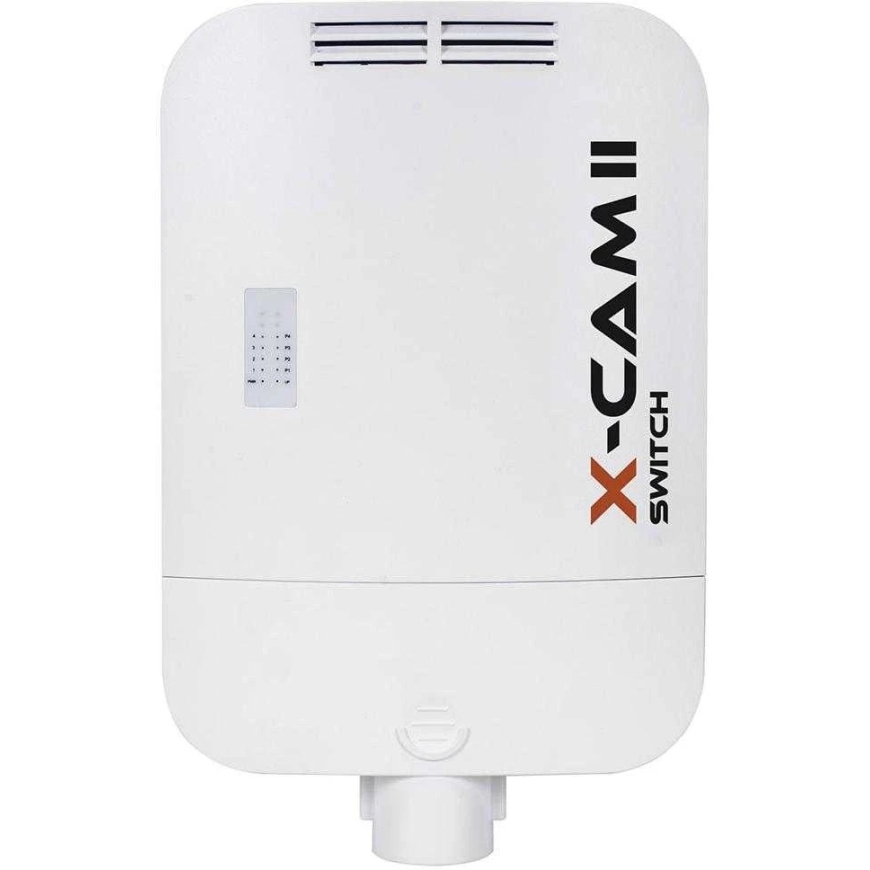

Switch POE CAMSAT X-CAM II POE+ Switch 4F TX13 (12V, TX1310, RX1550)
Model: X-CAM II Switch4F PoE+ (12V)
Main Features:
- PoE switch for CCTV cameras
- Weatherproof – due to IP65 protection class and wide operating temperature range (from -20 °C to 55 °C).

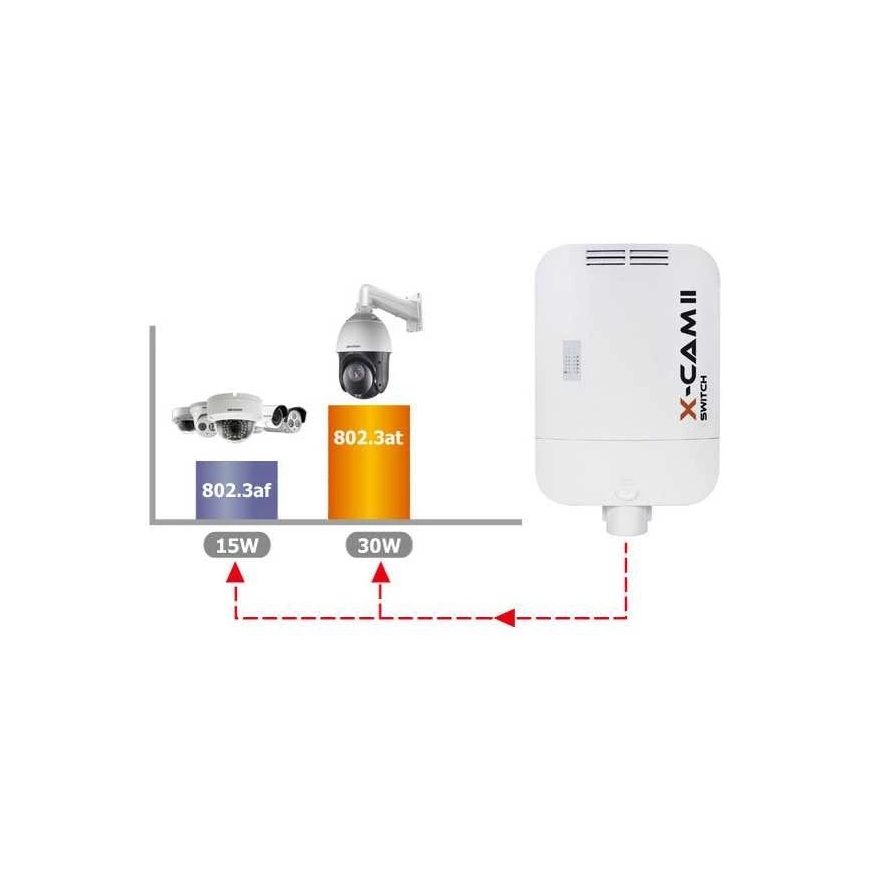

- Compatible with any IP camera – operates under 802.3at and 802.3af standards, suitable even for large PTZ cameras with an IR power of 30 W/port.
- Fiber optic and PoE ports – device with four PoE+ ports and universal SC fiber optic connector
- Fiber optic insert capacity – optional 1 Gb/s fiber optic connection
- Power supply: 12 V DC
- Convenient and very quick installation – due to direct mounting on a pole or facade
- Modern shape and appearance – matching lights and modern design
- Powerful and efficient – 30 W / port
Technical Specifications:
| PoE+ ports | 4 |
| PoE standard | 802.3at and 802.3af |
| Uplink | One fiber optic port |
| PoE port load | max. 30 W/port according to IEEE802.3af/at standard |
| Switch current efficiency | 60 W / switch, at 12 V power supply |
| Maximum PoE cable length | up to 100 m |
| LAN | 10/100 Mbps |
| Installation | Quick installation using cable ties (ties included) |
| Fate | IP65 – outdoor conditions |
| Port protection | Surge up to 8 kV, overcurrent up to 0.5 A |
| Fiber optic length | 20 km |
| Fiber optic connector | SC type, single-mode SMF (single-mode fibers), up to 155 Mb/s |
| Optical fiber wavelength | Tx = 1310 nm, Rx = 1550 nm |
| Operating temperature | -20 °C to 55 °C |
| Dimensions | 335 mm x 215 mm x 76 mm |
| Weight | 1.2 kg |
