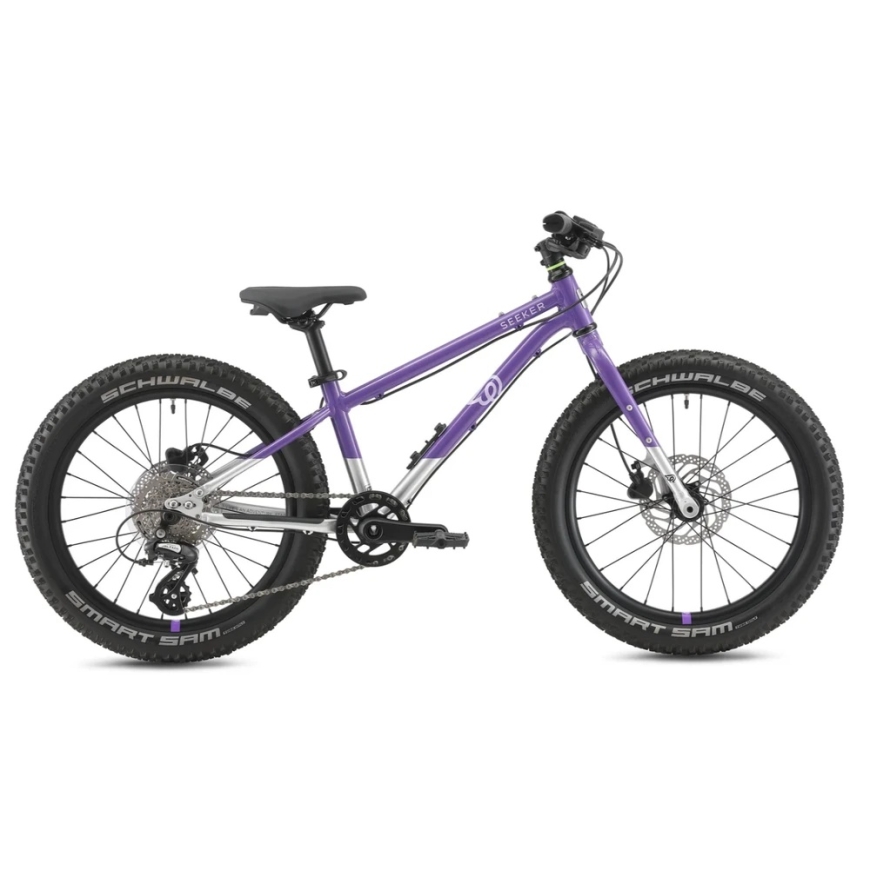

EARLY RIDER Seeker 20

All about the product

Meet the new Seeker 20

Seeker 20 is designed to explore challenging trails and off-road routes. Improved geometry – a lower bottom bracket for greater stability, a steeper head tube angle for more precise handling, and increased clearance for wider tires – allows for confident bike control in challenging conditions.

8-speed Shimano drivetrain with an 11–36T range and short 110 mm crank arms ensures a smooth and efficient pedaling process. Powerful Tektro 160 mm hydraulic disc brakes, sealed bearings in the wheels with thru-axles, and traction-providing Schwalbe Smart Sam 2.35" tires allow you to tackle any challenge comfortably and confidently.

Specification

FRAME STANDO OVER HEIGHT – 51 cm
FRAME – manually ground AL6061, forged sliding dropouts
FORK – manually ground AL6061, forged dropouts
STEERER TUBE – AL6061
CRANKS – CRUX 110 mm Direct Mount, narrow Q factor
PEDALS – ER CNC machined AL6061, platform, with pins, cassette bearings
BOTTOM BRACKET – CRUX 24 mm external cups
RIMS – 20 x 28H, double-wall, tubeless ready
REAR HUB – four-bearing cassette freehub, CNC machined AL6061
FRONT HUB – CNC machined, 6-bolt disc, AL6061, QR axle
AXLES – AL6061
CHAIN – KMC X8
FRONT CHAINRING – Direct Mount, Narrow Wide 30T, steel
WEIGHT – 8.8 kg without pedals
REAR CASSETTE – Shimano 8-speed, 11–34T
BRAKES – Tektro hydraulic disc, 160 mm discs
BRAKE LEVERS – Tektro Short Reach
FRONT TIRE – Schwalbe Smart Sam 20x2.35", 67TPI WB
REAR TIRE – Schwalbe Smart Sam 20x2.35", 67TPI WB
HEADSET – 1 1/8” cartridge bearings, standard
STEM – forged AL6061, 35 mm reach
HANDLEBAR – 560 mm, double-thick AL6061, 30 mm rise
GRIPS – ER Lock-On Kraton 92 mm
SEAT POST – QR, 31.8 mm
SADDLE – ER Wing 2, with rails
SEAT POST CLAMP – ER with bolt, 28.6 mm
REAR DERAILLEUR – Shimano Altus, 8-speed

Note: Every effort is made to ensure the accuracy of the information provided on this site. However, “Early Rider” reserves the right to change prices and bike specifications without prior notice.
