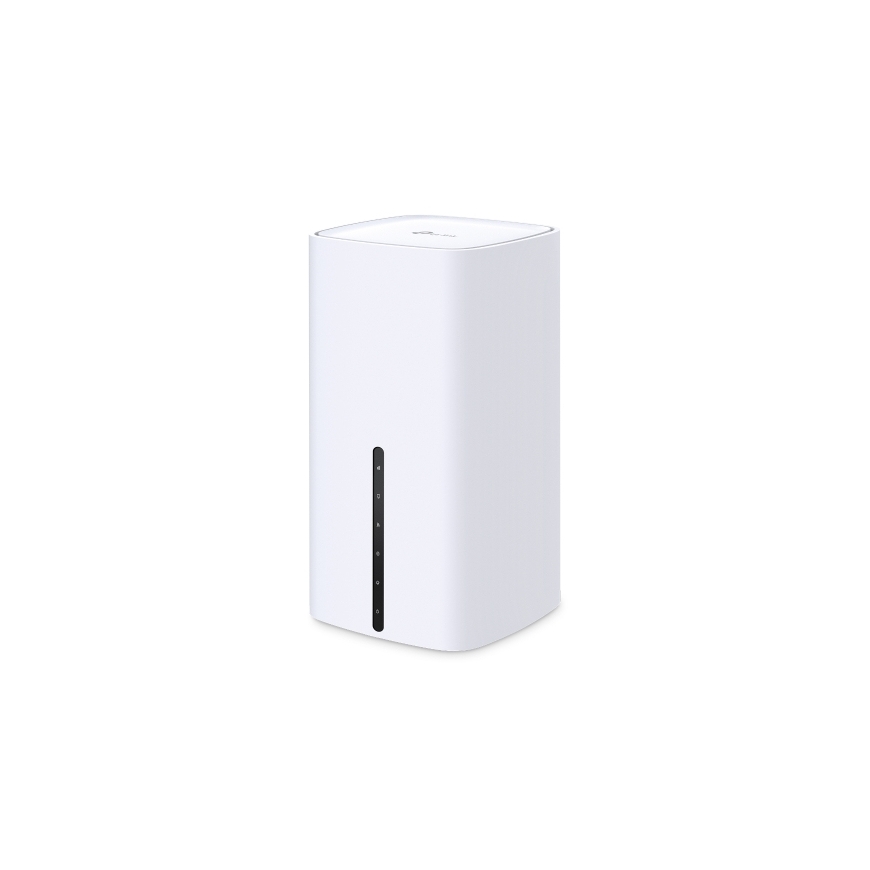

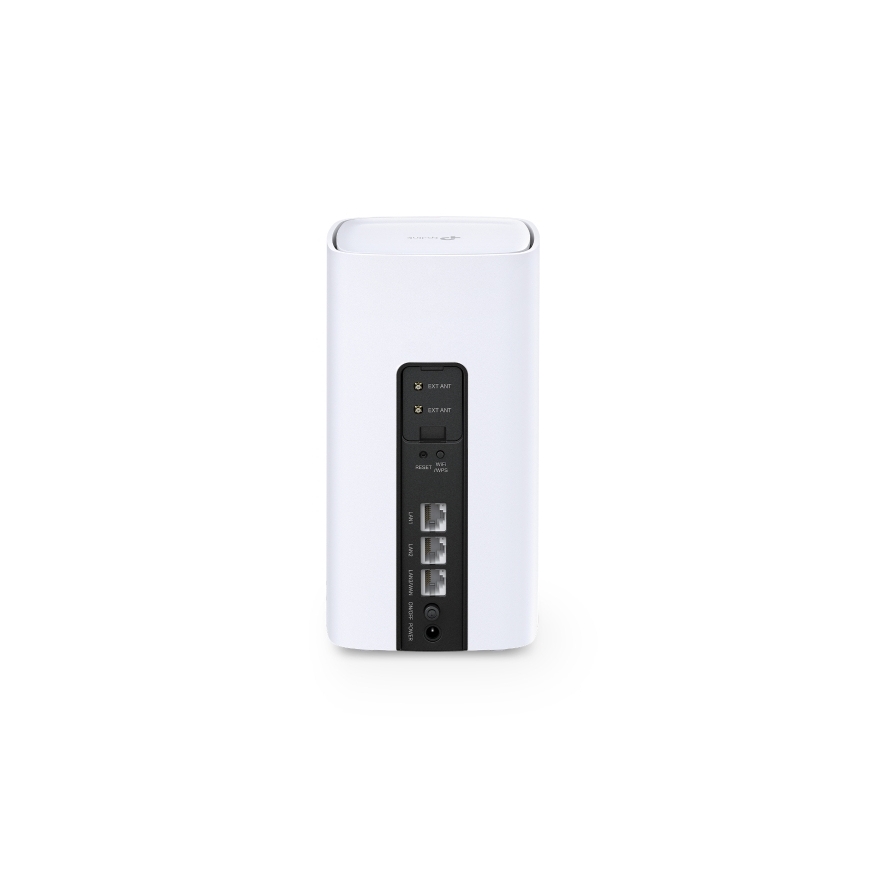

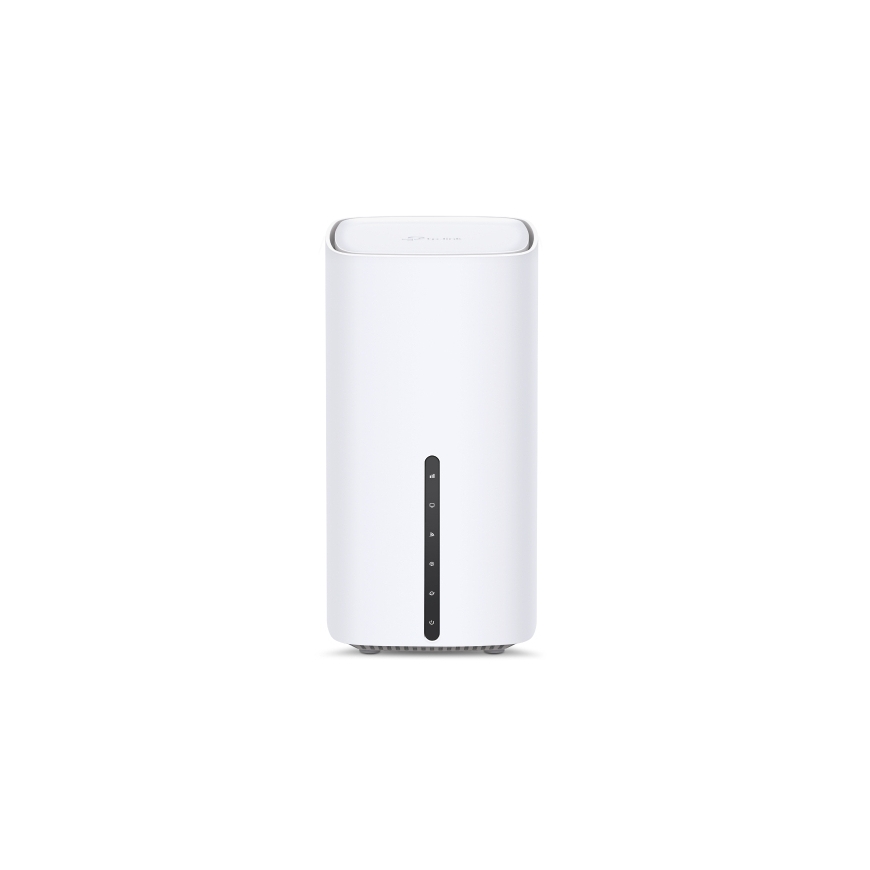

TP-Link Archer NX505 5G AX3000 Wireless Dual-Band Gigabit wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
359.00 €
Monthly payment from 10,14 €
4529355 ARCHER NX505
1210002610292, 1210002610315
Shipping 3-7 b.d.
You are interested in this product?
All about the product
Superior 5G –A Revolutionary Experience
Transform 5G signals into rapid downloads and flawless video calls with Archer NX505. The router delivers incredible speeds up to 6.47 Gbps and 4G compatibility.
Share 5G Speed with Reliable Wi‑Fi
Built with cutting-edge 5G and Wi-Fi 6, Archer NX505 brings superior wireless performance, expanded coverage and increased capacity, enabling faster loading and stable multi‑device connections
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is costly and time-consuming for temporary or remote locations. Archer NX505 delivers hassle-free, high-speed internet with easy SIM plug-and-play functionality.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
External Antenna Ports for Boosting Your Signal
If your indoor 5G/4G signal is poor, connect the external antenna to significantly enhance reception for a consistently stable connection.
Easy Setup and Use
Set up Archer NX505 in minutes via its intuitive web interface and Tether app. Manage network, parental and access controls on your devices, with automatic firmware updates for optimal network performance and security.
WAN connection | |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Port forwarding | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Dynamic DNS (DDNS) | Yes |
| Port triggering | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
Mobile network | |
| 4G bands supported | 700, 850, 1800, 2100, 2500, 2600, 900, 2300, 800, 3500, 3700 |
| 3G standards | DC-HSDPA, HSPA+, UMTS, HSPA |
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card type | NanoSIM |
| Mobile network generation | 5G |
| 5G bands supported | 700, 850, 1800, 2100, 2600, 3500, 800, 900, 2300, 3700, 2500 |
| 3G bands supported | 850, 900, 2100 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security | |
| DMZ support | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, 64-bit WEP, 128-bit WEP |
| Guest access | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Parental control | Yes |
Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design | |
| Product colour | White |
| Product type | Desktop/pole router |
| Built-in display | No |
Antenna | |
| Antenna connector type | SMA |
| Antenna design | Internal & external |
Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 2 A |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 99 mm |
| Depth | 190 mm |
| Height | 99 mm |
| Weight | 610 g |
Packaging data | |
| Package width | 230 mm |
| Package depth | 115 mm |
| Package height | 221 mm |
| Package weight | 1.27 kg |
| Package type | Box |
| Number of products included | 1 pc(s) |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows XP Home, Windows XP Professional, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home x64, Windows XP Professional x64, Windows 2000, Windows 2000 Professional, Windows 98SE, Windows Vista Business, Windows NT, Windows 10 IoT Enterprise, Windows RT 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Country of origin | China |
| Customs product code (TARIC) | 8517620000 |
Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
