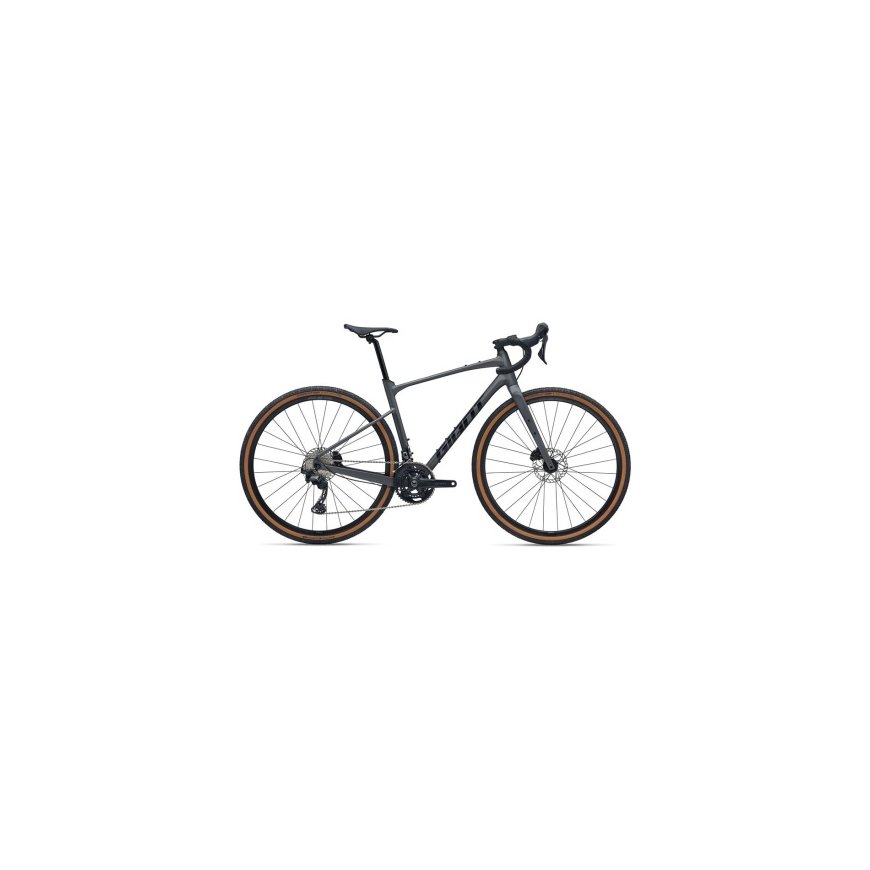

Gravel bike Giant Revolt 0 Stealth Chrome (2026)

Versatile aluminum road bike for pavement, gravel, and dirt paths
The composite fork provides a smooth ride, while the "flip chip" system allows you to easily adjust the wheelbase and tire clearance to suit your needs.

Key performance factors

• Confident handling: The frame is designed with an endurance geometry and shorter rear tubes for precise handling, agility, and control. A longer frame reach, shorter overhang, and lower bottom bracket significantly improve stability on uneven terrain.

• Tailored comfort: Lowered rear tubes with a thin profile effectively absorb road shocks and vibrations. D-Fuse handlebars and seat post function as a unified system to enhance comfort without sacrificing stiffness in turns, sprints, or climbs.

• Adjustable to terrain ("Flip chip" system): The integrated mechanism in the rear frame allows for changing the wheelbase in two positions. The short position is designed for quicker handling and acceleration, while the long position provides improved stability at high speeds.

• Generous tire clearance: Using the longer setting of the "flip chip," the bike can be equipped with tires up to 53mm wide.

• Seat post options: You can use the included D-Fuse seat post for maximum comfort or replace it with a standard 30.9mm round or dropper seat post.

Frame (lifetime warranty) – ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

Fork – Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Reach – Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seat post – Giant D-Fuse, alloy, 14mm offset

Saddle – Giant Grit

Shifter – Shimano GRX RX-610, 2x12

Front derailleur – Shimano GRX RX-820

Rear derailleur – Shimano GRX RX-820

Brakes – Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake lever – Shimano GRX RX-610 hydraulic

Cassette – Shimano 105, 11x34

Chain – KMC X12L-1

Cranks – Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175 mm

Bottom bracket – Shimano, threaded

Hubs – Giant S-X2 Disc wheelset, alloy

Hubs – Giant alloy, 12mm thru-axle

Spokes – Stainless steel

Tires – Giant Crosscut Grip TR, 700x40c, tubeless

Additional equipment – tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
