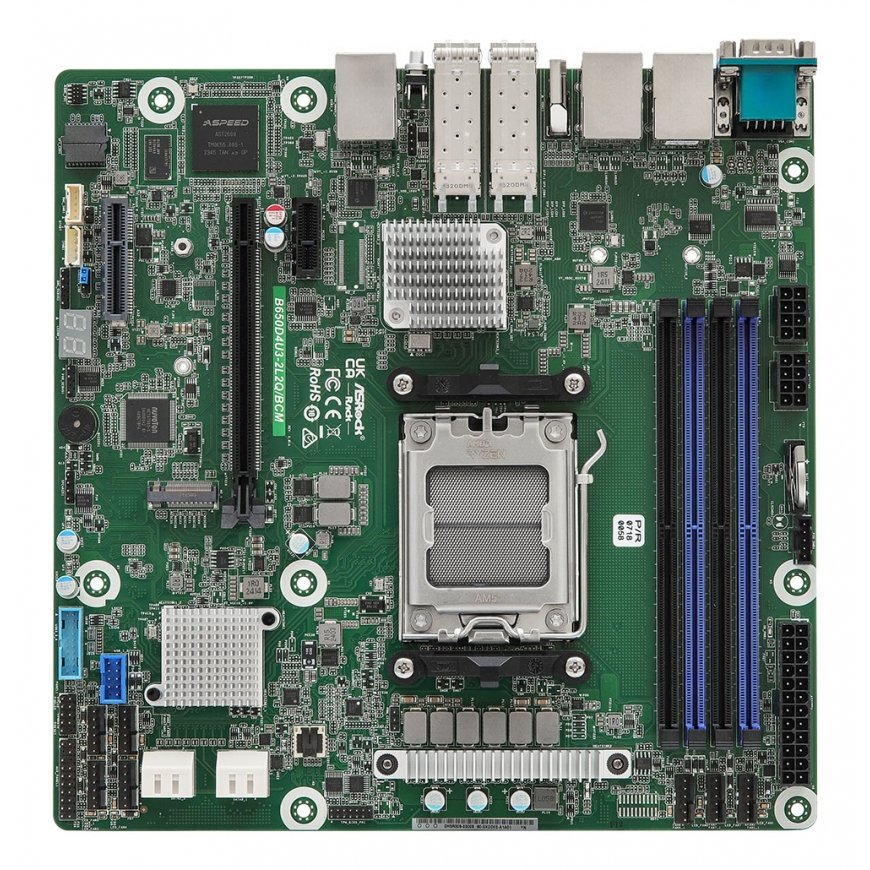

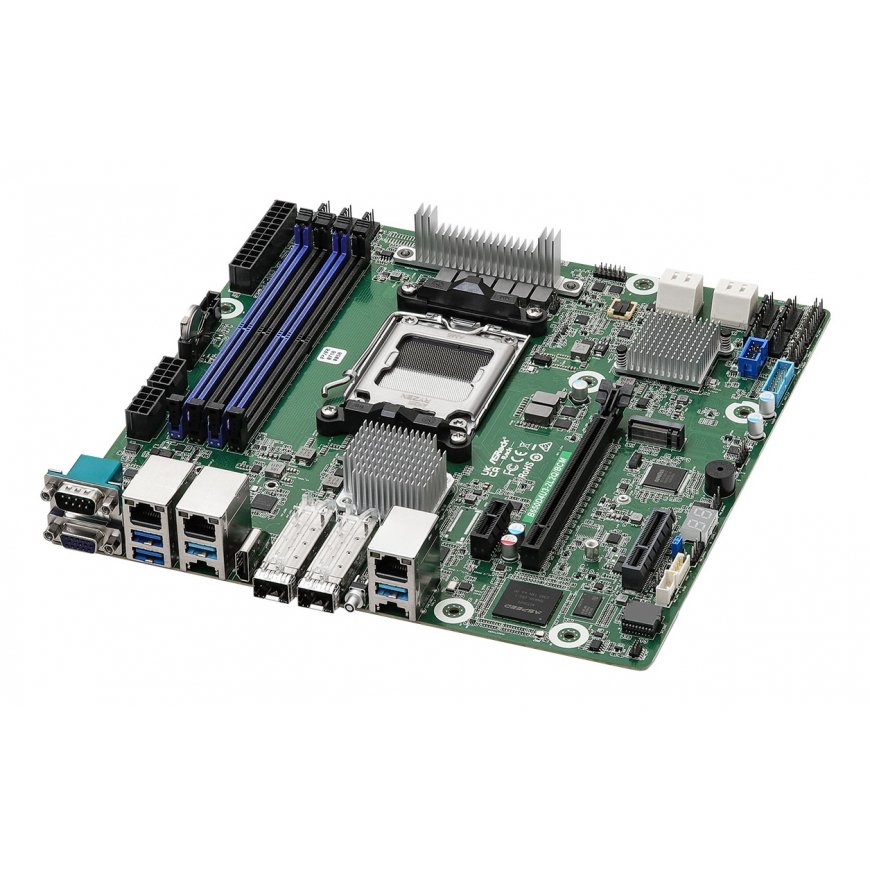

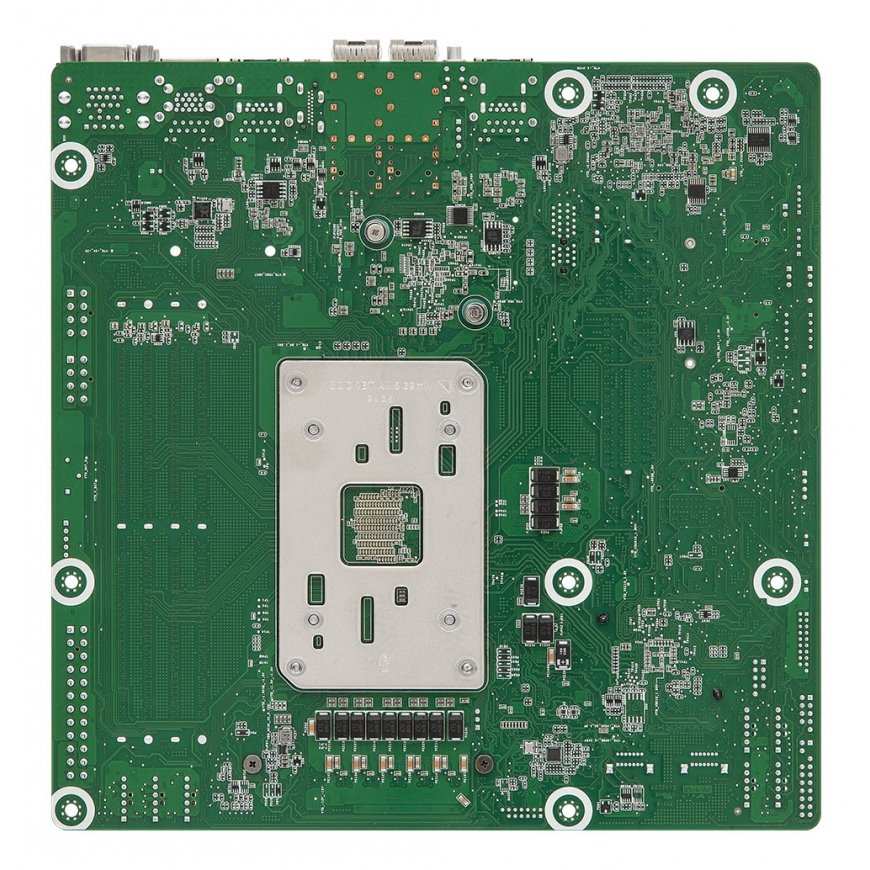

Asrock B650D4U3-2L2Q/BCM motherboard AMD B650 Express Socket AM5 micro ATX
625,67 €
622.67 €
Monthly payment from 16,93 €
3815219 B650D4U3-2L2Q/BCM
4711430522968
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Asrock B650D4U3-2L2Q/BCM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. On-board graphics card model: Aspeed AST2600. Component for: Server, Motherboard form factor: micro ATX, Motherboard chipset family: AMDProcessor | |
| Compatible processor series | AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 48 GB |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 3600, 5600 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
Graphics | |
| On-board graphics card model | Aspeed AST2600 |
Internal I/O | |
| USB 2.0 connectors | 1 |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |

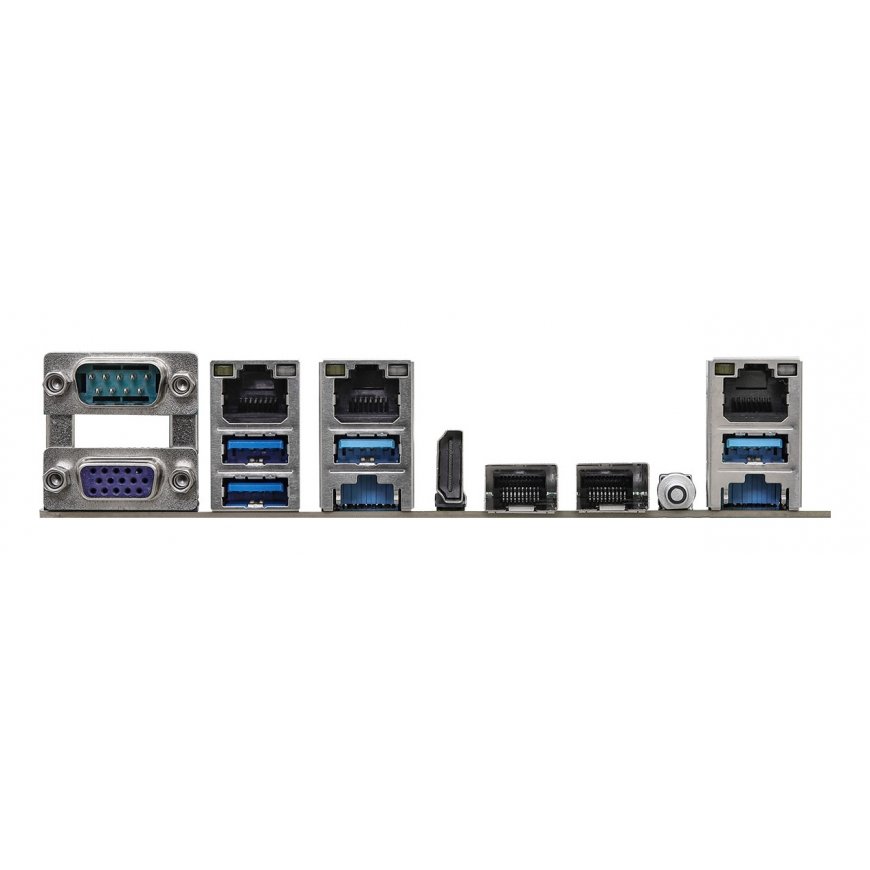

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD B650 Express |
| Motherboard chipset family | AMD |
| PC health monitoring | CPU, Fan, Voltage |
| Component for | Server |
Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 1 |
BIOS | |
| BIOS type | UEFI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
