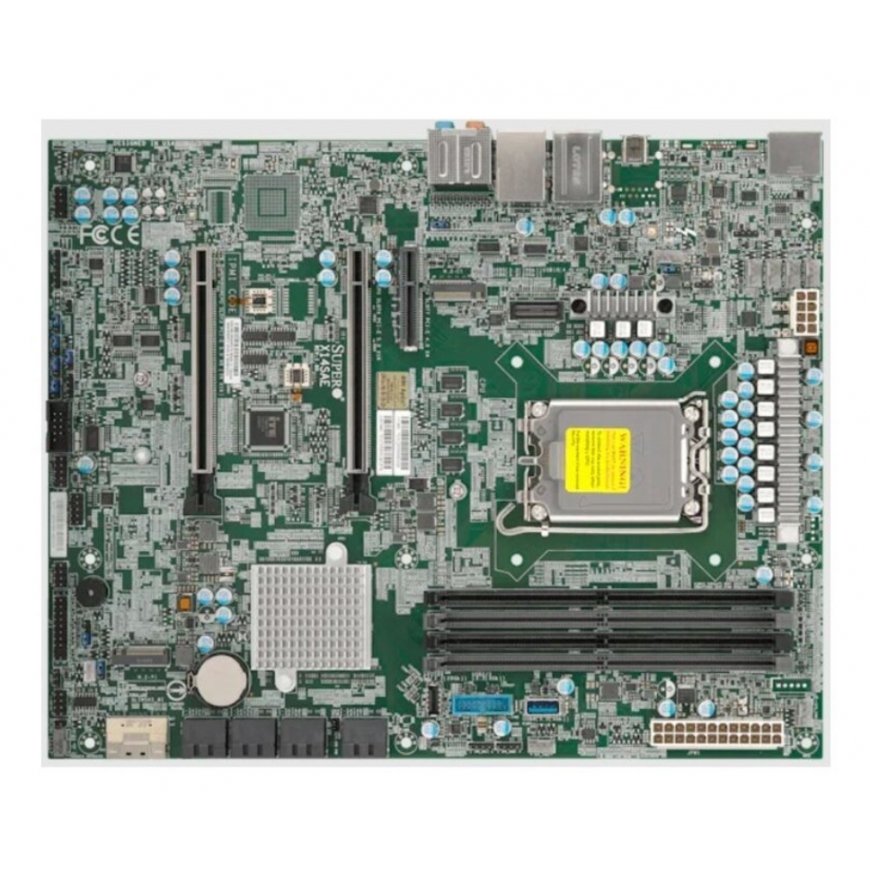

Supermicro X14SAE LGA 1851 (Socket V1) ATX
679,00 €
Monthly payment from 18.38 €
3809365 MBD-X14SAE-006
0672042948222
2026-09-15
You are interested in this product?
Processor | |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 192 GB |
| Memory voltage | 1.1 V |
| Supported memory types | DDR5-SDRAM |
| Supported memory module capacities | 8GB, 16GB, 32GB, 48GB, 24GB |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 10 |
| RAID support | Yes |
Internal I/O | |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 7 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Network | |
| Ethernet interface type | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Component for | Server |
| Audio chip | ALC 888S |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 6.5 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
