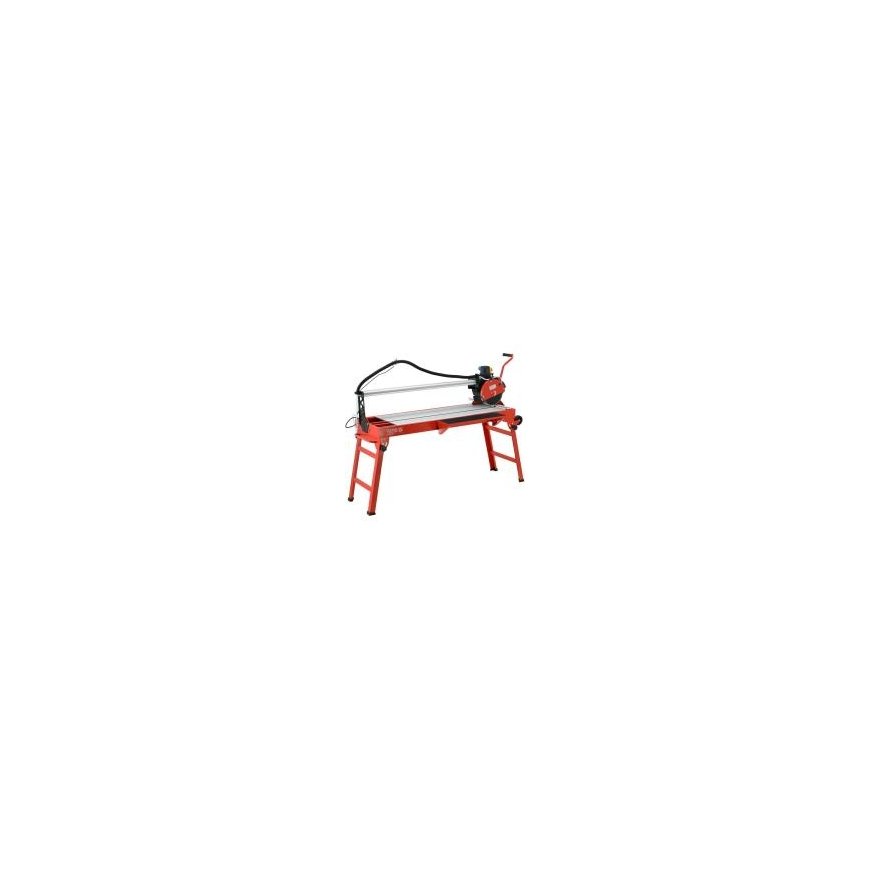

Cutting Machine for Stone with Guide and Laser Pointer | 1500W (1200 mm) (YT-821597)

The electric cutting machine with guide and laser pointer is designed for wet cutting of ceramic materials, tiles, glazed tiles, stoneware tiles, and terracotta using diamond discs.

Main Features

• Power – 1500 W.


• Maximum cutting length – 1250 mm.


• Maximum cutting depth – 50 mm at a 90° angle and 37 mm at a 45° angle.


• Cutting angle adjustable from 0° to 45°.


• Cutting disc – 250 x 25.4 mm.


• Rotation speed – up to 2990 rpm.

Construction and Use

• The machine is adapted for large format tiles up to 1200 x 600 mm.


• The laser pointer and guide help in cutting accurately, without additional line marking.


• Adjustable cutting length, depth, and angle allow the machine to be customized for different cutting jobs.


• The cutting head moves along the vertical axis.


• Durable aluminum table top and additional working surface increase the workspace.


• The disc guard increases operator safety during operation.


• Wet cutting is performed using the included water pump and hose.


• 4 folding legs with locking handles, large wheels, and a transport handle make moving the machine easier.

Specifications

• Voltage – 230 V AC.


• Frequency – 50 Hz.


• Power – 1500 W.


• Rotation speed – 2990 rpm.


• Cutting disc outer diameter – 250 mm.


• Cutting disc inner diameter – 25.4 mm.


• Working type – dry and wet cutting.


• Working table dimensions – 1000 x 460 mm.


• Laser – present, class 2.


• Laser wavelength – 655 nm.


• Laser power – ≤1 mW.


• Laser module power supply – 2 x 1.5 V AAA batteries.


• Switch – with residual current protection.


• Electrical insulation class – I.


• Protection rating – IP54.


• Sound pressure level – 85.0 ± 3.0 dB(A).


• Sound power level – 98.0 ± 3.0 dB(A).


• Vibration level – <2.5 m/s².


• Weight – 51 kg.


• Series – GRF.


• Brand – YATO.


• Manufacturer code – YT-821597.


• EAN – 5906083108365.
