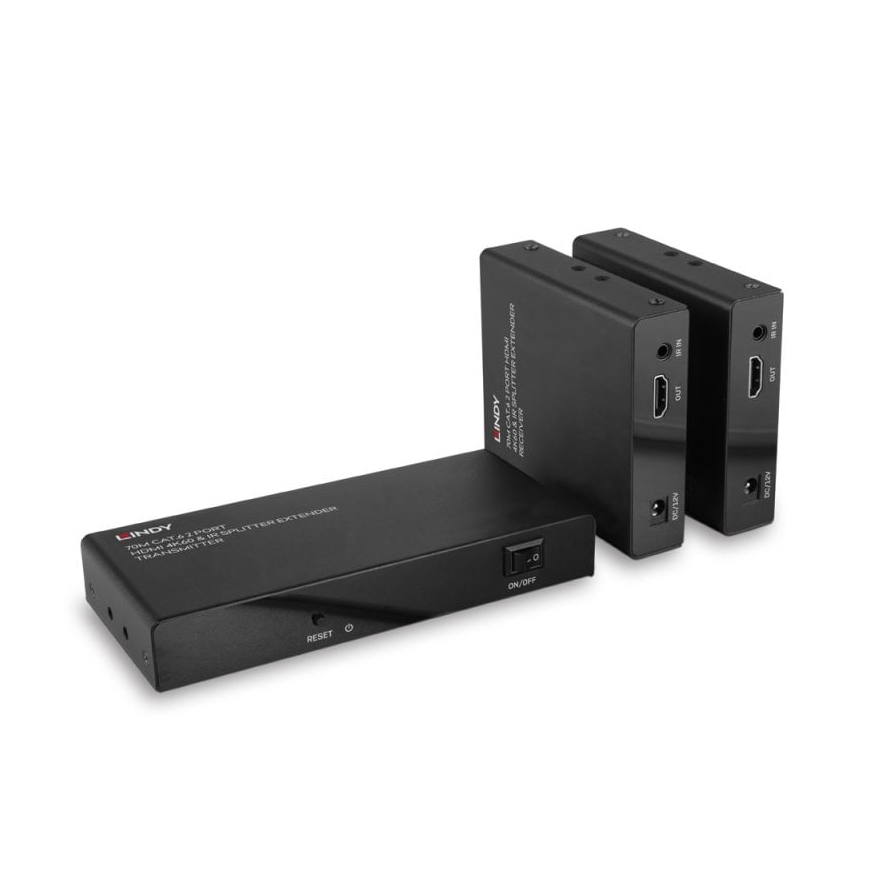

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender
248,00 €
239.00 €
Monthly payment from 7,05 €
3741072 38385
4002888383851
Shipping 2-3 b.d.
You are interested in this product?
All about the product
The Lindy 70m Cat.6 2 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.
Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Features
| Product colour | Black |
| Audio formats supported | LPCM |
| Cables included | IR |
| Quantity per pack | 3 pc(s) |
| Type | AV transmitter & receiver |
| Material | Metal |
| Package type | Box |
| Package width | 292 mm |
| Package depth | 238 mm |
| Package height | 55 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 1.26 kg |
| Connectivity technology | Wired |
| Manual | Yes |
| Chipset | GSV2006 & GSV5100 |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| HDCP | Yes |
| Packaging content | Multi-country Power Supply (UK, EU, US & AUS); Lindy Manual; 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender; 2 x Receivers; IR Emitter Cable, 1.2m; 2 x IR Receiver Cable, 1.2m; 2 x Transmitter Mounting Brackets & Screws; 4 x Receiver Mounting Brackets & Screws |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Receiver weight | 199 g |
| HDCP version | 2.2 |
| Bandwidth | 18 Gbit/s |
| Remote (IR) input | 1 |
| Mounting brackets included | Yes |
| Maximum transfer distance | 70 m |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Remote (IR) output | 1 |
| Transmitter weight | 263 g |
| Transmitter dimensions (WxDxH) | 154 x 103 x 23 mm |
| Infrared (IR) frequency range | 20 - 60 kHz |
| EDID management | Yes |
