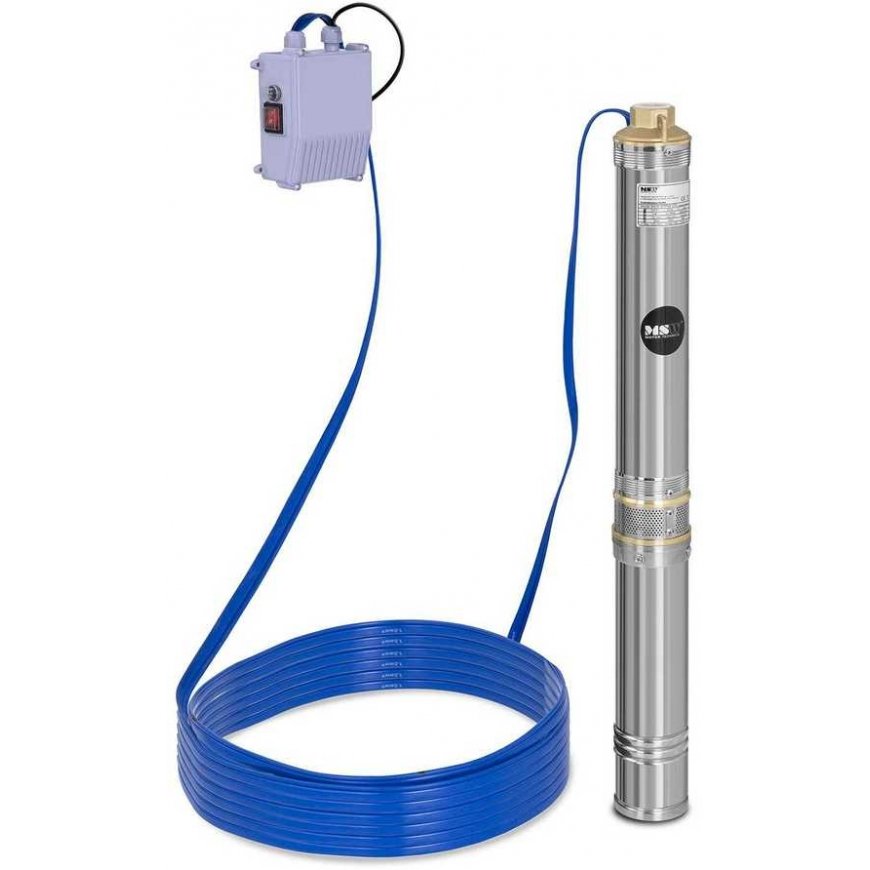

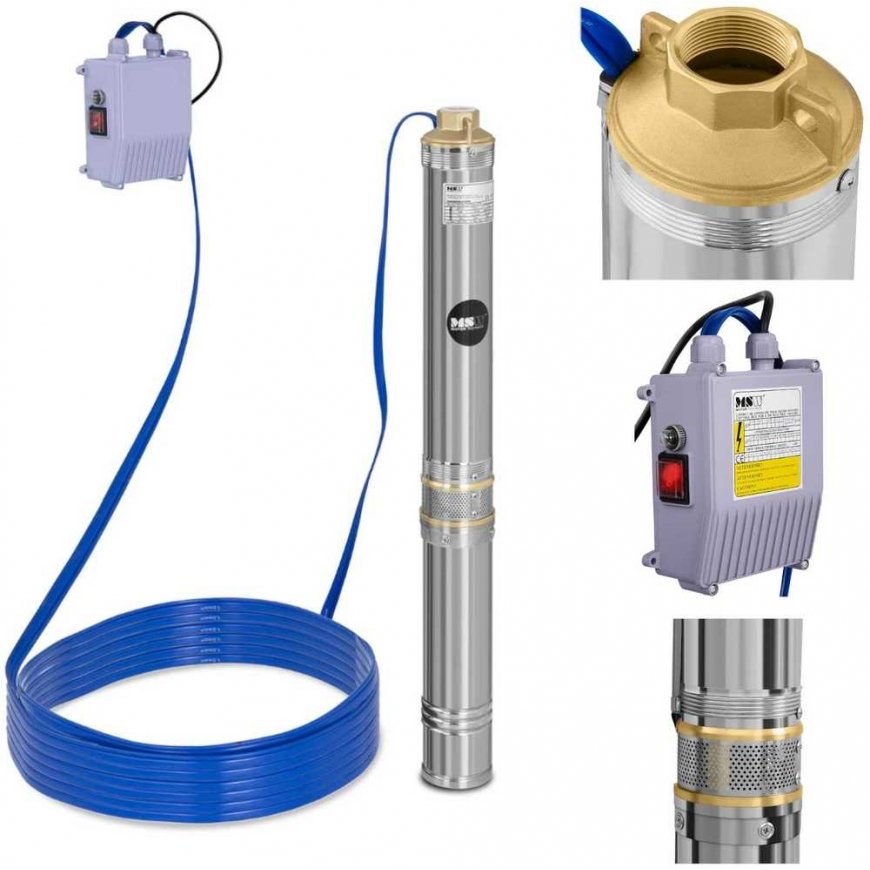

Submersible well pump MSW for deep well, 6000 l/h up to 72m

All about the product

Manufacturer number: 10060170

The efficient 750 W MSW submersible pump will allow you to effectively pump water to the surface. The motor can reach a speed of 2850 rpm, which guarantees a flow of 6000 liters per hour. The maximum height of the water column lift is 72 m, making the device suitable for use in deep wells.

The pump is hermetically sealed, so the components inside are protected from moisture. Additionally, the housing is made of stainless steel, which is resistant to corrosion and mechanical damage.

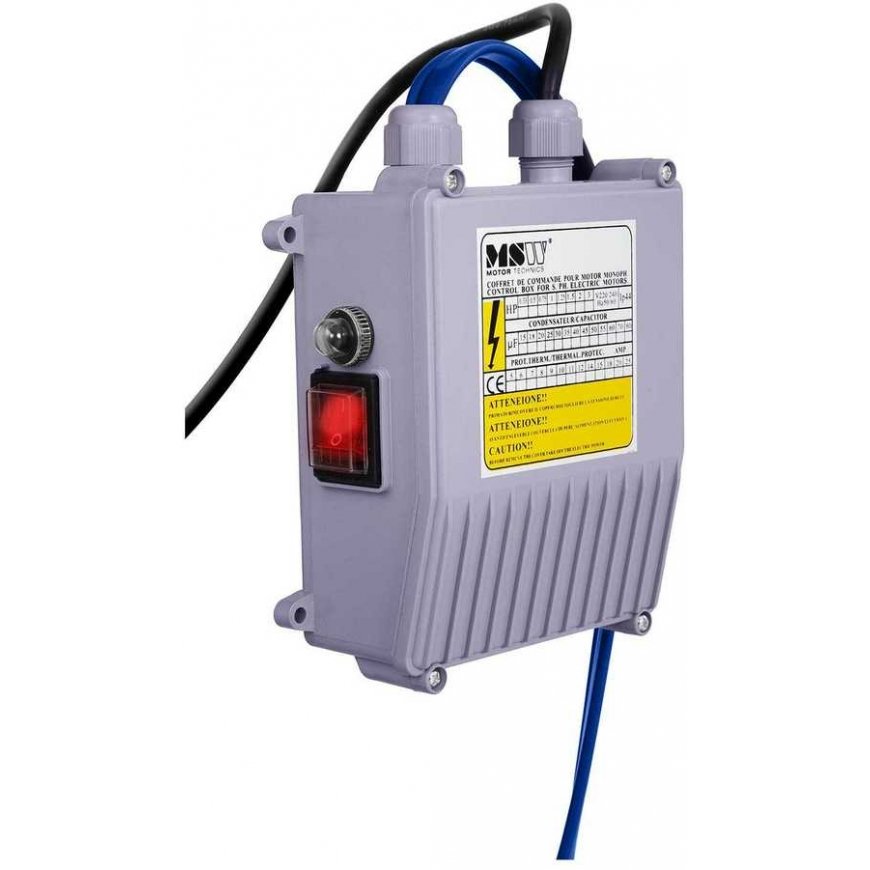

The control box with an overcurrent switch ensures easy operation. This protects against possible damage to the device due to voltage spikes. The long 20-meter power cord allows for convenient relocation of the device as needed.

Product features:

• - Functionality – efficient water pumping from a well to a maximum height of 72 m,
• - Efficiency – 750 W motor ensuring a flow of 6000 l/h,
• - Easy operation – simple controller,
• - Convenient use - 20-meter power cord,
• - Durability – housing made of stainless steel.

• - Model - MSW-SPP44-075
• - Catalog number - 10060170
• - Product condition - New
• - Housing material - Stainless steel
• - Rated power - 750 W
• - Working power - 1000 W
• - Voltage - 230 V / 50 Hz
• - Rated current - 5 A
• - Max. water column lift height - 72 m
• - Max. flow - 6000 l/h
• - Speed - 2850 rpm
• - Protection class - I
• - IP protection class - IP68
• - Insulation class - B
• - Operating mode - S1
• - Number of stages - 10
• - Mounting hole diameter - 95 mm

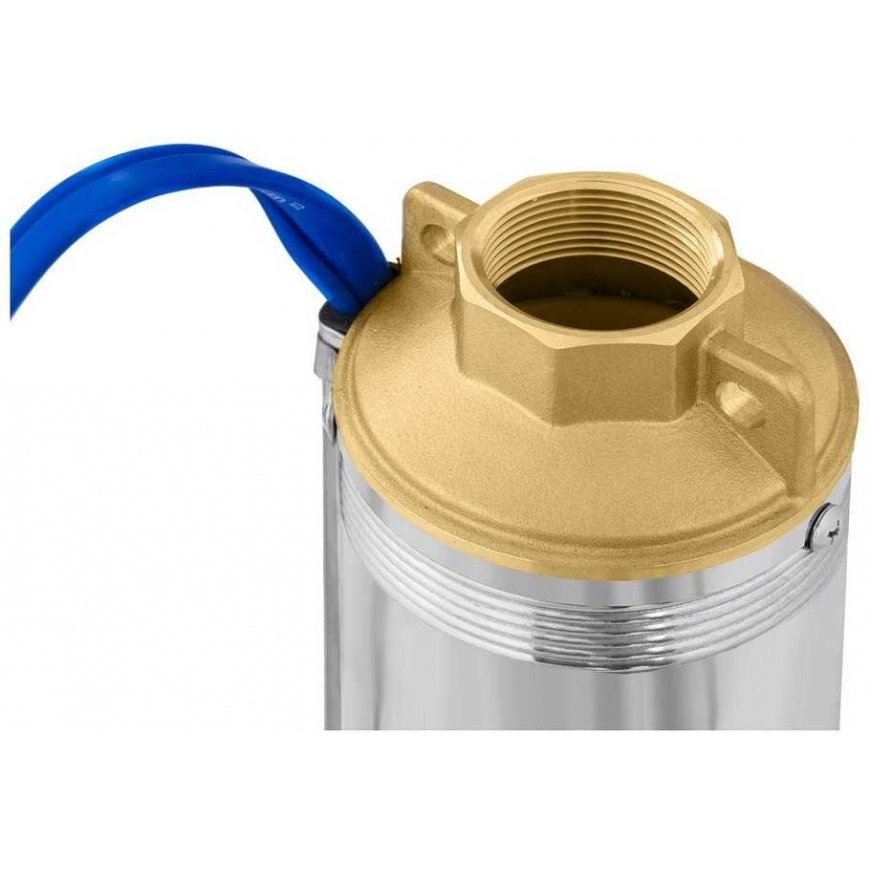

• - Water connection size - 1.25 inches
• - Max. sand content in water - 0.25%
• - Max. pumped water temperature - 35°C
• - Number of starts per hour - 50
• - Dimensions (L x W x H) - 10 x 9 x 86.5 cm
• - Weight - 13.4 kg
• - Shipping dimensions (L x W x H) - 123 x 12 x 22.5 cm
• - Shipping weight - 16.5 kg
