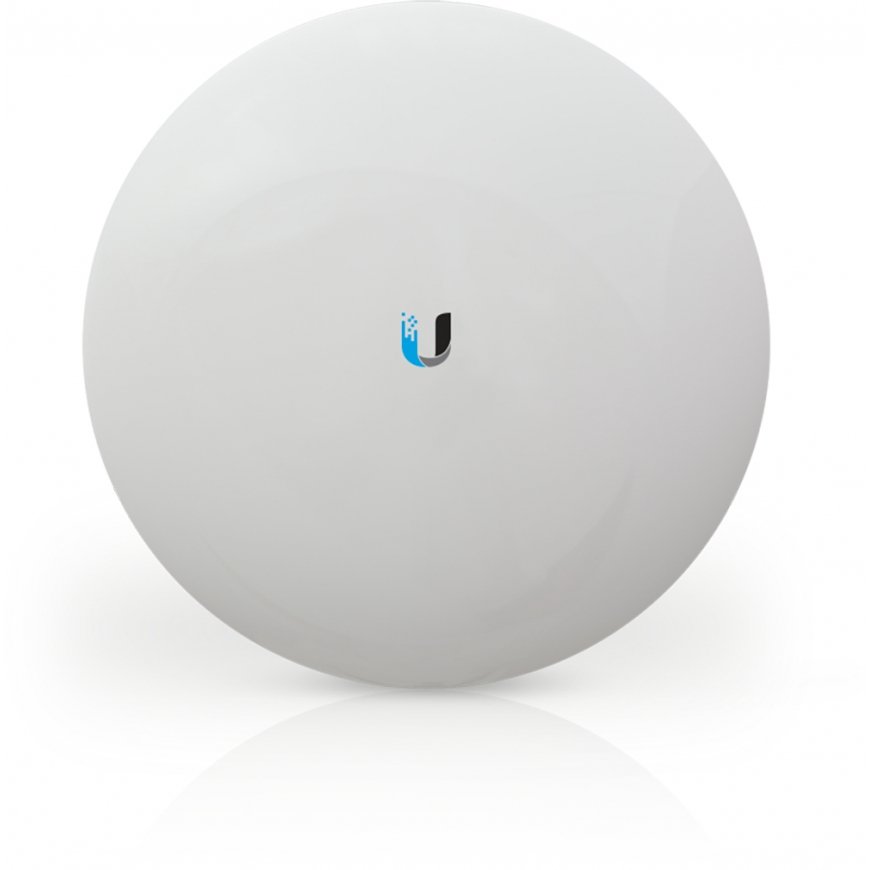

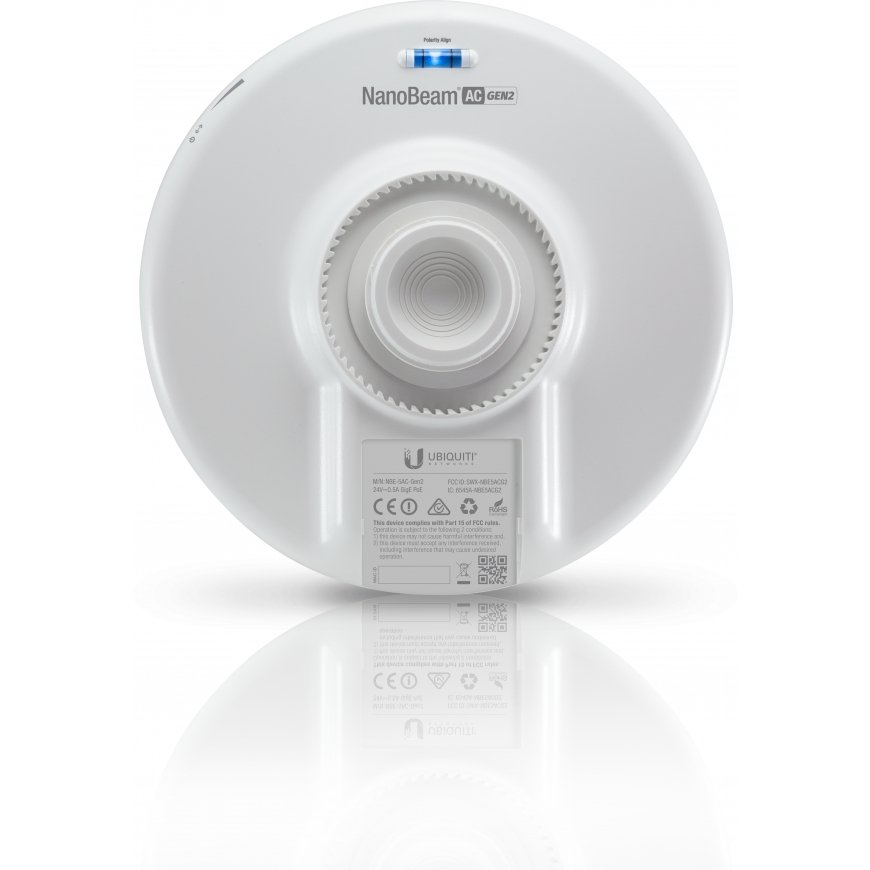

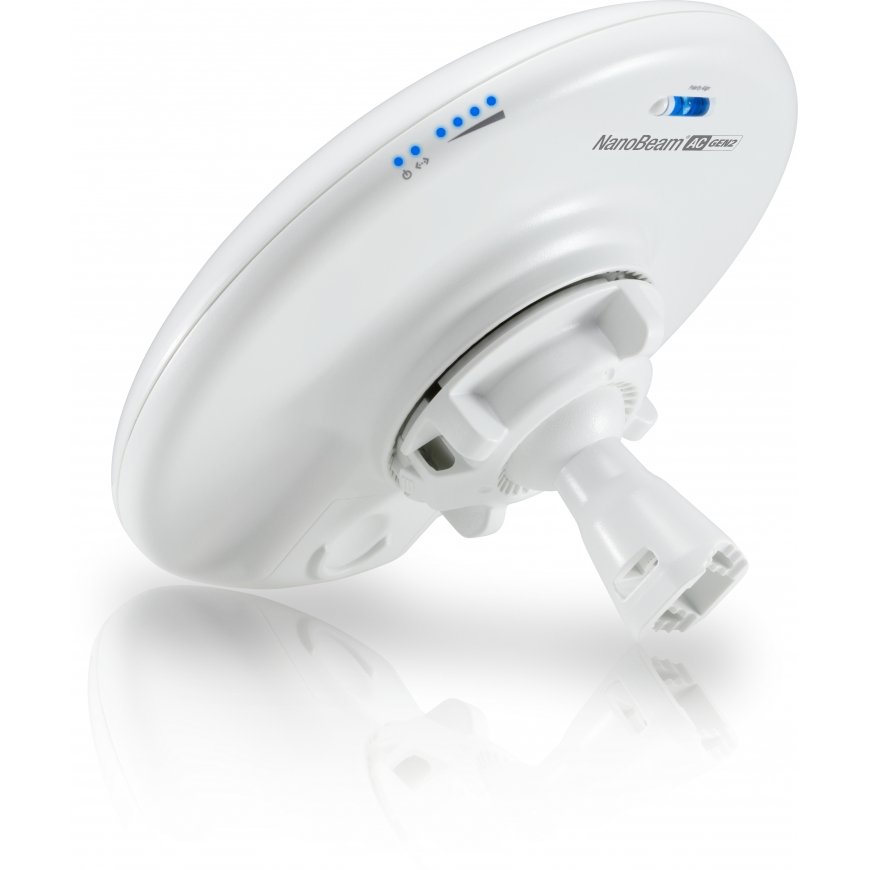

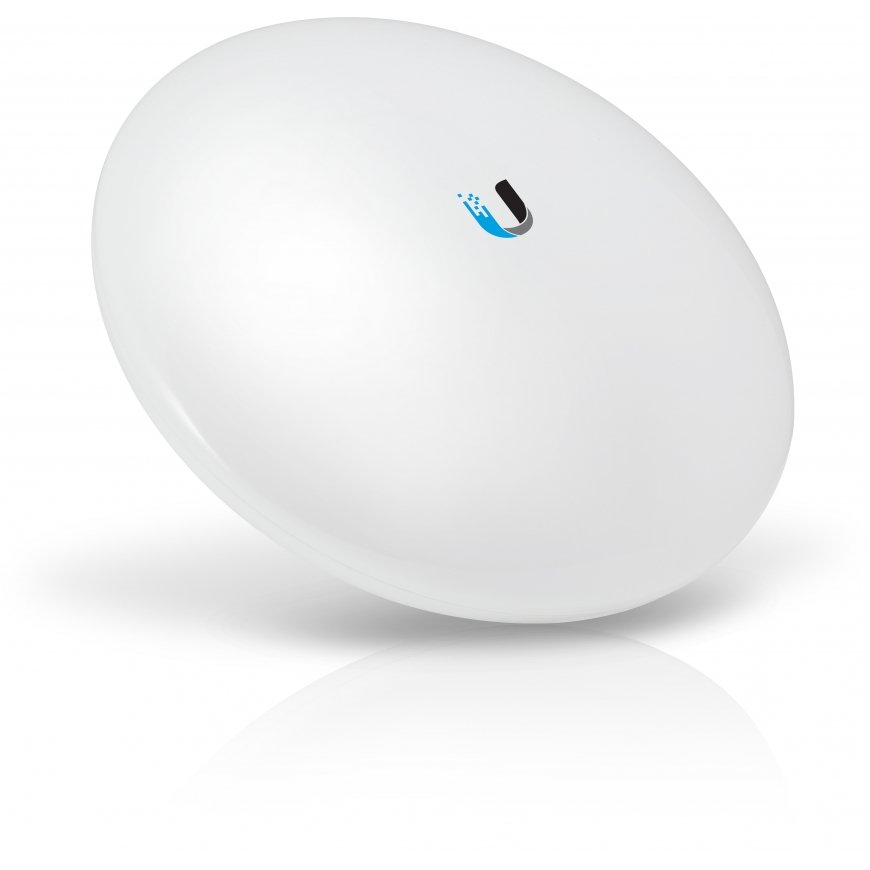

Ubiquiti NanoBeam 5AC Gen 2 Network bridge 450 Mbit/s White
119.00 €
Monthly payment from 3,96 €
3694081 NBE-5AC-GEN2
5902887026706, 0810354026348, 2518061712131, 8103540263484
Shipping 3-7 b.d.
You are interested in this product?
All about the product
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

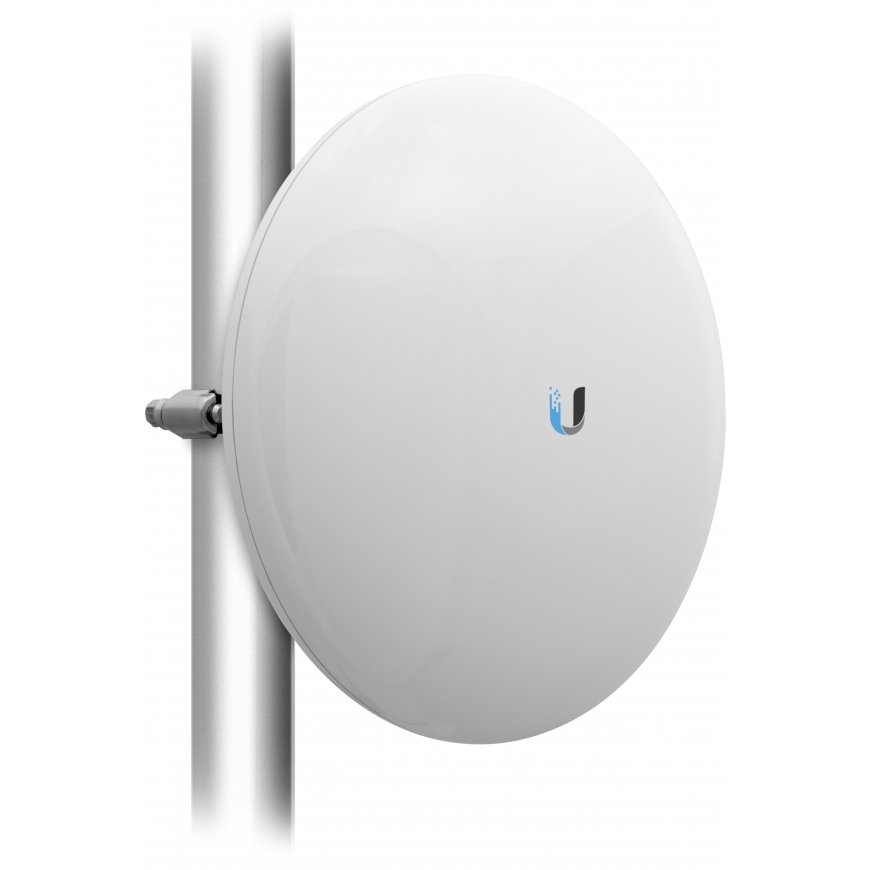

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, BPSK, QPSK, 256-QAM |
Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Ethernet LAN interface type | Gigabit Ethernet |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
Security | |
| Security algorithms | WPA2 |
Design | |
| LED indicators | Power, LAN, Signal strength |
| Product colour | White |
| Product type | Network bridge |
Antenna | |
| Antenna gain level (max) | 19 dBi |
Features | |
| Processor frequency | 720 MHz |
| Internal memory | 128 MB |
| Flash memory | 8 MB |
| Processor model | MIPS 74Kc |
Power | |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 189 mm |
| Depth | 189 mm |
| Height | 125 mm |
| Weight | 530 g |
Other features | |
| Operating temperature (T-T) | -40 - 176 °F |
| Frequency band | 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
| Maximum data transfer rate | 450 Mbit/s |
Certificates | |
| Certification | CE, FCC, IC, RoHS |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Cables included | AC |
