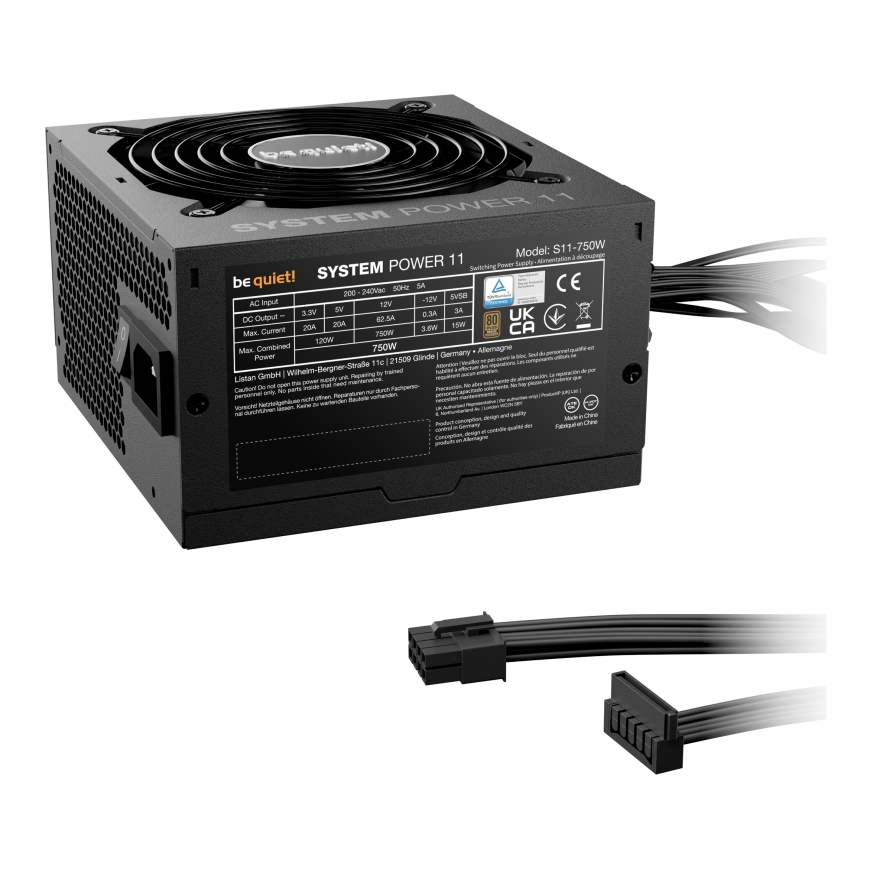

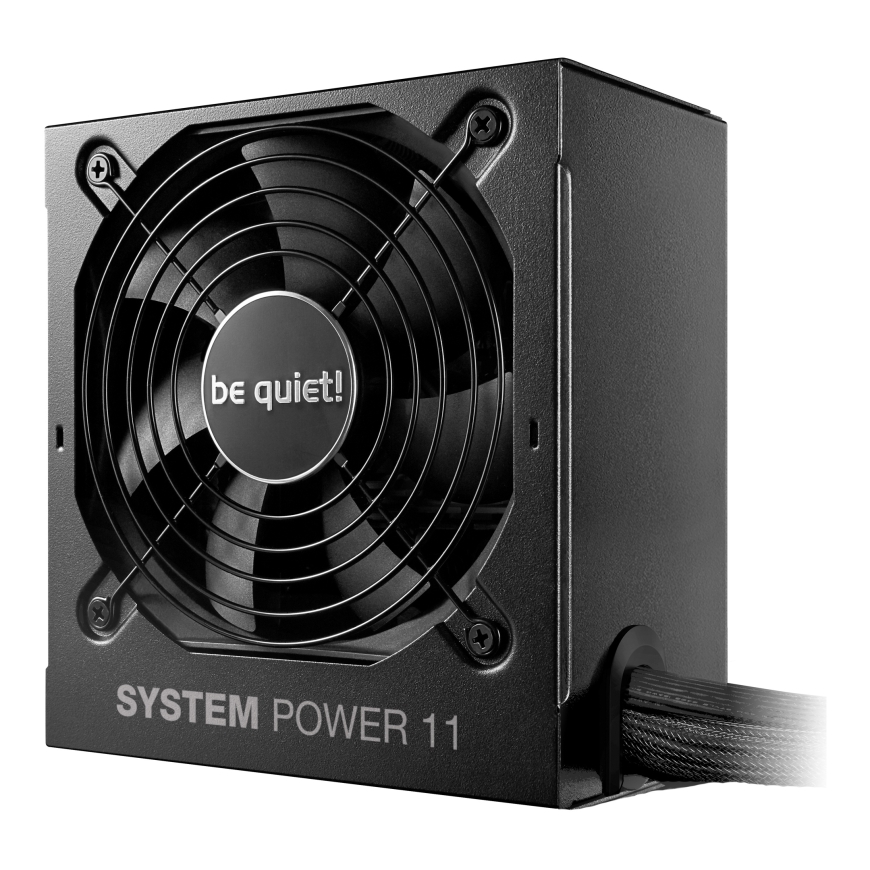

be quiet! System Power 11 750W power supply unit 20+4 pin ATX ATX Black
88,99 €
Monthly payment from 3.19 €
3689187 BP012EU
4260052191880
Shipping 4-6 b.d.
You are interested in this product?
System Power 11 750W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 750W offers even at entry-level.
Power | |
| Hold time | 17.34 ms |
| Efficiency | 90% |
| Input current | 4 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush |
| Power factor | 0.98 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Max output current (+12V1) | 62.5 A |
| Total power | 750 W |
| Number of +12V rail(s) | 1 |
Performance | |
| Noise level | 33.4 dB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Rifle |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan speed | 0 - 2100 RPM |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express power connectors (12-pin) | 1 |
Weight & dimensions | |
| Weight | 2.04 kg |
| Width | 150 mm |
| Depth | 86 mm |
| Height | 140 mm |
Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
Packaging data | |
| Package weight | 2.4 kg |
| Package type | Box |
| Package height | 97 mm |
| Package width | 195 mm |
| Package depth | 268 mm |
Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
Logistics data | |
| Shipping (inner) case length | 55.6 cm |
| Shipping (inner) case width | 31.1 cm |
| Shipping (inner) case height | 21.8 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 15.6 kg |
Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, RoHS, WEEE, UKCA, TÜV mark, CB |
