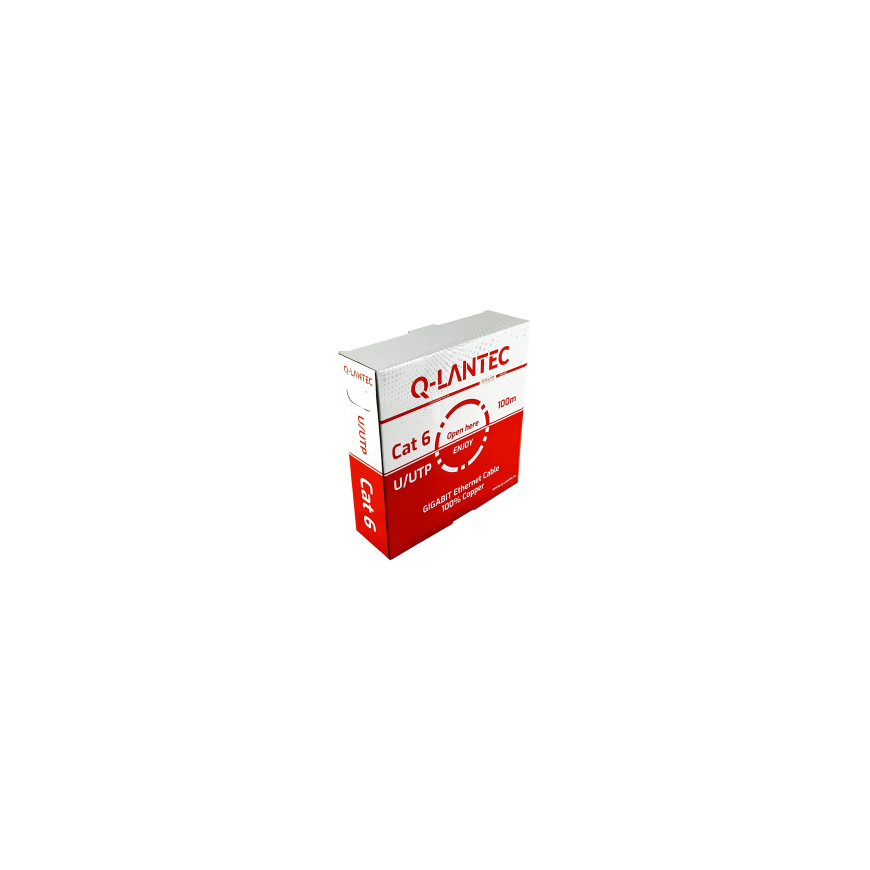

U/UTP cat.6 network cable, twisted pair, PVC, Eca 4PR, 1Gb/s (10Gb/s up to 55m), 10-year warranty, gray, 100m - Q-LANTEC
3685734 KIU6PVC100Q
5904204406314
4-6 b.d.
All about the product
Q-LANTEC Category 6 U/UTP cable is made of solid copper, without any other metal additives. We do not use any additives in production that could, under certain conditions, simulate compliance of certain parameters with the requirements of industry standards. Transmission parameters fully comply with Category 6 requirements. The cable is intended for use in LAN telecommunications networks and IP CCTV video surveillance, supports PoE requirements. This type of cable is intended for horizontal and vertical installation indoors. All Q-LANTEC cables comply with the CPR directive on the classification of construction products according to their fire resistance and defining test methods for cables intended for installation in buildings.
| CONSTRUCTION AND ELECTRICAL PARAMETERS | |
|---|---|
| Category | 6 |
| Class | E (250 MHz standard) |
| AWG gauge | 4x2x24AWG |
| Veins | copper single wire (100% Cu) |
| Insulation | polyethylene |
| CPR fire classification (Euroclass) | Eka |
| Center | 4 pairs twisted on a cross-shaped core insert |
| Screen | shortage |
| Housing | polyvinyl with increased oxygen index (FRPVC) |
| PoE | 802.3af |
| Color | light gray |
| ELECTRICAL PROPERTIES at 20 °C | |
|---|---|
| DC resistance loop | ≤ 95 Ω/km |
| Variable resistance | ≤ 2% |
| Insulation resistance (500 V) | ≥ 5000 MΩ *km |
| Capacitive resistance at 800 Hz nom. 48 nF/km | |
|---|---|
| Variable passive capacitive reactance | ≤ 1500 pF/km |
| Characteristic apparent resistance (1-100 MHz) | (100 ± 15) ohms |
| Nominal velocity of propagation (NVP) | 69% |
| Delayed spread | Rated current ≤ 535 ns/100 m |
| Delay angle | Nominal ≤ 20 ns/100 m |
| DC installation tester, 1 min. (core) | 1000V |
| MECHANICAL PROPERTIES | |
|---|---|
| Bending radius | 4 x ø outside |
| Max. pulling force | 80 north |
| Temperature range during use | From -30°C to +50°C |
| Temperature range during installation | From 0°C to +50°C |
| Outer diameter | 5.8mm |
| Weight kg/km | 20 kg |
| Packaging | cardboard (100 m) |
