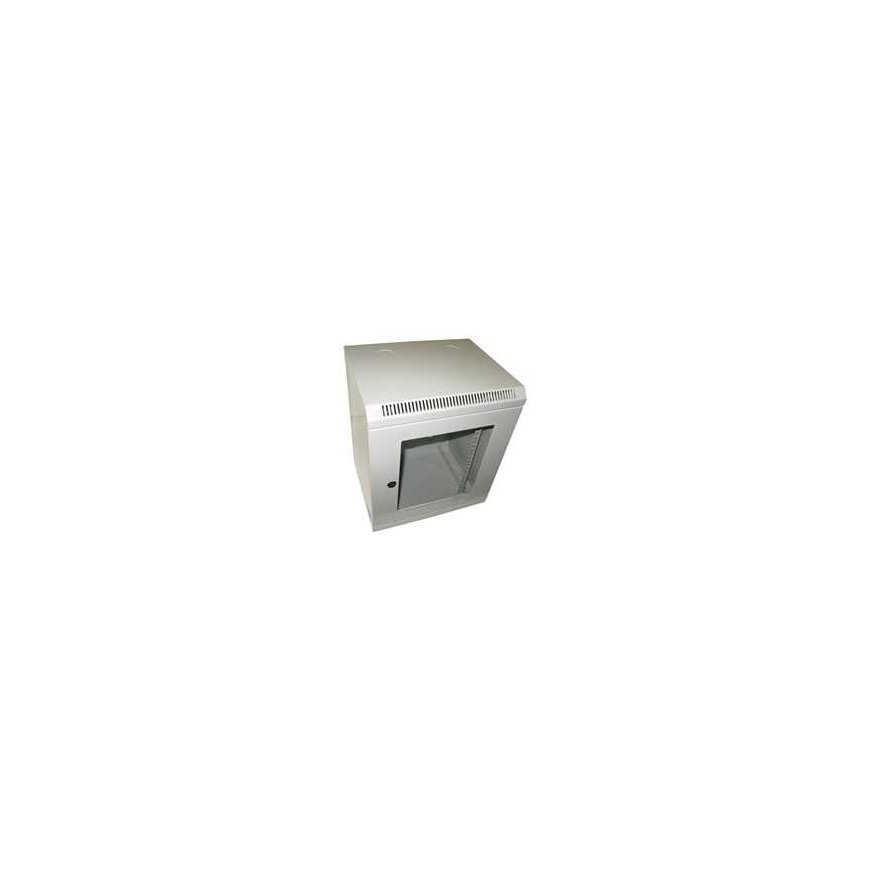

XtendLan 10" wall cabinet 9U 350x140, load capacity 50 kg, plexiglass doors, welded, gray color
129.00 €
Monthly payment from 4,22 €
3678189 WT-9U-1935-GREY
8592457206644
Shipping 9-13 b.d.
You are interested in this product?
All about the product
XtendLan 10" wall mount 9U
width 350 mm, depth 140 mm, load capacity 50 kg, plexiglass door, welded construction, gray
Universal solid distribution panels with 10" spacing, designed for wall mounting. The distribution boards are well made and elegant in appearance. They are made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of the parts are made of 1.2 mm sheet steel. The design allows you to withstand a static load of 50 kg. Design: doors - plexiglass, lockable rear cover - full side cover - full, non-removable top cover - perforated
- The switchboard consists of two fixed vertical rails with perforations for mounting the installed devices.
- The upper and lower parts of the switchboard are equipped with openings for cables and are covered with plugs
- four holes in total, two upper and two lower, knock-out metal cover, hole diameter 40 mm
- maximum depth of the installed device 140 mm
| Technical specifications: | |
| Dimensions: | 10" |
| Height: | 9U (422mm) |
| Width: | 350mm |
| Depth: | 140mm |
| Material: | rolled steel |
| Thickness: | support part 1.5 mm, others 1.2 mm |
| Surface finish: | grey, RAL7032 |
| Maximum load: | 50 kg |
