Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V – 2
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V – 3
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V – 4
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V – 5
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V
Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Stamos Germany Multifunctional welding machine MIG/MAG TIG MMA FCAW 300 A 400 V

769.00 €
Monthly payment from 20,70 €
3662108

10021084

4250928668950

Shipping 9-13 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Manufacturer code: 10021084

The multifunctional welding machine from STAMOS Germany makes it easy to choose the right welding technique for your project. You can choose from four modes in one device: MIG/MAG, TIG-Liftarc, MMA and FCAW . With or without shielding gas. The trolley makes it much easier to transport your equipment, and there is enough space above the rear wheels for a gas cylinder, which can be easily attached with a bracket and two chains. The clear control panel with two displays allows you to control the welding parameters, including welding current up to 300 A. The large knobs are easy to operate even when wearing welding gloves. The following settings are available: welding method, current, voltage (MIG), wire feed speed from 2.5 to 24 m/min, inductance and 2T or 4T modes. FCAW welding involves creating weld seams using welding wire - without additional gas. This makes the process ideal for small car repairs and outdoor metal work. The TIG method of this model uses Liftarc ignition to activate the arc. This ensures that sensitive electronic devices in the vicinity, such as mobile phones, computers or control systems, are not affected by external factors. Do you want to weld outdoors and in strong winds? Then choose electric arc welding (MMA) . This method works without the use of additional gas and gives good results. The VDR function ensures greater safety when performing MMA welding, especially in humid environments. The Arc Force and Anti Stick functions are activated automatically and allow for comfortable welding.

Product features:
  • - Ergonomic rotary knobs allow you to precisely set all parameters even when wearing welding gloves,
  • - Welding using FCAW, MIG/MAG, TIG Liftarc and MMA methods with an intensity of up to 300 A,

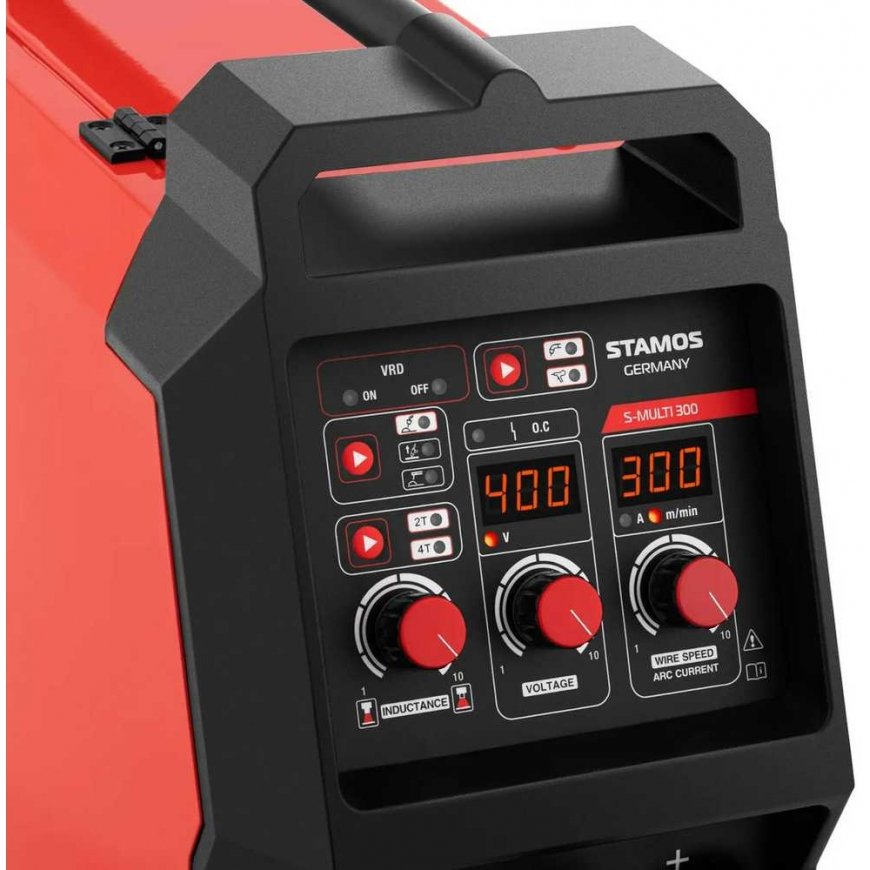

  • - Two LED displays provide a live view of all settings,
  • - Increased MMA safety with VRD, Arc Force and Anti Stick functions,

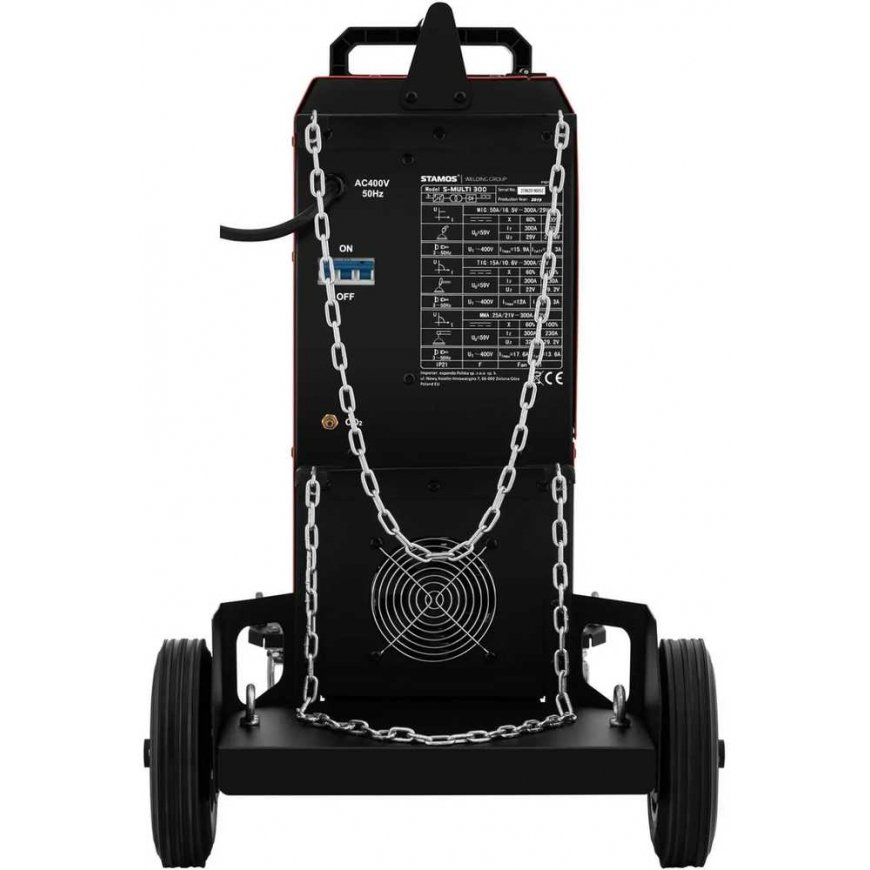

  • - Four wheels and integrated gas can holder for easy transportation.

Technical parameters:
  • - Catalog number - 10021084
  • - Item condition - New
  • - Model - S-MULTI 300
  • - 2/4 stroke - Yes
  • -Anti-Stick - Yes
  • - ARC Forces - Yes
  • - Water cooling - No
  • – Duty cycle [%] – 60
  • - Gas flow time [s] - Yes
  • – Frequency [Hz] – 50
  • - Flux Wire - Yes
  • - Gas solenoid valve - Yes
  • - Functions - MMA / TIG / MIG / MAG / FCAW
  • - Hot start - No
  • - MMA cable - 3 m
  • - Insulation class - F
  • - IEC protection class - IP21
  • - Lift the TIG - -
  • - Maximum weld thickness [mm] - 14
  • - Maximum wire spool diameter - 200 mm
  • - Maximum welding current [A] - 300
  • – Maximum input current [A] – MIG: 15.9 / MMA: 17.6 / TIG: 12
  • – Maximum input current [A] – MIG: 15,792 / MMA: 16,687 / TIG: 11,919
  • - Minimum welding current [A] - 15
  • – Input power [kVA] – MIG: 10,967 / MMA: 12,150 / TIG: 8,387
  • - Voltage [V] - 400
  • - Welding voltage [V] - 16.5-29
  • - MMA welding current [A] - 25 - 300
  • - TIG welding current [A] - 15 - 300
  • - MIG/MAG cable - 3 m
  • - Plasma cable - -
  • - TIG cable - 4 m
  • - Grounding wire - 3 m
  • – Efficiency [%] – 85
  • - Wire speed [m/min] - 2-18
  • - Wire diameter [mm] - 1 / 1.2
  • - Power factor - 0.93
  • - Plasma inflammation - -
  • - TIG ignition - LIFT
  • - Compliance with the standard - -
  • – Nominal input current [A] – MIG: 12.3 / MMA: 13.6 / TIG: 9.3
  • - Air consumption [l/min] - -
  • - Weight - 44.75 kg
  • - Shipping weight - 61.5 kg
  • - Dimensions (LxWxH) - 91 x 51 x 76 cm
  • - Shipping dimensions (LxWxH) - 94 x 80 x 45 cm

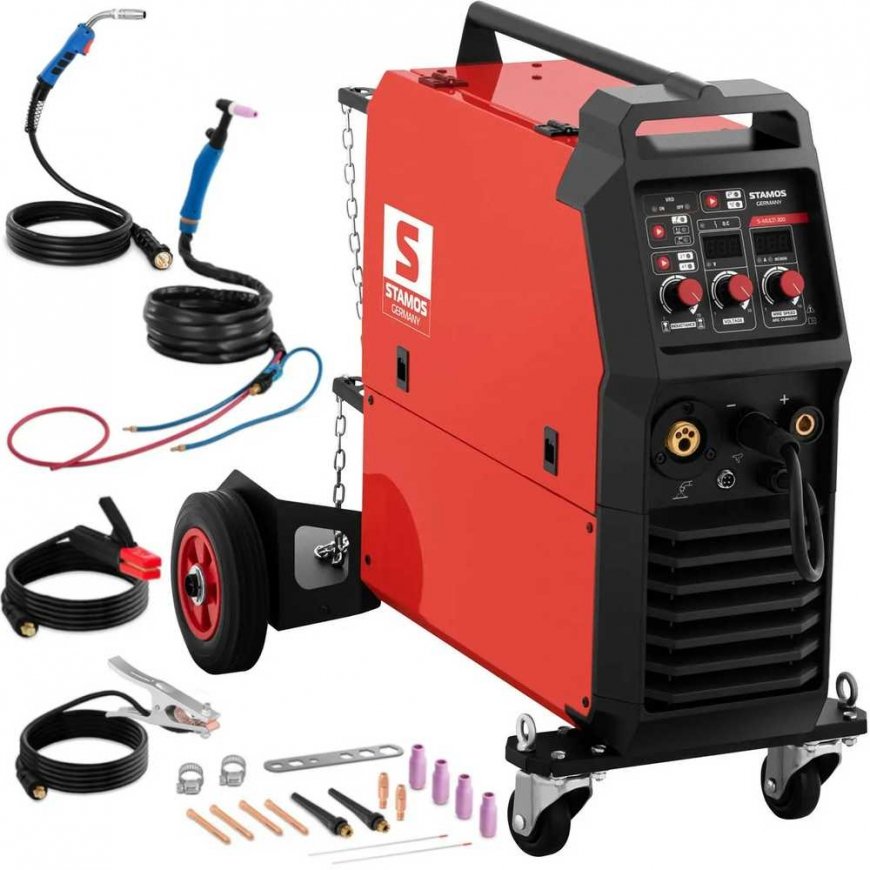

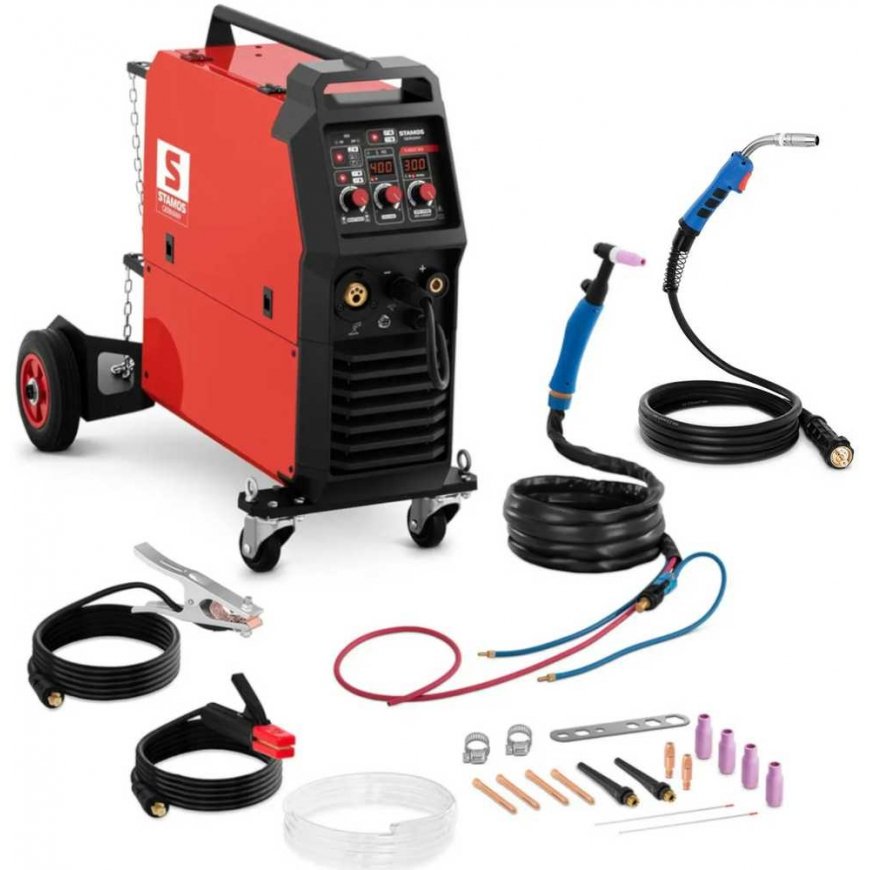

The set includes:
  • - Multifunctional welder
  • - Four-wheeled stroller
  • - Gas pipe (3 m)
  • - MIG torch with cable (3 m)
  • - TIG torch with cable (4 m)
  • - Electrode holder with cable (3 m)
  • - Grounding terminal with cable (3 m)
  • - 2 terminals Ø14.7 mm
  • - Universal key
  • - 2 chains
  • - 2 MIG sleeves (1 mm / 1.2 mm)
  • - Tungsten electrode
  • - Ceramic nozzle (5, 6, 7)
  • - TIG sleeves (1.6 / 2.4 / 3.2 mm)
  • - Long overlay
  • - Accessory bag
  • - Mounting accessories (screws)
  • - Plug not included
