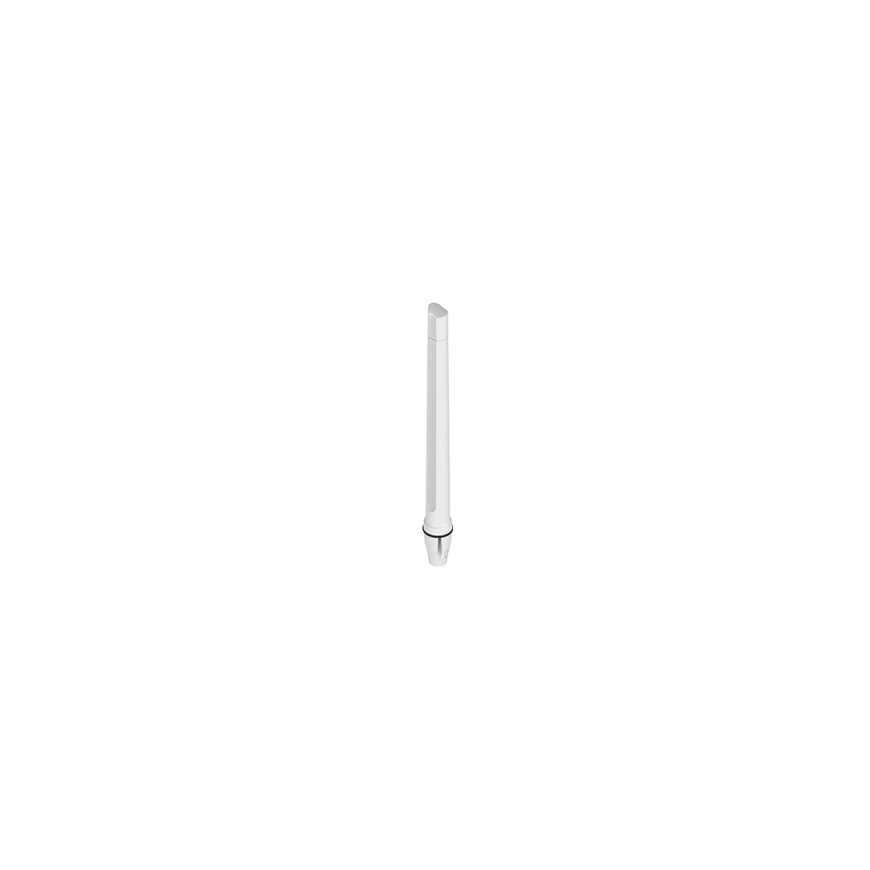

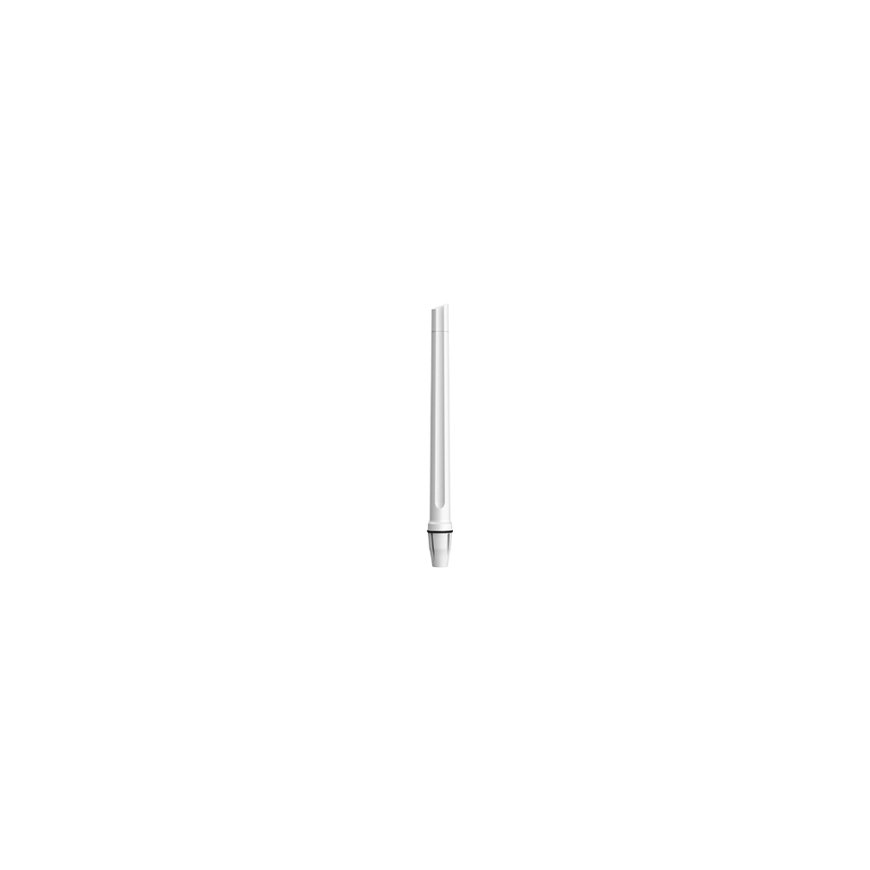

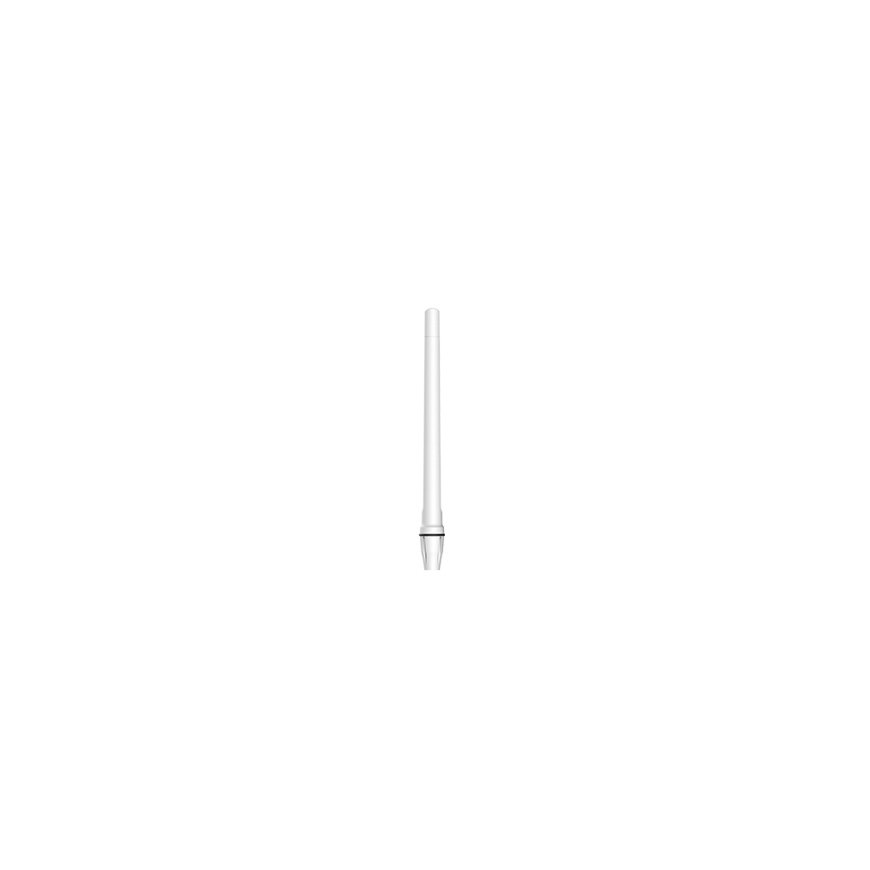

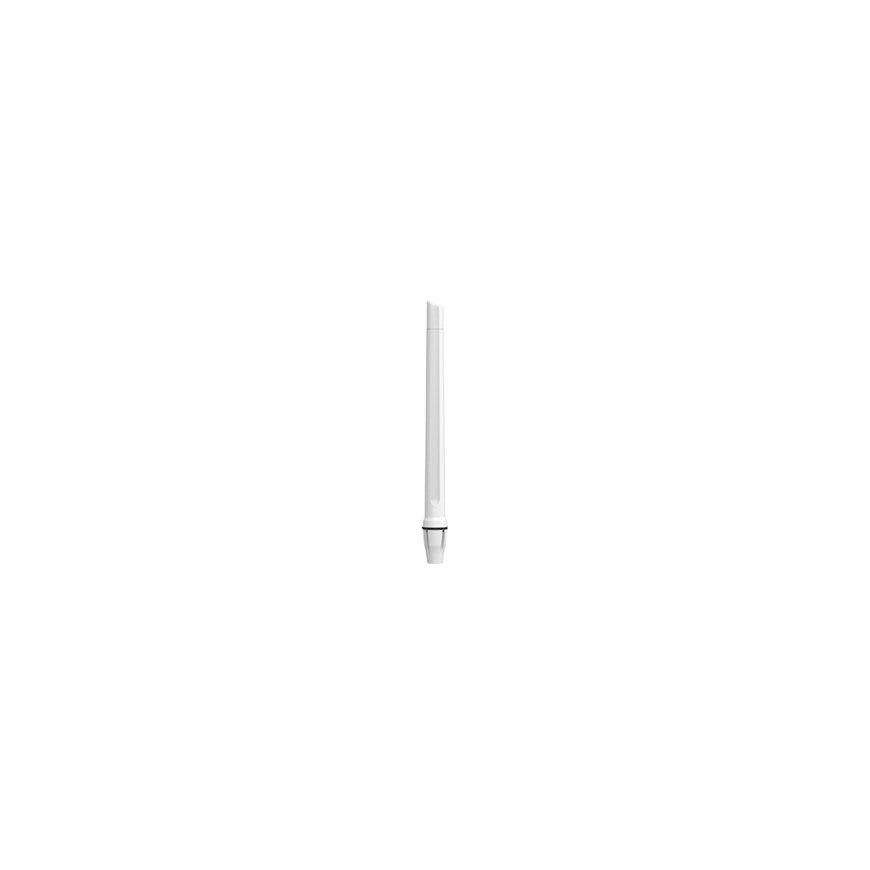

Poynting OMNI-498 network antenna Omni-directional antenna SMA 9.8 dBi
429.00 €
Monthly payment from 11,95 €
3661578 A-OMNI-0498-V1-01
6009710927458
Shipping 11-14 b.d.
You are interested in this product?
All about the product
Dual-Band Omni-Directional Marine & Coastal Wi-Fi AntennaThe OMNI-498 is a high-performance dual-band Wi-Fi omni-directional antenna designed for marine and coastal applications. Covering the 2.4 GHz and 4.9 to 7.2 GHz bands, this antenna supports both older Wi-Fi technology and modern Wi-Fi 6E, ensuring seamless connectivity up to 7.2 GHz. Its 2x2 MIMO capability with vertically separated radiating elements provides excellent omni-directional coverage for stable and reliable wireless communication.
Dual-Band Wi-Fi Coverage: Supports 2.4 GHz and 4.9 – 7.2 GHz bands, ensuring compatibility with Wi-Fi 6E technology.
2x2 MIMO Capability: Features vertically separated elements for enhanced data throughput and network efficiency.
True Omni-Directional Coverage: Provides 360° Wi-Fi connectivity, making it ideal for marine and coastal applications.
Rugged Marine-Grade Construction: Built to withstand extreme weather conditions, ensuring reliability at sea.
IP68 Protection Rating: Fully dustproof and waterproof, with foam-filled construction for durability in severe storms.
Saltwater & UV Protection: UV-stable ASA radome resists corrosion in harsh marine environments.
Versatile Deployment: Suitable for yachts, ships, offshore platforms, and other maritime installations requiring long-range Wi-Fi connectivity.
The OMNI-498 is purpose-built for harsh environments, providing superior Wi-Fi performance in marine and coastal settings. With its rugged design, dual-band support, and 2x2 MIMO technology, it ensures stable and high-speed connectivity even in extreme conditions.
Ideal Applications
Marine applications: Yachts / Boats / Ferries
Increase system transmission reliability
High-end industrial-grade router applications
Ports and harbour Wi-Fi & WLAN deployments
Industrial and commercial Wi-Fi deployment
Wireless LAN features | |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Design | |
| Product colour | White |
| International Protection (IP) code | IP68 |
Antenna | |
| Antenna connector type | SMA |
| Antenna gain level (max) | 9.8 dBi |
| Antenna type | Omni-directional antenna |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Height | 750 mm |
Packaging data | |
| Package width | 705 mm |
| Package depth | 100 mm |
| Package height | 150 mm |
Other features | |
| Frequency band | 2.4 - 2.5, 3.3 - 4.2, 4.9 - 7.2 GHz |
