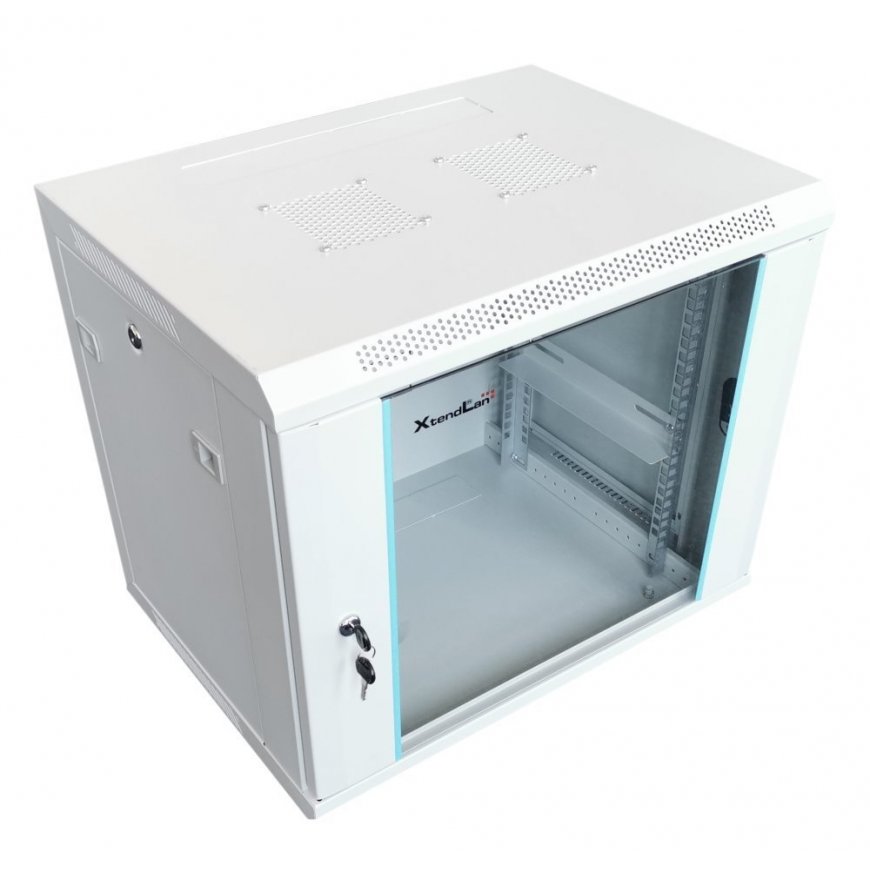

XtendLan 19" wall cabinet 12U 600x450, load capacity 60 kg, glass doors, extended, gray color
3609137 WS-12U-64-GREY-U-P
8592457225843
Shipping 12-16 b.d.
All about the product
XtendLan 19" wall cabinet 12U
width 600 mm, depth 450 mm, load capacity 60 kg, glass doors, extended, gray color
Universal one-piece distribution panels are designed for wall mounting. The cabinets are well made and have an elegant appearance. They are easy to mount thanks to the included patented mounting plate. They are made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of the parts are made of 1.2 mm sheet steel. The design allows you to withstand a static load of 60 kg. Complete with installation kit. Design: doors - safety tempered glass, changeable opening direction, lockable rear cover - complete side cover - complete, easily removable, can be with a lock top cover - perforated, with positions for two fans
- The switchboard is made up of four sliding vertical rails with perforations for mounting the installed devices.
- connecting material (cage nuts, washers, screws) is included with the cabinet
- There is a grounding point in the lower part of the switchboard for connecting the grounding wire.
- The upper and lower parts of the switchboard are equipped with openings for cables and are covered with plugs
- complies with international standard IEC 60297-2
| Technical specifications: | |
| Dimensions: | 19" |
| Height: | 12U (635mm) |
| Width: | 600mm |
| Depth: | 450mm |
| Material: | rolled steel |
| Thickness: | support part 1.5 mm, others 1.2 mm |
| Surface finish: | grey, RAL7035 |
| Maximum load: | 60 kg |
