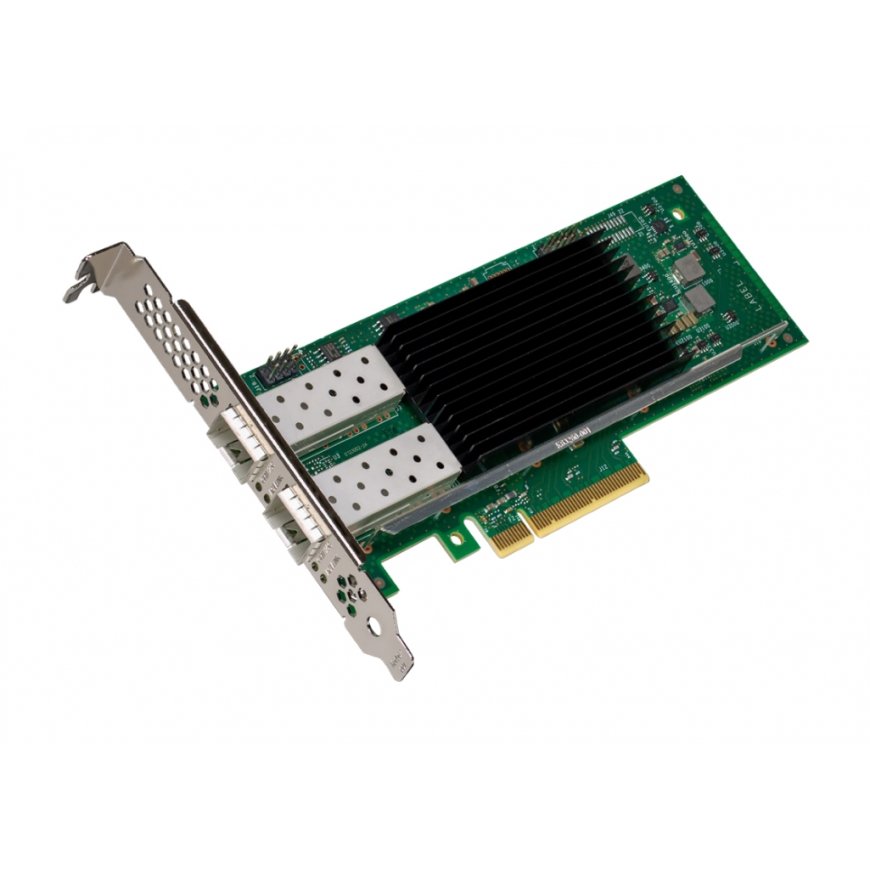

Intel E810-XXVDA2 Internal Fiber
350,96 €
349.36 €
Monthly payment from 9,90 €
3607055 E810XXVDA2G1P5
0675901654029, 0735858425773, 5032037167970
Shipping 12-13 b.d.
You are interested in this product?
All about the product
iWARP/RDMAiWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Network | |
| Networking standards | IEEE 802.1p, IEEE 1588, IEEE 1588v2 |
| Ethernet LAN data rates | 1000, 10000, 25000 |
Ports & interfaces | |
| Fiber optic connector | SFP28 |
Management features | |
| Quality of Service (QoS) support | Yes |
Design | |
| LED indicators | Activity, Link |
| Product colour | Black, Silver, Green |
Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions | |
| Width | 167 mm |
| Depth | 68 mm |
Other features | |
| Interface | Fiber |
Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
