Makita DCU601Z Cordless wheelbarrow 2X18V Li-ion, with electro-hydraulic lifting function, BL-motor, 3-speed, max load 300kg, 14

All about the product

Meie ettevõte ei ole Makita kaubamärgi tootja, volitatud edasimüüja ega volitatud esindaja Eestis-s.

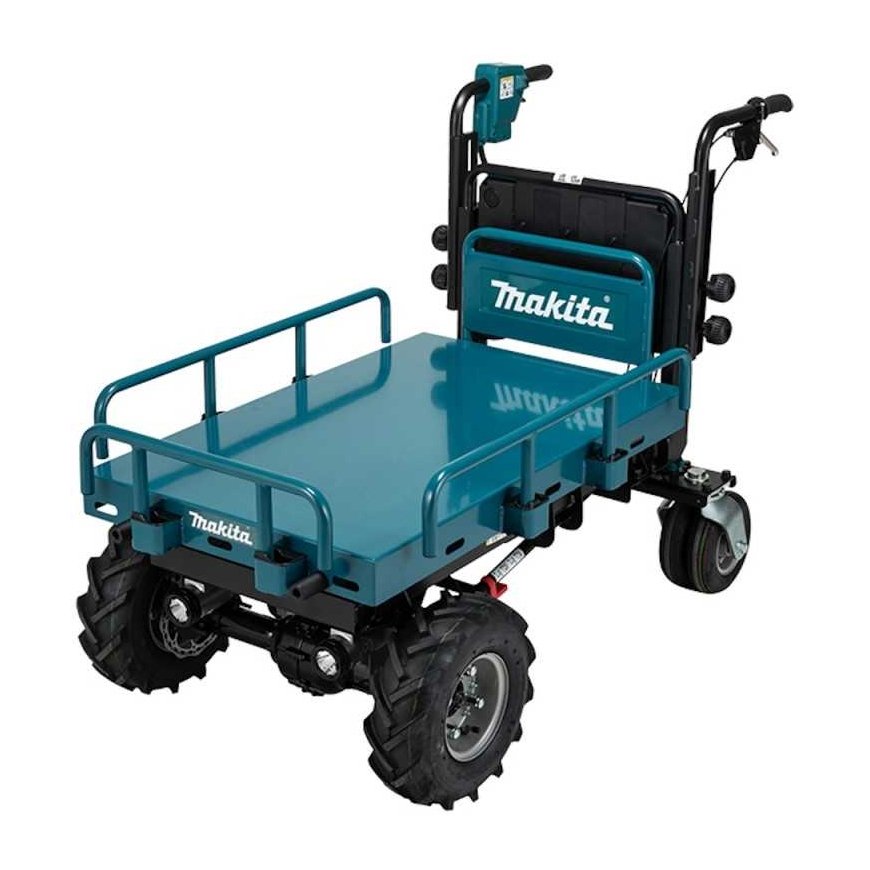

Cordless self-propelled transport trolley with platform, 2x18V, Makita [DCU601Z]:

• self-propelled transport trolley with battery drive, powered by 2 18 V batteries,
• the loading platform allows loading and transporting up to 300 kg of cargo (on flat terrain) and up to 180 kg on sloping terrain (max. 12°),

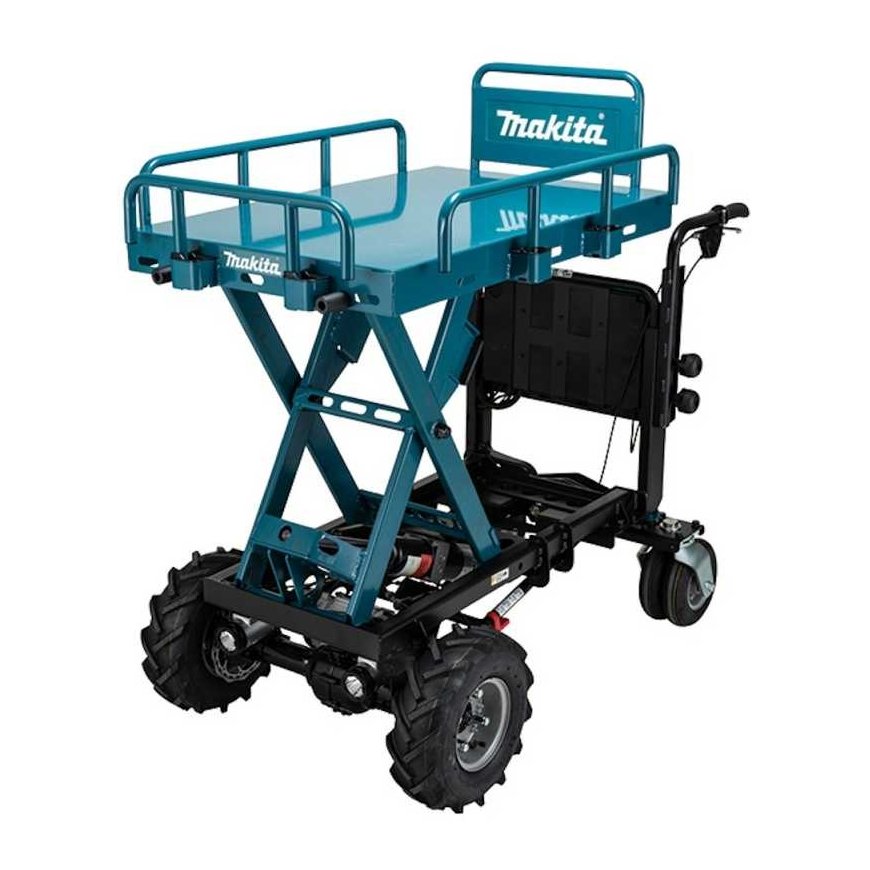

• the platform is electrically raised to a maximum height of 1020 mm,
• The trolley has a brushless BLDC DC motor ,
• Made with XPT technology to ensure greater resistance to dust and water,
• has 3 forward speeds with smooth speed regulation and reverse gear,
• neutral mode disables power transmission between the motor shaft and the axle if the battery is not installed, the battery capacity is low or the motor is damaged, so the wheelbarrow can be driven manually,
• The direction of travel is illuminated by headlights , which are turned on with a conveniently located button with an automatic shutdown function after 10 minutes,
• with electric and electromagnetic brake,
• has a function soft start,
• The lock key protects the device from children,
• has a container for 4 batteries - after discharging two batteries, you can switch the stroller to the other two with a button,
• battery charge level indicator, separately for each battery,
• constant speed control automatically supplies extra power to the engine to maintain speed under load and perform the toughest tasks
• The battery protection circuit protects it from overload, over-discharge and overheating,
• There are two large front drive wheels and dual small diameter rear wheels with adjustable spacing, improving the stability and turning capabilities of the stroller,

• the ability to lock the rear wheels allows for smooth straight-line driving even on uneven surfaces,
• tubular tires, used on both front and rear wheels, are characterized by non-deformation and reduced loss of air pressure in the wheels even after long-term storage,
• The stroller has a handle height adjustment without tools,
• the ability to turn on a warning sound that informs the environment about the operation of the wheelchair,
• does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah),
• The stroller is delivered without batteries and charger.

SELF-PROPELLED TRANSPORT CART MAKITA [DCU601Z] TECHNICAL PARAMETERS:

• supply voltage : 2x18V,
• Battery type : lithium-ion,
• Supported batteries : 1.5 / 2.0 / 3.0 / 4.0 / 5.0 / 6.0 Ah,
• operating time with 4 18V / 6.0 Ah batteries : 100 min.,
• number of gears : 3 forward + reverse,
• forward speed : 0–1.5 / 3.5 / 5.0 km/h ,
• reverse speed : 0-1.0 km/h ,
• maximum load capacity : 180 / 300 kg,
• Minimum turning radius : 1150 mm,
• maximum terrain gradient when driving uphill : 12°,
• sound pressure level : 70 dB(A),
• noise coefficient : 4 dB(A),
• vibration level : ≤ 2.5 m/s²,
• vibration coefficient _Kh : 1.5 m/s²,
• dimensions (L x W x H) : 1400 x 730 x 820 - 1030 mm ,
• weight : 143.3 kg,
• weight with battery (EPTA) : 144 - 145 kg
