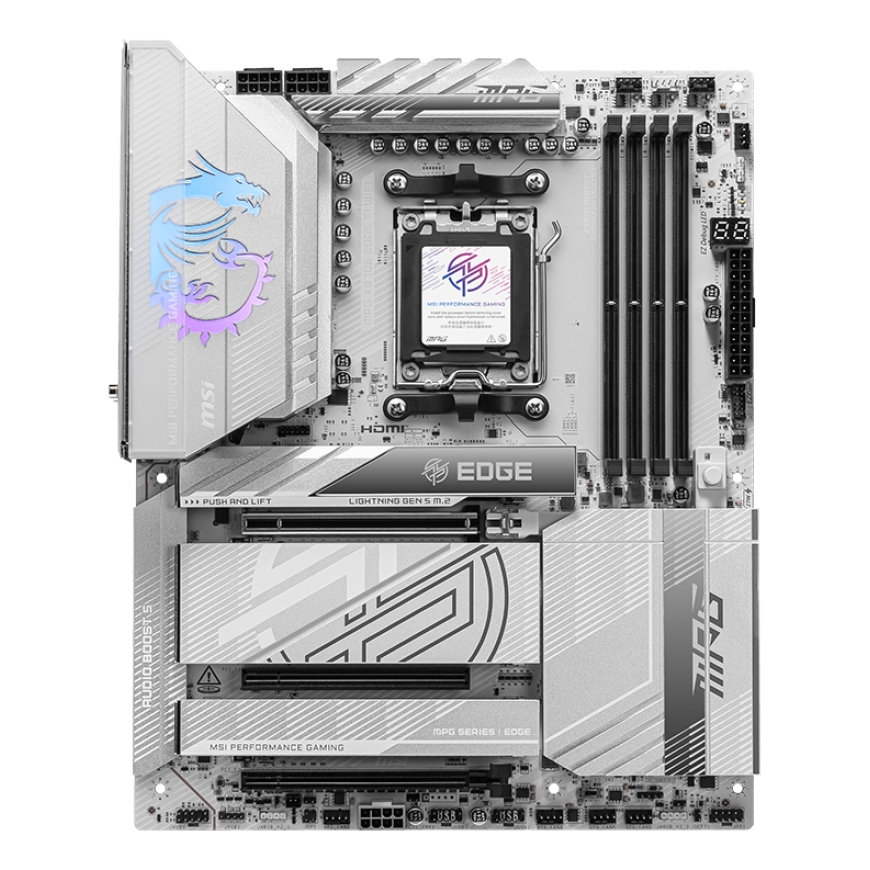

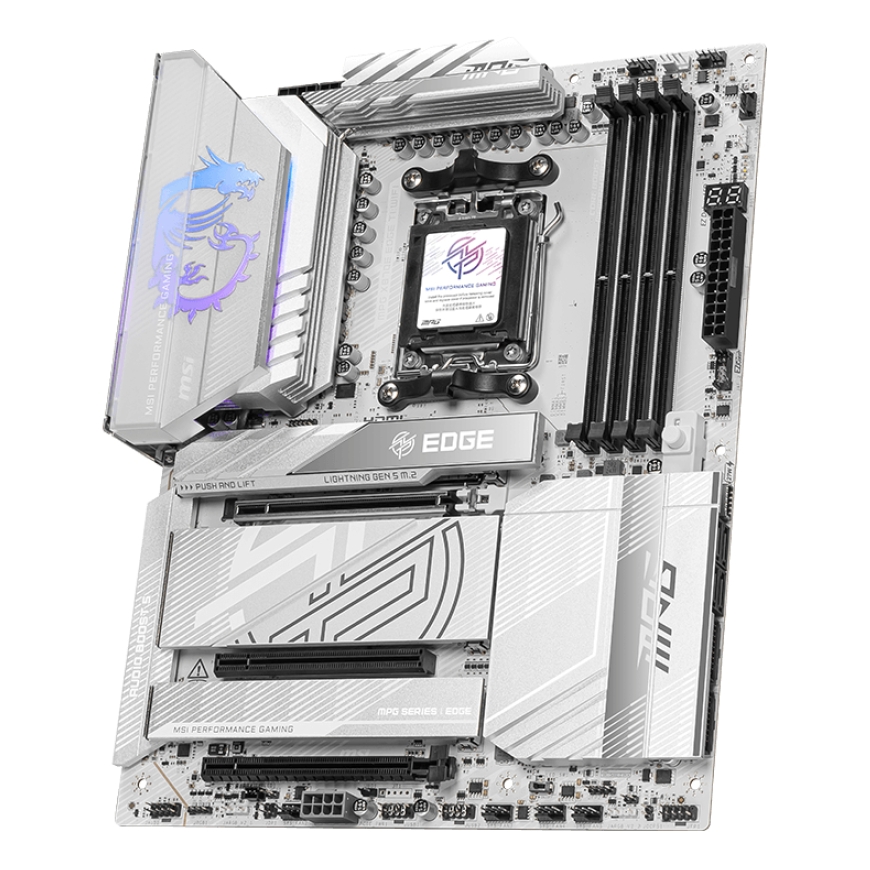

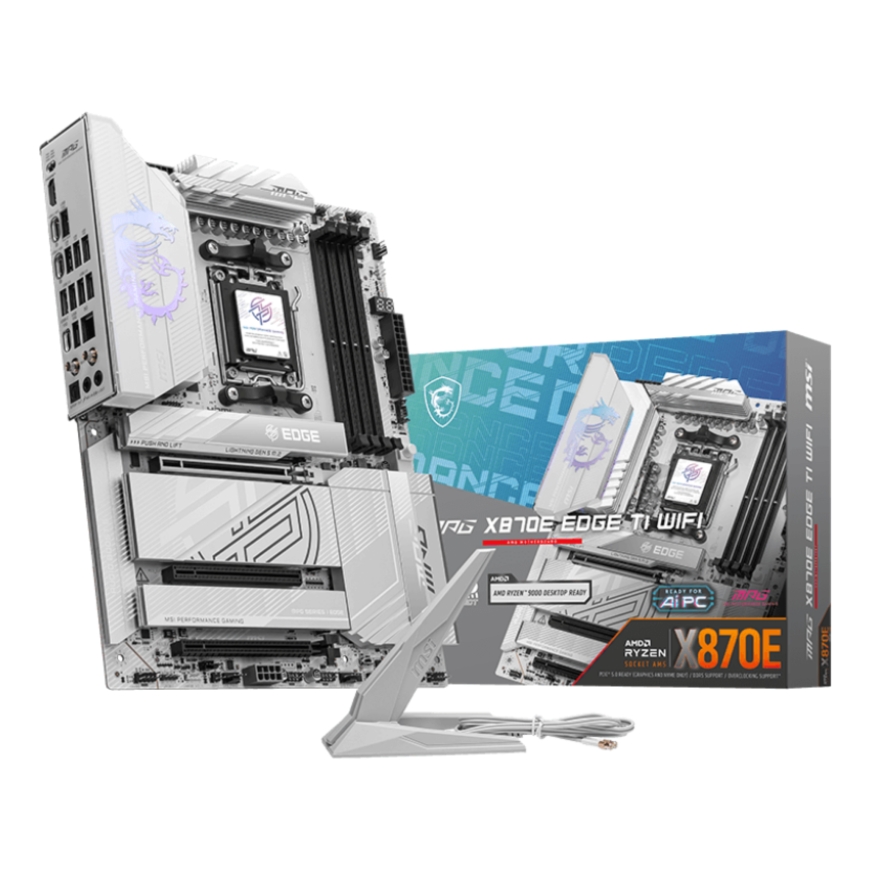

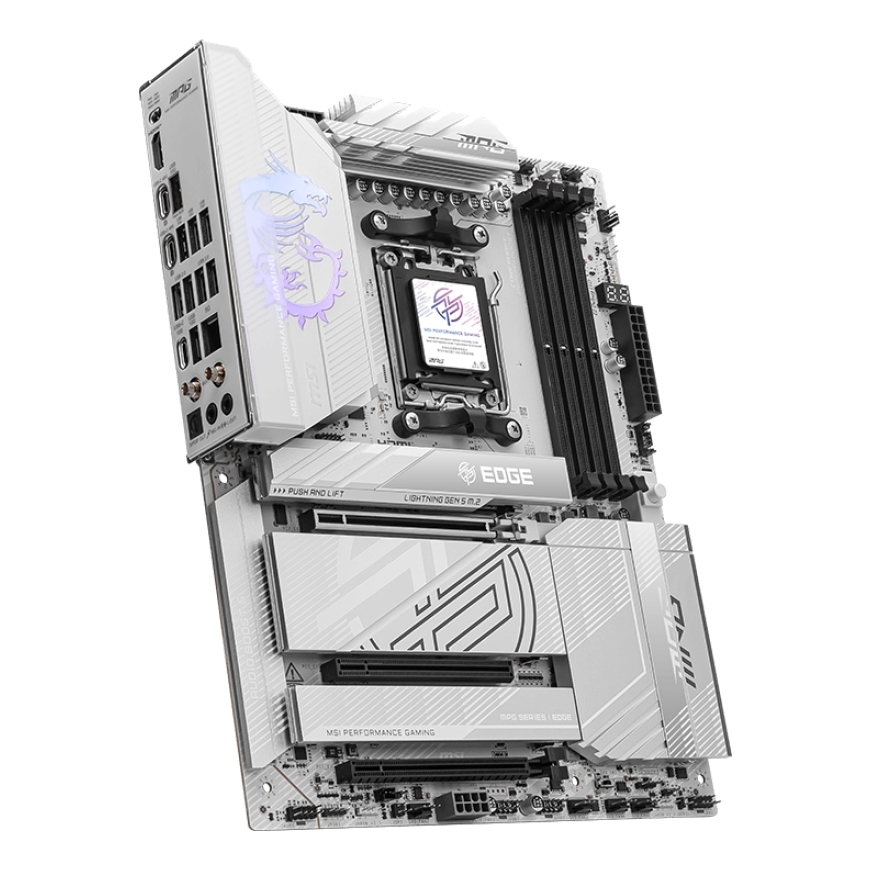

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX
459.00 €
Monthly payment from 12,72 €
3489062 MPG X870E EDGE TI WIFI
4711377290630, 0824142395363
Shipping 11-12 b.d.
You are interested in this product?
All about the product
MPG X870E EDGE TI WIFIMPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Processor | |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 4800, 5600, 8400 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8400 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
Graphics | |
| On-board graphics card | No |
Internal I/O | |
| Number of SATA connectors | 0 |
| USB 2.0 connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |

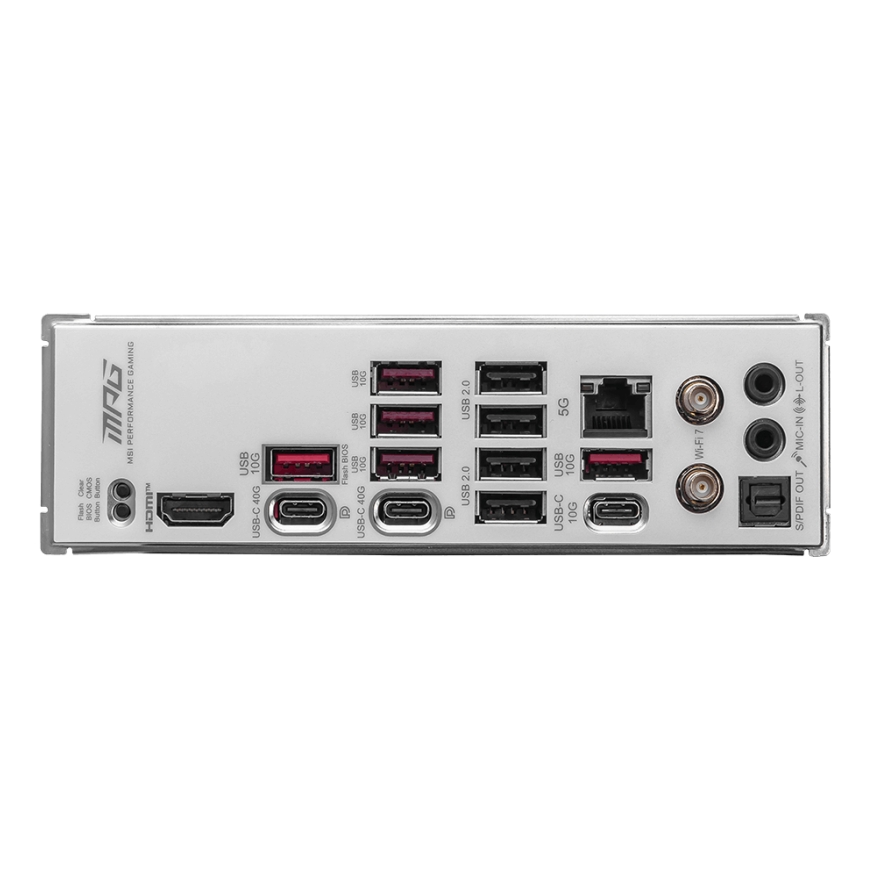

Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
Network | |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X870E |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Component for | PC |
| Product colour | White |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
Other features | |
| mSATA ports quantity | 0 |
