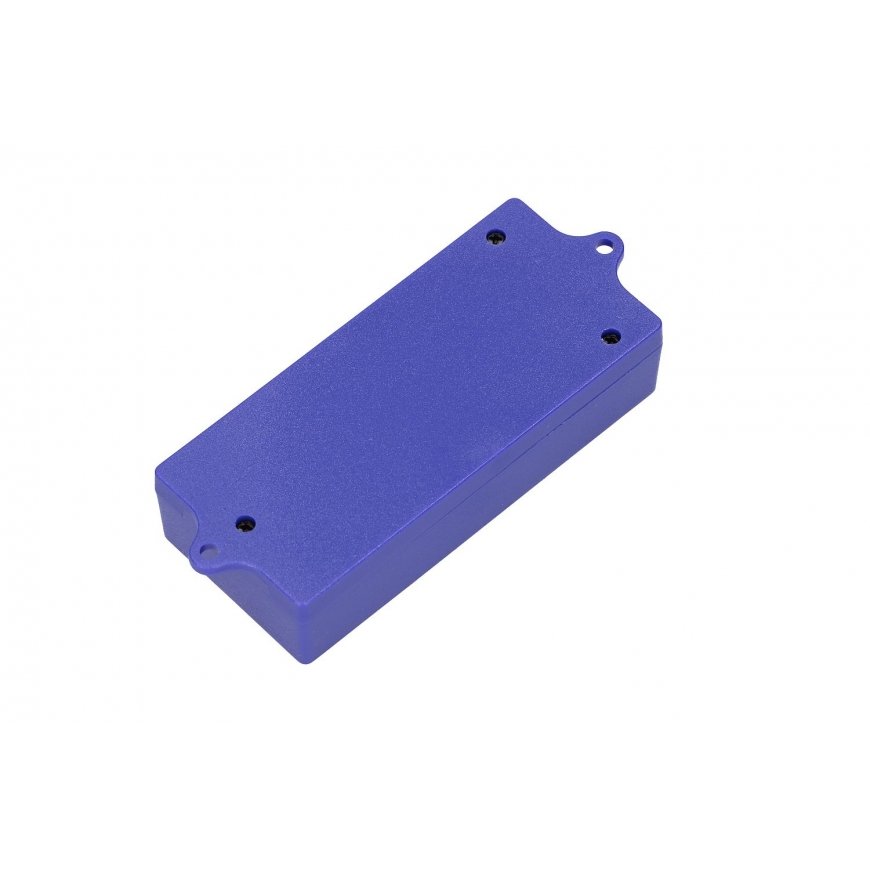

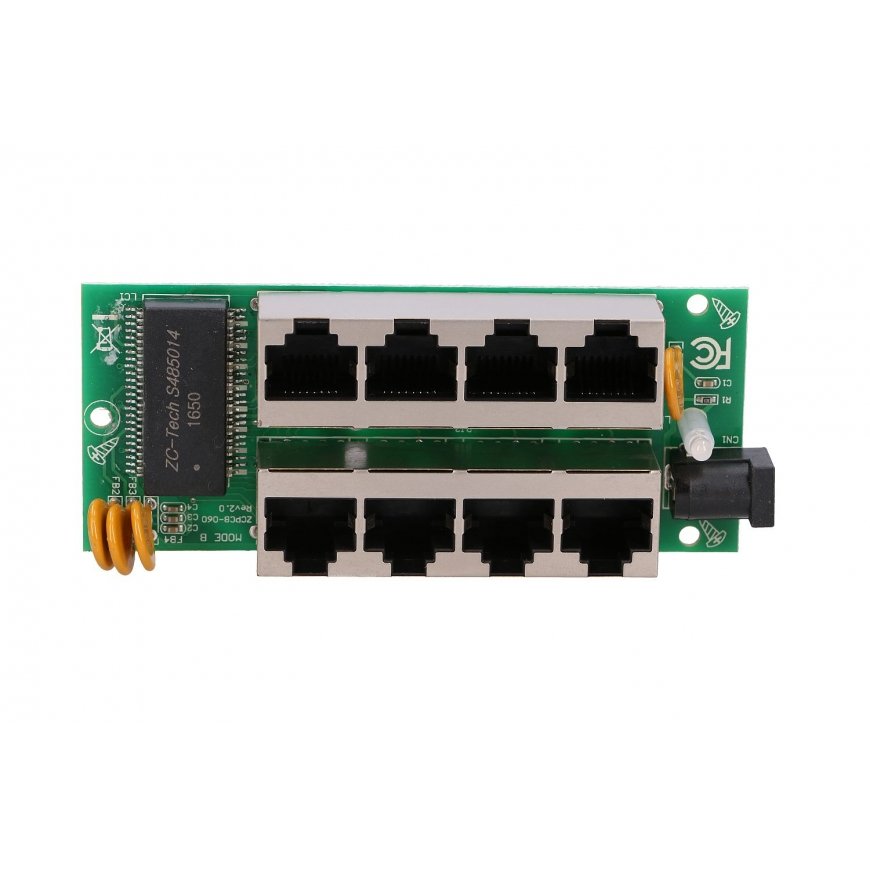

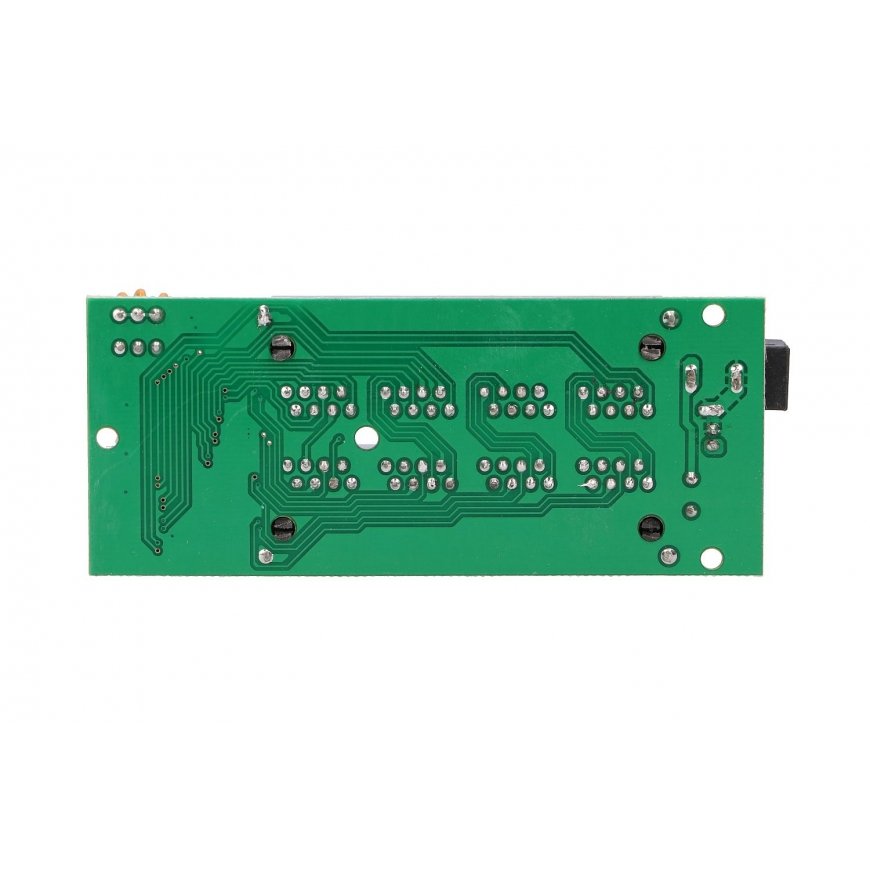

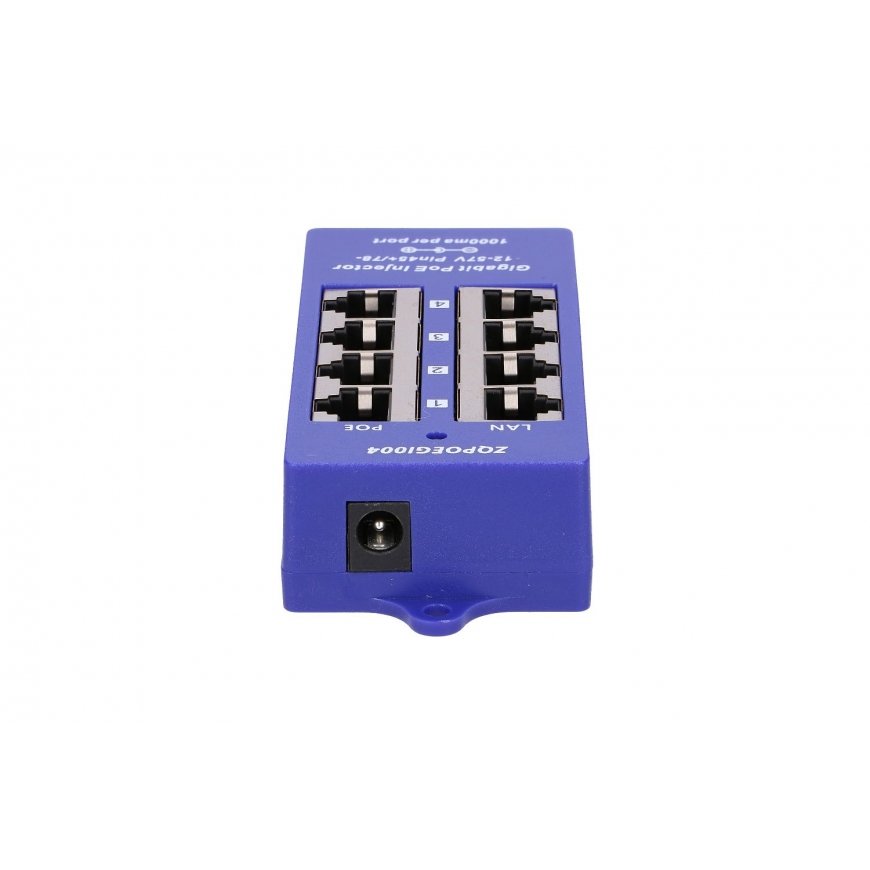

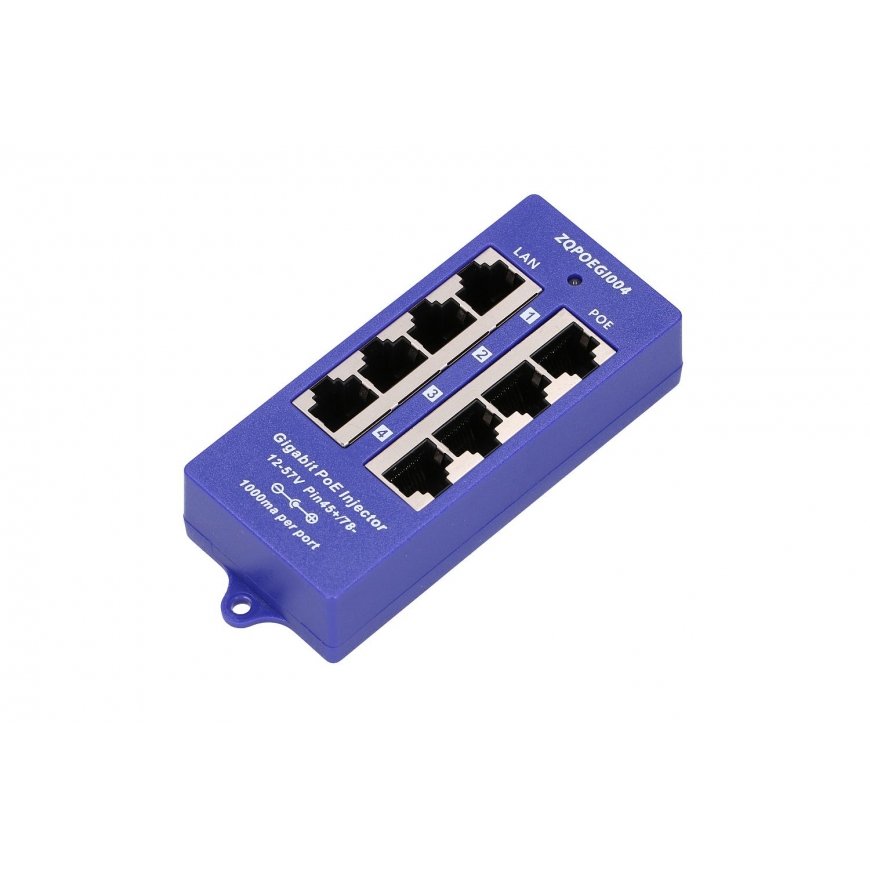

Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45 – 2
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45 – 3
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45 – 4
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45 – 5
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45
Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Extralink Gigabit PoE Injector 4 Port 4x 1000Mb/s RJ45

20.70 €
3471937

EX.6358

5902560366358

Shipping 7-11 b.d.

You are interested in this product?
(Read terms of service)

All about the product

PoE injector 4 Gigabit ports - reliable power system
Extralink 4-port PoE injector supports 10/100/1000 M Ethernet throughput. RJ45 LAN connectors are designed to connect the switch/PC/HUB and pins 1/2, 3/6, 4/5 & 7/8 transmit data. The POE RJ45 connectors provide both data and PoE power, the pins 1/2, 3/6, 4/5 & 7/8 are for data and the pins 4/5 (+) & 7/8 (-) for power. The unit consists of 4 sets of RJ45 sockets and one power outlet up to 60 V DC. The power input has a diameter of 5.5 mm. The total output power must be less than the maximum input power of the AC-DC supply, otherwise a stronger AC-DC supply must be considered. The recommended power formula for the AC-DC adapter is 10 W per RJ45 kit (1 kit = 2 x RJ45 sockets). For example, 4 x 10 W = 40 W for a PoE panel with 4 ports.
Network
Networking standards IEEE 802.3at, IEEE 802.1af
Ethernet LAN data rates 1000 Mbit/s
Auto MDI/MDI-X Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 4
DC-in jack Yes
Management features
Web-based management No
Design
Product colour Black, Blue
Wall mountable Yes
Features
Firmware upgradeable No
Plug and Play Yes
Power
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage 48 V
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 80%
Packaging data
Number of products included 1 pc(s)
Other features
Operating temperature (T-T) 0 - 70 °F
Rack mounting No
Certificates
Certification CE, FCC
Packaging content
AC adapter included No
Manual No
Quick installation guide No
