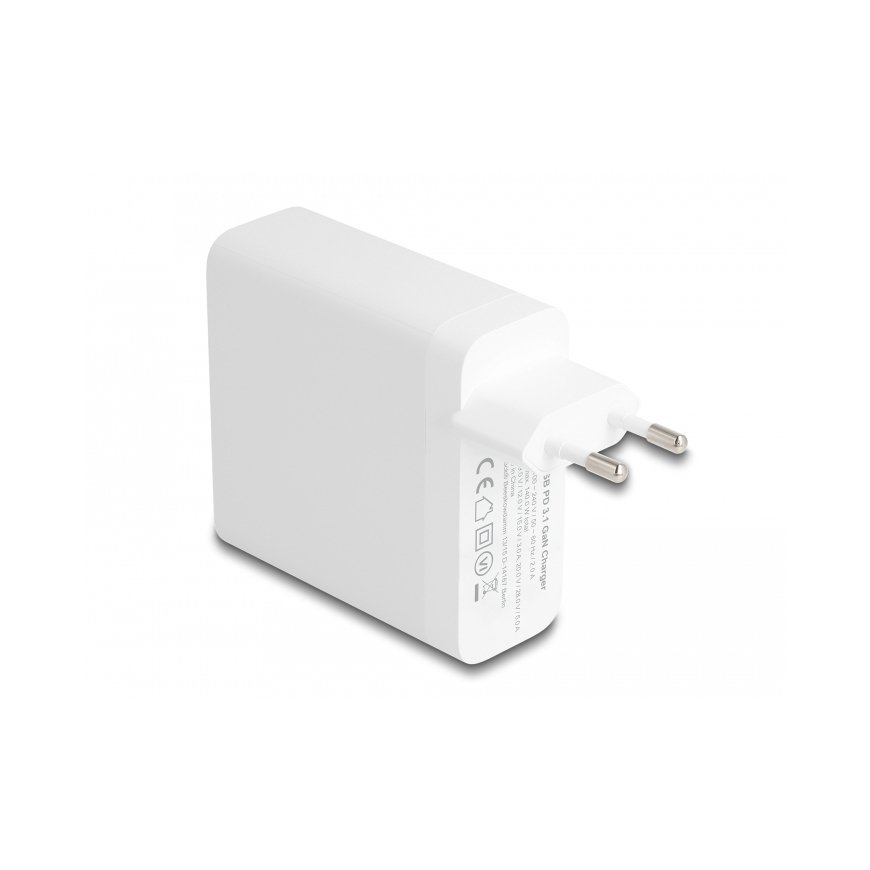

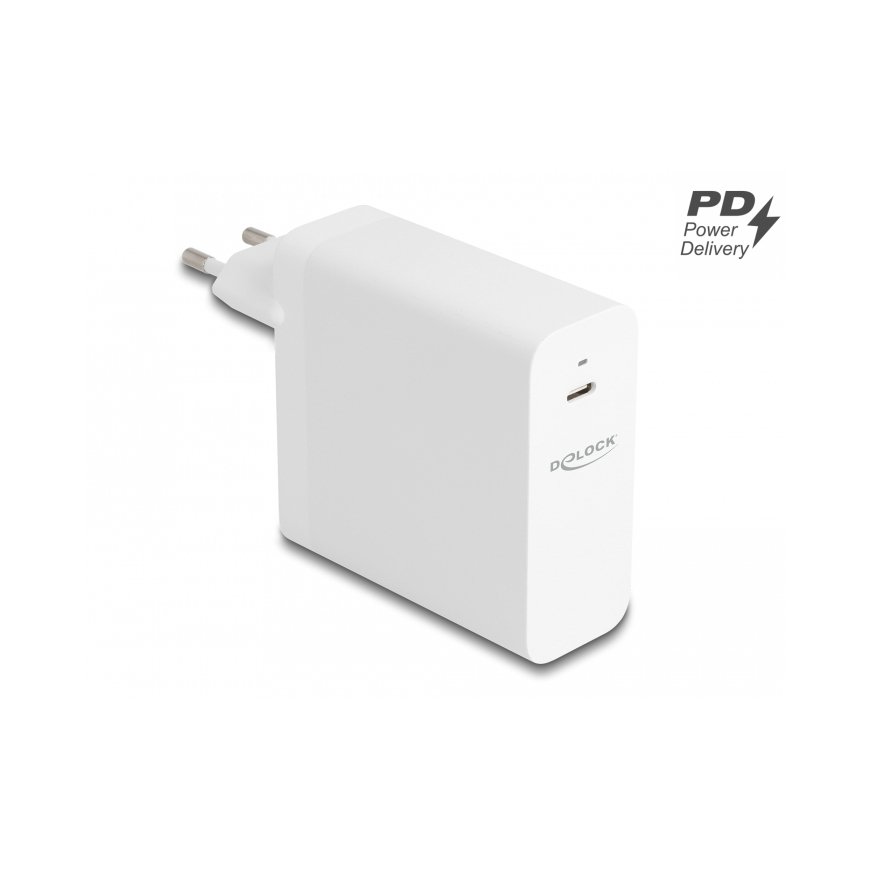

DeLOCK USB GaN Charger 1 x USB Type-C PD 3.1 with 140 W
99.00 €
Monthly payment from 3,45 €
3402896 41471
4043619414710
Shipping 13-14 b.d.
You are interested in this product?
All about the product
This USB charger by Delock can be used to charge a USB devices. The port is equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 140 watt.USB-PD Version 3.1
The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.
GaN technology
The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.
Note
For the EPR mode (28, 36, 48 V / 5 A), a USB cable with a corresponding E-marker is mandatory. If this E-marker is not available, max. 3 A are transmitted.
Corresponding cables by Delock are optionally available.
Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| Charger type | Indoor |
| Power protection features | Over current, Overload, Overheating, Short circuit |
| Fast charging | Yes |
| USB Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| Number of simultaneously connected devices (max) | 1 |
Design | |
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 140 W |
| Input current | 2 A |
| Maximum output voltage | 28 V |
| Minimum output voltage | 5 V |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Power consumption (no load) | 0.182 W |
| Average active efficiency | 89.75 |
| Efficiency at low load (10%) | Yes |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
Weight & dimensions | |
| Depth | 113 mm |
| Height | 35 mm |
| Width | 75 mm |
Packaging content | |
| Cables included | USB Type-C |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
