The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

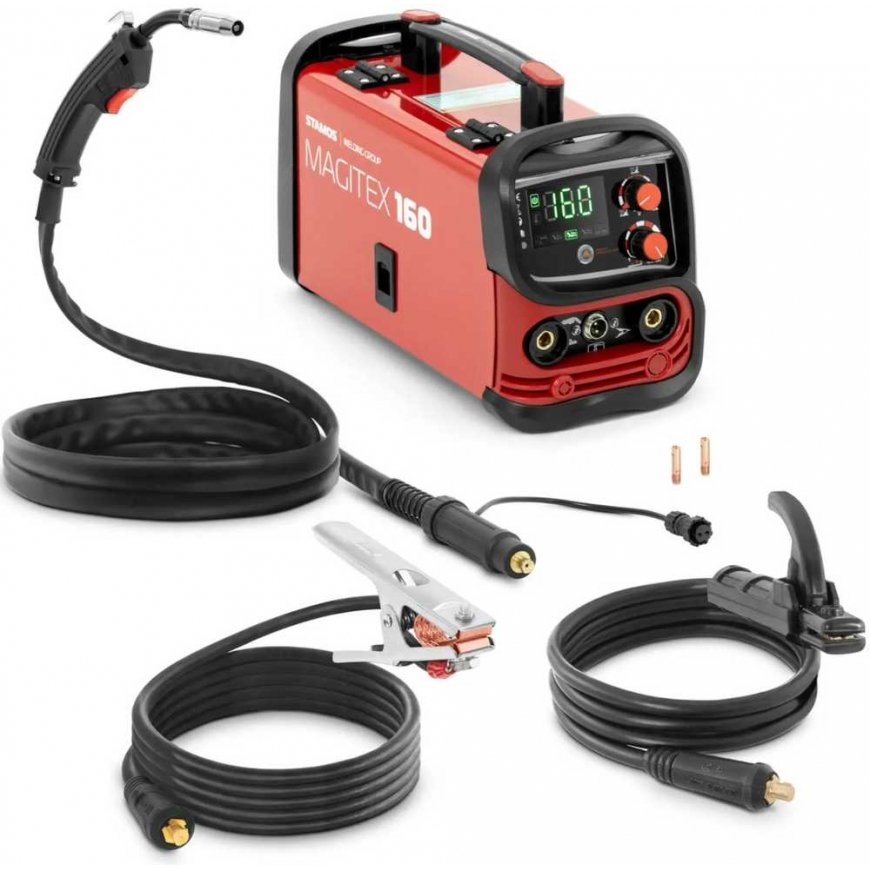

Stamos Germany Spawarka inwertorowa MIG/MAG IGBT TIG Liftarc 160 A
109.00 €
Monthly payment from 3,71 €
3363552 10021499
4062859232021
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Manufacturer code: 10021499The Stamos MIG/MAG welder uses the latest IGBT inverter technology and offers the highest level of versatility and quality. Smooth adjustment of the welding current up to 160 A ensures optimal welds for many different tasks. The Migomat is equipped with an MMA welding option, which allows it to be used outdoors in windy conditions without any problems. It is also possible to work with the TIG Liftarc method. All operating values are always visible on the clearly arranged control panel. It is also easy to select the mode between welding with self-shielded wire (FLUX), TIG Liftarc and MMA . At full power, the welder reaches 160 A and a duty cycle of 60%. As a result, it reliably copes with even complex tasks. It also has an integrated place for holding a coil of wire . Depending on the diameter of the welding wire (0.8 / 0.9 / 1 mm), you can select the appropriate mode on the control panel to obtain optimal results. Migomat is designed for joining metal objects in production, workshops, blacksmithing and crafts. This model's TIG method uses a Liftarc ignition to activate the arc. Compared to high-frequency ignition, it has the advantage that it does not affect or disturb nearby sensitive electronic devices such as mobile phones, computers or control systems. Using the panel, you can easily set the amperage up to 130 A. The MMA welding mode is mainly used for welding iron or copper, as well as alloys such as cast iron or steel. Since stick welding does not require gas, the device can also be used in difficult conditions such as wind. The Arc Force function ensures optimal results thanks to a stable arc.
Product features:
- - MIG/MAG welder offers 160 A for wire welding, 130 A for TIG Liftarc and 120 A for MMA,
- - The IGBT converter of Migomats reliably processes all values, allows quick switching of modes and influences the compact size of the machine,

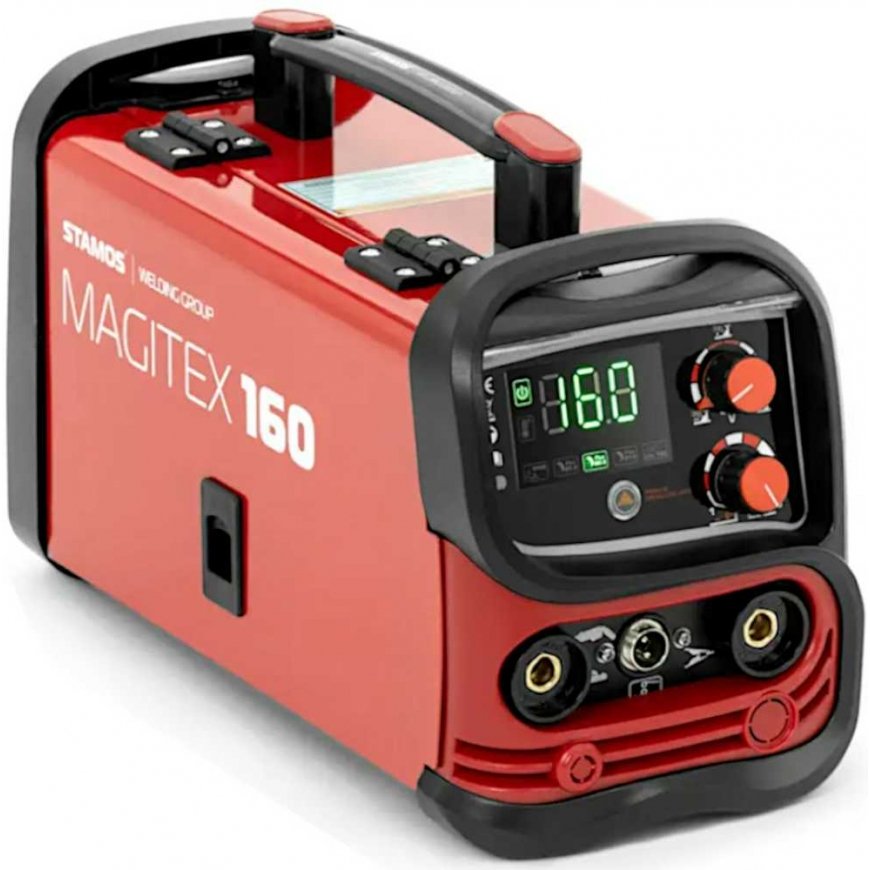

- - All settings are set intuitively on a clear control panel with a large screen,

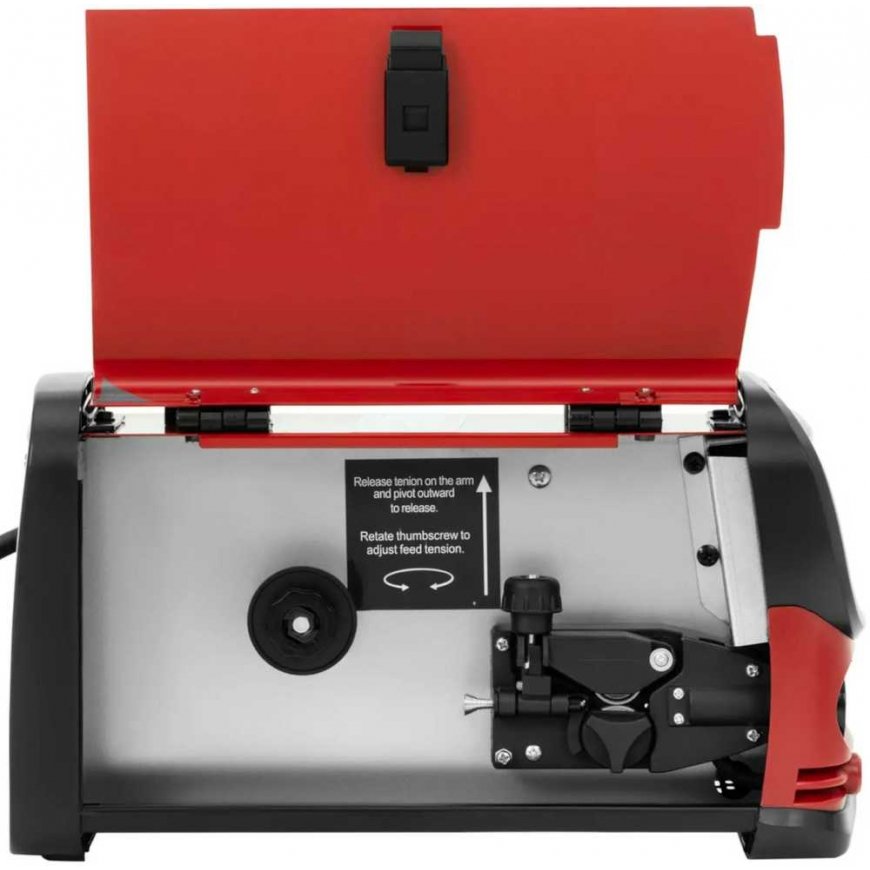

- - The integrated coil chamber and feeder of the MIG/MAG welding machine is designed for wire with a diameter of 0.8 to 1 mm,
- - Arc Force to produce high quality welds in MMA welding.
Technical parameters:
- - Catalog number - 10021499
- - Product condition - New
- - Model - MAGITEX 160
- - Material - Steel
- - Color - Black
- - Voltage [V] - 230
- - IP protection level - IP21S
- - Wire speed [m/min] - 2-14
- – Utility [%] – 80
- - Wire diameter [mm] - Φ0.8/0.9/1.0
- - MMA welding current [A] - 20-120
- - TIG welding current [A] - 10-130
- - Maximum welding current [A] - FLOW: 160
- - Minimum welding current [A] - FLOW: 20
- - Raise the TIG - Yes
- - ARC-Force - Yes
- - MMA function - Yes
- – Duty cycle [%] – 60
- - MIG/MAG cable - 2 m
- - Maximum diameter of wire coil - 15 mm
- - Dimensions (LxWxH) - 35 x 15 x 22 cm
- - Weight - 6 kg
- - Shipping dimensions (LxWxH) - 40 x 25 x 26 cm
- - Shipping weight - 6.8 kg
- - Dimensions (LxWxH) - 35 x 15 x 22 cm
- - Weight - 6 kg
- - Shipping dimensions (LxWxH) - 40 x 25 x 26 cm
- - Shipping weight - 6.8 kg
The price includes:

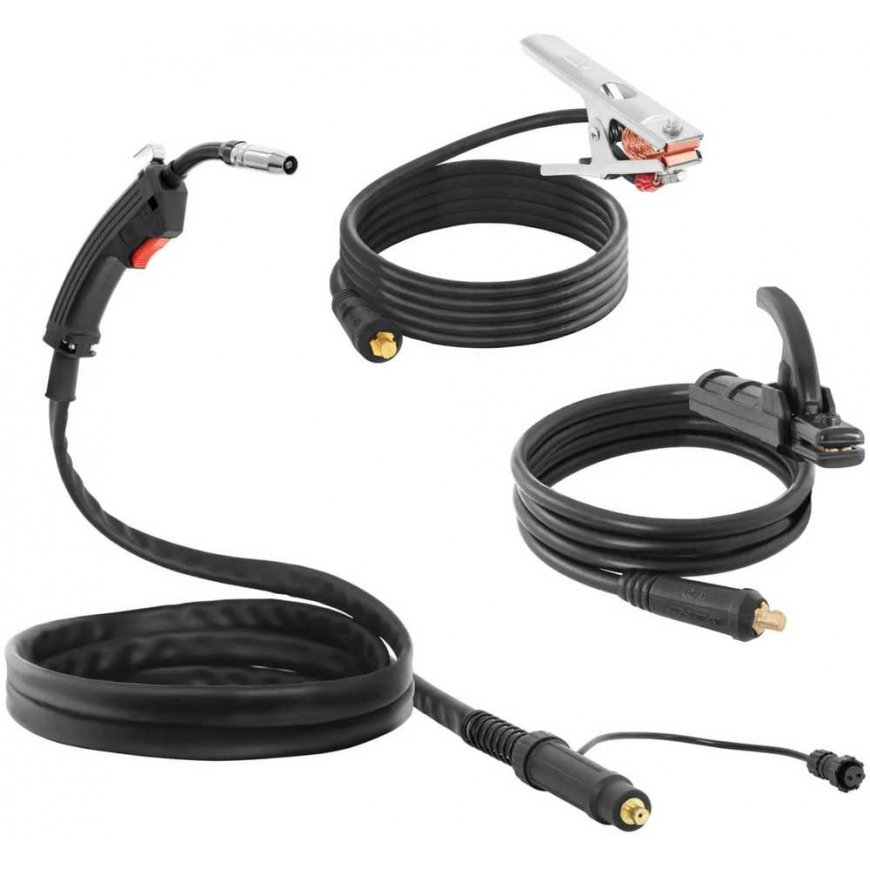

- - Welding machine
- - MIG/MAG torch with hose set (2 m)
- - Electrode holder with cable (1.8 m)
- - Earth terminal with cable (1.2 m)
- - Power cable (2 m)
